NSN 5310-00-773-7624 M2147015, NAS6206C, NAS620-6C

Product Details | FLAT WASHER

5310-00-773-7624 A washer having a centrally located hole with a solid or laminated cross-section and two flat parallel bearing surfaces. The hole must be 75 percent or less than the largest dimension and the bearing surface finish is greater than 32 microinch (0.8 micrometer). The thickness cannot exceed 25 percent of the largest outside dimension. When the largest outside dimension is less than 1/4 inch or 6mm, the thickness must be 0.006 inches (0.15mm) or greater and for items 1/4 inch (6mm) or larger, the thickness must be 0.016 inches (0.4mm) or greater. The maximum tolerance is applied to dimensions and used as a determining factor. Items with separable lamination use SHIM. For items fabricated from ceramic or electrically rated materials by specification or industry standards use INSULATOR (1), WASHER. Excludes DISK, VALVE, graphite impregnated and lubricated items.

Part Alternates: M2147015, NAS6206C, NAS620-6C, NAS620C06, NAS620C6, NAS620C6C, NAS620C-6C, NAS620C6P, PW0266, PW026-6 , REW6206, REW620-6, D00015N099, D-000-15N-0-99-, D01N099032, D-01N-0-99-032, D-14N-099-012 PIECE29, D14N099012PIECE29, 7903354-03, 85929400, 859294-00, 9476204062, 947620-4062, 5710-147-20, 704463-006, 7637215, 763721-5, 7637218, 763721-8, 100782P2, 100-782P2, 10121669 , 1530103019, 153-0103-019, 1530183010, 153-0183-010, 186478, 2400162040, 24-00162-040, 26092681, 2609268-1 , 40530006516, 021.450536, 4197600-27, 53100000001, 5310-000-0001 , 5310-00-773-7624, 00-773-7624, 5310007737624 , 007737624, 021450536, 419760027, 571014720, 704463006, 790335403

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1960	00-773-7624	13393 ( WASHER, FLAT )

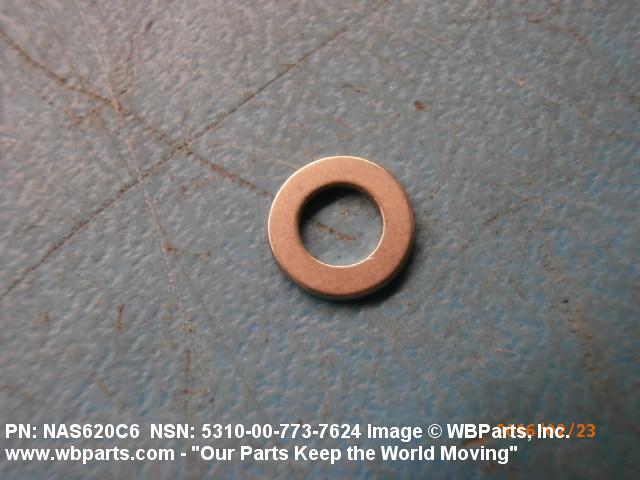

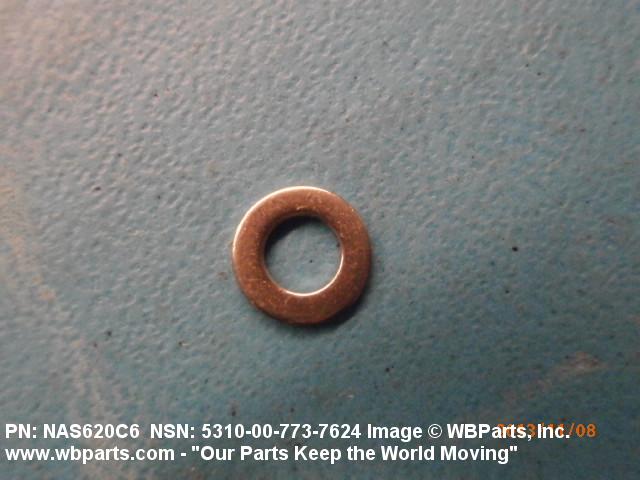

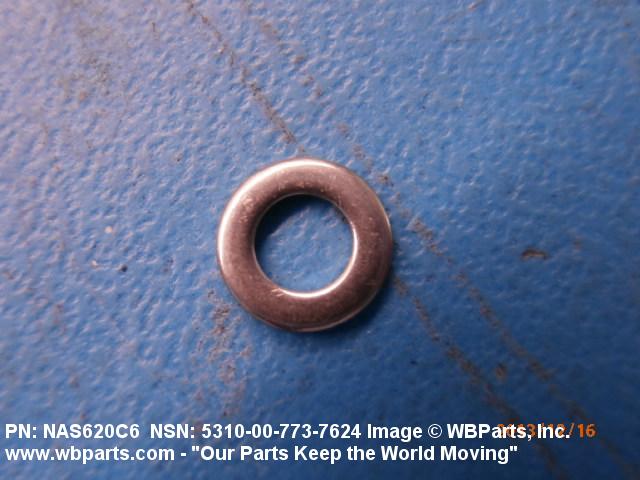

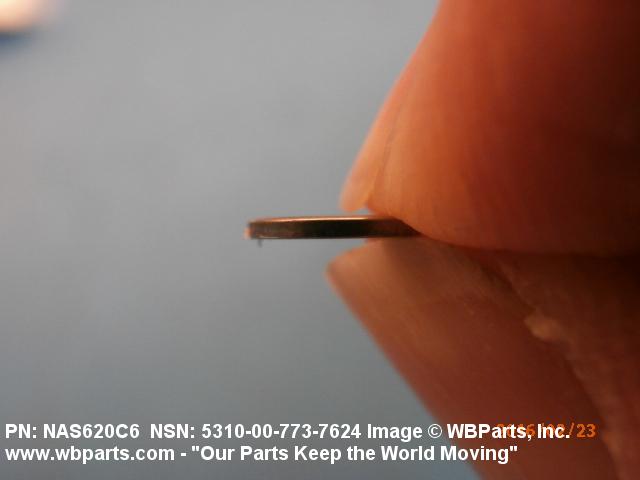

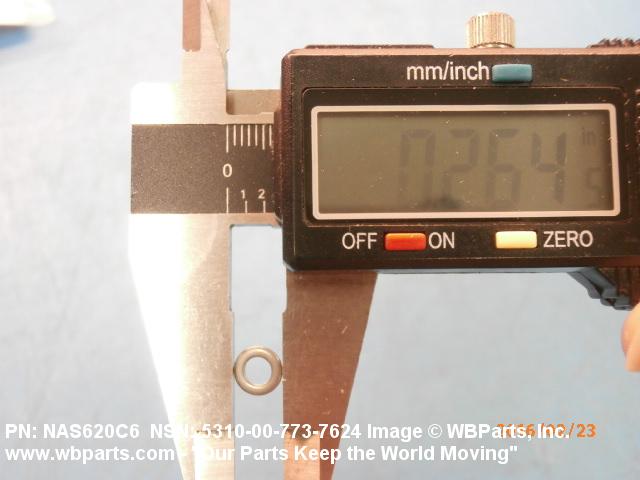

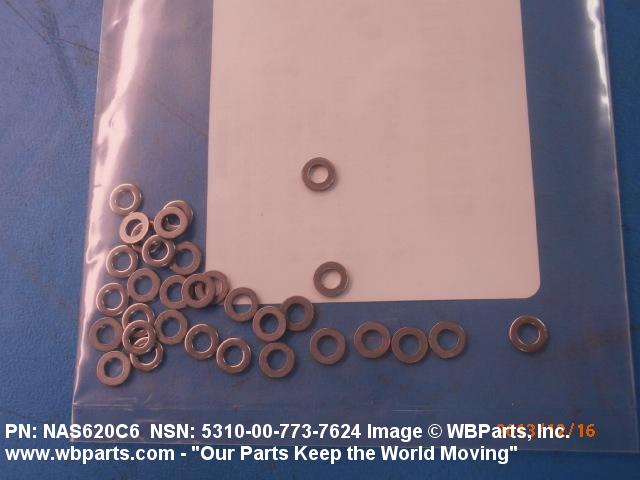

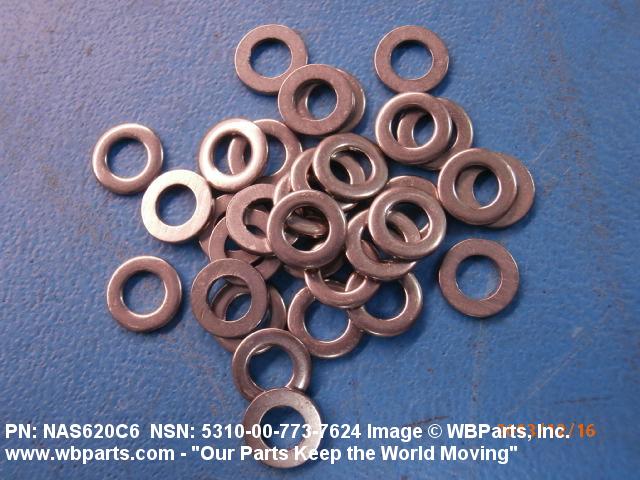

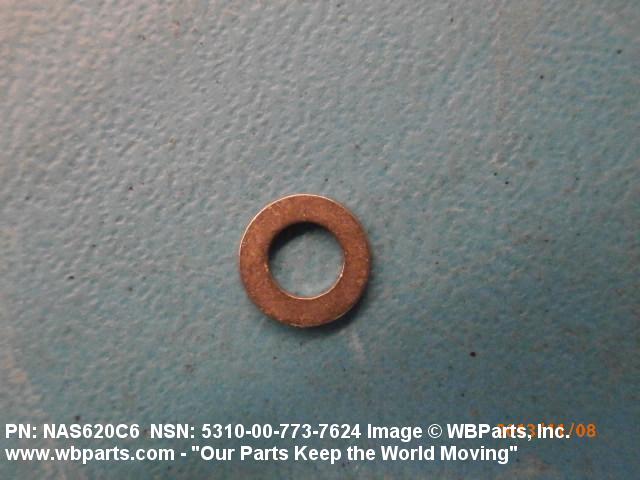

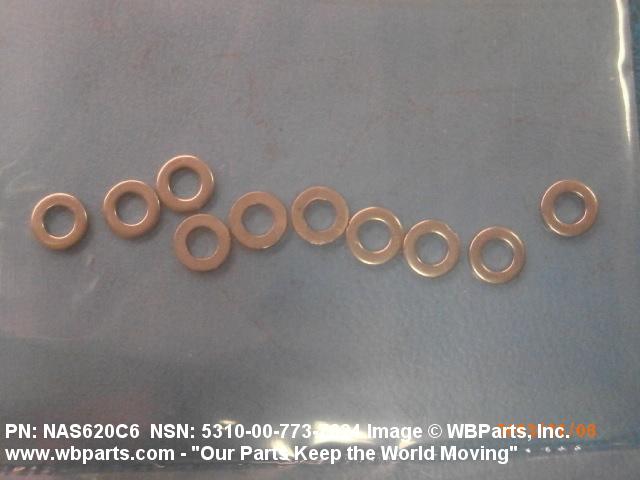

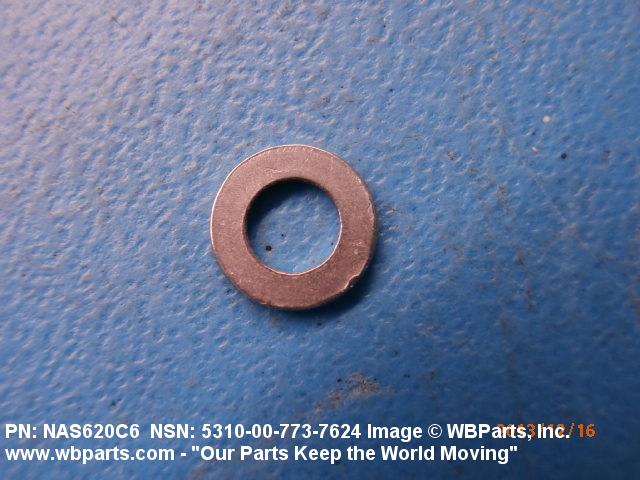

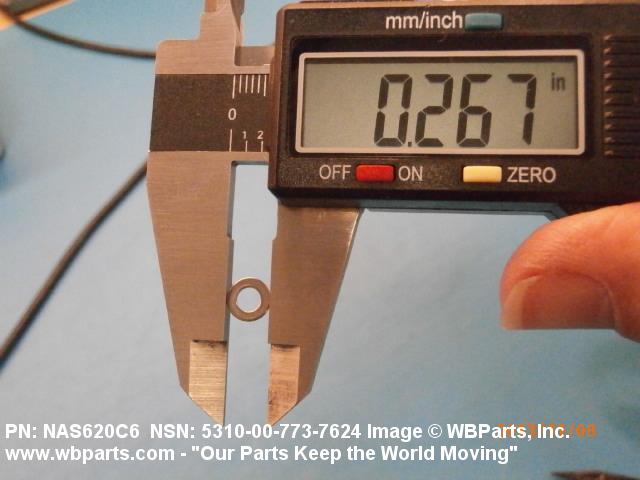

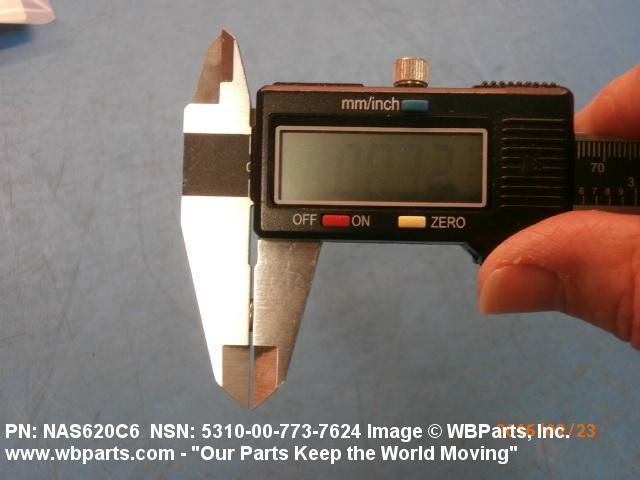

Drawings & Photos | NSN 5310-00-773-7624

Part Number	Request Date	QTY	Origin
NAS620C6	2024-05-143	500	Turkey
NAS620C6	2024-04-109	50	US
NAS620C6	2024-04-109	500	US
NAS620C6	2024-04-109	5000	US
NAS620C6	2024-04-109	10000	US
NAS620C6	2023-10-296	6230	United States
NAS620C6	2023-08-219	1	Iraq
5310-00-773-7624	2023-04-95	20	United States
NAS620C6	2021-11-319	1092	IN
NAS620C6	2021-10-286	25	United States
NAS620C6	2021-07-188	170	United States
NAS620C6	2020-02-44	12	United States
NAS620C6	2019-08-233	36	United States
NAS620C6	2019-03-72	30	United States
NAS620C6	2018-11-310	1232	Israel
NAS620C6	2018-09-248	650	United States
5310-00-773-7624	2018-03-71	4	United States
NAS620C6	2018-01-23	750	United States
NAS620C6	2017-07-192	800	Australia
NAS620C6	2017-02-44	275	Australia
NAS620C6	2017-02-32	275	Australia
NAS620C6	2017-01-16	220	Australia
NAS620C6	2016-08-228	2240	United States
NAS620C6	2016-08-218	200	us
NAS620C6	2016-07-211	750	United States
NAS620C6	2016-04-96	621	US
NAS620C6	2016-01-19	250	Australia
NAS620C6	2015-11-328	120	us
NAS620C6	2015-09-252	50	United States
NAS620C6	2015-07-197	8	Mexico
NAS620C6	2014-12-342	500	Australia
NAS620C6	2014-09-259	116	United States
5310-00-773-7624	2014-05-139	28	MANUAL
NAS620C6	2014-05-133	172	US
NAS620C6	2014-04-107	40	US
NAS620C6	2014-02-55	80	US
NAS620C6	2014-02-49	75	US
NAS620C6	2013-12-344	30	Turkey
NAS620C6	2013-11-308	10	Turkey
NAS620C6	2013-10-297	10	US
NAS620C6	2013-10-280	100	US
NAS620C6	2013-06-156	50	Australia
NAS620C6	2013-04-120	10	US
NAS620C6	2013-04-94	40	Turkey
NAS620C6	2013-03-64	40	United Kingdom
NAS620C6	2012-10-284	250	us
NAS620C6	2012-09-258	25	US
NAS620C6	2012-08-236	36	US
NAS620C6	2012-06-178	500	US
NAS620C6	2012-06-178	1000	US
NAS620C6	2012-04-93	8	US
NAS620C6	2012-02-40	20	United States
NAS620C6	2012-01-26	12	us
NAS620C6	2011-11-306	50	United States
NAS620C6	2011-10-304	45	US
NAS620C6	2011-07-201	150	United Kingdom
NAS620C6	2011-04-105	500	US
NAS620C6	2011-01-17	50	US
5310-00-773-7624	2010-12-342	680	US
NAS620C6	2010-12-335	50	US
NAS620C6	2010-10-278	256	Saudi Arabia
NAS620C6P	2010-10-278	32	Saudi Arabia
NAS620C6	2010-10-278	256	Saudi Arabia
NAS620C6P	2010-10-278	32	Saudi Arabia
5310-00-773-7624	2010-08-239	5000	Australia
NAS620C6	2010-04-96	500	US
5310-00-773-7624	2010-03-85	2300	DIBBS
NAS620C6	2009-06-161	33	us
NAS620C6P	2008-09-246	200	United States
5310-00-773-7624	2008-08-225	200	Israel

Cross Reference | NSN 5310-00-773-7624

Part Number	Cage Code	Manufacturer
021.450536	D1597	AIM INFRAROT-MODULE GMBH DBA AIM IR GMBH
100-782P2	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
153-0103-019	94756	BOEING COMPANY, THE DBA BOEING
153-0183-010	94756	BOEING COMPANY, THE DBA BOEING
186478	66503	WOODWARD, INC. DBA WOODWARD
24-00162-040	K0268	RAYTHEON SYSTEMS LTD
2609268-1	76301	BOEING COMPANY, THE DBA BOEING
40530006516	S0522	TADIRAN LTD
4197600-27	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
5310-000-0001	FARD5	2EME REGIMENT DU MATERIEL (RMAT)DETACHEMENT DE SALBRIS
5310007737624	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5710-147-20	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
704463-006	3AF83	GENERAL DYNAMICS CANADA
763721-5	73030	HAMILTON SUNDSTRAND CORPORATION
763721-8	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
7903354-03	06401	L-3 COMMUNICATIONS CORPORATION DBA COMMUNICATIONS SYSTEMS WEST
7903354-03	90536	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
859294-00	32345	DEFENSE REDUCTION AGENCY
947620-4062	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
947620-4062	13973	LITTON SYSTEMS INC. DIV NAVIGATION SYSTEMS DIVISION
D-000-15N-0-99-	10941	CARVER PUMP COMPANY INC
D-01N-0-99-032	10941	CARVER PUMP COMPANY INC
D-14N-099-012 PIECE29	10941	CARVER PUMP COMPANY INC
M2147015	1045G	AERO VODOCHODY A.S.
NAS620-6C	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NAS620C-6C	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
NAS620C06	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
NAS620C6	07933	FAIRCHILD SEMICONDUCTOR CORP SEMICONDUCTOR DIV HQ
NAS620C6	083V0	GLOBAL ASSOCIATES LTD SIGNAL PROCESSING SYSTEMS
NAS620C6	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NAS620C6P	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
PW026-6	13783	SMALL LOT STAMPING DIV OF VSI CORP PRODUCTS
REW620-6	08226	RELIABLE INDUSTRIES INC DBA RELIABLE FASTENER PRODUCTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-773-7624

Compare

Related Products | NSN 5310-00-773-7624

5310-00-773-8278, 5310-00-773-8384, 5310-00-773-8386, 5310-00-773-8624, 5310-00-773-8627

Technical Data | NSN 5310-00-773-7624

Characteristic	Specifications
MATERIAL	STEEL CORROSION RESISTING OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL

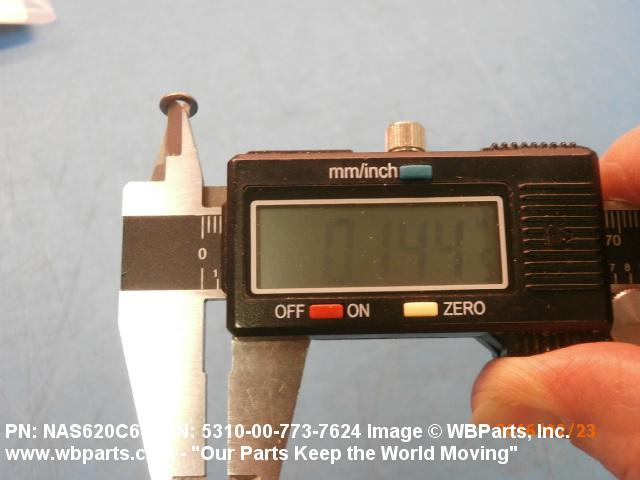

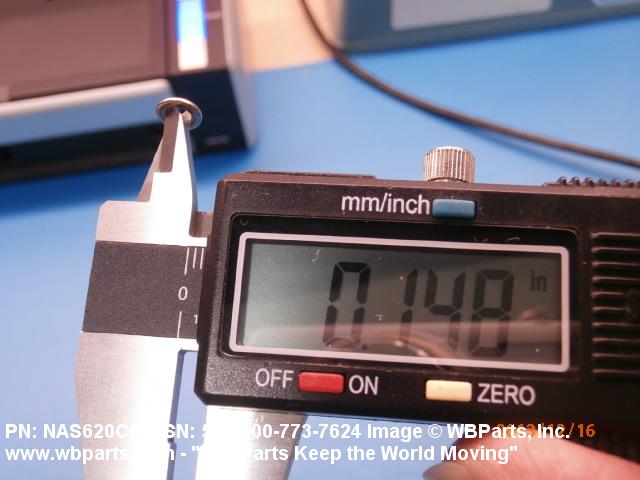

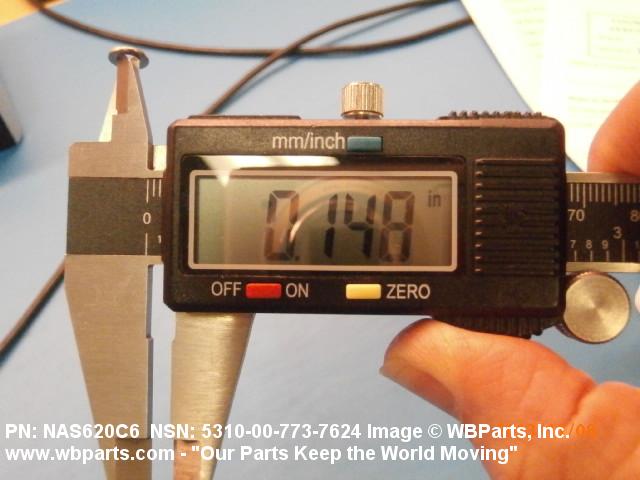

HOLE DIAMETER	0.143 INCHES MINIMUM AND 0.153 INCHES MAXIMUM
PERIPHERAL SHAPE STYLE	1 ROUND
OVERALL DIAMETER	0.262 INCHES MINIMUM AND 0.282 INCHES MAXIMUM
CENTER HOLE SHAPE STYLE	1 ROUND
CROSS-SECTIONAL SHAPE STYLE	1 RECTANGULAR

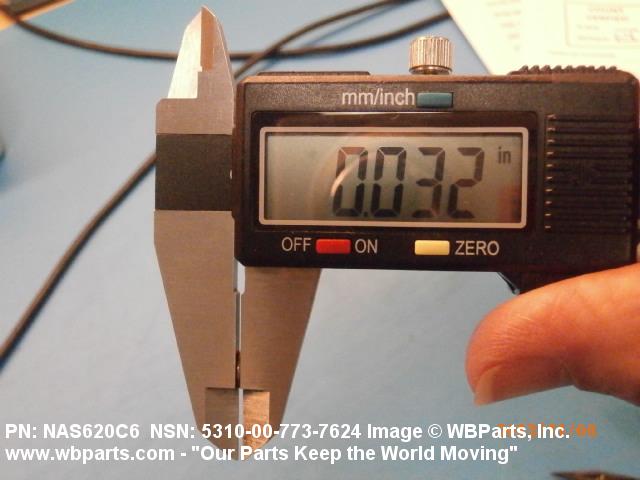

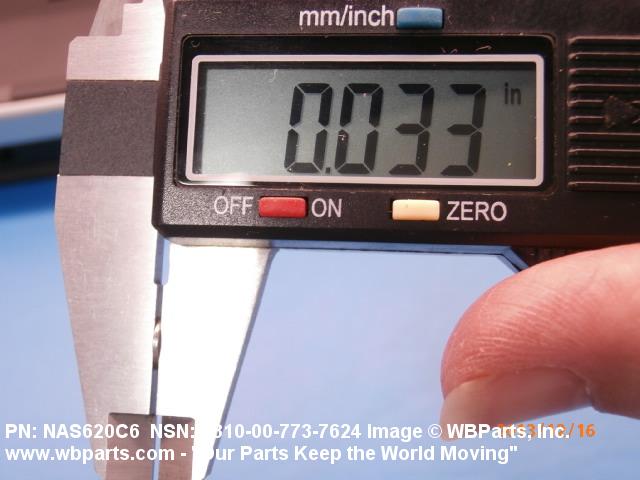

THICKNESS	0.032 INCHES NOMINAL
SPECIFICATION/STANDARD DATA	80205-NAS620 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD

Restrictions/Controls & Freight Information | NSN 5310-00-773-7624

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	194160	WASHER OR GASKETS, IRON OR STEEL,
Less than car load rating
Less than truck load rating	U	50.0
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-773-7624

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Operational Test Code	0	Items of supply which when properly packaged and placed in storage, do not require the performance of special procedures while in storage, nor prior to issue, and for which it has been determined that existing Care in Stores quality control procedures are adequate.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
