NSN 5310-00-771-7396 MS21076A06 , MS21076L06, MS21076L06N

Product Details | PLATE SELF-LOCKING NUT

5310-00-771-7396 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: MS21076A06 , MS21076L06, MS21076L06N, MTPH65S632S, MTPHL65C632CM, MF500106, MF5001-06, NAS1068A06, NAS1068C06LM, B68865, RFM20C06M, RM52LHTA521M62 , 62175055ITEM2, 62175-057 ITEM 2, 62175-057 ITEM 75, 62175057ITEM2, 62175057ITEM75, 68265543, 682655-43, 9469638, 946963-8, 107213-102 , 2178800972, 21788-00972, 222625-008, 2JC2772H09 , 418470-706, 4575578, 457-5578 , 62175-055 ITEM 2, 62175-055/2, 5310-00-771-7396, 00-771-7396, 5310007717396 , 007717396, 621750552, 107213102, 418470706, 222625008

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1960	00-771-7396	05280 ( NUT, SELF-LOCKING, PLATE )

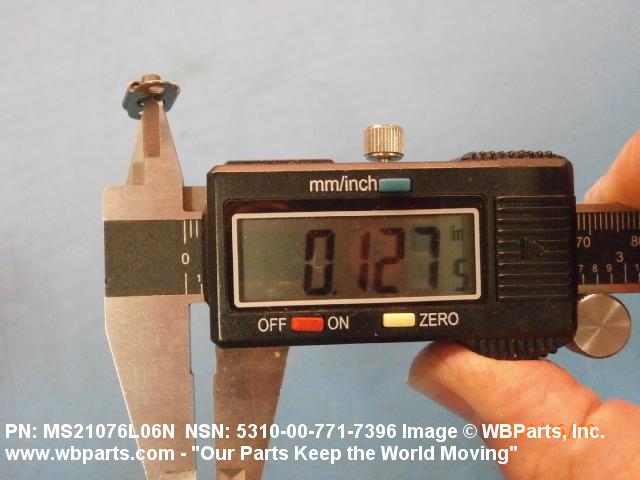

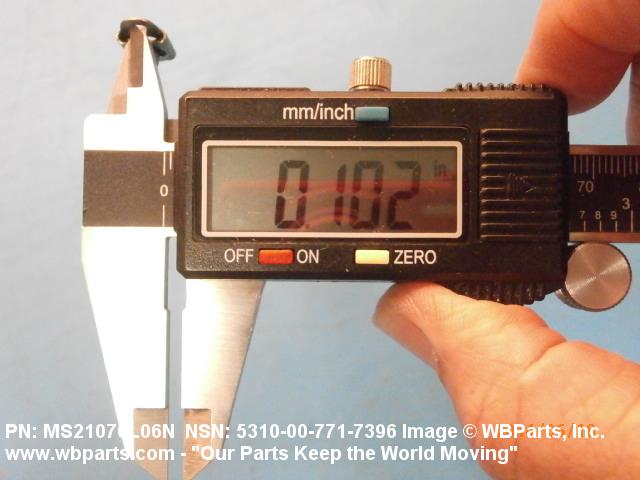

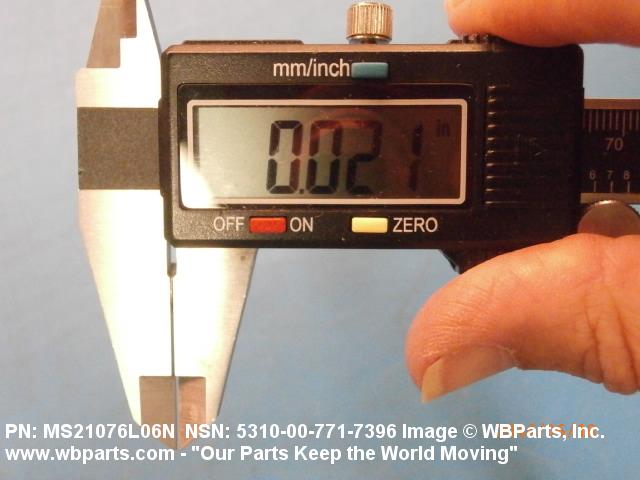

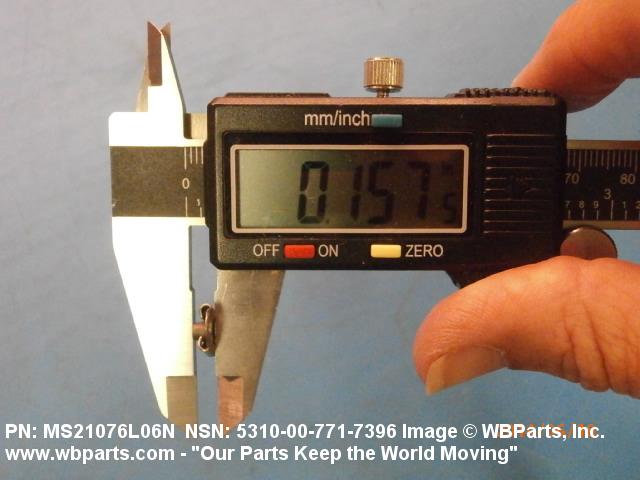

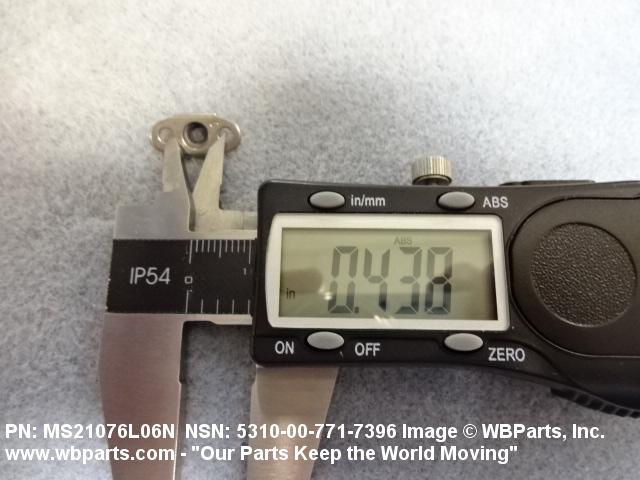

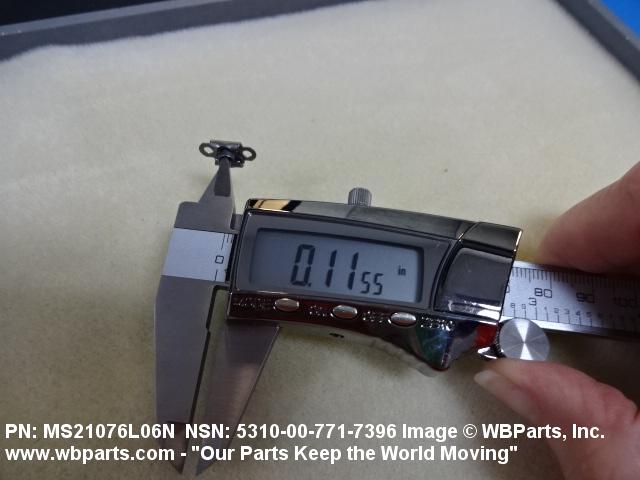

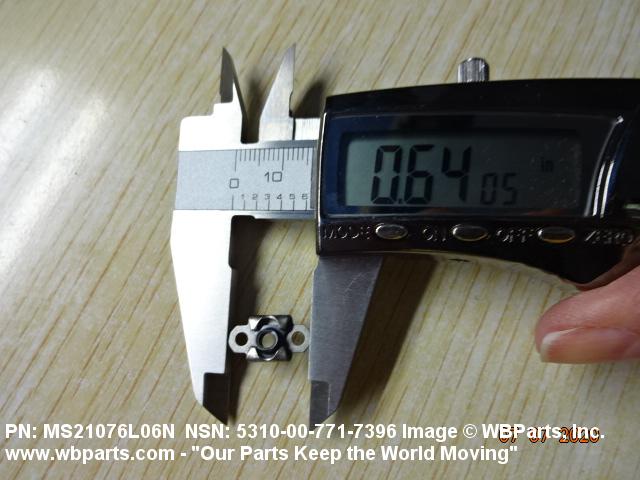

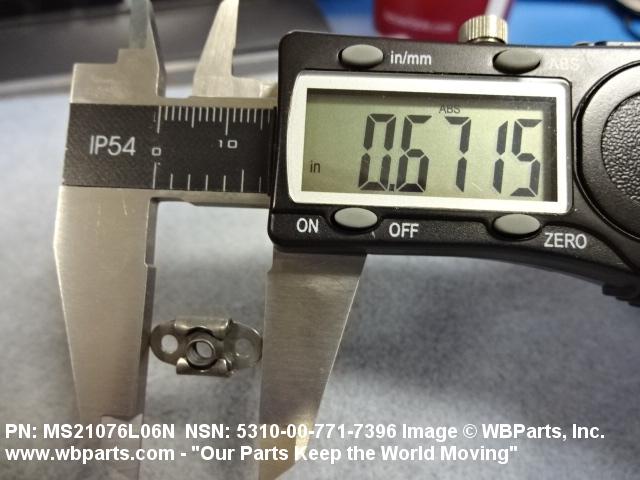

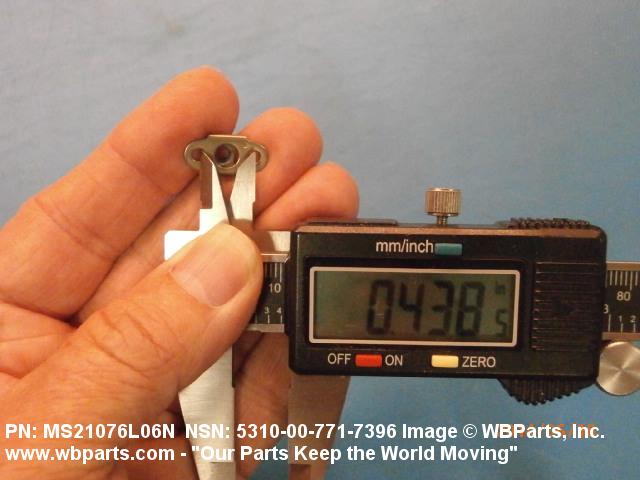

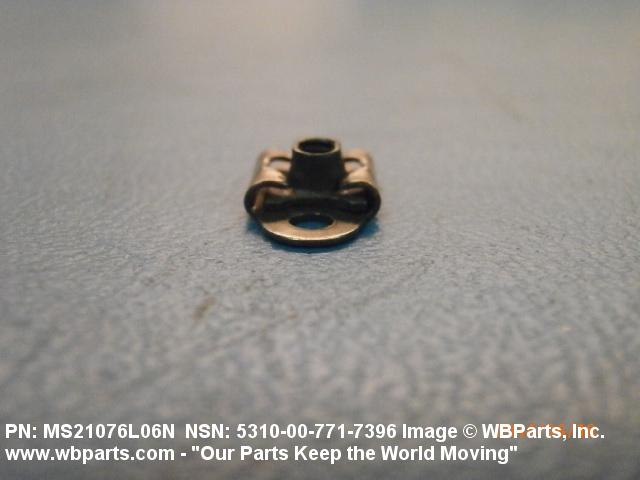

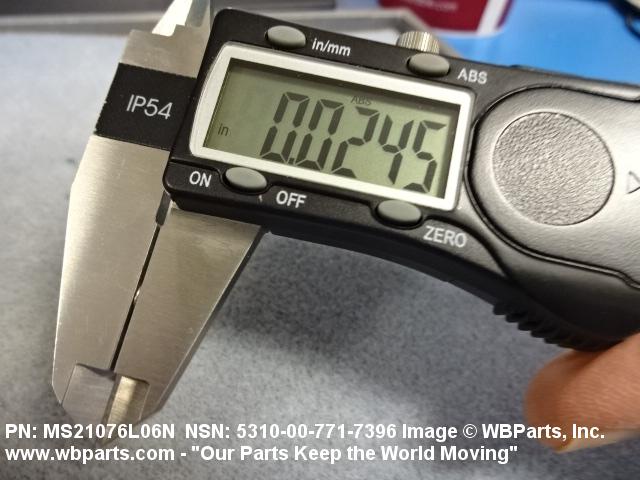

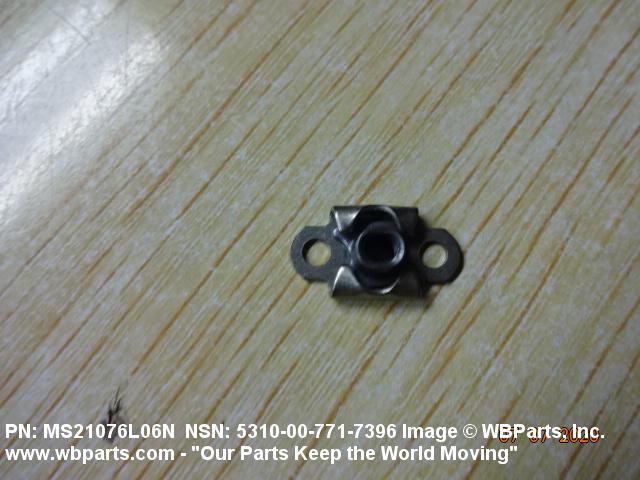

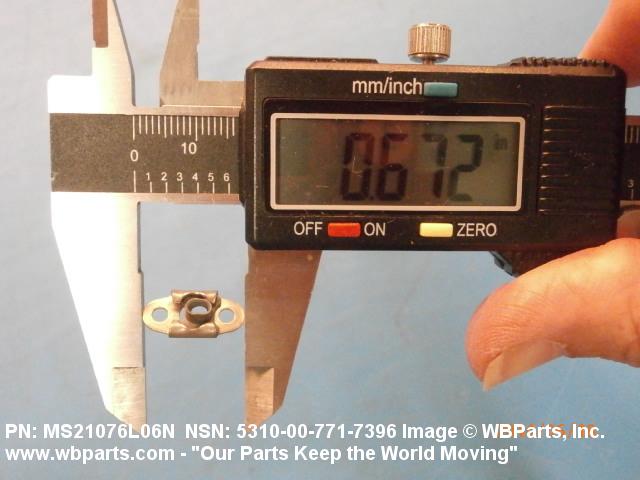

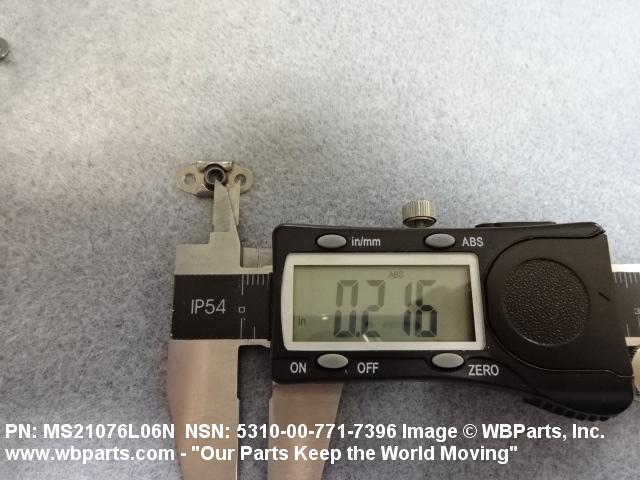

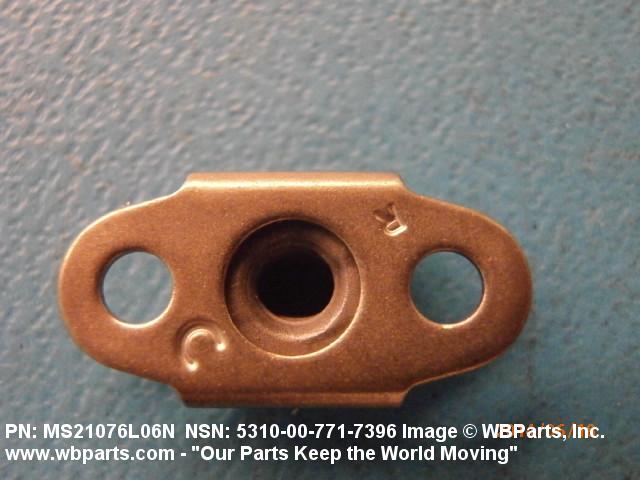

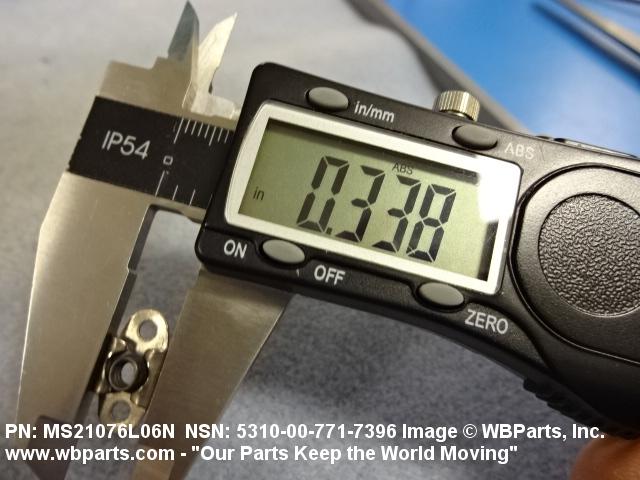

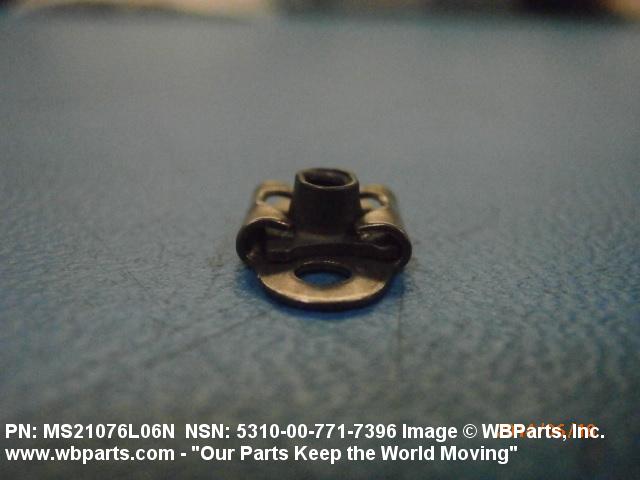

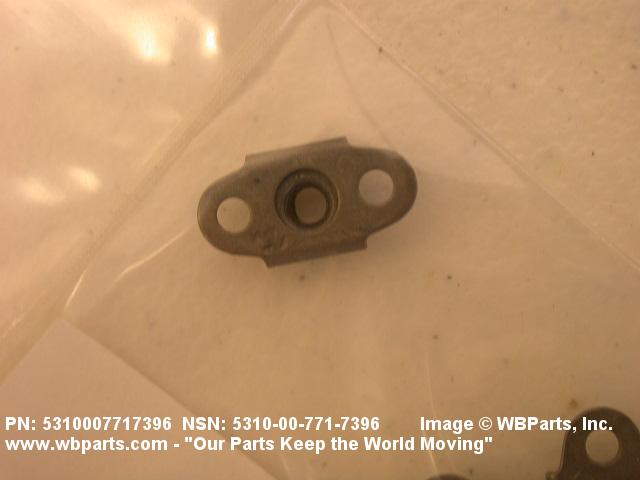

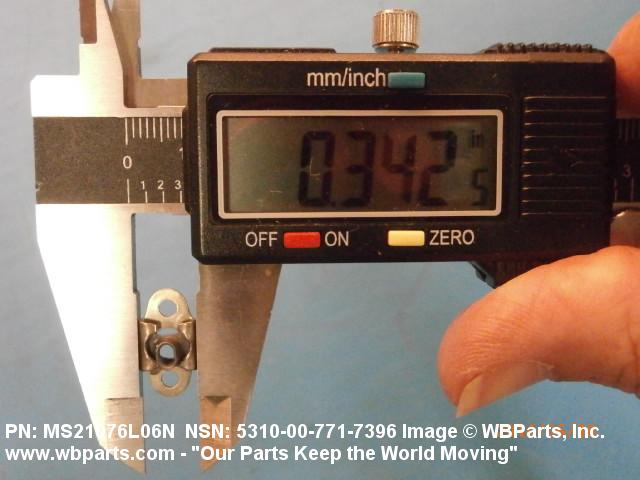

Drawings & Photos | NSN 5310-00-771-7396

Part Number	Request Date	QTY	Origin
5310-00-771-7396	2024-07-196	3489	DIBBS
5310-00-771-7396	2024-06-157	100	UK
5310-00-771-7396	2023-01-09	500	TW
MS21076L06	2021-05-137	520	HK
MS21076L06N	2019-08-219	250	United States
5310-00-771-7396	2017-10-275	50	United States
NAS1068A06	2017-10-275	50	United States
MS21076L06N	2017-07-207	66	United States
MS21076L06	2017-07-205	500	US
MS21076L06	2016-12-348	112	US
MS21076L06N	2016-08-244	30	United States
MS21076L06N	2016-04-106	18	United States
5310-00-771-7396	2016-03-90	3465	DIBBS
5310-00-771-7396	2015-12-350	6215	DIBBS
MS21076L06N	2015-06-169	8	United States
MS21076L06N	2015-06-161	300	United States
MS21076L06N	2015-04-104	700	United States
MS21076L06N	2015-03-71	2500	TH
MS21076L06N	2014-07-188	16	Australia
MS21076L06N	2014-05-128	150	United States
5310-00-771-7396	2014-02-50	96	United States
MS21076L06N	2013-11-323	720	Israel
MS21076L06N	2013-07-190	1000	Israel
MS21076L06N	2013-04-92	150	United States
NAS1068A06	2013-01-04	20	Indonesia
MS21076L06N	2012-10-303	90	US
MS21076L06N	2012-06-172	15	US
MS21076L06N	2012-04-104	150	US
MS21076L06N	2012-02-40	2	TR
MS21076L06N	2012-01-26	90	us
5310-00-771-7396	2011-08-235	400	United States
MS21076L06N	2009-09-267	20	US
MS21076L06N	2008-12-337	100	us
5310-00-771-7396	2008-10-275	100	US
MS21076L06	2008-06-165	25	United States
MS21076L06N	2008-05-127	30	US
5310-00-771-7396	2008-03-72	100	US
MS21076L06N	2008-03-65	5	China
MS21076L06N	2008-01-09	50	United States
MS21076L06N	2008-01-09	100	United States
MS21076L06N	2008-01-09	250	United States
MS21076L06N	2008-01-09	50	United States
MS21076L06N	2008-01-09	100	United States
MS21076L06N	2008-01-09	250	United States
MS21076L06N	2008-01-09	50	United States
MS21076L06N	2008-01-09	100	United States
MS21076L06N	2008-01-09	250	United States
MS21076L06	2007-11-333	500	US
MTPHL65C632CM	2007-10-291	5000	US
5310-00-771-7396	2007-08-218	15	United States

Cross Reference | NSN 5310-00-771-7396

Part Number	Cage Code	Manufacturer
107213-102	37695	RAYTHEON COMPANY DBA RAYTHEON
21788-00972	K0662	SELEX ES LTD
222625-008	81413	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I
2JC2772H09	79500	WESTINGHOUSE ELECTRIC CORP
2JC2772H09	97942	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS
418470-706	96214	RAYTHEON COMPANY DBA RAYTHEON
5310007717396	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
62175-055 ITEM 2	U1954	ZODIAC SEATS UK LTD
62175-055/2	U1954	ZODIAC SEATS UK LTD
62175-057 ITEM 2	U1954	ZODIAC SEATS UK LTD
62175-057 ITEM 75	U1954	ZODIAC SEATS UK LTD
682655-43	20418	DRS SUSTAINMENT SYSTEMS, INC. Use CAGE Code 98255 for cataloging
946963-8	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
B68865	K0967	MBDA UK LTD
MF5001-06	15653	ALCOA GLOBAL FASTENERS, INC.
MF5001-06	75237	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
MF5001-06	R1120	SATAIR A/S
MS21076A06	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21076L06	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21076L06	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS21076L06N	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MTPH65S632S	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
MTPHL65C632CM	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
MTPHL65C632CM	71087	REPUBLIC FASTENER MFG. CORP. Use CAGE Code 52828 for Cataloging.
NAS1068A06	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NAS1068C06LM	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
RFM20C06M	52828	REPUBLIC FASTENER MFG. CORP.
RM52LHTA521M62	72962	HARVARD INDUSTRIES INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-771-7396

Compare

Related Products | NSN 5310-00-771-7396

5310-00-771-7406, 5310-00-771-7468, 5310-00-771-7649, 5310-00-771-7725, 5310-00-771-7752

Technical Data | NSN 5310-00-771-7396

Characteristic	Specifications
THREAD SERIES	UNJC
NOMINAL THREAD SIZE	0.138 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	IRON ALLOY 660 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5735 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
HARDNESS RATING	NOT RATED
NUT STYLE	A116 PLATE
NUT LENGTH	0.682 INCHES MAXIMUM
NUT HEIGHT	0.171 INCHES MAXIMUM
PLATE THICKNESS	0.140 INCHES MAXIMUM
PLATE WIDTH	0.290 INCHES MINIMUM AND 0.357 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
NUT COUNTERBORE DEPTH	0.140 INCHES NOMINAL NUT
COUNTERBORE DIAMETER	0.178 INCHES MINIMUM AND 0.270 INCHES MAXIMUM NUT
LUBRICATION	DRY FILM LUBRICANT
NUT MOUNTING PROVISION	STRAIGHT HOLES
MOUNTING HOLE ARRANGEMENT STYLE	F38 2 HOLES
MOUNTING HOLE DIAMETER	0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM
DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER	0.213 INCHES MINIMUM AND 0.223 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH	0.435 INCHES MINIMUM AND 0.439 INCHES MAXIMUM
TEMP RATING	450.0 DEG FAHRENHEIT NOMINAL
FEATURES PROVIDED	FLOATING NUT
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS21076L06

Restrictions/Controls & Freight Information | NSN 5310-00-771-7396

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-771-7396

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
