NSN 5310-00-770-8545 AN9608L, AN960-8L, Y77730883
Product Details | FLAT WASHER
5310-00-770-8545 A washer having a centrally located hole with a solid or laminated cross-section and two flat parallel bearing surfaces. The hole must be 75 percent or less than the largest dimension and the bearing surface finish is greater than 32 microinch (0.8 micrometer). The thickness cannot exceed 25 percent of the largest outside dimension. When the largest outside dimension is less than 1/4 inch or 6mm, the thickness must be 0.006 inches (0.15mm) or greater and for items 1/4 inch (6mm) or larger, the thickness must be 0.016 inches (0.4mm) or greater. The maximum tolerance is applied to dimensions and used as a determining factor. Items with separable lamination use SHIM. For items fabricated from ceramic or electrically rated materials by specification or industry standards use INSULATOR (1), WASHER. Excludes DISK, VALVE, graphite impregnated and lubricated items.
Part Alternates: AN9608L, AN960-8L, Y77730883, 77730883, 0S026384, 5310-00-770-8545, 00-770-8545, 5310007708545, 007708545
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-770-8545 | 13393 ( WASHER, FLAT ) |

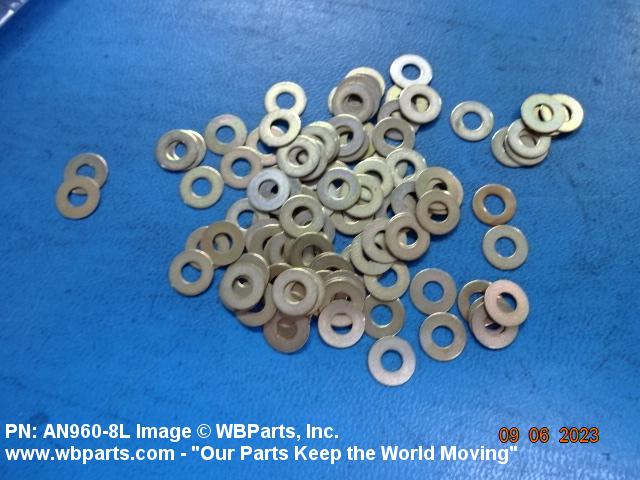

Drawings & Photos | NSN 5310-00-770-8545
Demand History | NSN 5310-00-770-8545
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN9608L | 2023-08-219 | 10 | us |
| AN9608L | 2021-08-230 | 24 | US |
| AN960-8L | 2020-02-57 | 20 | US |
| AN9608L | 2020-02-34 | 100 | US |
| AN9608L | 2019-12-358 | 10 | US |
| AN960-8L | 2015-05-138 | 250 | United States |
| AN960-8L | 2015-05-138 | 6 | United States |
| AN960-8L | 2015-05-138 | 8 | United States |
| AN960-8L | 2015-05-138 | 250 | United States |
| AN960-8L | 2015-05-138 | 6 | United States |
| AN960-8L | 2015-05-138 | 8 | United States |
| AN9608L | 2015-01-12 | 8700 | US |
| AN9608L | 2014-01-10 | 100 | United States |
| AN9608L | 2014-01-09 | 100 | United States |
| AN9608L | 2013-09-259 | 2 | United States |
| AN960-8L | 2012-11-310 | 50 | |
| AN9608L | 2012-05-131 | 60 | us |
| AN9608L | 2011-09-266 | 1000 | United States |
| 5310-00-770-8545 | 2011-01-17 | 10 | US |
| AN9608L | 2010-08-237 | 250 | Italy |
| 5310-00-770-8545 | 2010-03-62 | 10 | Netherlands |
| AN9608L | 2009-10-302 | 200 | Italy |
| AN9608L | 2008-02-50 | 3 | US |
Cross Reference | NSN 5310-00-770-8545
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-770-8545
Technical Data | NSN 5310-00-770-8545
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-636-CANCELED FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |

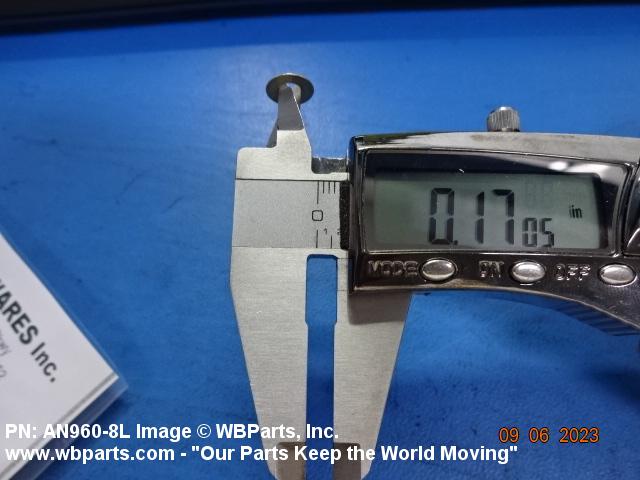

| HOLE DIAMETER | 0.164 INCHES NOMINAL |
| PERIPHERAL SHAPE STYLE | 1 ROUND |

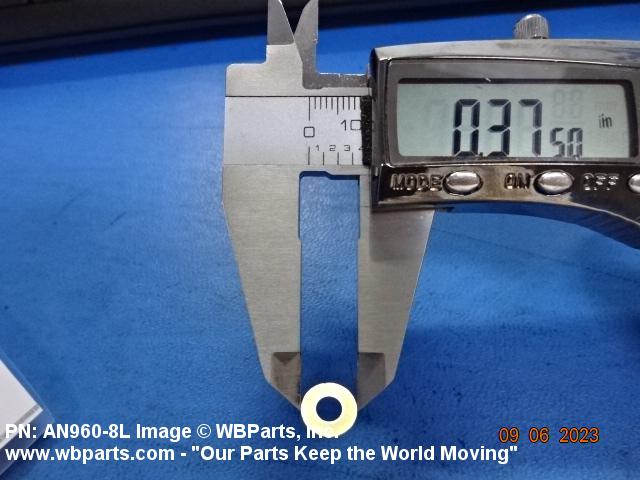

| OVERALL DIAMETER | 0.375 INCHES NOMINAL |
| CENTER HOLE SHAPE STYLE | 1 ROUND |
| CROSS-SECTIONAL SHAPE STYLE | 1 RECTANGULAR |

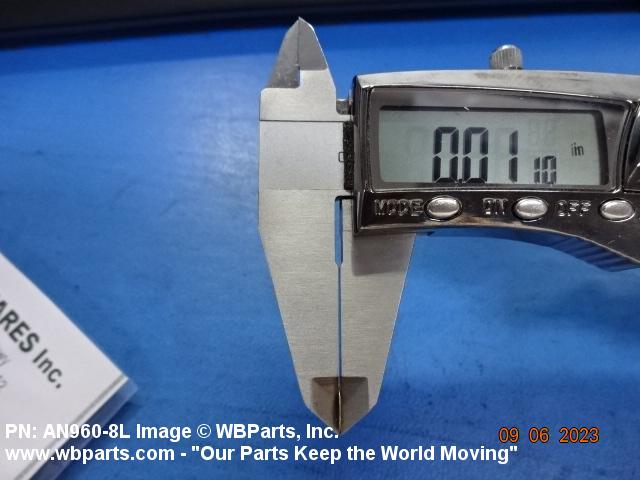

| THICKNESS | 0.016 INCHES NOMINAL |
| SPECIAL FEATURES | REQUIRES ENVIRONMENTAL TESTIN ACCORDANCE W/SPECIAL PROJECTS FLEET BALLISTIC MISSILE PLAN OP 2747 |
| DEPARTURE FROM CITED DESIGNATOR | AS MODIFIED BY SPECIAL FEATURES |
| III HEAT TREATMENT | COLD ROLLED |
| MANUFACTURERS CODE | 88044 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN960-8L |
Restrictions/Controls & Freight Information | NSN 5310-00-770-8545
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | S | 60 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
