NSN 5310-00-770-8360 STD3023K1, 5310HU1000TYB21, 5310HU1-000TYB21
Product Details | KEY WASHER

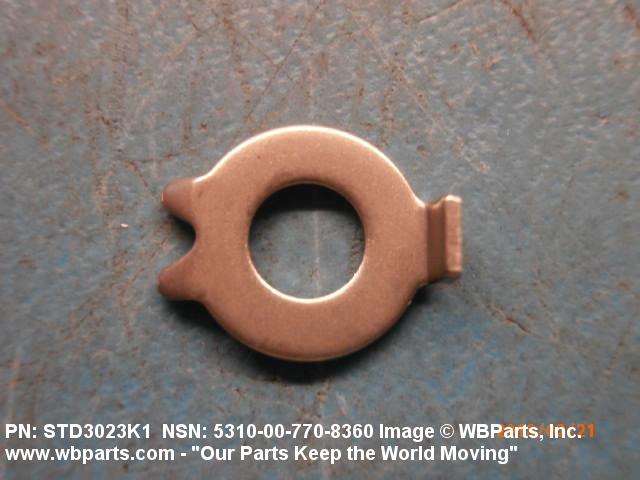

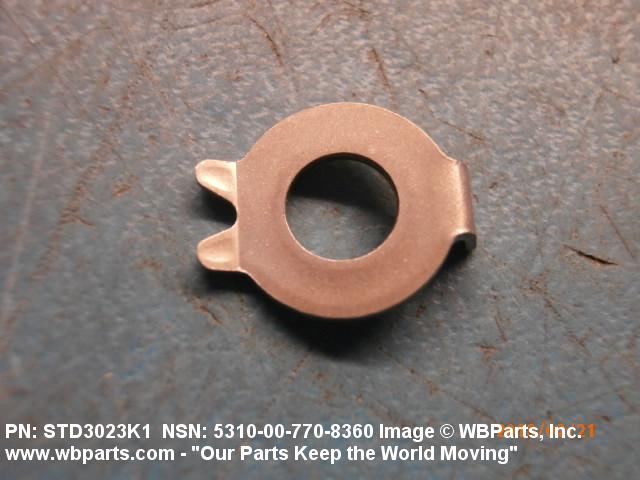

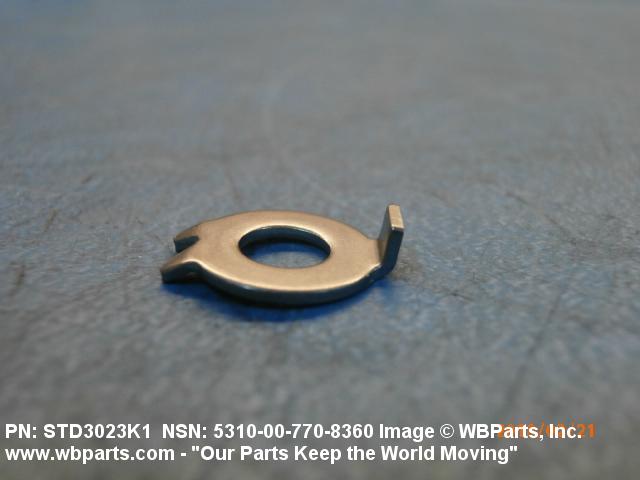

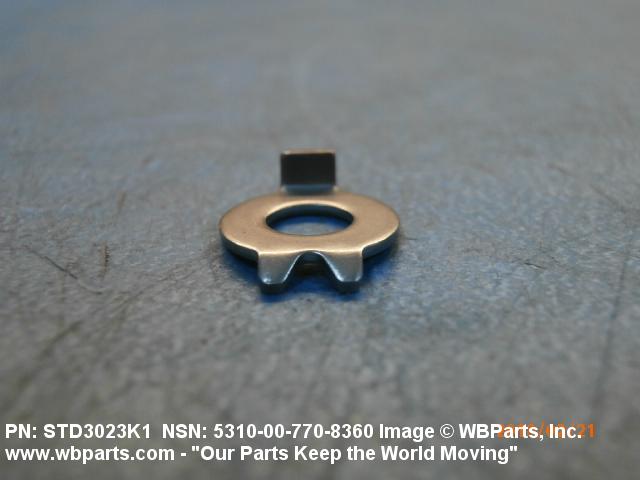

5310-00-770-8360 A washer of nonresilient material usually having two parallel bearing surfaces. The outside and/or inside edges have one or more protuberances. The ends and/or edges may be prebent at any angle or the protuberances may be prebent at any angle to the bearing surfaces. The keys or lugs may be fitted into keyways in adjacent material or they may be bent over after application to hold or lock one or more items in place. Excludes thrust type washer.
Part Alternates: STD3023K1, 5310HU1000TYB21, 5310HU1-000TYB21, 5310-00-770-8360, 00-770-8360, 5310007708360, 007708360
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-770-8360 | 01869 ( WASHER, KEY ) |
Drawings & Photos | NSN 5310-00-770-8360
Demand History | NSN 5310-00-770-8360
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-770-8360 | 2023-10-298 | 1480 | DIBBS |
| 5310-00-770-8360 | 2023-10-290 | 1480 | DIBBS |
| 5310-00-770-8360 | 2022-08-241 | 1083 | DIBBS |
| 5310-00-770-8360 | 2022-08-228 | 1083 | DIBBS |
| 5310-00-770-8360 | 2021-11-312 | 902 | DIBBS |
| 5310-00-770-8360 | 2021-10-301 | 902 | DIBBS |
| 5310-00-770-8360 | 2021-09-251 | 227 | DIBBS |
| 5310-00-770-8360 | 2021-08-236 | 227 | DIBBS |
| 5310-00-770-8360 | 2020-11-327 | 960 | DIBBS |
| 5310-00-770-8360 | 2020-11-317 | 960 | DIBBS |
| 5310-00-770-8360 | 2018-01-26 | 20 | United States |
| 5310-00-770-8360 | 2017-09-270 | 2001 | DIBBS |
| STD3023K1 | 2015-03-85 | 8 | US |
| STD3023K1 | 2015-03-69 | 500 | US |
| 5310-00-770-8360 | 2012-11-310 | 575 | DIBBS |
| 5310-00-770-8360 | 2011-06-158 | 1381 | DIBBS |
| STD3023K1 | 2010-04-99 | 200 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-770-8360
Related Products | NSN 5310-00-770-8360
Technical Data | NSN 5310-00-770-8360
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5510 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | 172 KEY |
| EXTERNAL KEY QUANTITY | 1 |

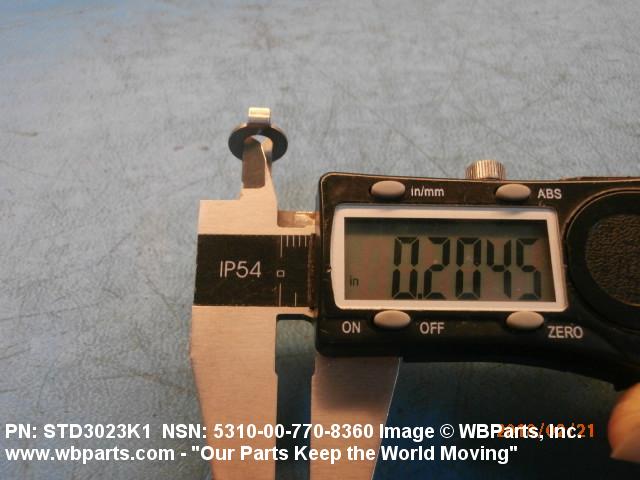

| HOLE DIAMETER | 0.203 INCHES MINIMUM AND 0.208 INCHES MAXIMUM |

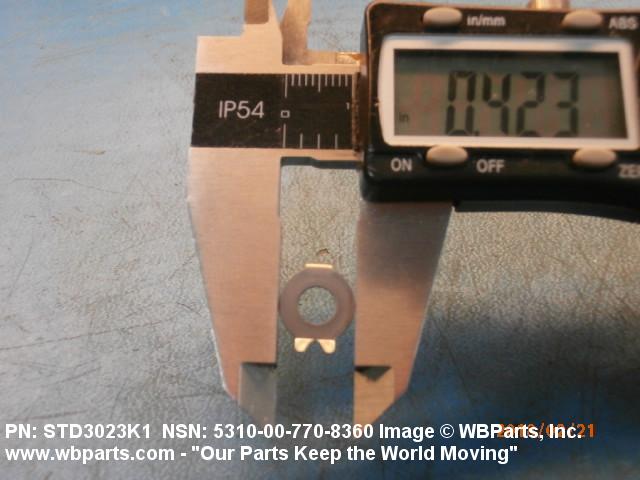

| OUTSIDE DIAMETER | 0.414 INCHES MINIMUM AND 0.434 INCHES MAXIMUM |
| EXTERNAL PREBENT KEY LENGTH | 0.095 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |

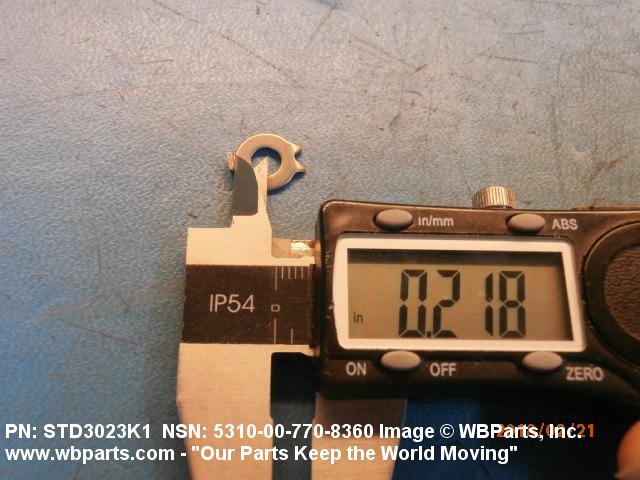

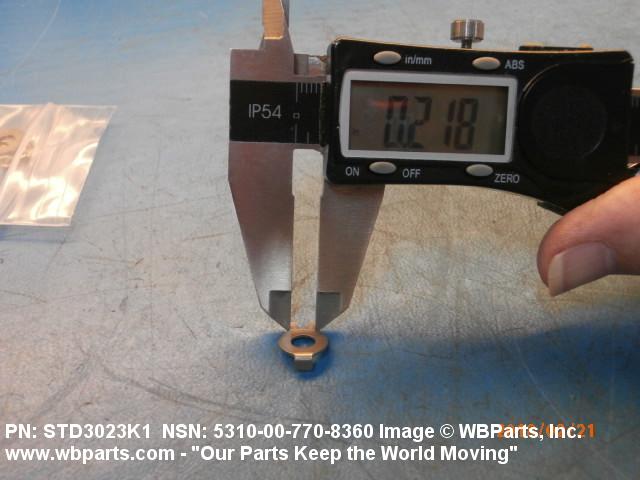

| EXTERNAL TAPERED KEY WIDTH | 0.218 INCHES NOMINAL |

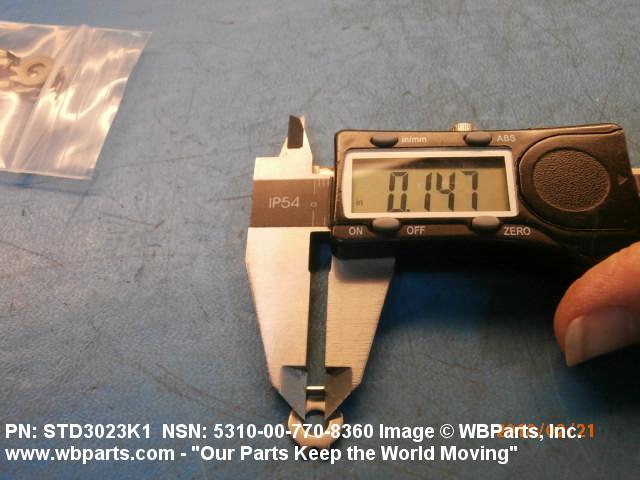

| EXTERNAL PREBENT KEY WIDTH | 0.142 INCHES MINIMUM AND 0.152 INCHES MAXIMUM |
| DISTANCE FROM CENTERLINE TO INSIDE OF PREBENT KEY | 0.212 INCHES MINIMUM AND 0.222 INCHES MAXIMUM |

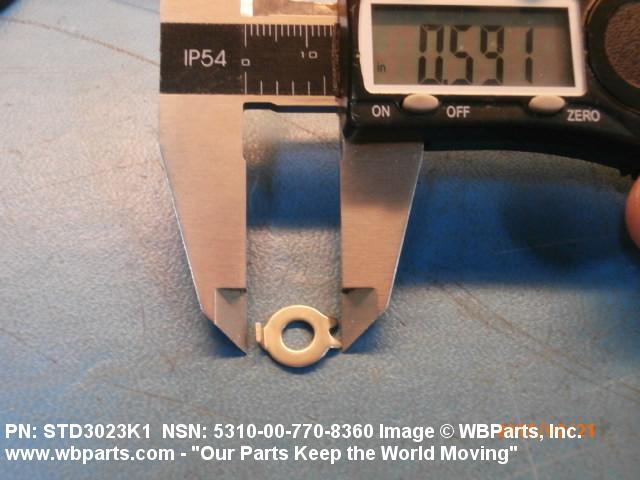

| OVERALL DISTANCE INCLUDING KEYS | 0.585 INCHES MINIMUM AND 0.605 INCHES MAXIMUM |

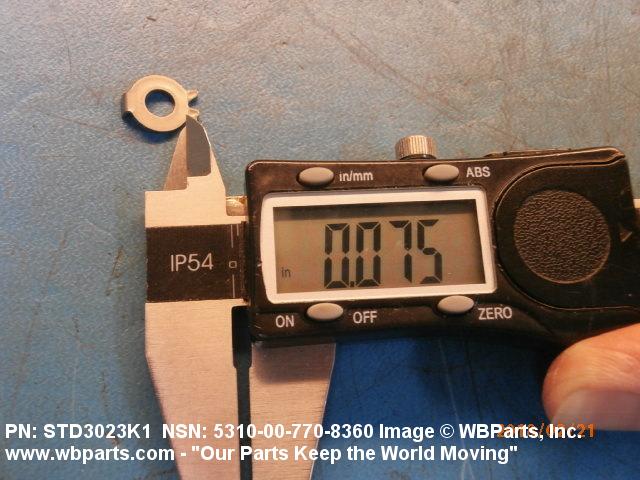

| SPLIT KEY LENGTH | 0.075 INCHES MINIMUM AND 0.095 INCHES MAXIMUM |

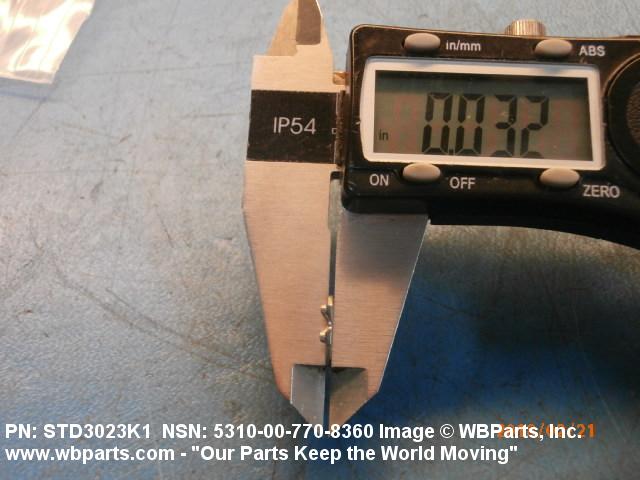

| MATERIAL THICKNESS | 0.027 INCHES MINIMUM AND 0.035 INCHES MAXIMUM |
