NSN 5310-00-764-6597 MS2107606, MS21076-06, MS2107606N

Product Details | PLATE SELF-LOCKING NUT

5310-00-764-6597 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: MS2107606, MS21076-06, MS2107606N, MS21076-06N, MTPHL65C632C, MA 13700-62, MA1370062, MF503106, MF5031-06, NASM21076, RFM20C06, LHTA345262, LHTA3452-62, 7438941P0006, 7438941P6, 5310-00-764-6597, 00-764-6597, 5310007646597, 007646597

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1960	00-764-6597	05280 ( NUT, SELF-LOCKING, PLATE )

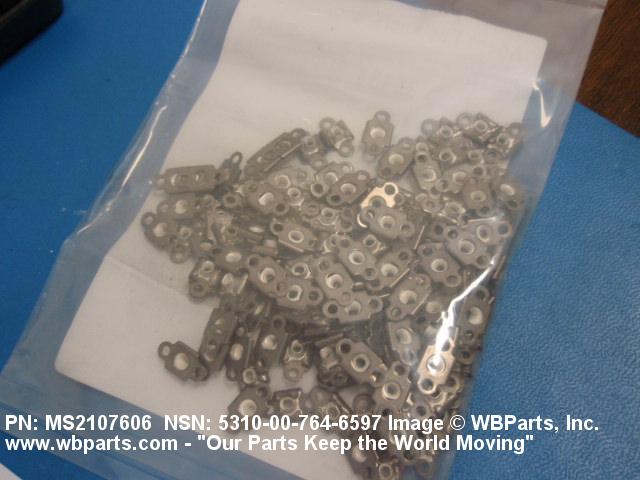

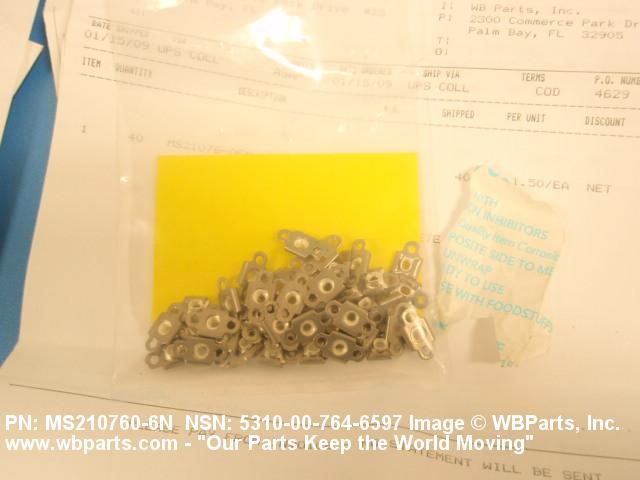

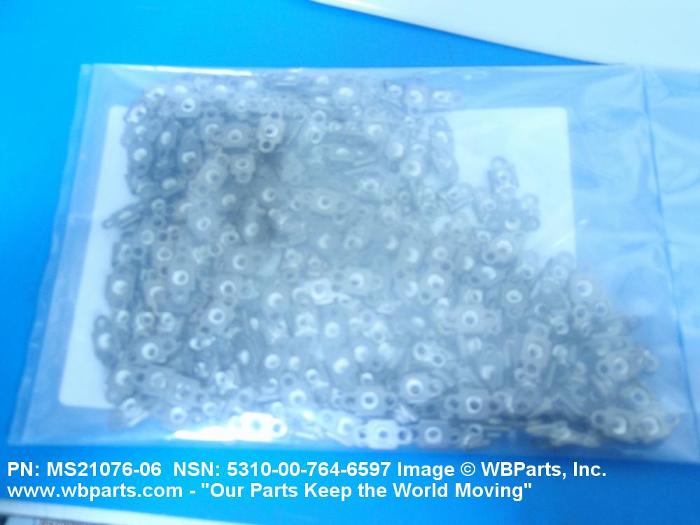

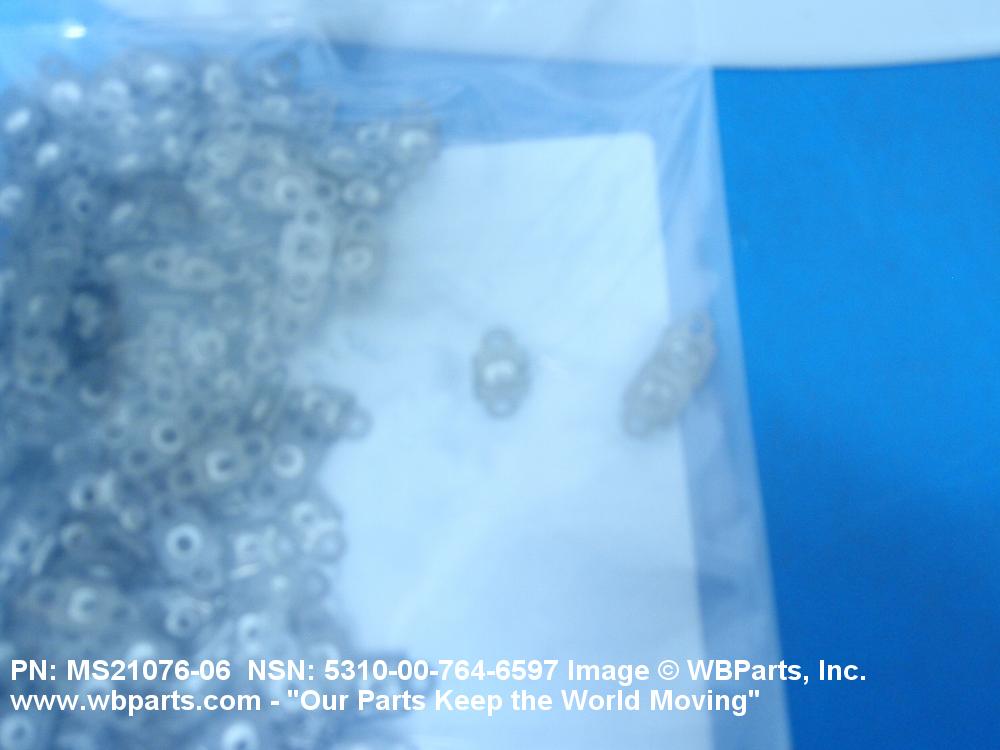

Drawings & Photos | NSN 5310-00-764-6597

Part Number	Request Date	QTY	Origin
MS2107606N	2020-10-280	100	United States
MS2107606	2020-06-177	42000	IN
MS2107606	2019-10-281	240	Taiwan
5310-00-764-6597	2019-06-178	50	US
5310-00-764-6597	2015-08-242	3181	DIBBS
MS2107606	2015-08-217	2	United States
MS2107606	2015-08-217	100	United States
MS2107606N	2015-04-112	300	United States
5310-00-764-6597	2014-10-279	100	US
MS2107606	2012-12-347	2	US
MS2107606	2012-12-347	2	US
MS2107606N	2012-11-328	615	China
MS21076-06N	2012-02-40	10	TR
MS2107606N	2011-06-161	25	United States
MS2107606	2011-02-40	1	US
MS2107606	2010-12-364	0	US
5310-00-764-6597	2010-11-323	2	CA
5310-00-764-6597	2010-10-280	25	US
NASM21076	2010-07-197	286	US
NASM21076	2010-04-117	2200	US
MS2107606N	2010-04-111	700	NO
5310-00-764-6597	2010-04-105	30	US
MF503106	2010-03-68	50	US
MS2107606	2010-01-28	500	US
5310-00-764-6597	2009-10-294	250	United States
NASM21076	2009-10-285	1000	IL
5310-00-764-6597	2009-07-212	10	US
MS2107606	2009-07-183	150	United States
MS2107606N	2009-06-173	25	US
MS2107606N	2009-01-14	30	United States
MS2107606N	2009-01-08	3200	Denmark
MS2107606	2008-11-315	150	United States
MS2107606	2008-10-288	250	United States
MS2107606	2008-09-274	50	United States
5310-00-764-6597	2008-09-254	1000	United States
5310-00-764-6597	2008-08-241	10	United States
MS2107606N	2008-06-175	600	US
NASM21076	2008-06-155	100	US
5310-00-764-6597	2008-05-123	110	US
MS2107606N	2007-10-297	10000	US
NASM21076	2007-09-255	165	US
MA1370062	2007-06-155	1880	Canada

Cross Reference | NSN 5310-00-764-6597

Part Number	Cage Code	Manufacturer
7438941P0006	99971	LOCKHEED MARTIN CORP NAVAL ELECTRONICS & SURVEILLANCE
7438941P6	99971	LOCKHEED MARTIN CORP NAVAL ELECTRONICS & SURVEILLANCE
LHTA3452-62	019L2	MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
LHTA3452-62	72962	HARVARD INDUSTRIES INC
MA 13700-62	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
MA 13700-62	80539	SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP
MF5031-06	15653	ALCOA GLOBAL FASTENERS, INC.
MF5031-06	75237	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
MF5031-06	R1120	SATAIR A/S
MS21076-06	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS21076-06N	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21076-06N	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MTPHL65C632C	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
MTPHL65C632C	71087	REPUBLIC FASTENER MFG. CORP. Use CAGE Code 52828 for Cataloging.
NASM21076	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
RFM20C06	52828	REPUBLIC FASTENER MFG. CORP.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-764-6597

Compare

Related Products | NSN 5310-00-764-6597

5310-00-764-6600, 5310-00-764-6601, 5310-00-764-6609, 5310-00-764-6610, 5310-00-764-7111

Technical Data | NSN 5310-00-764-6597

Characteristic	Specifications
THREAD SERIES	UNJC
NOMINAL THREAD SIZE	0.138 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	IRON ALLOY 660 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5735 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	SILVER OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	AMS 2410 ASSN STD SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	49.0 ROCKWELL C MAXIMUM
NUT STYLE	A116 PLATE
NUT LENGTH	0.682 INCHES MAXIMUM
NUT HEIGHT	0.171 INCHES MAXIMUM
PLATE THICKNESS	0.140 INCHES MAXIMUM
PLATE WIDTH	0.290 INCHES MINIMUM AND 0.357 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
NUT MOUNTING PROVISION	STRAIGHT HOLES
MOUNTING HOLE ARRANGEMENT STYLE	F38 2 HOLES
MOUNTING HOLE DIAMETER	0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM
DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER	0.213 INCHES MINIMUM AND 0.223 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH	0.435 INCHES MINIMUM AND 0.439 INCHES MAXIMUM
TEMP RATING	800.0 DEG FAHRENHEIT NOMINAL
FEATURES PROVIDED	FLOATING NUT
III PRECIOUS MATERIAL	SILVER
III END ITEM IDENTIFICATION	W/S:MISSILE, ALL-WEATHER ANTI-SHIP, HARPOON (AGM-84); AIRCRAFT (AC-130H, MC-130H, EC-130E, HC-130); HELICOPTER, ADVANCE ATTACK, AH-1W; AIRCRAFT, AIRLIFTER C-17A; HELICOPTER, MH-53E; AIRCRAFT, C-2A (REPROCURED); TEST CONSOLES, MINI-SACE; DEEP SUBMERGENCE SYSTEMS PROGRAMS (DSSP); MISSILE, AIR-TO-AIR, SPARROW (AIM-7)

Restrictions/Controls & Freight Information | NSN 5310-00-764-6597

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	S	Item contains silver
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	013540	ALUM NUTS
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-764-6597

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BX	OH-58D Army Helicopter Improvement Program (AHIP)
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	A	Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Physical Category Code	1	Bin
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
