NSN 5310-00-753-4000 NAS1169101, NAS1169-101, NAS116910L

Product Details | FINISHING WASHER

5310-00-753-4000 A washer or cone or disk shape with a centrally located hole, designed to accommodate a flat or oval head screw and provide additional bearing area on the material being fastened. It may or may not have a flush flange feature.

Part Alternates: NAS1169101, NAS1169-101, NAS116910L, NAS1169-10L, 5310-00-753-4000, 00-753-4000, 5310007534000, 007534000

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-753-4000	15932 ( WASHER, FINISHING )

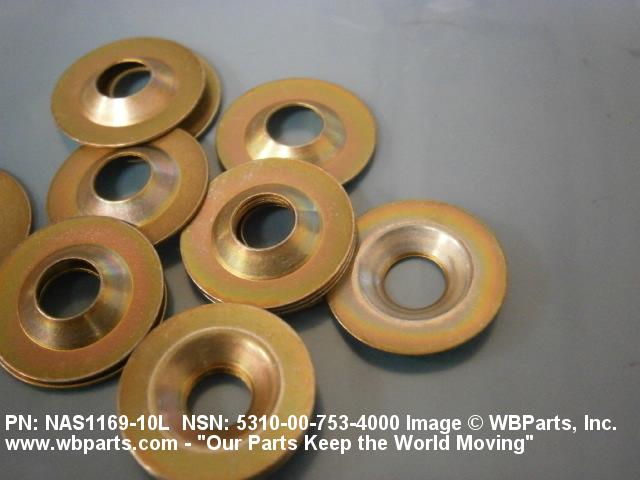

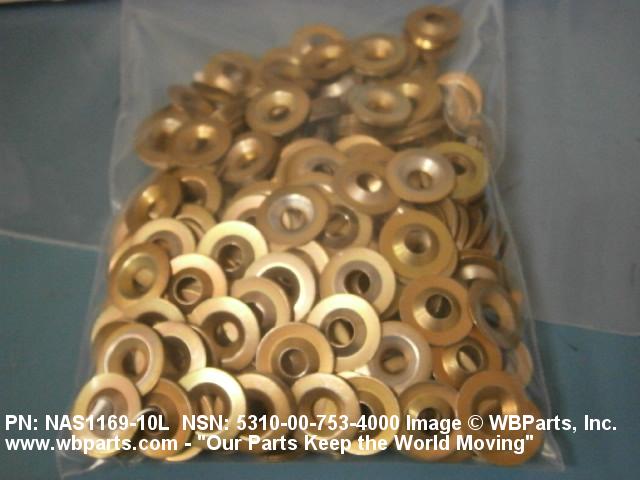

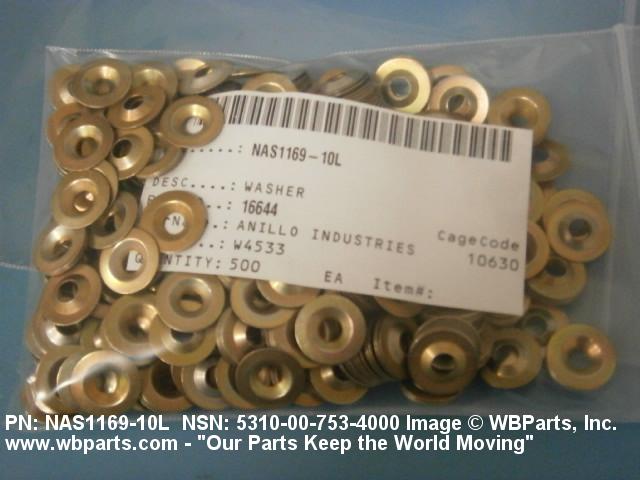

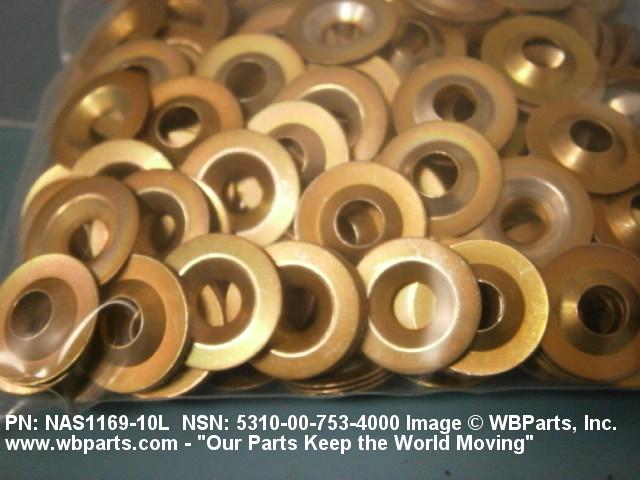

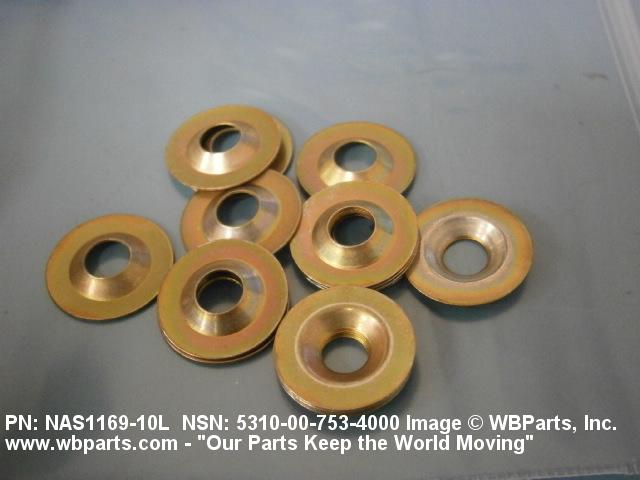

Drawings & Photos | NSN 5310-00-753-4000

Part Number	Request Date	QTY	Origin
NAS116910L	2025-01-08	50	United States
NAS116910L	2024-10-276	2000	AE
NAS116910L	2024-03-68	3	AE
NAS116910L	2024-02-58	300	TR
5310-00-753-4000	2022-12-336	300	US
5310-00-753-4000	2022-12-336	500	US
NAS116910L	2021-08-238	300	US
5310-00-753-4000	2020-01-05	396	DIBBS
5310-00-753-4000	2018-12-344	1002	DIBBS
5310-00-753-4000	2018-11-324	1002	DIBBS
5310-00-753-4000	2018-09-267	1100	DIBBS
5310-00-753-4000	2018-09-254	750	DIBBS
5310-00-753-4000	2018-06-173	1	DIBBS-RFPs
NAS116910L	2018-02-32	22	US
5310-00-753-4000	2017-12-346	417	DIBBS
5310-00-753-4000	2017-12-338	417	DIBBS
5310-00-753-4000	2017-06-159	60	DIBBS
5310-00-753-4000	2017-05-151	60	DIBBS
5310-00-753-4000	2017-05-132	131	DIBBS
5310-00-753-4000	2017-05-124	131	DIBBS
5310-00-753-4000	2017-03-88	557	DIBBS
5310-00-753-4000	2017-02-57	365	DIBBS
5310-00-753-4000	2017-02-52	1275	DIBBS
5310-00-753-4000	2017-01-12	156	DIBBS
5310-00-753-4000	2017-01-04	156	DIBBS
5310-00-753-4000	2016-12-357	1250	DIBBS
5310-00-753-4000	2016-12-340	180	DIBBS
5310-00-753-4000	2016-11-335	366	DIBBS
NAS116910L	2016-10-291	10	United States
5310-00-753-4000	2016-09-260	115	DIBBS
5310-00-753-4000	2016-09-252	115	DIBBS
5310-00-753-4000	2016-09-251	45	DIBBS
5310-00-753-4000	2016-08-244	686	DIBBS
5310-00-753-4000	2016-08-214	480	DIBBS
5310-00-753-4000	2016-07-203	224	DIBBS
5310-00-753-4000	2015-10-302	352	DIBBS
5310-00-753-4000	2015-09-258	260	DIBBS
5310-00-753-4000	2015-09-246	260	DIBBS
5310-00-753-4000	2015-05-146	359	DIBBS
5310-00-753-4000	2015-05-132	359	DIBBS
NAS116910L	2013-05-133	24	Malaysia
NAS116910L	2013-05-133	40	Malaysia
NAS116910L	2012-08-227	250	US
NAS116910L	2012-03-73	500	United States
NAS116910L	2011-01-24	3000	ES
5310-00-753-4000	2010-09-264	20	Portugal
5310-00-753-4000	2009-11-328	2000	DIBBS
5310-00-753-4000	2009-07-187	1000	US
5310-00-753-4000	2008-11-326	376	US
5310-00-753-4000	2008-10-284	1376	DIBBS
5310-00-753-4000	2008-09-253	500	US
5310-00-753-4000	2008-08-228	2500	United States
5310-00-753-4000	2008-07-183	1000	IL
NAS116910L	2007-12-338	500	US

Cross Reference | NSN 5310-00-753-4000

Part Number	Cage Code	Manufacturer
NAS1169-101	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NAS1169-10L	04348	LAWRENCE ENGINEERING AND SUPPLY INC
NAS1169-10L	25150	DUPLICATE PARTS CO
NAS1169-10L	30889	ERIKS SOUTHWEST INC DBA MONTCLAIR ENTERPRISES
NAS1169-10L	60360	AIRCRAFT MISSILE PARTS MFG CORP DBA AMPM
NAS1169-10L	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NAS1169-10L	86928	SEASTROM MANUFACTURING CO., INC. DBA SEASTROM MANUFACTURING

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-753-4000

Compare

Related Products | NSN 5310-00-753-4000

5310-00-753-4007, 5310-00-753-4008, 5310-00-753-4011, 5310-00-753-4014, 5310-00-753-4020

Technical Data | NSN 5310-00-753-4000

Characteristic	Specifications
MATERIAL	STEEL OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-S-7947 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	42.0 ROCKWELL C MINIMUM AND 47.0 ROCKWELL C MAXIMUM
STYLE DESIGNATOR	27 FINISHING
HOLE DIAMETER	0.192 INCHES MINIMUM AND 0.222 INCHES MAXIMUM
OUTSIDE DIAMETER	0.620 INCHES MINIMUM AND 0.645 INCHES MAXIMUM
OVERALL HEIGHT	0.099 INCHES NOMINAL
RECESS DIAMETER	0.385 INCHES MINIMUM AND 0.395 INCHES MAXIMUM
MATERIAL THICKNESS	0.016 INCHES NOMINAL
RECESS ANGLE	99.0 DEGREES MINIMUM AND 103.0 DEGREES MAXIMUM
SPECIAL FEATURES	NO. 10 SCREW SIZE
SPECIFICATION/STANDARD DATA	80205-NAS1169 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD

Restrictions/Controls & Freight Information | NSN 5310-00-753-4000

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	194160	WASHER OR GASKETS, IRON OR STEEL,
Less than car load rating
Less than truck load rating	U	50.0
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-753-4000

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
