NSN 5310-00-723-9676 NAS 620C-4L, NAS620C4L, NAS620CAL
Product Details | FLAT WASHER
5310-00-723-9676 A washer having a centrally located hole with a solid or laminated cross-section and two flat parallel bearing surfaces. The hole must be 75 percent or less than the largest dimension and the bearing surface finish is greater than 32 microinch (0.8 micrometer). The thickness cannot exceed 25 percent of the largest outside dimension. When the largest outside dimension is less than 1/4 inch or 6mm, the thickness must be 0.006 inches (0.15mm) or greater and for items 1/4 inch (6mm) or larger, the thickness must be 0.016 inches (0.4mm) or greater. The maximum tolerance is applied to dimensions and used as a determining factor. Items with separable lamination use SHIM. For items fabricated from ceramic or electrically rated materials by specification or industry standards use INSULATOR (1), WASHER. Excludes DISK, VALVE, graphite impregnated and lubricated items.
Part Alternates: NAS 620C-4L, NAS620C4L, NAS620CAL, NAS620-CAL, S8154206C020, S8154-206C020, S8157N33020, S8157N33-020, SWSS070702RV, SWSS0707-02RV, B68030, THWG0409, TH-WG0409, 5953180, 9336C20085, 9336C2008-5, 9476204041, 947620-4041, 1176-00745, 13730137, 137301-37, 2117200745, 21172-00745, 2400162044, 24-00162-044, 25046385, 2504638-5, 2702882, 270288-2 , 290005, 29-0005, 40530006316, 004002894053, 004-002894-053, 4197600-21, 4M3601057, 4M36-01057, 5310-00-723-9676, 00-723-9676, 5310007239676, 117600745, 007239676, 419760021
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-723-9676 | 13393 ( WASHER, FLAT ) |

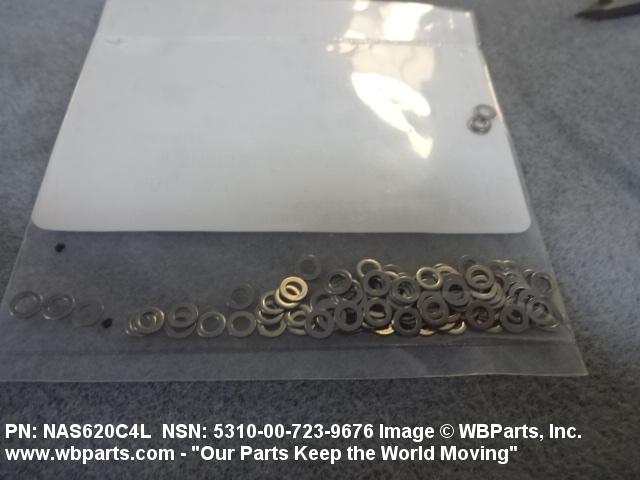

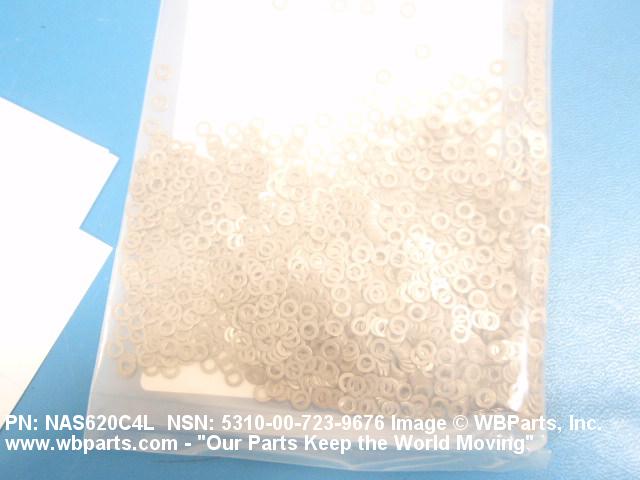

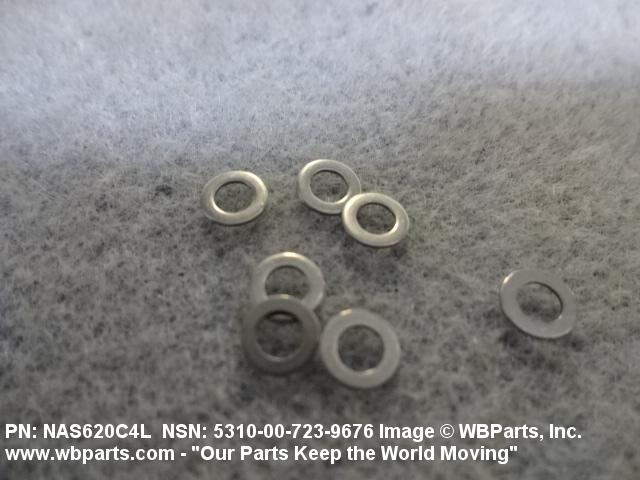

Drawings & Photos | NSN 5310-00-723-9676
Demand History | NSN 5310-00-723-9676
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS620C4L | 2025-03-77 | 860 | US |
| NAS620C4L | 2025-02-55 | 20 | United States |
| NAS620C4L | 2025-01-13 | 100 | SG |
| NAS620C4L | 2025-01-08 | 328 | Japan |
| NAS620C4L | 2024-07-187 | 400 | Japan |
| NAS620C4L | 2024-05-129 | 600 | South Korea |
| NAS620C4L | 2024-04-110 | 5 | United States |
| NAS620C4L | 2024-02-44 | 15240 | us |
| NAS620C4L | 2023-11-310 | 100 | United States |
| NAS620C4L | 2023-03-68 | 1 | India |
| NAS620C4L | 2022-05-124 | 8 | US |
| NAS620C4L | 2021-11-319 | 3610 | IN |
| NAS620C4L | 2021-07-188 | 290 | United States |
| 5310-00-723-9676 | 2021-06-168 | 5 | US |
| NAS620C4L | 2021-05-137 | 600 | US |
| NAS620C4L | 2020-09-273 | 424 | US |
| NAS620C4L | 2020-06-170 | 80 | US |
| NAS620C4L | 2019-10-288 | 10 | United States |
| 5310-00-723-9676 | 2019-07-212 | 400 | FR |
| NAS620C4L | 2019-01-24 | 40 | India |
| NAS620C4L | 2018-05-143 | 60 | United States |
| 5310-00-723-9676 | 2018-03-67 | 28 | US |
| NAS620C4L | 2017-12-342 | 24 | US |
| NAS620C4L | 2017-11-307 | 6 | UK |
| NAS620C4L | 2017-10-285 | 367 | United States |
| NAS620C4L | 2017-10-285 | 588 | United States |
| NAS620C4L | 2017-06-172 | 1 | United States |
| NAS620C4L | 2017-03-60 | 77 | United States |
| NAS620C4L | 2017-01-11 | 432 | United Arab Emirates |
| NAS620C4L | 2015-05-141 | 8 | United States |
| NAS620C4L | 2015-05-141 | 8 | United States |
| NAS620C4L | 2015-04-98 | 50 | Canada |
| NAS620C4L | 2014-09-254 | 48 | United States |
| NAS620C4L | 2014-07-195 | 1 | US |
| NAS620C4L | 2014-05-133 | 230 | US |
| NAS620C4L | 2014-05-132 | 400 | US |
| NAS620C4L | 2014-01-09 | 126 | United States |
| NAS620C4L | 2013-08-213 | 40 | US |
| NAS620C4L | 2013-01-08 | 10 | United States |
| NAS620C4L | 2012-08-227 | 100 | Singapore |
| NAS620C4L | 2012-06-160 | 100 | US |
| NAS620C4L | 2012-06-160 | 500 | US |
| NAS620C4L | 2012-06-156 | 200 | India |
| NAS620C4L | 2012-05-144 | 100 | United States |
| NAS620C4L | 2012-01-02 | 100 | India |
| 5310-00-723-9676 | 2011-08-242 | 400 | US |
| NAS620C4L | 2011-05-145 | 50 | United States |
| NAS620C4L | 2011-05-133 | 12 | us |
| NAS620C4L | 2011-04-115 | 280 | US |
| 5310-00-723-9676 | 2011-04-110 | 350 | IN |
| 25046385 | 2010-10-288 | 108 | US |
| NAS620C4L | 2010-10-278 | 160 | Saudi Arabia |
| NAS620C4L | 2010-10-278 | 160 | Saudi Arabia |
| NAS620C4L | 2010-09-265 | 128 | Hong Kong |
| 5310-00-723-9676 | 2010-09-260 | 50 | US |
| NAS620C4L | 2010-06-176 | 1 | Thailand |
| NAS620C4L | 2010-05-140 | 14 | US |
| 5310-00-723-9676 | 2010-04-104 | 300 | US |
| NAS620C4L | 2010-02-43 | 420 | United States |
| 5310-00-723-9676 | 2010-02-42 | 40 | US |
| NAS620C4L | 2010-01-27 | 200 | United States |
| 5310-00-723-9676 | 2009-11-313 | 480 | US |
| NAS620C4L | 2009-10-293 | 328 | US |
| NAS620C4L | 2009-06-161 | 345 | us |
| 5310-00-723-9676 | 2009-06-160 | 320 | us |
| NAS620C4L | 2009-04-114 | 1000 | us |
| 5310-00-723-9676 | 2009-03-81 | 30 | South Korea |
| 5310-00-723-9676 | 2009-03-64 | 1000 | US |
| 5310-00-723-9676 | 2008-12-344 | 500 | US |
| 5310-00-723-9676 | 2008-11-324 | 100 | MX |
| 5310-00-723-9676 | 2008-11-319 | 20 | United States |
| 5310-00-723-9676 | 2008-10-293 | 100 | US |
| 5310-00-723-9676 | 2008-10-287 | 100 | China |
| 5310-00-723-9676 | 2008-10-276 | 24 | US |
| 5310-00-723-9676 | 2008-09-248 | 100 | DK |
| 5310-00-723-9676 | 2008-08-225 | 500 | Singapore |
| NAS620C4L | 2008-06-162 | 500 | United States |
| NAS620C4L | 2008-05-127 | 200 | United States |
| 5310-00-723-9676 | 2008-04-117 | 1000 | US |
| 5310-00-723-9676 | 2007-04-108 | 6600 | Malaysia |
| NAS620C4L | 2006-10-277 | 350 | Turkey |
| 5310-00-723-9676 | 2006-09-264 | 5000 | Canada |
Cross Reference | NSN 5310-00-723-9676
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 004-002894-053 | 26916 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE |
| 1176-00745 | K0662 | SELEX ES LTD |
| 137301-37 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 21172-00745 | K0662 | SELEX ES LTD |
| 24-00162-044 | K0268 | RAYTHEON SYSTEMS LTD |
| 2504638-5 | 07187 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 29-0005 | 39741 | MERILLAT ROAD SUPPLY CO |
| 40530006316 | S0522 | TADIRAN LTD |
| 4197600-21 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 4197600-21 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 4M36-01057 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 5310007239676 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 5953180 | S0522 | TADIRAN LTD |
| 9336C2008-5 | 87557 | LOCKHEED CORP LOCKHEED ELECTRONICS CO INC |
| 947620-4041 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| 947620-4041 | 13973 | LITTON SYSTEMS INC. DIV NAVIGATION SYSTEMS DIVISION |
| B68030 | K0967 | MBDA UK LTD |
| NAS 620C-4L | 70318 | ALLMETAL SCREW PRODUCTS CORP DBA ALL METAL SCREW PRODUCTS |
| NAS620-CAL | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| NAS620C4L | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| S8154-206C020 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| S8157N33-020 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| SWSS0707-02RV | 19315 | HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS FORMER BENDIX NAVIGATION AND |
| SWSS0707-02RV | 55972 | HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS |
| TH-WG0409 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-723-9676
Related Products | NSN 5310-00-723-9676
Technical Data | NSN 5310-00-723-9676
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-766 COND A FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |

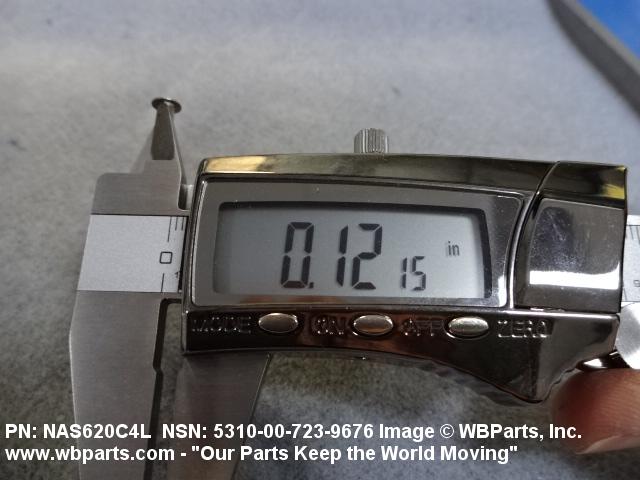

| HOLE DIAMETER | 0.115 INCHES MINIMUM AND 0.125 INCHES MAXIMUM |
| PERIPHERAL SHAPE STYLE | 1 ROUND |

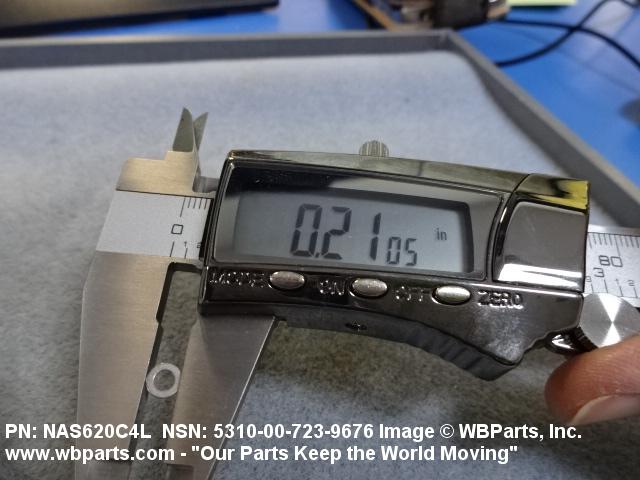

| OVERALL DIAMETER | 0.204 INCHES MINIMUM AND 0.224 INCHES MAXIMUM |
| CENTER HOLE SHAPE STYLE | 1 ROUND |
| CROSS-SECTIONAL SHAPE STYLE | 1 RECTANGULAR |

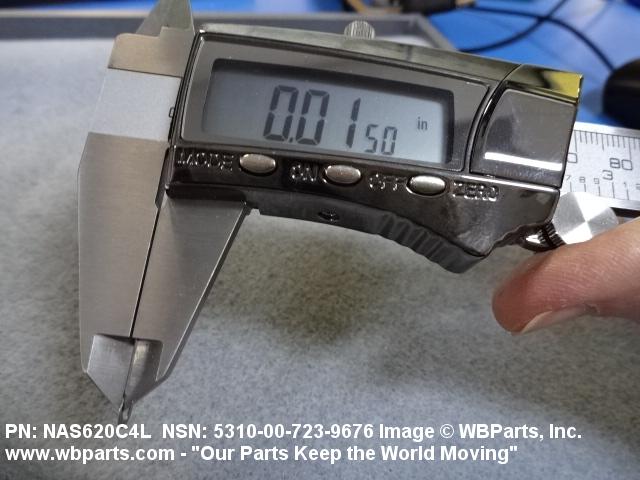

| THICKNESS | 0.016 INCHES NOMINAL |
| SPECIFICATION/STANDARD DATA | 80205-NAS620 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5310-00-723-9676
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 103300 | INSULATING MATERIAL NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-723-9676
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | Q | Avionics |
| Weapons Systems/End Item or Homogeneous Group | QA | Av VHF/UHF/AM |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
