NSN 5310-00-723-0007 10107230007, 1010-723-0007 , 7230007
Product Details | WING PLAIN NUT
5310-00-723-0007 A nut having wings designed for manual turning without driver or wrench.
Part Alternates: 10107230007, 1010-723-0007 , 7230007, 5310-00-723-0007, 00-723-0007, 5310007230007, 007230007
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-723-0007 | 01862 ( NUT, PLAIN, WING ) |

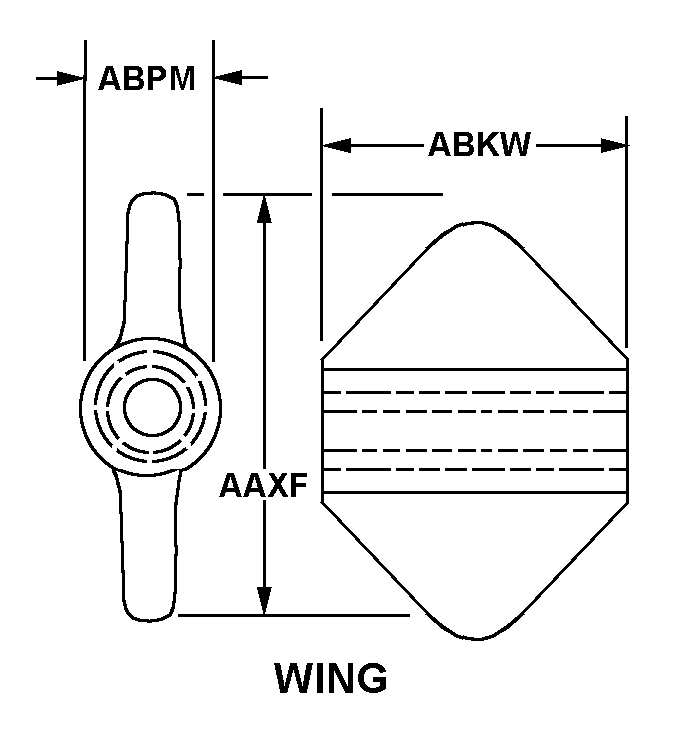

Drawings & Photos | NSN 5310-00-723-0007
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-723-0007
Related Products | NSN 5310-00-723-0007
Technical Data | NSN 5310-00-723-0007
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNS |
| NOMINAL THREAD SIZE | 1.340 INCHES |
| THREAD QUANTITY PER INCH | 16 |
| THREAD CLASS | 2B |
| THREAD PITCH DIAMETERS | 1.2994 TO 1.3060 INCHES |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | FED-S-66 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | 25.0 ROCKWELL C NOMINAL |
| NUT STYLE | A282 WING |
| WING SPREAD WIDTH | 2.625 INCHES NOMINAL |
| OVERALL HEIGHT | 1.620 INCHES NOMINAL |
| BODY DIAMETER | 1.625 INCHES NOMINAL |
| FABRICATION METHOD | CAST |
| TEMP RATING | NOT RATED |
| III END ITEM IDENTIFICATION | ABF302,MORTAR M2 W/MT M5 |
| MANUFACTURERS CODE | 19206 |
| DESIGN CONTROL REFERENCE | 7230007 |
Restrictions/Controls & Freight Information | NSN 5310-00-723-0007
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | M | 85 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-723-0007
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
