NSN 5310-00-722-5943 AN96010, AN960-10, 93211009
Product Details | FLAT WASHER
5310-00-722-5943 A washer having a centrally located hole with a solid or laminated cross-section and two flat parallel bearing surfaces. The hole must be 75 percent or less than the largest dimension and the bearing surface finish is greater than 32 microinch (0.8 micrometer). The thickness cannot exceed 25 percent of the largest outside dimension. When the largest outside dimension is less than 1/4 inch or 6mm, the thickness must be 0.006 inches (0.15mm) or greater and for items 1/4 inch (6mm) or larger, the thickness must be 0.016 inches (0.4mm) or greater. The maximum tolerance is applied to dimensions and used as a determining factor. Items with separable lamination use SHIM. For items fabricated from ceramic or electrically rated materials by specification or industry standards use INSULATOR (1), WASHER. Excludes DISK, VALVE, graphite impregnated and lubricated items.
Part Alternates: AN96010, AN960-10, 93211009, 5310-00-722-5943, 00-722-5943, 5310007225943, 007225943
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-722-5943 | 13393 ( WASHER, FLAT ) |

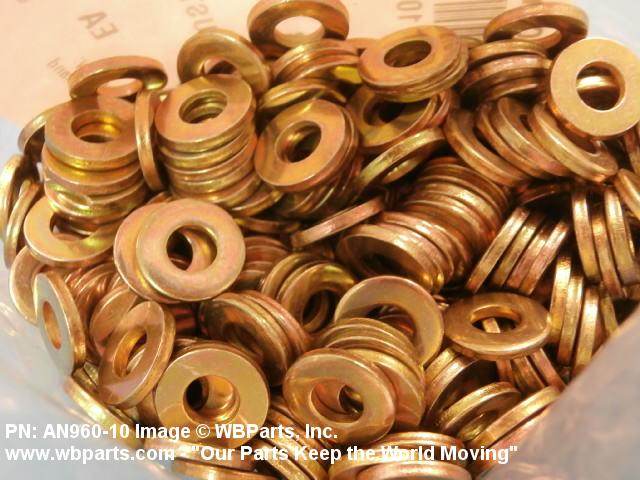

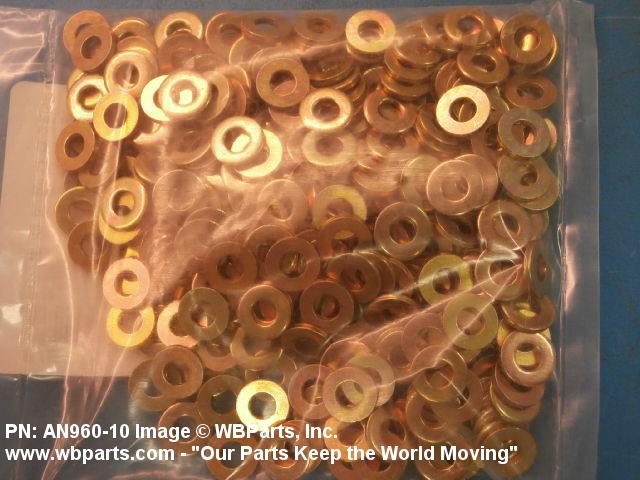

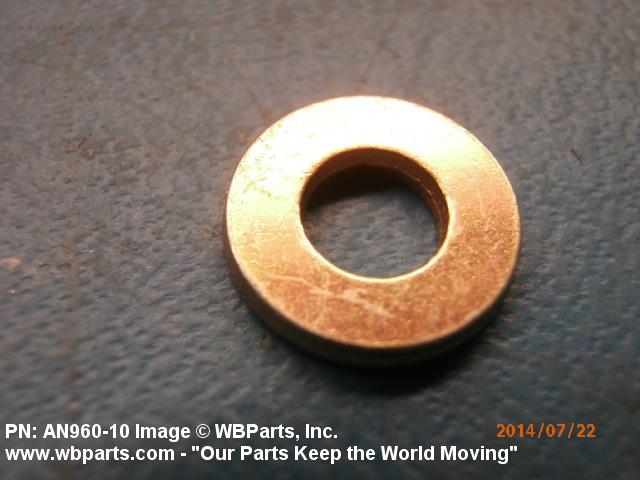

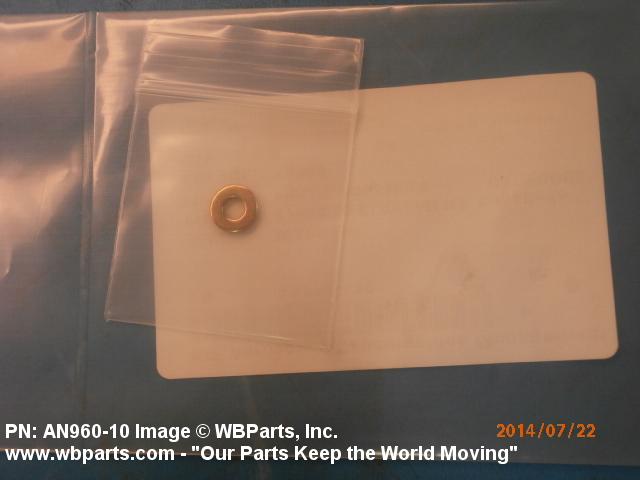

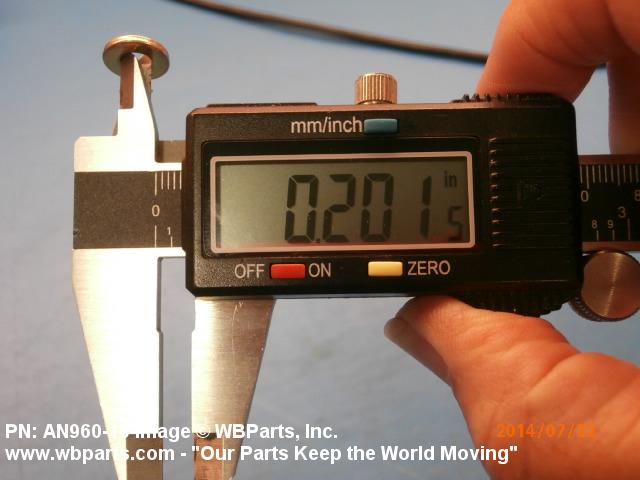

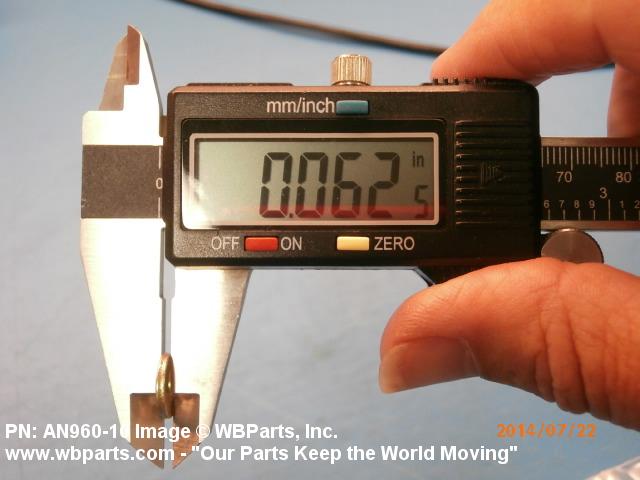

Drawings & Photos | NSN 5310-00-722-5943
Demand History | NSN 5310-00-722-5943
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN96010 | 2024-07-195 | 2500 | United States |
| AN96010 | 2023-11-332 | 200 | US |
| AN96010 | 2022-04-102 | 4 | US |
| AN96010 | 2021-12-362 | 400 | Hong Kong |
| AN96010 | 2021-08-238 | 100 | US |
| AN96010 | 2021-07-203 | 12 | US |
| AN96010 | 2021-07-203 | 1 | US |
| AN96010 | 2021-07-190 | 30 | US |
| AN96010 | 2021-05-141 | 4 | United States |
| AN96010 | 2020-11-325 | 18 | United States |
| AN96010 | 2019-06-164 | 20 | Greece |
| 5310-00-722-5943 | 2019-06-163 | 60 | United States |
| AN96010 | 2018-09-271 | 2500 | US |
| AN96010 | 2018-06-170 | 100 | IN |
| AN96010 | 2018-02-43 | 3 | Singapore |
| AN96010 | 2017-12-342 | 3 | Singapore |
| AN96010 | 2017-09-244 | 1000 | United States |
| AN96010 | 2017-02-44 | 2 | US |
| AN96010 | 2016-09-252 | 100 | US |
| AN96010 | 2016-07-204 | 50 | CA |
| AN960-10 | 2016-04-96 | 300 | Romania |
| AN96010 | 2016-04-95 | 1 | BR |
| AN96010 | 2016-02-40 | 4 | US |
| AN96010 | 2015-10-295 | 32 | US |
| AN960-10 | 2015-05-138 | 24 | United States |
| AN960-10 | 2015-05-138 | 112 | United States |
| AN960-10 | 2015-05-138 | 16 | United States |
| AN960-10 | 2015-05-138 | 4 | United States |
| AN960-10 | 2015-05-138 | 120 | United States |
| AN960-10 | 2015-05-138 | 1 | United States |
| AN960-10 | 2015-05-138 | 87 | United States |
| AN960-10 | 2015-05-138 | 14 | United States |
| AN960-10 | 2015-05-138 | 2 | United States |
| AN960-10 | 2015-05-138 | 8 | United States |
| AN960-10 | 2015-05-138 | 47 | United States |
| AN960-10 | 2015-05-138 | 24 | United States |
| AN960-10 | 2015-05-138 | 112 | United States |
| AN960-10 | 2015-05-138 | 16 | United States |
| AN960-10 | 2015-05-138 | 4 | United States |
| AN960-10 | 2015-05-138 | 120 | United States |
| AN960-10 | 2015-05-138 | 1 | United States |
| AN960-10 | 2015-05-138 | 87 | United States |
| AN960-10 | 2015-05-138 | 14 | United States |
| AN960-10 | 2015-05-138 | 2 | United States |
| AN960-10 | 2015-05-138 | 8 | United States |
| AN960-10 | 2015-05-138 | 47 | United States |
| AN960-10 | 2015-03-76 | 500 | TH |
| AN96010 | 2014-09-246 | 50 | KE |
| AN96010 | 2014-08-223 | 80 | US |
| AN96010 | 2014-08-223 | 330 | US |
| AN960-10 | 2014-05-135 | 2 | PH |
| AN96010 | 2014-04-97 | 305 | United States |
| AN96010 | 2014-04-92 | 305 | United States |
| AN96010 | 2014-03-76 | 1 | US |
| AN960-10 | 2014-03-71 | 442 | United States |
| AN96010 | 2014-02-50 | 1000 | US |
| AN960-10 | 2014-01-06 | 3 | US |
| AN96010 | 2013-12-340 | 50 | Germany |
| AN96010 | 2013-12-340 | 300 | Germany |
| AN96010 | 2013-12-337 | 500 | US |
| AN96010 | 2013-04-112 | 100 | United States |
| AN96010 | 2013-02-43 | 20 | United States |
| AN960-10 | 2012-11-310 | 221 | |
| AN96010 | 2012-08-216 | 100 | US |
| AN96010 | 2012-08-216 | 150 | US |
| AN960-10 | 2012-07-187 | 540 | KR |
| AN960-10 | 2012-06-154 | 10 | United Kingdom |
| AN96010 | 2012-05-131 | 8 | us |
| AN96010 | 2012-03-73 | 500 | United States |
| AN96010 | 2012-02-38 | 300 | AR |
| AN960-10 | 2012-02-38 | 300 | US |
| AN96010 | 2012-01-10 | 72 | United States |
| AN96010 | 2012-01-06 | 15 | United States |
| AN96010 | 2011-12-355 | 700 | US |
| AN96010 | 2011-06-179 | 10 | US |
| 5310-00-722-5943 | 2011-06-175 | 2 | US |
| 5310-00-722-5943 | 2011-06-175 | 8 | US |
| AN96010 | 2011-06-171 | 4 | France |
| AN96010 | 2011-06-168 | 2 | United States |
| 5310-00-722-5943 | 2011-02-52 | 4 | us |
| AN96010 | 2010-09-263 | 50 | Canada |
| 5310-00-722-5943 | 2010-03-62 | 12 | Netherlands |
| 5310-00-722-5943 | 2010-01-19 | 2 | Australia |
| 5310-00-722-5943 | 2009-12-337 | 10 | US |
| AN96010 | 2009-11-308 | 100 | US |
| 5310-00-722-5943 | 2009-11-306 | 50 | Indonesia |
| AN96010 | 2009-07-210 | 144 | US |
| AN96010 | 2009-06-180 | 10 | US |
| AN96010 | 2009-05-138 | 3270 | China |
| AN96010 | 2006-07-198 | 100 | Thailand |
| AN96010 | 2006-06-171 | 18 | Turkey |
| AN96010 | 2006-05-138 | 4 | US |
| AN96010 | 2006-04-120 | 100 | Australia |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-722-5943
Technical Data | NSN 5310-00-722-5943
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-7952 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |

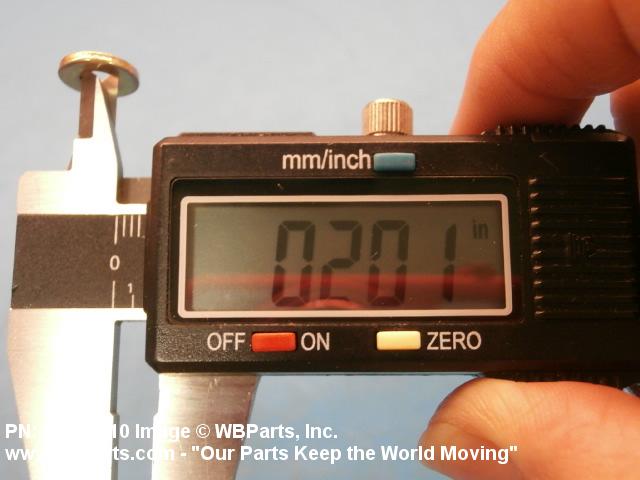

| HOLE DIAMETER | 0.240 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| PERIPHERAL SHAPE STYLE | 1 ROUND |

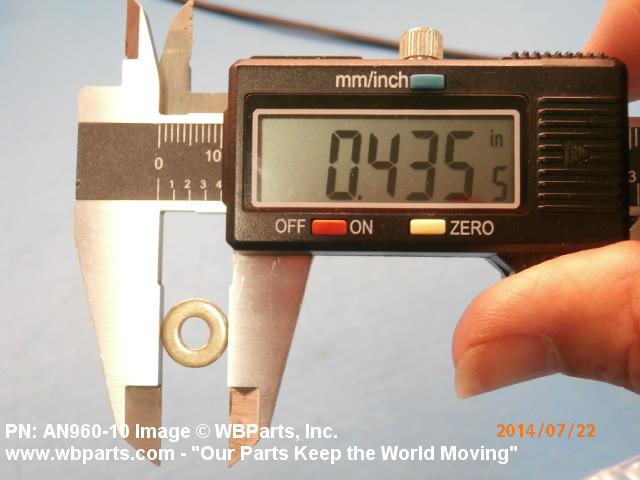

| OVERALL DIAMETER | 0.438 INCHES NOMINAL |
| CENTER HOLE SHAPE STYLE | 1 ROUND |
| CROSS-SECTIONAL SHAPE STYLE | 1 RECTANGULAR |

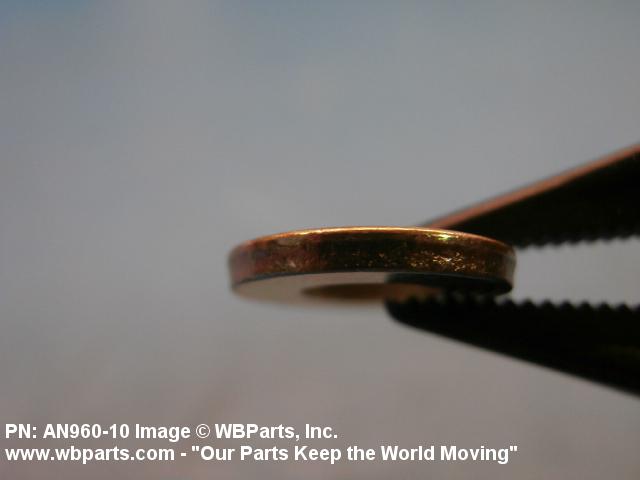

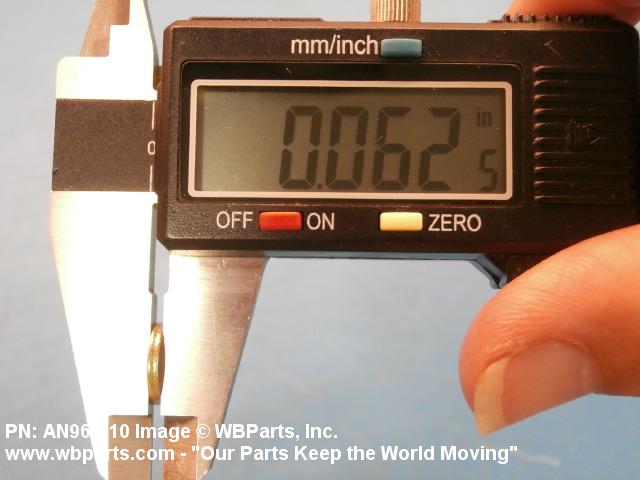

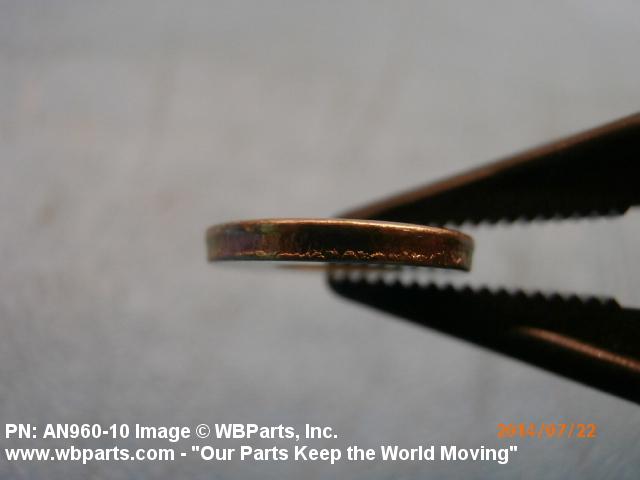

| THICKNESS | 0.064 INCHES NOMINAL |
| SPECIAL FEATURES | FLEET BALLISTIC MISSILE QUALITY,AS IDENTIFIED BY QUALITY CONTROL NO POSO 912872 |
| DEPARTURE FROM CITED DESIGNATOR | PART NO. AN960-10 ASMODIFIED BY REPLY TO SPECIAL FEATURES |
| MANUFACTURERS CODE | 88044 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN960-10 |
Restrictions/Controls & Freight Information | NSN 5310-00-722-5943
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
