NSN 5310-00-711-2145 NAS1291C4, 00-711-2145, 007112145
Product Details | HEXAGON EXTENDED WASHER PLAIN NUT
5310-00-711-2145 A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery.
Part Alternates: NAS1291C4, 5310-00-711-2145, 00-711-2145, 5310007112145, 007112145
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-711-2145 | 04889 ( NUT, PLAIN, EXTENDED WASHER, HEXAGON ) |

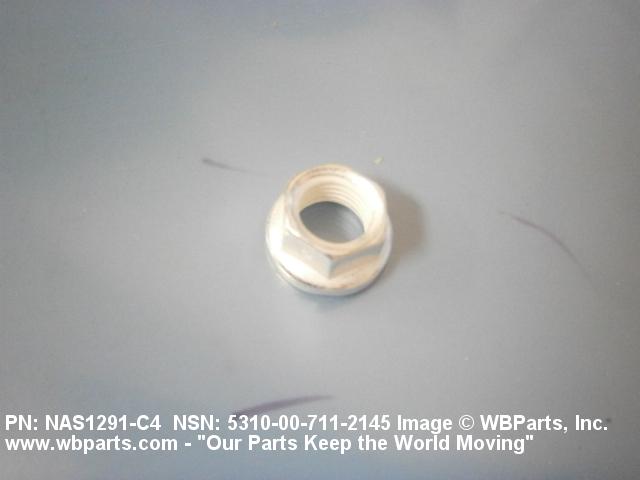

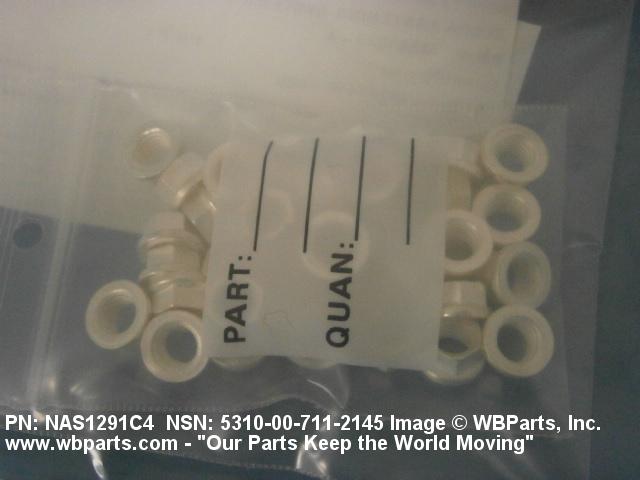

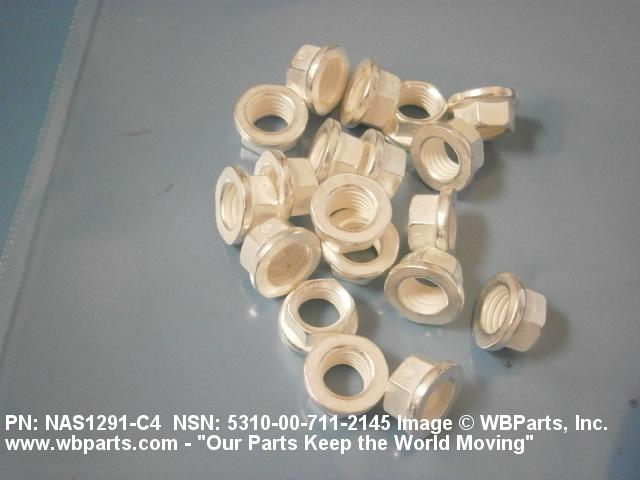

Drawings & Photos | NSN 5310-00-711-2145
Demand History | NSN 5310-00-711-2145
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1291C4 | 2020-04-22 | 25 | US |
| NAS1291C4 | 2019-06-07 | 6 | United States |
| NAS1291C4 | 2012-03-06 | 600 | United Kingdom |
| NAS1291C4 | 2012-02-13 | 9 | United States |
| NAS1291C4 | 2011-12-28 | 8 | United Kingdom |
| 5310-00-711-2145 | 2011-08-09 | 4000 | US |
| 5310-00-711-2145 | 2011-06-03 | 200 | US |
| NAS1291C4 | 2011-01-28 | 200 | US |
| NAS1291C4 | 2011-01-24 | 3000 | IN |
| 5310-00-711-2145 | 2009-04-06 | 1000 | Australia |
Cross Reference | NSN 5310-00-711-2145
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1291C4 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-711-2145
Related Products | NSN 5310-00-711-2145
Technical Data | NSN 5310-00-711-2145
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| SURFACE TREATMENT | SILVER OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A294 HEXAGON |
| WASHER OUTSIDE DIAMETER | 0.420 INCHES NOMINAL |
| OVERALL HEIGHT | 0.204 INCHES MINIMUM AND 0.219 INCHES MAXIMUM |
| WASHER THICKNESS | 0.019 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.304 INCHES MINIMUM AND 0.316 INCHES MAXIMUM |
| TEMP RATING | 800.0 DEG FAHRENHEIT NOMINAL |
| III PRECIOUS MATERIAL | SILVER |
Restrictions/Controls & Freight Information | NSN 5310-00-711-2145
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | U | 50 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-711-2145
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
