NSN 5310-00-710-4557 7104557, 00-710-4557, 007104557
Product Details | WING PLAIN NUT
5310-00-710-4557 A nut having wings designed for manual turning without driver or wrench.
Part Alternates: 7104557, 5310-00-710-4557, 00-710-4557, 5310007104557, 007104557
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-710-4557 | 01862 ( NUT, PLAIN, WING ) |

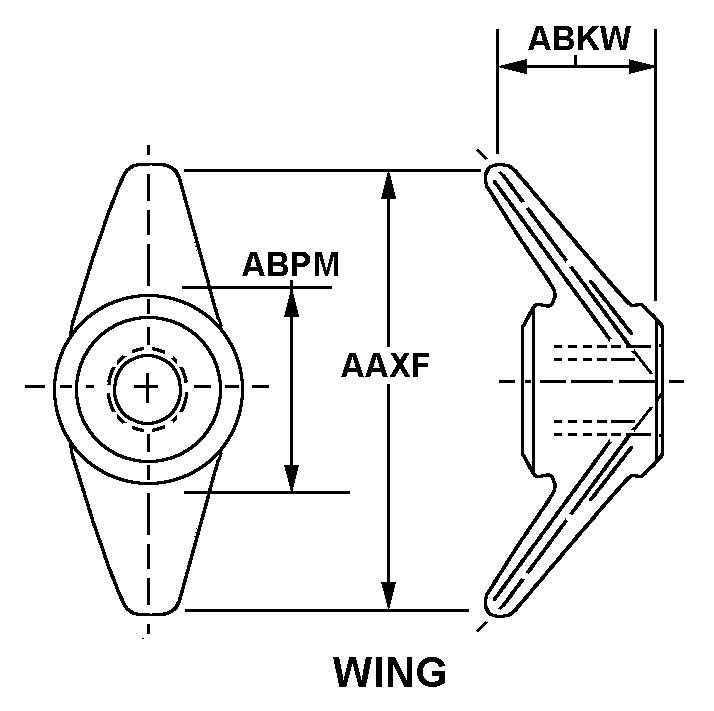

Drawings & Photos | NSN 5310-00-710-4557
Cross Reference | NSN 5310-00-710-4557
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7104557 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-710-4557
Related Products | NSN 5310-00-710-4557
Technical Data | NSN 5310-00-710-4557
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 1.500 INCHES |
| THREAD QUANTITY PER INCH | 6 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | PAINT OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A281 WING |
| WING SPREAD WIDTH | 6.500 INCHES NOMINAL |
| OVERALL HEIGHT | 2.250 INCHES NOMINAL |
| BODY DIAMETER | 2.375 INCHES NOMINAL |
| FABRICATION METHOD | ANY ACCEPTABLE |
| TEMP RATING | NOT RATED |
| MANUFACTURERS CODE | 19204 |
| DESIGN CONTROL REFERENCE | 7104557 |
Restrictions/Controls & Freight Information | NSN 5310-00-710-4557
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | U | 50 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
