NSN 5310-00-706-0976 BACN10GH310, BACN10GH3-10, WSI33210
Product Details | PLATE SELF-LOCKING NUT

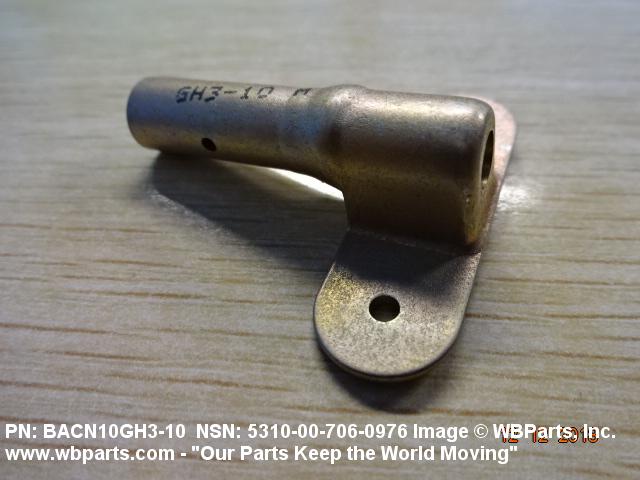

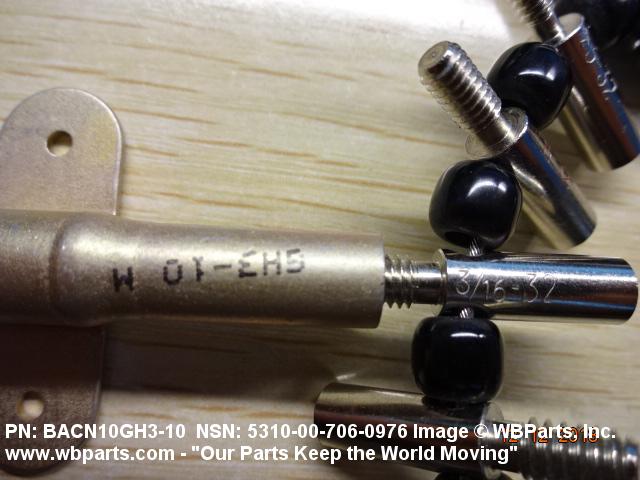

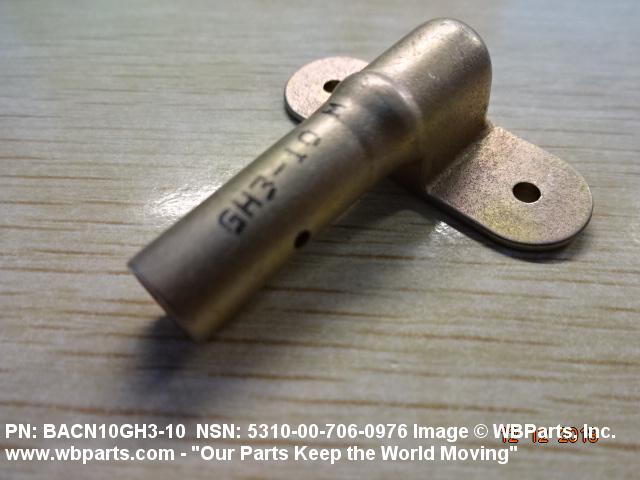

5310-00-706-0976 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: BACN10GH310, BACN10GH3-10, WSI33210, WSI-332-10, 5310-00-706-0976, 00-706-0976, 5310007060976, 007060976
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-706-0976 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

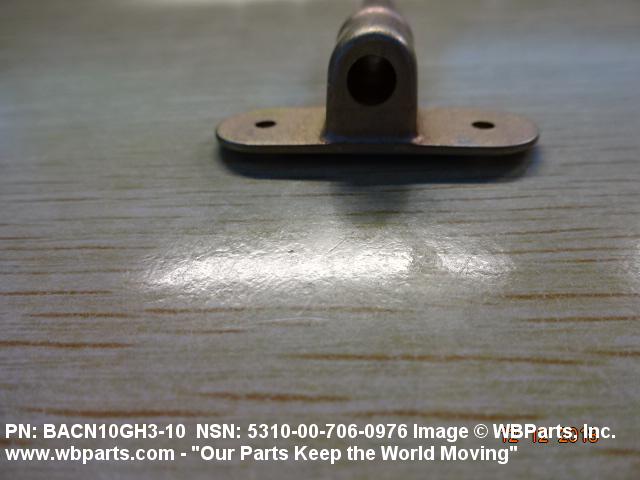

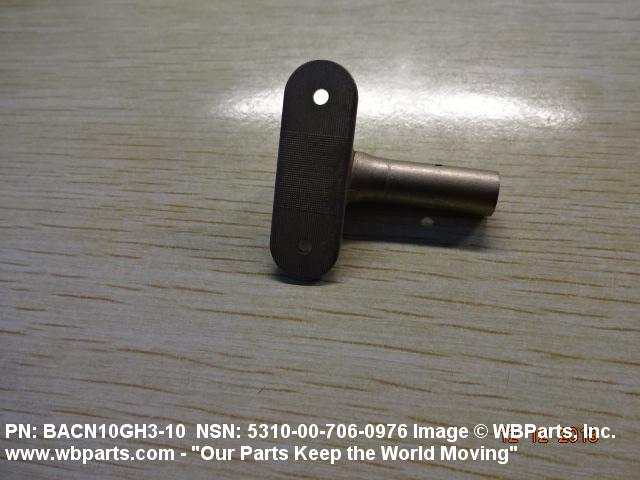

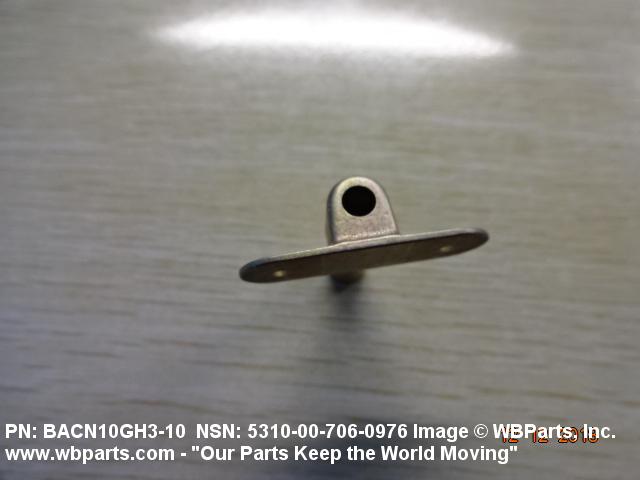

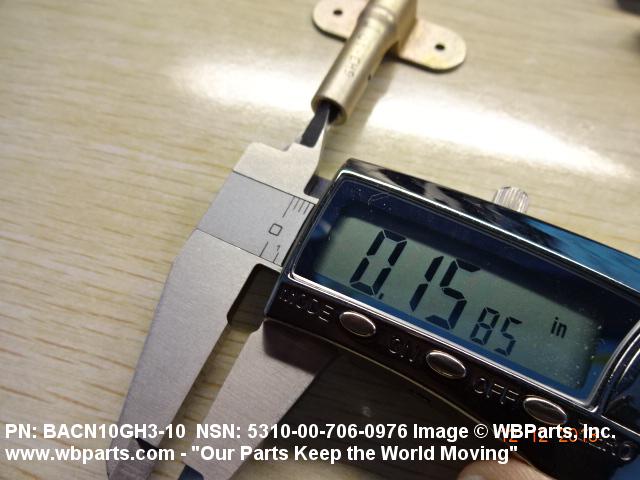

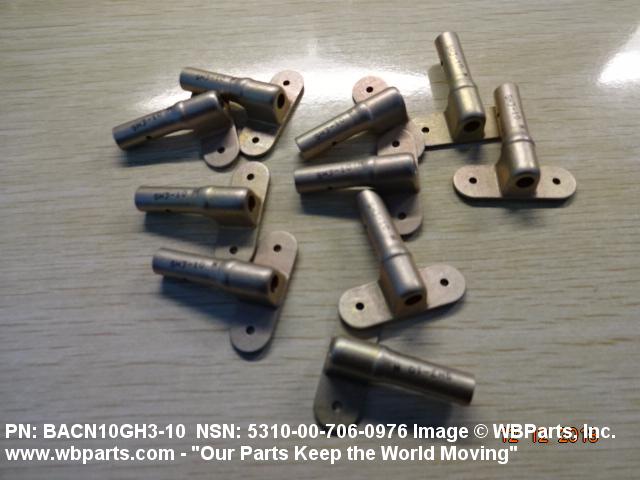

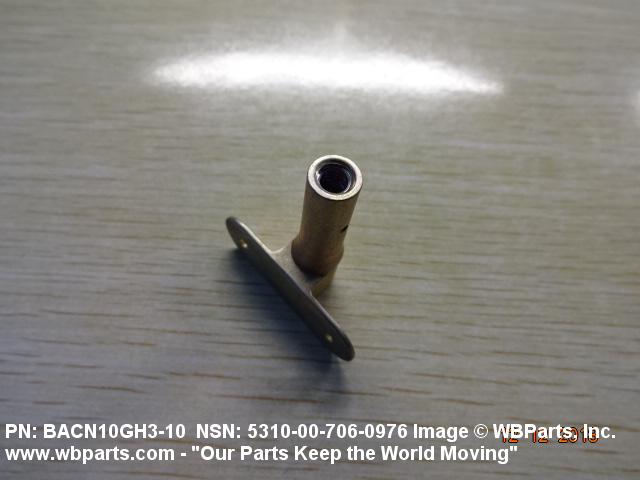

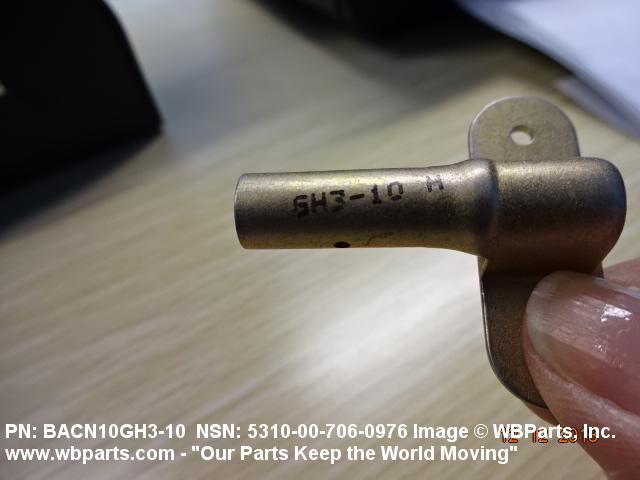

Drawings & Photos | NSN 5310-00-706-0976
Demand History | NSN 5310-00-706-0976
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BACN10GH310 | 2024-11-318 | 50 | United States |
| 5310-00-706-0976 | 2024-03-68 | 22 | US |
| BACN10GH310 | 2023-04-94 | 20 | Malta |
| BACN10GH310 | 2023-03-86 | 10 | Malta |
| BACN10GH310 | 2023-03-73 | 10 | Malta |
| BACN10GH310 | 2023-02-48 | 4 | Malta |
| WSI33210 | 2023-01-17 | 30 | US |
| BACN10GH310 | 2022-01-11 | 16 | Malta |
| BACN10GH3-10 | 2021-03-62 | 991 | DIBBS |
| BACN10GH3-10 | 2021-02-48 | 1132 | DIBBS |
| BACN10GH3-10 | 2021-02-38 | 112 | DIBBS |
| BACN10GH3-10 | 2021-01-21 | 759 | DIBBS |
| 5310-00-706-0976 | 2021-01-18 | 100 | United States |
| BACN10GH3-10 | 2021-01-13 | 759 | DIBBS |
| BACN10GH310 | 2019-10-290 | 100 | United States |
| BACN10GH310 | 2018-12-338 | 100 | United States |
| 5310-00-706-0976 | 2018-09-254 | 100 | United States |
| BACN10GH310 | 2018-09-249 | 51 | US |
| 5310-00-706-0976 | 2014-03-88 | 15 | Canada |
| 5310-00-706-0976 | 2012-08-228 | 1000 | DIBBS |
| 5310-00-706-0976 | 2012-06-180 | 108 | us |
| 5310-00-706-0976 | 2012-02-47 | 968 | DIBBS |
| WSI33210 | 2011-08-228 | 100 | Canada |
| 5310-00-706-0976 | 2011-02-59 | 5 | US |
| WSI33210 | 2010-11-306 | 1 | US |
| WSI33210 | 2010-08-243 | 3 | US |
| 5310-00-706-0976 | 2009-10-282 | 25 | US |
| 5310-00-706-0976 | 2008-06-179 | 500 | China |
| WSI33210 | 2008-02-49 | 500 | United States |
| WSI33210 | 2008-02-35 | 500 | United States |
| WSI33210 | 2008-01-09 | 500 | United States |
| 5310-00-706-0976 | 2007-09-256 | 2 | United States |
Cross Reference | NSN 5310-00-706-0976
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-706-0976
Related Products | NSN 5310-00-706-0976
Technical Data | NSN 5310-00-706-0976

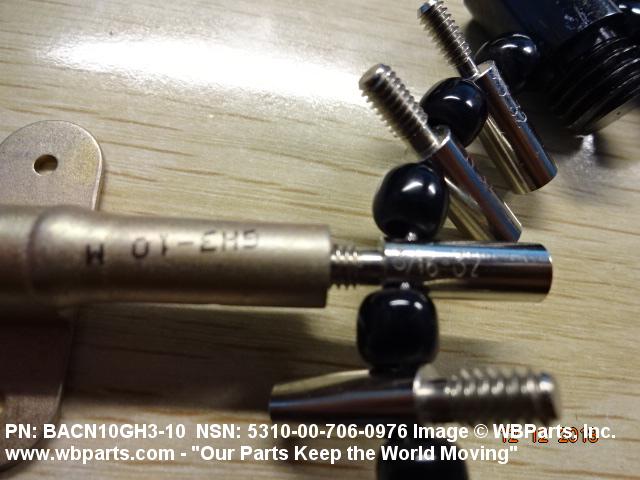

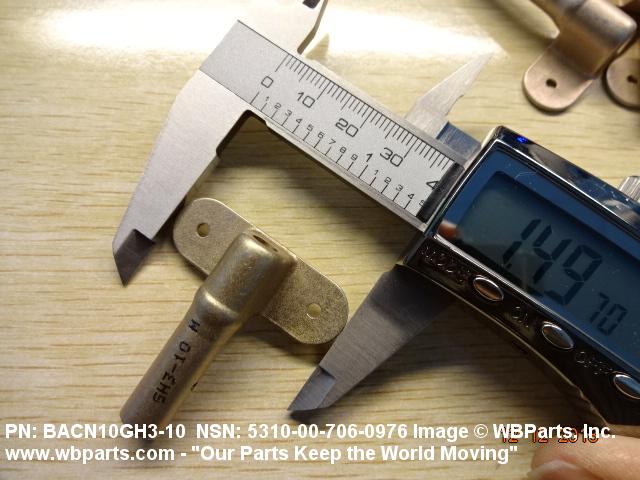

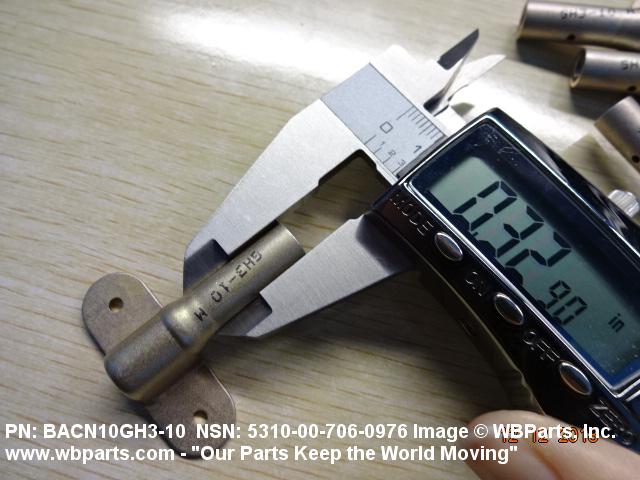

| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | ALUMINUM ALLOY 2014 LOCKING INSERT STEEL CORROSION RESISTING NUT |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-367 TEMPER T6 FED SPEC SINGLE MATERIAL RESPONSE LOCKING INSERT AMS 7245 ASSN STD SINGLE MATERIAL RESPONSE NUT |
| SURFACE TREATMENT | OXIDE FILM NUT |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-5541 MIL SPEC SINGLE TREATMENT RESPONSE NUT |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A129 PLATE |
| NUT LENGTH | 1.450 INCHES MINIMUM AND 1.550 INCHES MAXIMUM |

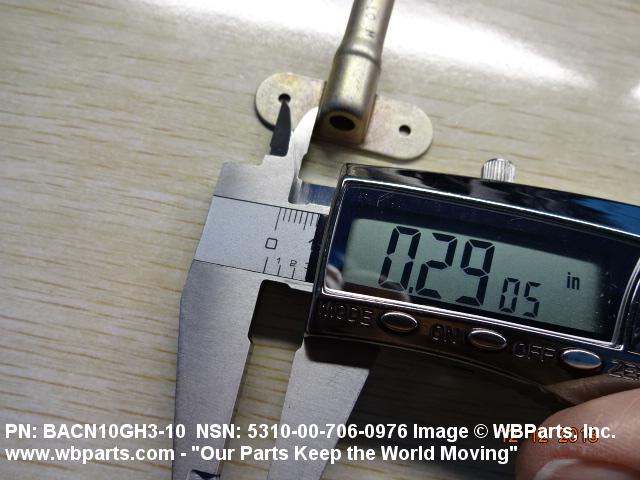

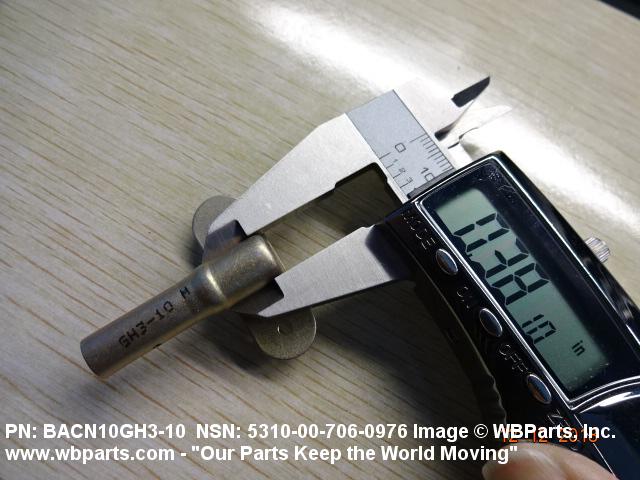

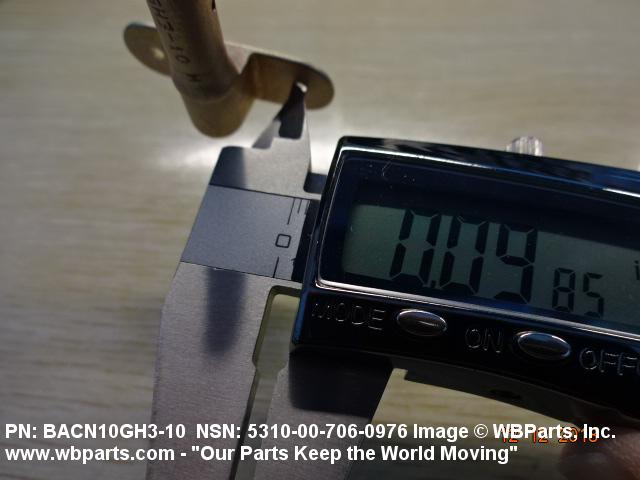

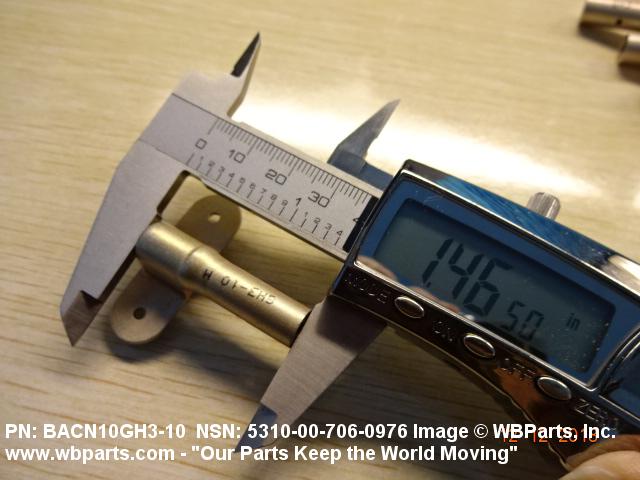

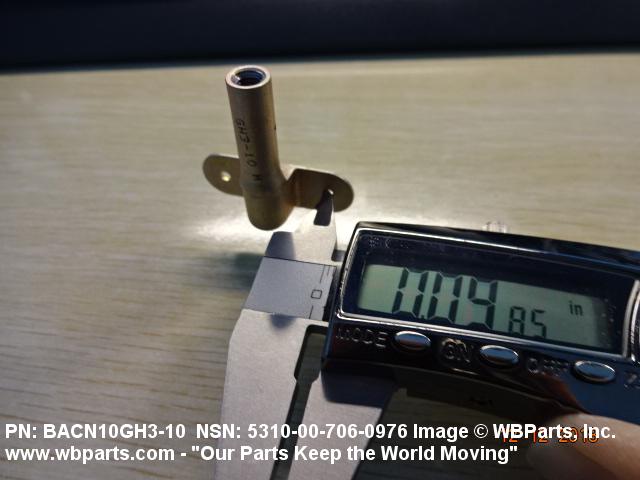

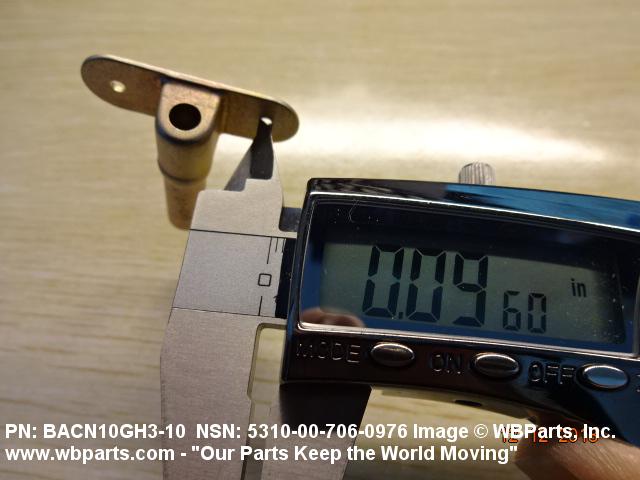

| DISTANCE FROM BASE TO CENTER OF APERTURE | 0.290 INCHES MINIMUM AND 0.330 INCHES MAXIMUM |
| NUT HEIGHT | 1.410 INCHES MINIMUM AND 1.470 INCHES MAXIMUM |
| PLATE THICKNESS | 0.040 INCHES MINIMUM AND 0.060 INCHES MAXIMUM |
| PLATE WIDTH | 1.460 INCHES MINIMUM AND 1.570 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE WITH METALLIC INSERT |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F2 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
| DISTANCE FROM MOUNTING HOLE CENTER TO BASE | 0.240 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG WIDTH | 1.000 INCHES MINIMUM AND 1.030 INCHES MAXIMUM |
| TEMP RATING | NOT RATED |
| SPECIFICATION/STANDARD DATA | 81205-BACN10GH MANUFACTURERS STANDARD |
| MANUFACTURERS CODE | 04169 |
| DESIGN CONTROL REFERENCE | WSI-332-10 |
