NSN 5310-00-704-3752 35221401, 3522-14-01, 352214010541
Product Details | SPRING TENSION WASHER
5310-00-704-3752 A bent spring metal washer with a centrally located hole. It is designed to exert pressure axially when assembled in place.
Part Alternates: 35221401, 3522-14-01, 352214010541, 3522-14-01-0541, 5310-00-704-3752, 00-704-3752, 5310007043752, 007043752
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-704-3752 | 15938 ( WASHER, SPRING TENSION ) |

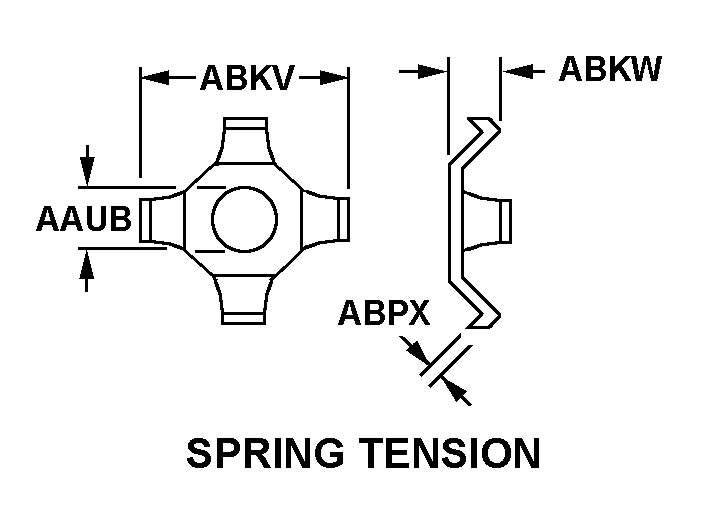

Drawings & Photos | NSN 5310-00-704-3752
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-704-3752
Technical Data | NSN 5310-00-704-3752
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1010 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | 20 SPRING TENSION |
| HOLE DIAMETER | 0.250 INCHES MINIMUM AND 0.262 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 0.688 INCHES NOMINAL |
| OVERALL HEIGHT | 0.065 INCHES MINIMUM AND 0.085 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.020 INCHES NOMINAL |
| FEATURES PROVIDED | CASEHARDENED |
| SPECIAL FEATURES | SIX EVENLY SPACED STRAIGHT TABS |
Restrictions/Controls & Freight Information | NSN 5310-00-704-3752
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-704-3752
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
