NSN 5310-00-702-2661 4F14046101A, 4F14046-101A, 00-702-2661
Product Details | SADDLE WASHER
5310-00-702-2661 A washer with one surface shaped to fit a similarly curved surface, the other surface of the washer being either parallel with the shaped surface or in the form of raised boss having either a flat bearing surface or a recess designed for holding a nut. Excludes WASHER (1), CONCAVE and WASHER (1), CONVEX.
Part Alternates: 4F14046101A, 4F14046-101A, 5310-00-702-2661, 00-702-2661, 5310007022661, 007022661
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 02 FEB 1968 | 00-702-2661 | 15898 ( WASHER, SADDLE ) |

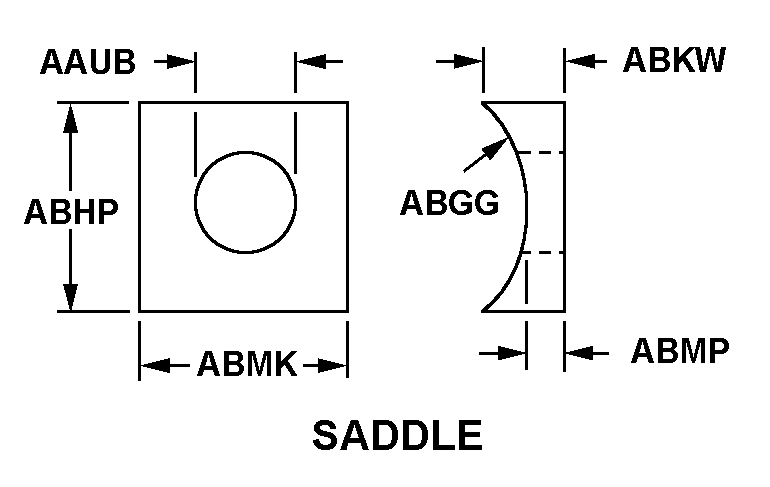

Drawings & Photos | NSN 5310-00-702-2661
Cross Reference | NSN 5310-00-702-2661
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4F14046-101A | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-702-2661
Technical Data | NSN 5310-00-702-2661
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 7075 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/12,T651 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | 33D SADDLE |
| HOLE DIAMETER | 0.311 INCHES MINIMUM AND 0.318 INCHES MAXIMUM |
| RADIUS | 0.550 INCHES NOMINAL |
| OVERALL LENGTH | 0.560 INCHES NOMINAL |
| OVERALL WIDTH | 0.560 INCHES NOMINAL |
| THICKNESS AT BOLT HOLE | 0.060 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5310-00-702-2661
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SG | 403 SCMS/GUED 5215 Thurlow St, Suite 5, Bldg 70C Wright-Patterson AFB OH 45433 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
