NSN 5310-00-688-2069 524941, 52Z1835048, 52Z1835-048

Product Details | DOUBLE HEXAGON EXTENDED WASHER SELF-LOCKING NUT

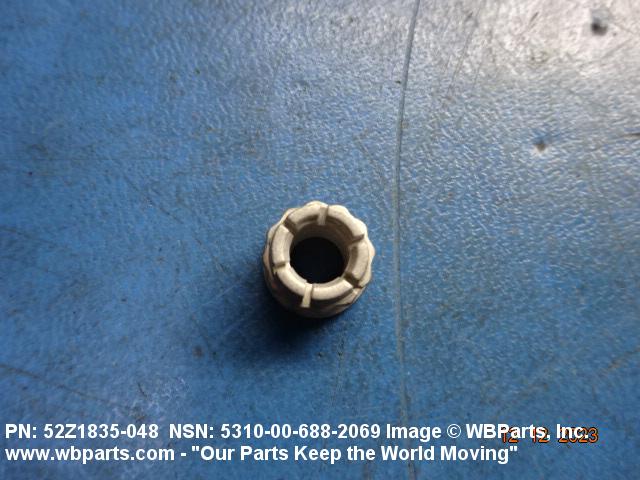

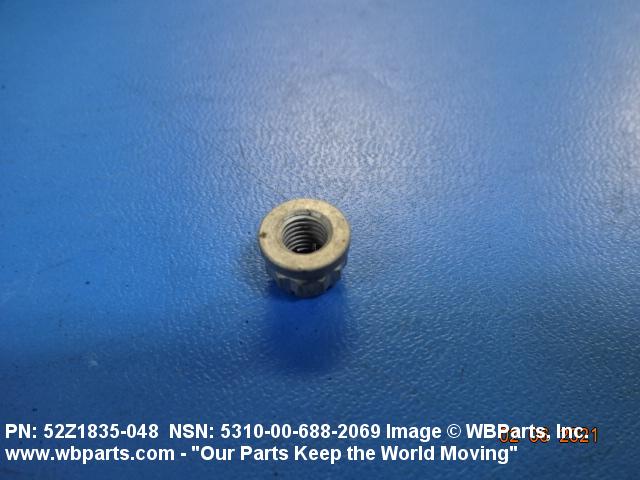

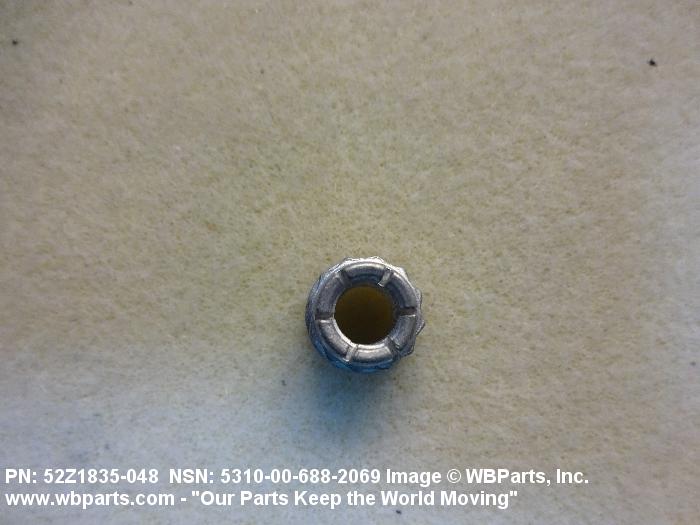

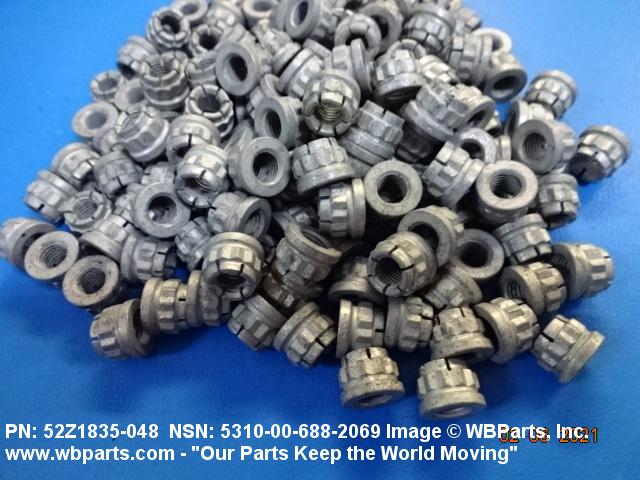

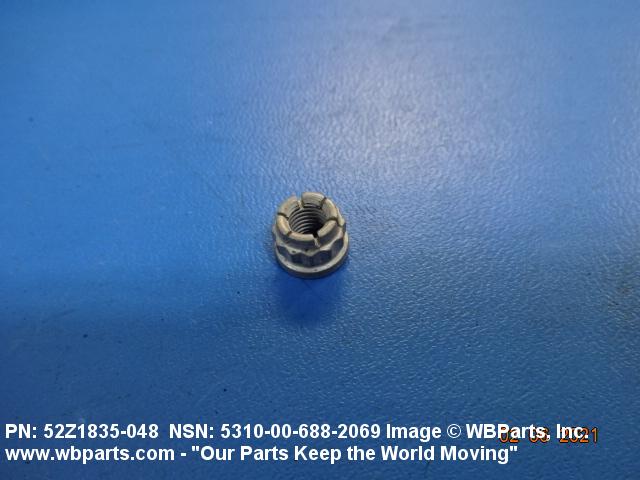

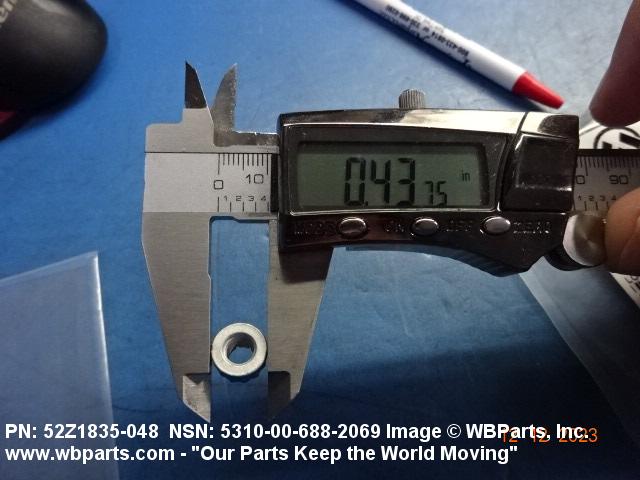

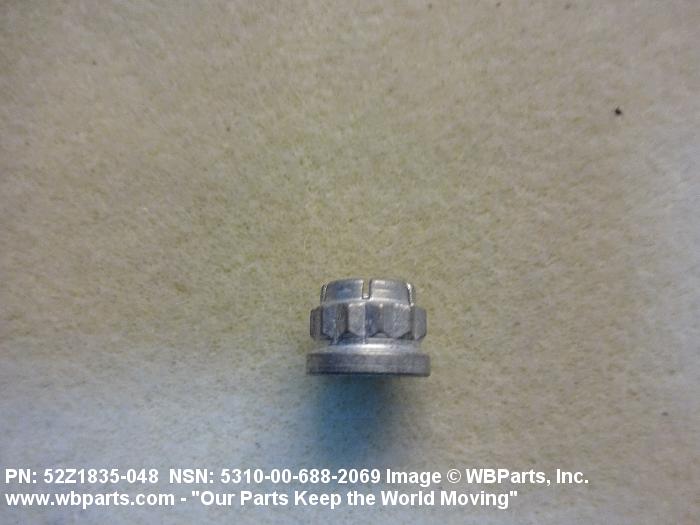

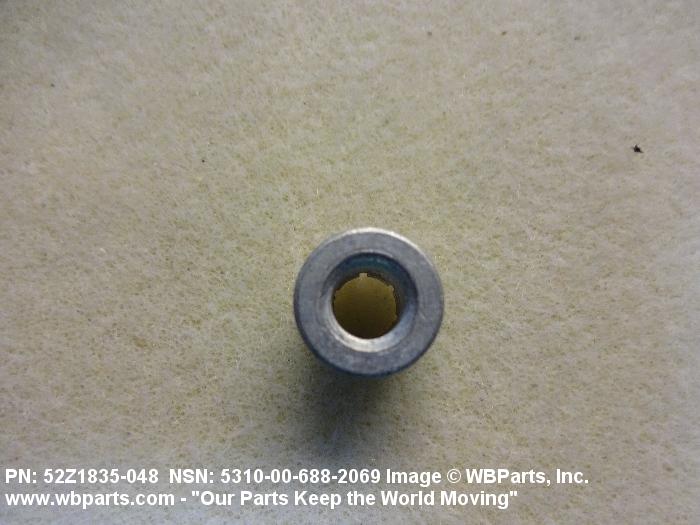

5310-00-688-2069 A nut having 12 drive points, 24 sides, and an integral washer which extends beyond the points or periphery. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: 524941, 52Z1835048, 52Z1835-048 , 5310-00-688-2069, 00-688-2069, 5310006882069, 006882069

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-688-2069	29729 ( NUT, SELF-LOCKING, EXTENDED WASHER, DOUBLE HEXAGON )

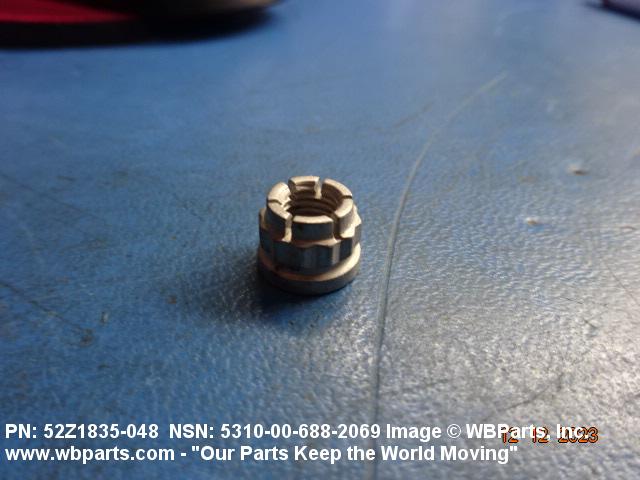

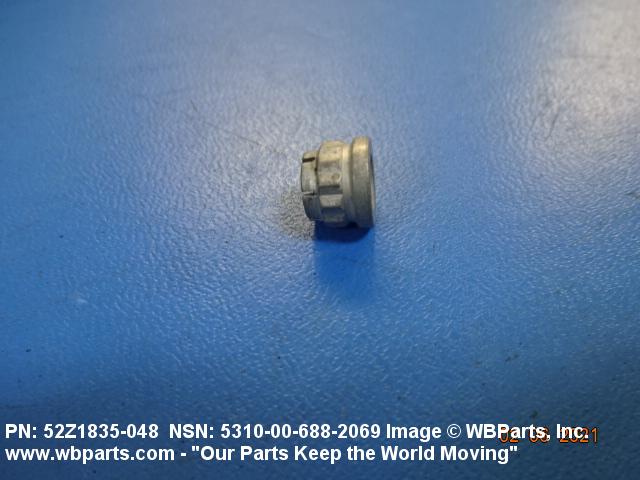

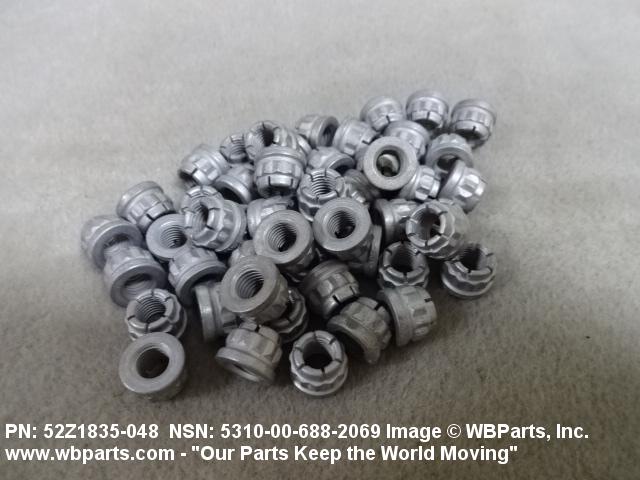

Drawings & Photos | NSN 5310-00-688-2069

Part Number	Request Date	QTY	Origin
52Z1835-048	2024-10-301	13528	DIBBS
52Z1835-048	2024-10-291	13528	DIBBS
52Z1835-048	2024-07-200	2802	DIBBS
52Z1835-048	2024-03-85	4241	DIBBS
52Z1835-048	2024-03-77	4241	DIBBS
5310-00-688-2069	2024-03-73	5	El Salvador
5310-00-688-2069	2024-03-73	100	El Salvador
52Z1835048	2024-01-16	200	Germany
52Z1835-048	2023-12-360	5633	DIBBS
52Z1835-048	2023-12-351	5633	DIBBS
5310-00-688-2069	2023-12-338	50	United States
52Z1835-048	2023-09-271	3521	DIBBS
52Z1835-048	2023-06-172	10221	DIBBS
52Z1835-048	2023-05-141	2761	DIBBS
5310-00-688-2069	2023-02-53	9850	US
52Z1835-048	2023-02-51	9850	DIBBS
5310-00-688-2069	2022-12-349	50	United States
52Z1835-048	2022-10-289	6426	DIBBS
52Z1835-048	2022-08-231	4064	DIBBS
52Z1835-048	2022-07-200	4064	DIBBS
52Z1835-048	2022-05-143	5301	DIBBS
52Z1835-048	2022-04-110	5301	DIBBS
5310-00-688-2069	2022-04-101	100	United States
52Z1835048	2022-01-17	20	Serbia
5310-00-688-2069	2021-05-131	160	Turkey
5310-00-688-2069	2021-01-06	10	US
5310-00-688-2069	2020-10-275	100	TR
5310-00-688-2069	2020-06-172	50	DE
52Z1835-048	2020-03-63	40	US
5310-00-688-2069	2020-03-63	40	MANUAL
52Z1835-048	2020-02-57	40	US
52Z1835048	2019-03-87	96	US
52Z1835-048	2019-03-87	100	US
5310-00-688-2069	2018-12-352	50	United States
5310-00-688-2069	2018-05-151	4662	DIBBS
5310-00-688-2069	2018-05-140	200	US
52Z1835048	2017-09-246	5000	IR
52Z1835048	2017-07-209	5000	China
5310-00-688-2069	2017-06-170	48	United States
524941	2017-02-53	1000	US
5310-00-688-2069	2016-06-177	1000	CN
52Z1835048	2015-05-131	200	Hong Kong
52Z1835048	2015-04-119	200	Turkey
5310-00-688-2069	2015-04-116	5511	DIBBS
52Z1835-048	2015-03-76	100	TH
5310-00-688-2069	2015-01-12	17240	DIBBS
5310-00-688-2069	2014-04-103	25970	DIBBS
5310-00-688-2069	2014-01-15	500	AE
52Z1835048	2013-05-150	250	US
52Z1835048	2013-05-148	250	US
52Z1835-048	2013-01-07	30	Indonesia
5310-00-688-2069	2012-02-51	108	US
52Z1835048	2011-02-54	2	Germany
5310-00-688-2069	2011-02-33	1	Germany
5310-00-688-2069	2011-01-27	2	Germany
5310-00-688-2069	2010-09-252	850	Seychelles
52Z1835048	2010-01-14	500	South Korea
52Z1835048	2009-12-353	500	South Korea
5310-00-688-2069	2009-12-353	500	South Korea

Cross Reference | NSN 5310-00-688-2069

Part Number	Cage Code	Manufacturer
524941	03104	TELEDYNE TECHNOLOGIES INC DBA TELEDYNE
52Z1835-048	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
52Z1835-048	72962	HARVARD INDUSTRIES INC
52Z1835-048	97499	BELL HELICOPTER TEXTRON INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-688-2069

Compare

Related Products | NSN 5310-00-688-2069

5310-00-688-2071, 5310-00-688-2105, 5310-00-688-2192, 5310-00-688-2193, 5310-00-688-2195

Technical Data | NSN 5310-00-688-2069

Characteristic	Specifications
THREAD SERIES	UNJF

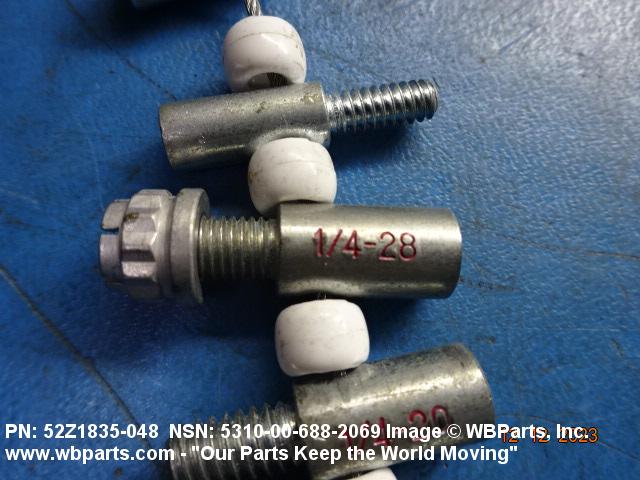

NOMINAL THREAD SIZE	0.250 INCHES
THREAD QUANTITY PER INCH	28
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL COMP 11L37 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5020 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 1,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	NOT RATED
NUT STYLE	A293 DOUBLE HEXAGON

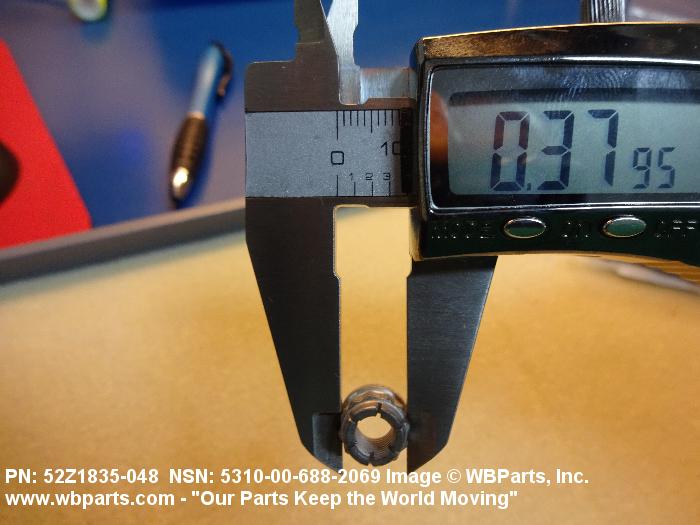

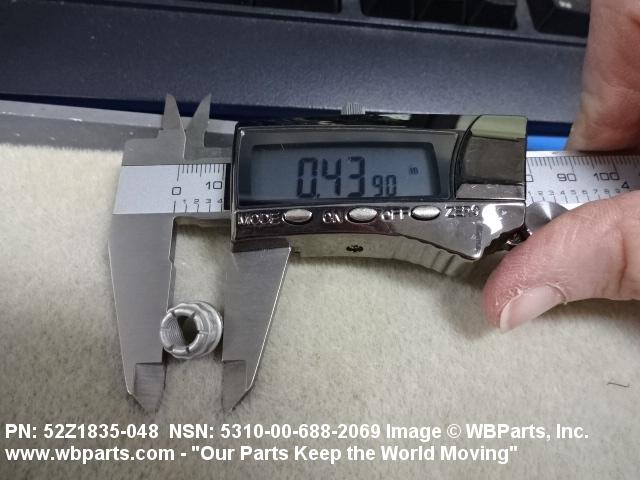

WASHER OUTSIDE DIAMETER	0.443 INCHES MAXIMUM

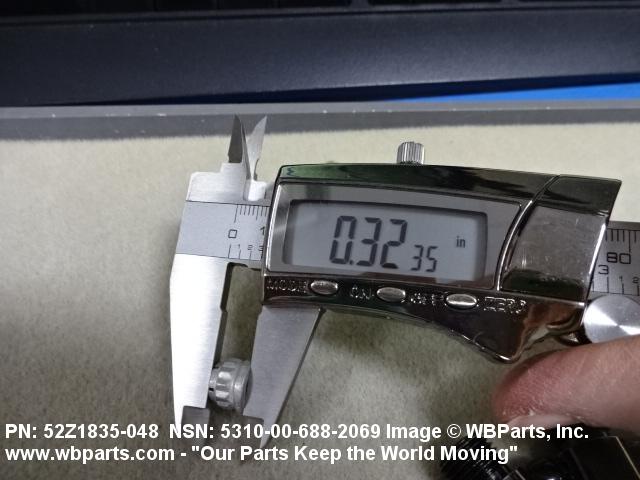

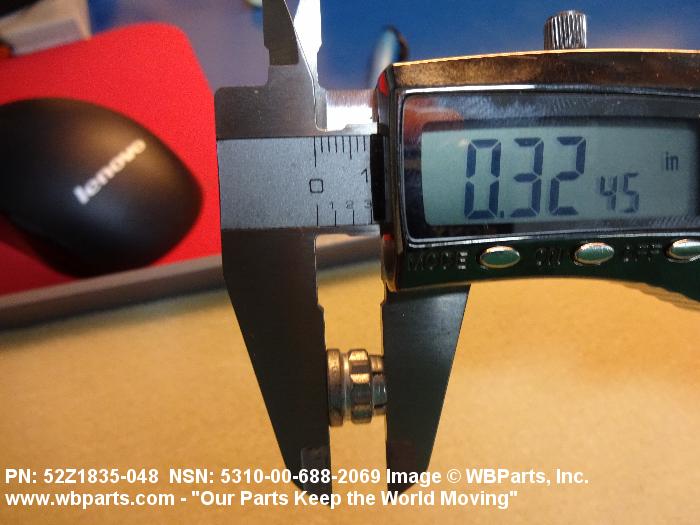

OVERALL HEIGHT	0.314 INCHES MINIMUM AND 0.329 INCHES MAXIMUM

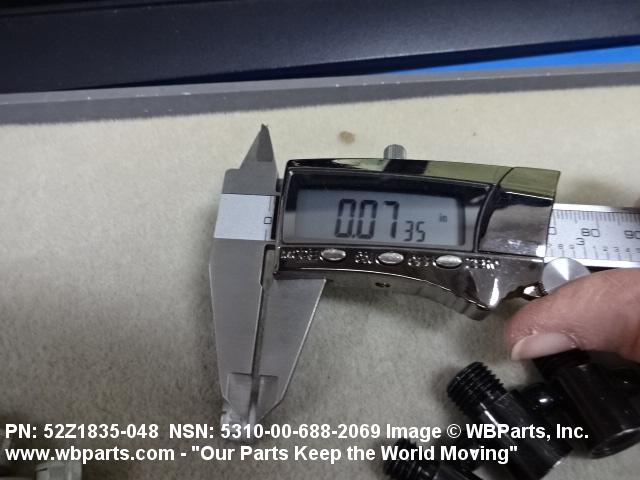

WASHER THICKNESS	0.060 INCHES MINIMUM AND 0.080 INCHES MAXIMUM

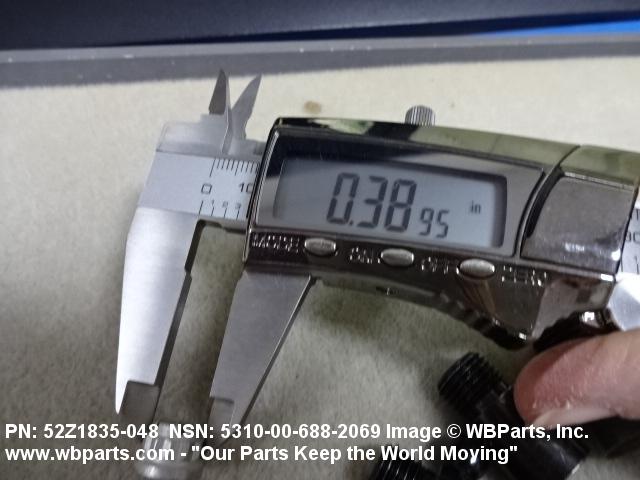

WIDTH ACROSS FLATS	0.369 INCHES MINIMUM AND 0.376 INCHES MAXIMUM
