NSN 5310-00-680-4892 NAS6793W, NAS679A3W , NS20210102

Product Details | HEXAGON SELF-LOCKING NUT

5310-00-680-4892 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.

Part Alternates: NAS6793W, NAS679A3W , NS20210102, NS202101-02, H10-3, H103T2, H10-3T2, H103W, H10-3W, BACN10BY53W, BRH10A3, CP10341032, CP10-3-4-1032, H101032, H10-1032, H101032W, H10-1032W, GN10U1032, LHTM02, LHTM02W, MILN25027, T6S1032, 999401139004, 999-4-01139-004, H103, 10121583 , 577A410P1, 695157, 69515-7, 5310-00-680-4892, 00-680-4892, 5310006804892, 006804892, 901165002

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-680-4892	05277 ( NUT, SELF-LOCKING, HEXAGON )

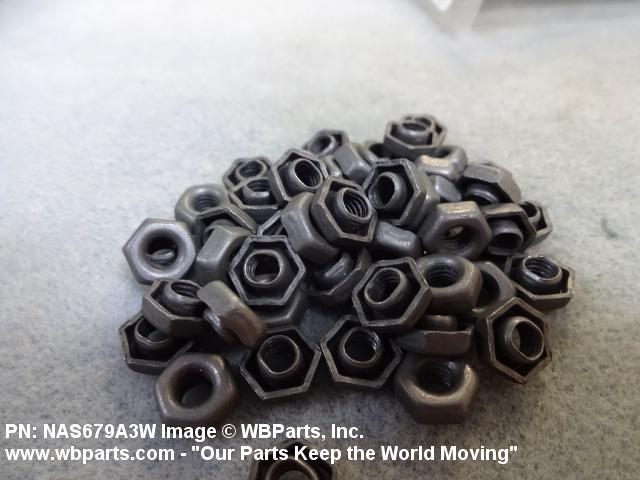

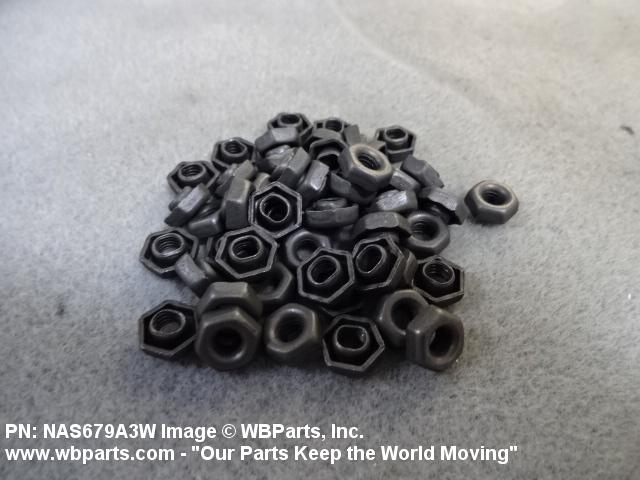

Drawings & Photos | NSN 5310-00-680-4892

Part Number	Request Date	QTY	Origin
5310-00-680-4892	2024-09-25	80	United States
5310-00-680-4892	2024-06-12	80	United States
5310-00-680-4892	2024-06-12	160	United States
5310-00-680-4892	2024-04-01	1560	United States
5310-00-680-4892	2023-09-06	91	United States
MILN25027	2023-08-24	54	US
NAS679A3W	2022-10-18	2	United States
MILN25027	2020-09-18	156	US
NAS679A3W	2020-07-21	400	United States
NAS679A3W	2020-01-03	30	TH
NAS679A3W	2019-06-17	12	United States
NAS679A3W	2018-10-23	10	United States
5310-00-680-4892	2018-04-26	1	DIBBS-RFPs
NAS679A3W	2018-01-24	18	United States
NAS679A3W	2018-01-16	8	United States
5310-00-680-4892	2017-03-20	3	US
H103	2017-02-06	10	Pakistan
NAS679A3W	2017-01-19	4	United States
NAS679A3W	2016-08-23	1000	US
5310-00-680-4892	2014-11-20	65	United States
NAS679A3W	2014-11-13	5	United States
5310-00-680-4892	2014-10-27	529	DIBBS
5310-00-680-4892	2014-09-04	806	DIBBS
5310-00-680-4892	2014-08-15	529	DIBBS
5310-00-680-4892	2014-06-03	24	US
H101032	2014-04-01	100	US
H101032	2014-04-01	6	United States
NAS679A3W	2013-08-06	4	US
NAS679A3W	2012-12-25	10	Switzerland
H103	2012-08-09	250	FR
MILN25027	2012-06-05	16	United States
MILN25027	2012-05-18	15	United States
H103	2012-04-18	7	US
NAS679A3W	2012-03-13	24	US
BRH10A3	2011-10-11	50	Spain
MILN25027	2011-09-22	28	US
MILN25027	2011-09-21	25	Canada
BRH10A3	2011-06-06	10	Spain
NAS679A3W	2011-05-12	50	Spain
BRH10A3	2011-05-05	10	Spain
5310-00-680-4892	2011-02-24	300	China
MILN25027	2011-02-18	5	US
MILN25027	2011-02-18	10	US
MILN25027	2011-02-18	40	US
NAS679A3W	2010-11-29	8
5310-00-680-4892	2010-10-26	230	US
NAS679A3W	2010-09-15	500	United States
NAS679A3W	2010-07-27	500	United States
NAS679A3W	2010-07-27	500	United States
MILN25027	2010-06-30	50	United States
H103	2010-04-27	130	US
MILN25027	2010-04-21	5000	US
MILN25027	2009-11-17	560	US
MILN25027	2009-10-08	8	Canada
MILN25027	2008-09-26	50	Italy
5310-00-680-4892	2008-07-30	10000	US
5310-00-680-4892	2008-05-02	1630	DIBBS
NAS679A3W	2008-04-11	14	US
NAS679A3W	2008-03-23	20	us
5310-00-680-4892	2008-03-07	5472	DIBBS
NAS679A3W	2007-10-09	70	China

Cross Reference | NSN 5310-00-680-4892

Part Number	Cage Code	Manufacturer
577A410P1	02989	GENERAL ELECTRIC CO GE DRIVE SYSTEMS
69515-7	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
901165002	57733	STEWART-WARNER CORPORATION
999-4-01139-004	K4358	SAFRAN POWER UK LTD.
BACN10BY53W	81205	THE BOEING COMPANY DBA BOEING
BRH10A3	52828	REPUBLIC FASTENER MFG. CORP.
CP10-3-4-1032	25500	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
CP10-3-4-1032	73842	GOODYEAR TIRE AND RUBBER CO THE
GN10U1032	26512	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
H10-1032	75237	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
H10-1032W	75237	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
H10-3	15653	ALCOA GLOBAL FASTENERS, INC.
H10-3	75237	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
H10-3	F6033	TECNOTEC SARL
H10-3	F7652	B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS
H10-3	R1120	SATAIR A/S
H10-3T2	75237	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
H10-3W	75237	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
LHTM02	72962	HARVARD INDUSTRIES INC
LHTM02W	03350	GENERAL ELECTRIC COMPANY DBA GE STRUCTURED SERVICES DIV
LHTM02W	72962	HARVARD INDUSTRIES INC
MILN25027	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
NAS6793W	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
NAS679A3W	2N935	B/E AEROSPACE, INC. DBA BE AEROSPACE CONSUMABLES
NAS679A3W	51792	COLUMBIA NUT & BOLT LLC
NAS679A3W	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NS202101-02	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
T6S1032	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
T6S1032	71087	REPUBLIC FASTENER MFG. CORP. Use CAGE Code 52828 for Cataloging.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-680-4892

Compare

Related Products | NSN 5310-00-680-4892

5310-00-680-4894, 5310-00-680-4904, 5310-00-680-4919, 5310-00-680-4920, 5310-00-680-4939

Technical Data | NSN 5310-00-680-4892

Characteristic	Specifications
THREAD SERIES	UNJF
NOMINAL THREAD SIZE	0.190 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	NOT RATED
NUT STYLE	A12 HEXAGON

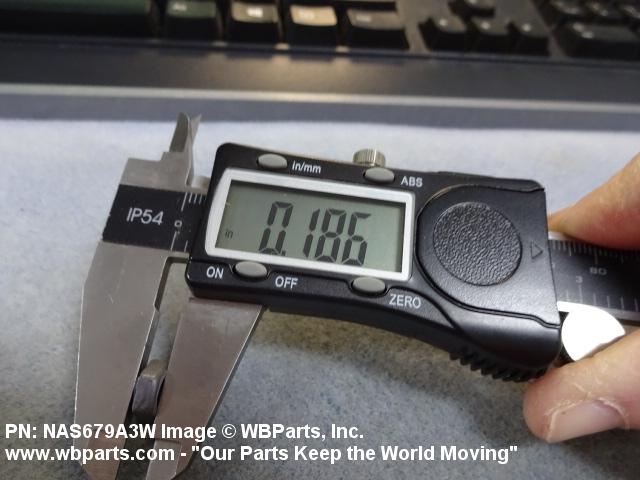

NUT HEIGHT	0.188 INCHES MAXIMUM

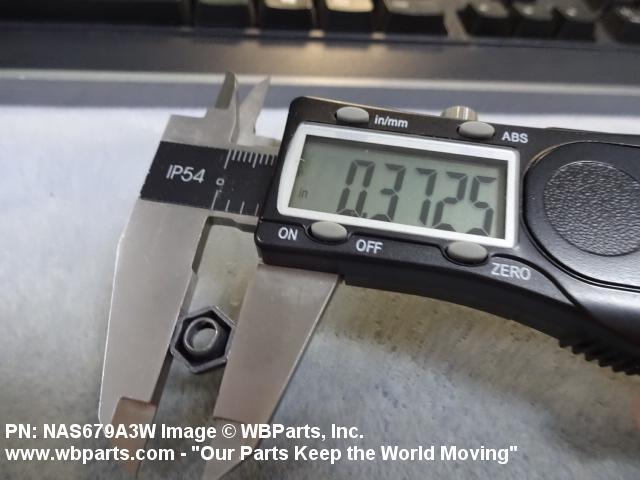

WIDTH ACROSS FLATS	0.365 INCHES MINIMUM AND 0.377 INCHES MAXIMUM
BEARING SURFACE TYPE	CHAMFERED OR WASHER FACED
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
COUNTERSINK ANGLE	120.0 DEGREES NOMINAL NUT
LUBRICATION	DRY FILM LUBRICANT
TEMP RATING	450.0 DEG FAHRENHEIT NOMINAL
SPECIFICATION/STANDARD DATA	26512-GN10U MANUFACTURERS STANDARD
III END ITEM IDENTIFICATION	B-1 SUPPORT EQUIPMENT; AIRCRAFT;TF-33 ENGINE

Restrictions/Controls & Freight Information | NSN 5310-00-680-4892

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-680-4892

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	FX	TG:F-15 EAGLE
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
