NSN 5310-00-678-9962 BACN10TL310, BACN10TL3-10, HE11400770003
Product Details | PLATE SELF-LOCKING NUT

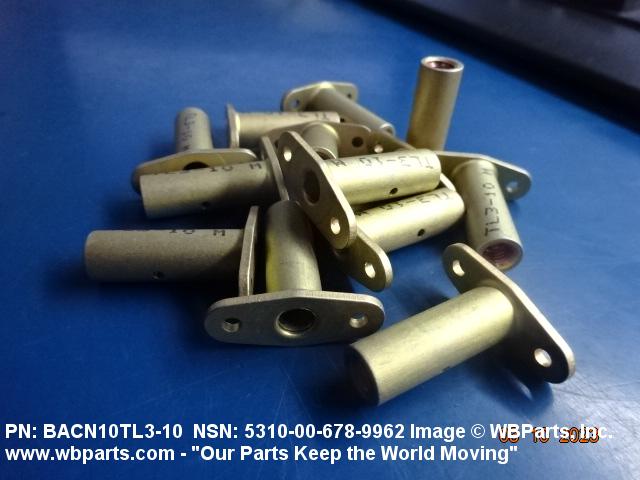

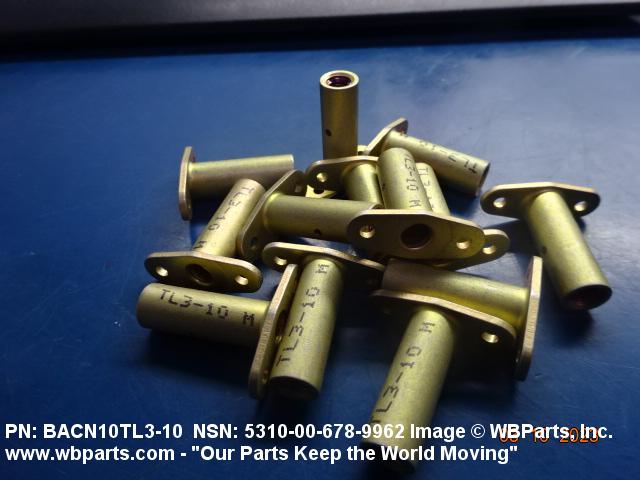

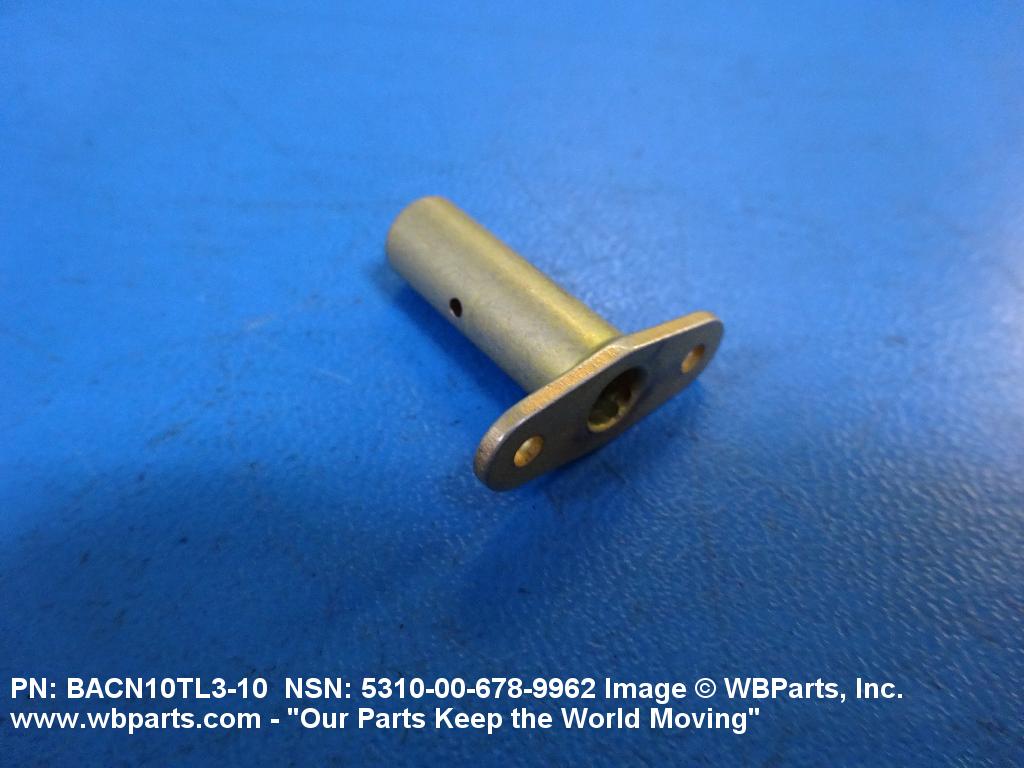

5310-00-678-9962 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: BACN10TL310, BACN10TL3-10, HE11400770003, HE114-0077-0003, WS1410, WS1-4-10, WSI410, WSI4-10, 5310-00-678-9962, 00-678-9962, 5310006789962, 006789962
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-678-9962 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

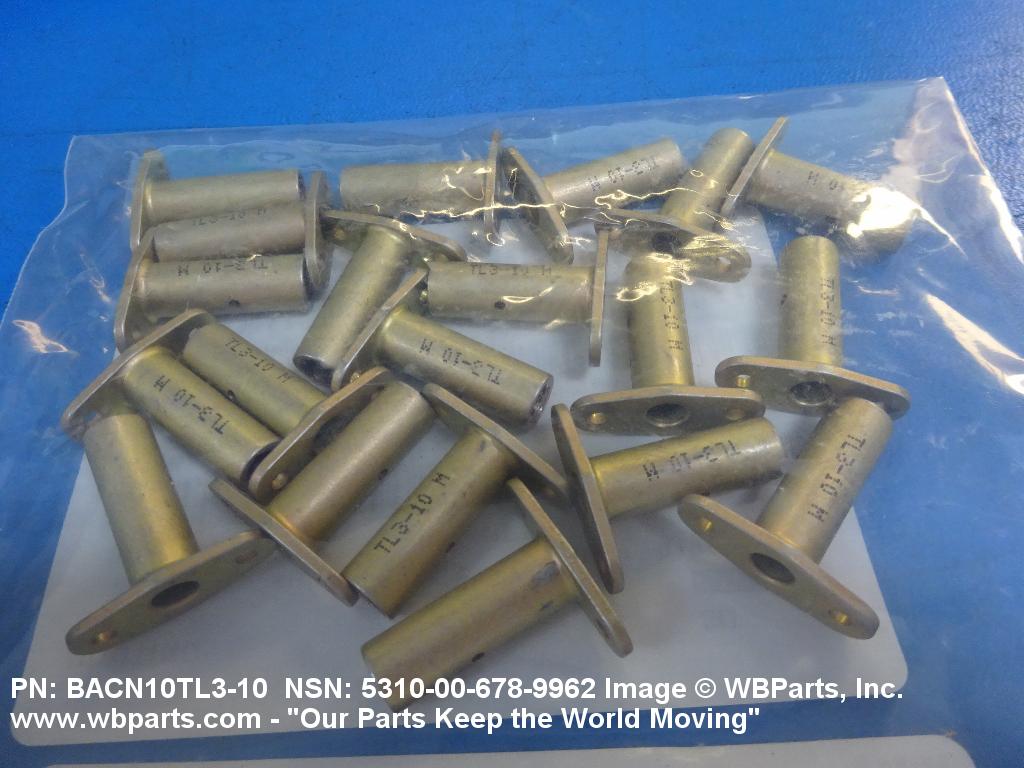

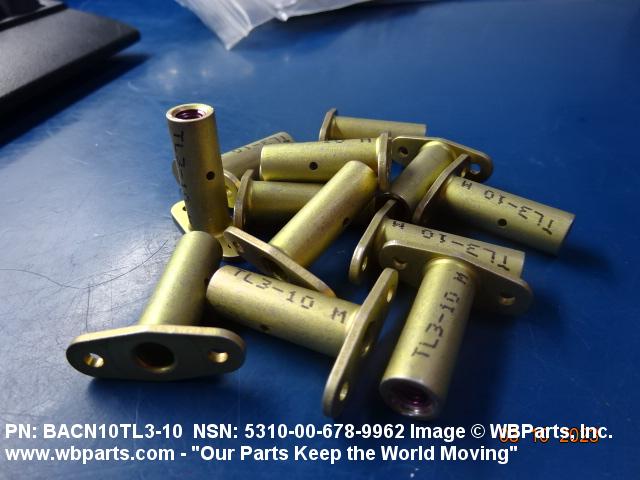

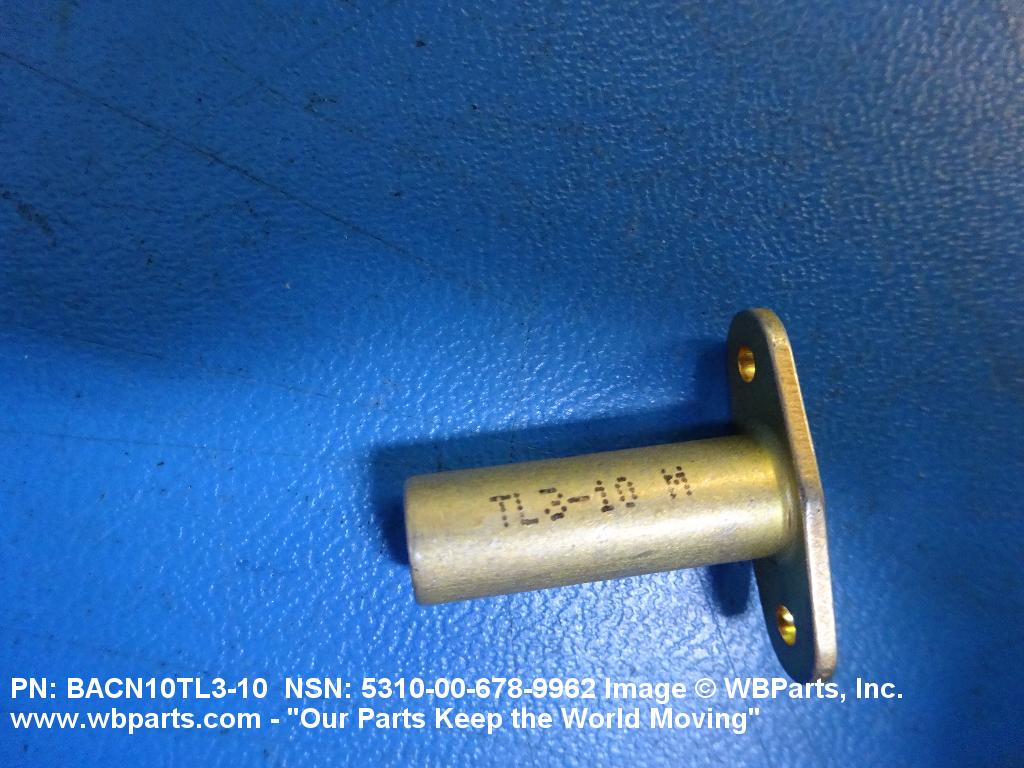

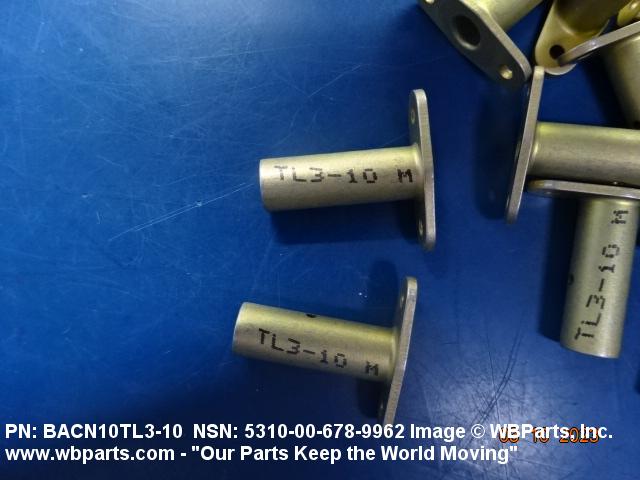

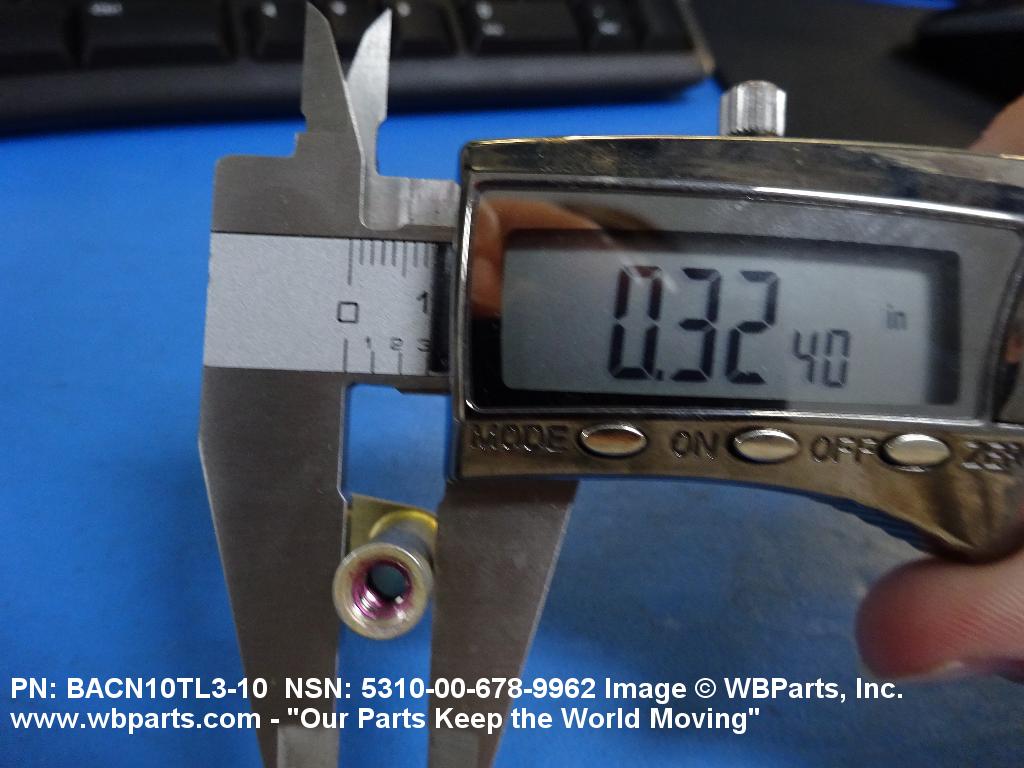

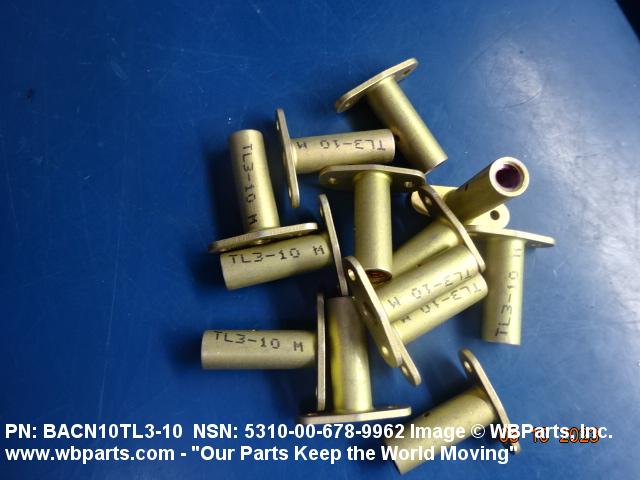

Drawings & Photos | NSN 5310-00-678-9962
Demand History | NSN 5310-00-678-9962
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| WSI410 | 2024-09-254 | 16 | Canada |
| WSI410 | 2024-08-227 | 1 | US |
| BACN10TL310 | 2023-12-346 | 2 | United States |
| 5310-00-678-9962 | 2023-08-221 | 10 | US |
| BACN10TL310 | 2023-07-192 | 50 | Malta |
| BACN10TL310 | 2023-05-137 | 50 | Malta |
| BACN10TL310 | 2023-05-128 | 45 | Malta |
| 5310-00-678-9962 | 2023-03-62 | 20 | United States |
| BACN10TL310 | 2023-02-48 | 14 | Malta |
| BACN10TL310 | 2022-07-209 | 4 | us |
| 5310-00-678-9962 | 2022-03-76 | 20 | United States |
| BACN10TL310 | 2022-01-11 | 56 | Malta |
| BACN10TL310 | 2021-01-12 | 25 | United States |
| BACN10TL3-10 | 2020-04-100 | 2 | United States |
| BACN10TL3-10 | 2020-03-61 | 692 | DIBBS |
| BACN10TL310 | 2019-08-242 | 30 | United States |
| 5310-00-678-9962 | 2018-01-10 | 1 | United States |
| BACN10TL310 | 2016-11-326 | 1 | US |
| BACN10TL310 | 2013-10-276 | 6 | United States |
| BACN10TL310 | 2012-06-180 | 1 | India |
| BACN10TL310 | 2012-06-177 | 1 | India |
| BACN10TL310 | 2012-06-173 | 5 | India |
| 5310-00-678-9962 | 2011-01-25 | 20 | Canada |
| 5310-00-678-9962 | 2011-01-25 | 80 | Canada |
| WSI410 | 2010-08-243 | 1 | US |
| 5310-00-678-9962 | 2009-05-149 | 150 | us |
| 5310-00-678-9962 | 2009-05-149 | 150 | us |
| BACN10TL310 | 2009-03-61 | 100 | IL |
| BACN10TL310 | 2007-11-312 | 85 | US |
Cross Reference | NSN 5310-00-678-9962
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BACN10TL3-10 | 60119 | MONADNOCK COMPANY THE DBA LISI AEROSPACE |
| BACN10TL3-10 | 81205 | THE BOEING COMPANY DBA BOEING |
| BACN10TL3-10 | 91730 | MARTY GILMAN, INCORPORATED DBA GILMAN GEAR |
| HE114-0077-0003 | 81205 | THE BOEING COMPANY DBA BOEING |
| HE114-0077-0003 | 89372 | ROCKWELL INTERNATIONAL CORP NORTH AMERICAN AIRCRAFT OPNS |
| WS1-4-10 | 04169 | ATLAS CORP WESTERN SKY INDUSTRIES DIV |
| WSI4-10 | 04169 | ATLAS CORP WESTERN SKY INDUSTRIES DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-678-9962
Related Products | NSN 5310-00-678-9962
Technical Data | NSN 5310-00-678-9962

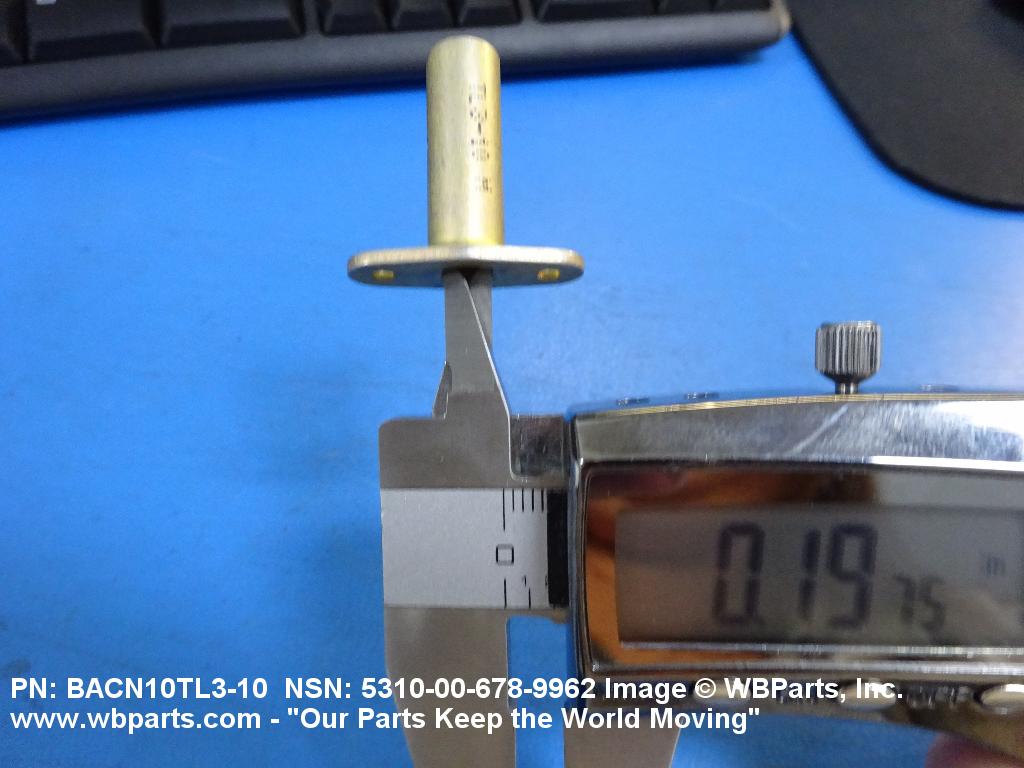

| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | ALUMINUM ALLOY 6066 OR ALUMINUM ALLOY 6061 LOCKING INSERT STEEL CORROSION RESISTING OVERALL EXCEPT INSERT |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-A-25493 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-A-12545 TEMPER T6 MIL SPEC 2ND MATERIAL RESPONSE LOCKING INSERT |
| SURFACE TREATMENT | CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-5541 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A116 PLATE |

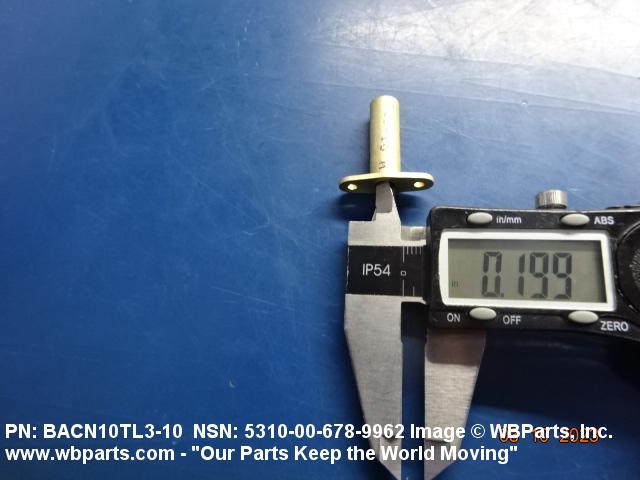

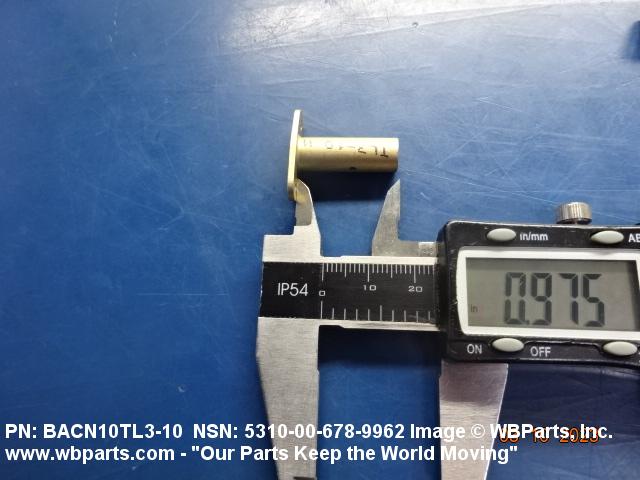

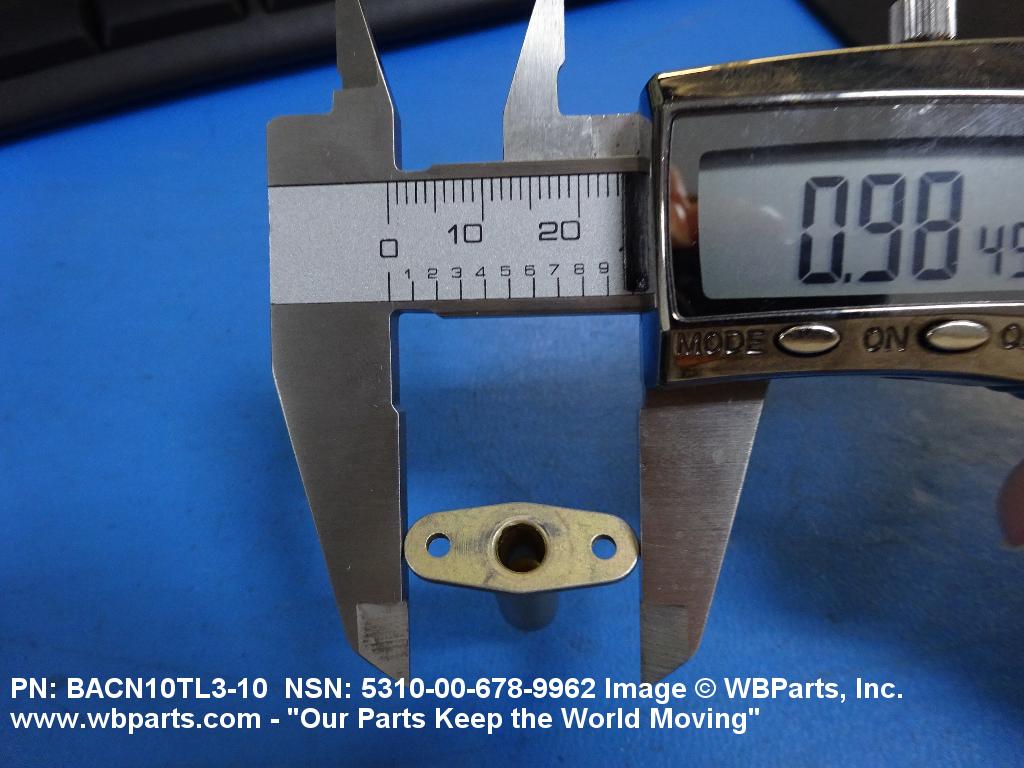

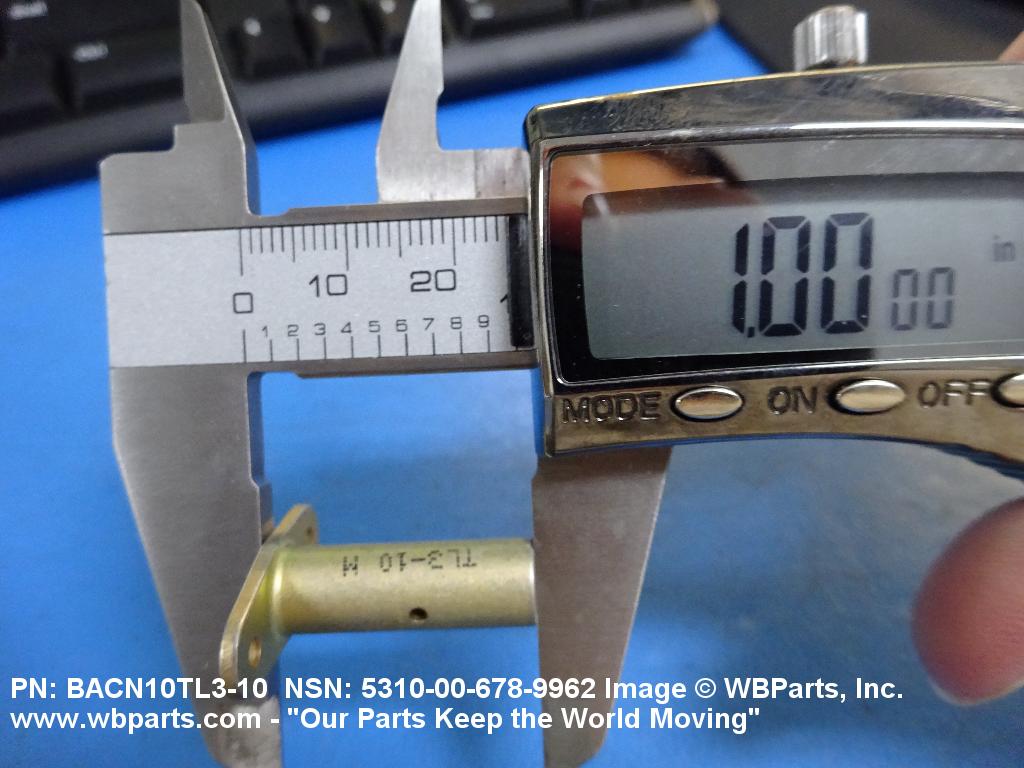

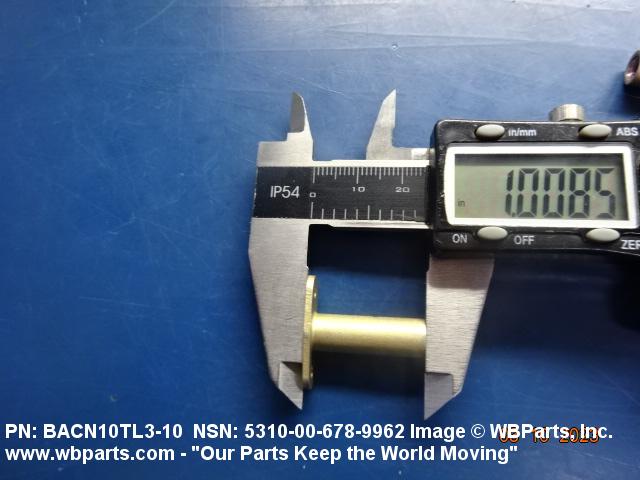

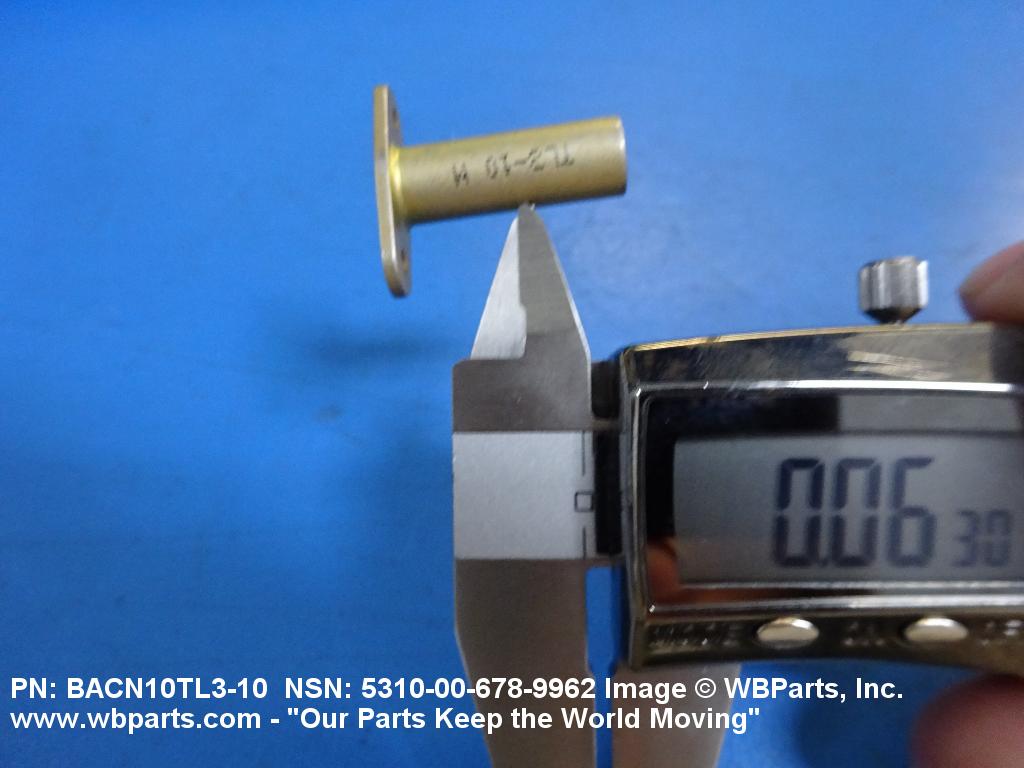

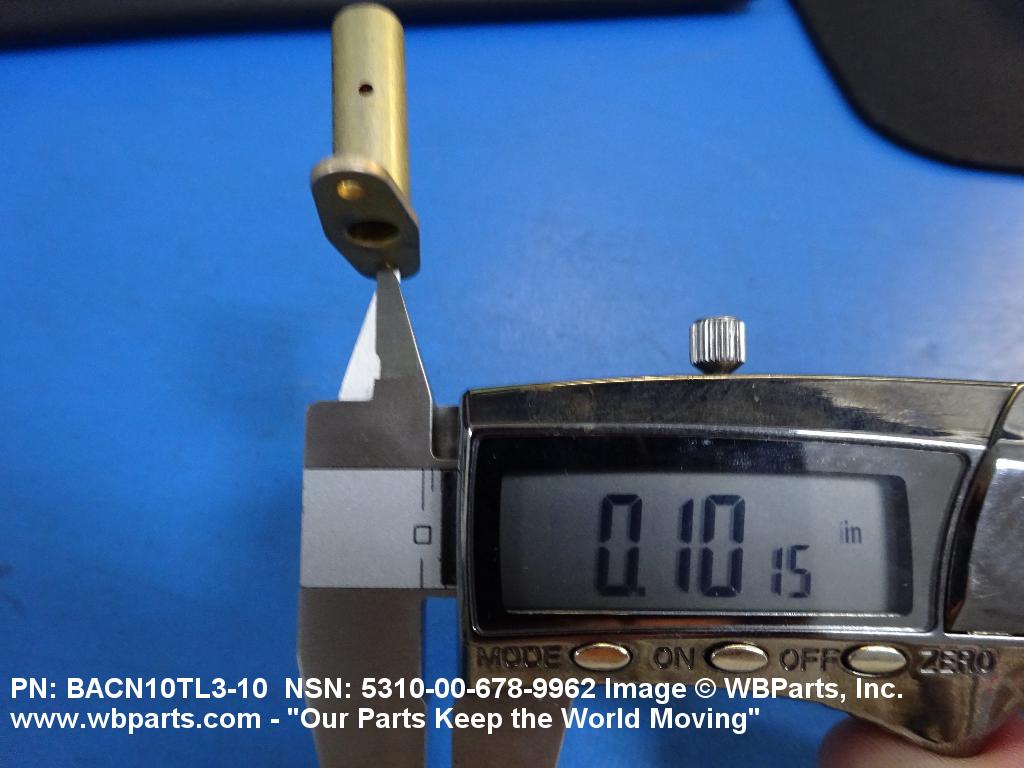

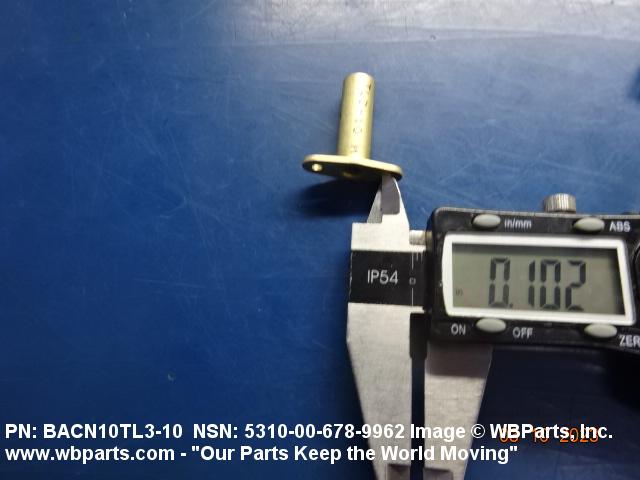

| NUT LENGTH | 0.975 INCHES MINIMUM AND 0.995 INCHES MAXIMUM |
| NUT HEIGHT | 0.980 INCHES MINIMUM AND 1.020 INCHES MAXIMUM |
| PLATE THICKNESS | 0.050 INCHES MINIMUM AND 0.070 INCHES MAXIMUM |

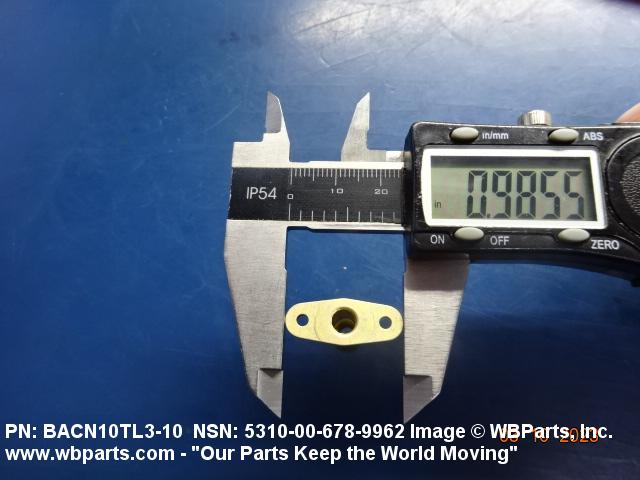

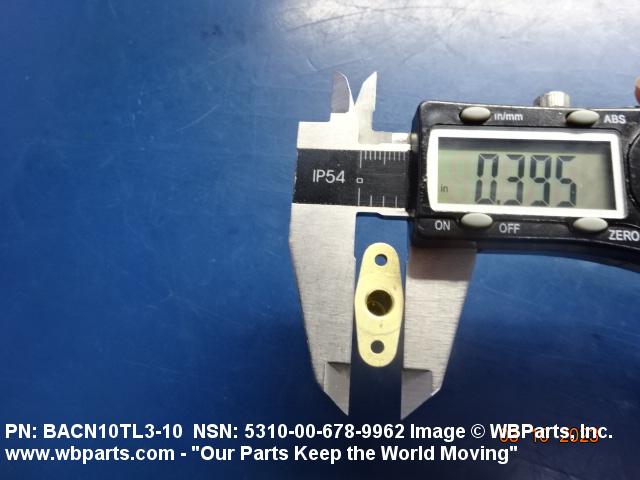

| PLATE WIDTH | 0.386 INCHES MINIMUM AND 0.406 INCHES MAXIMUM |
