NSN 5310-00-655-7517 NAS391B8P, 00-655-7517, 006557517

Product Details | FINISHING WASHER

5310-00-655-7517 A washer or cone or disk shape with a centrally located hole, designed to accommodate a flat or oval head screw and provide additional bearing area on the material being fastened. It may or may not have a flush flange feature.

Part Alternates: NAS391B8P, 5310-00-655-7517, 00-655-7517, 5310006557517, 006557517

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1960	00-655-7517	15932 ( WASHER, FINISHING )

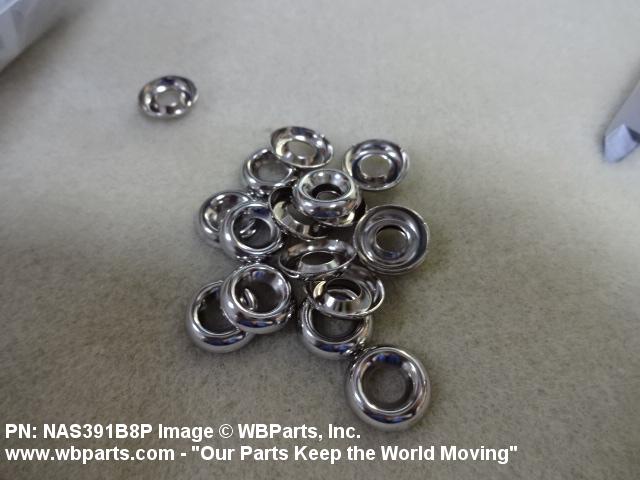

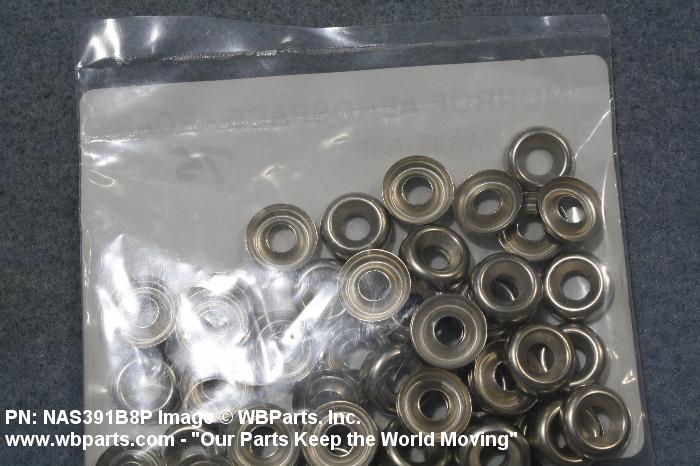

Drawings & Photos | NSN 5310-00-655-7517

Part Number	Request Date	QTY	Origin
5310-00-655-7517	2019-11-318	486	DIBBS
5310-00-655-7517	2019-07-192	286	DIBBS
NAS391B8P	2015-07-197	5	Mexico
5310-00-655-7517	2011-02-38	50	DIBBS
5310-00-655-7517	2010-07-203	50	DIBBS
5310-00-655-7517	2010-05-136	1	DIBBS
5310-00-655-7517	2010-05-136	6	DIBBS
5310-00-655-7517	2010-03-80	1	DIBBS
5310-00-655-7517	2010-03-80	6	DIBBS
5310-00-655-7517	2010-03-80	50	DIBBS
5310-00-655-7517	2010-02-44	1	DIBBS
5310-00-655-7517	2010-02-44	6	DIBBS
5310-00-655-7517	2009-11-330	13	DIBBS
5310-00-655-7517	2009-11-330	50	DIBBS
5310-00-655-7517	2009-08-213	50	DIBBS
5310-00-655-7517	2009-06-152	5000	DIBBS

Cross Reference | NSN 5310-00-655-7517

Part Number	Cage Code	Manufacturer
NAS391B8P	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-655-7517

Compare

Related Products | NSN 5310-00-655-7517

5310-00-655-7524, 5310-00-655-7534, 5310-00-655-7544, 5310-00-655-7545, 5310-00-655-7548

Technical Data | NSN 5310-00-655-7517

Characteristic	Specifications
MATERIAL	COPPER ALLOY OVERALL
SURFACE TREATMENT	CHROMIUM OR NICKEL OVERALL
STYLE DESIGNATOR	4 FINISHING

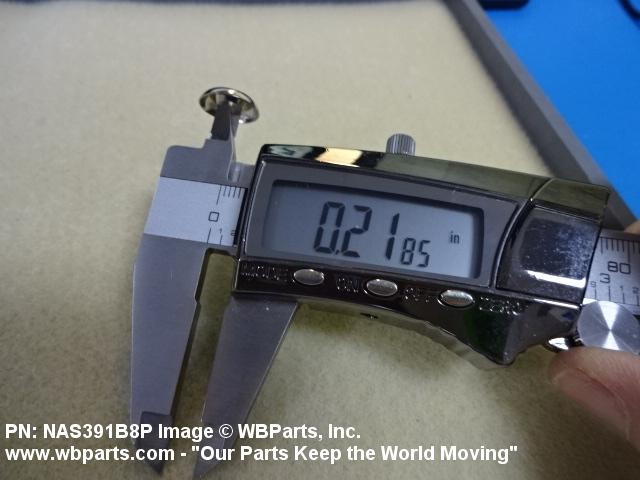

HOLE DIAMETER	0.187 INCHES NOMINAL

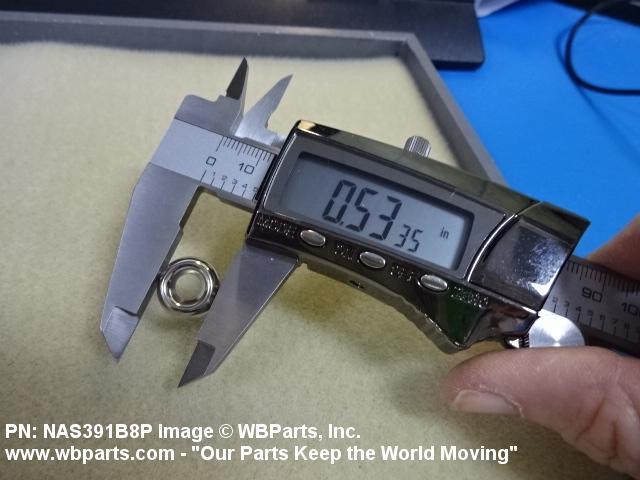

OUTSIDE DIAMETER	0.521 INCHES MINIMUM AND 0.541 INCHES MAXIMUM

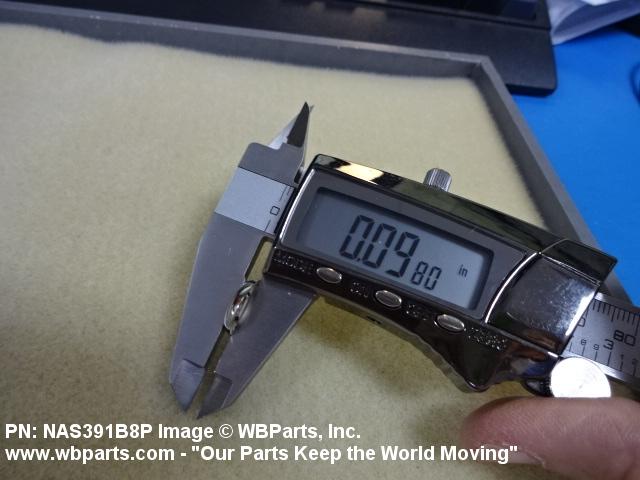

OVERALL HEIGHT	0.092 INCHES MINIMUM AND 0.112 INCHES MAXIMUM

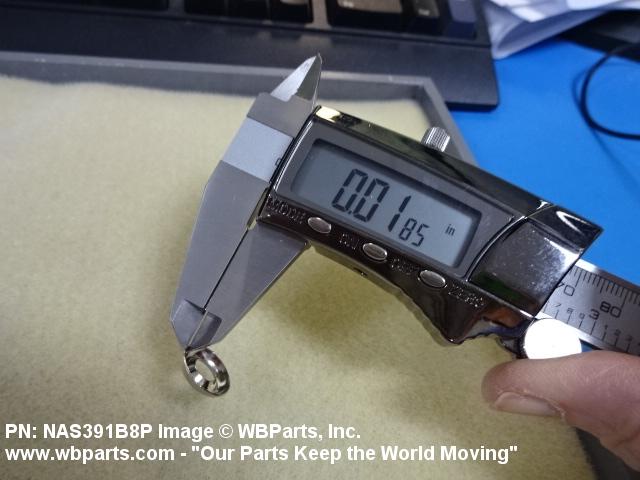

MATERIAL THICKNESS	0.016 INCHES MINIMUM AND 0.036 INCHES MAXIMUM
SPECIFICATION/STANDARD DATA	80205-NAS391 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD

Restrictions/Controls & Freight Information | NSN 5310-00-655-7517

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	194160	WASHER OR GASKETS, IRON OR STEEL,
Less than car load rating
Less than truck load rating	U	50.0
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-655-7517

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	M EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	M EA : Each
