NSN 5310-00-629-6280 AIT114443, AIT11444-3 , BACN10EN3E
Product Details | PLATE SELF-LOCKING NUT
5310-00-629-6280 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: AIT114443, AIT11444-3 , BACN10EN3E, F19683, F1968-3, 40272643, 40-272-643, 65050/1818, 5310-00-629-6280, 00-629-6280, 5310006296280, 006296280, 650501818
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-629-6280 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

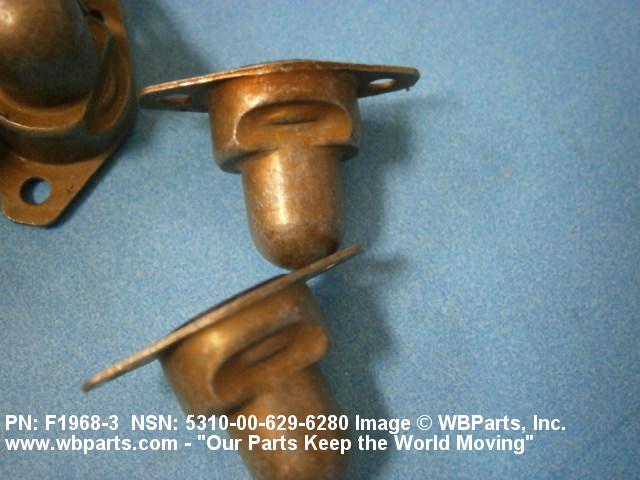

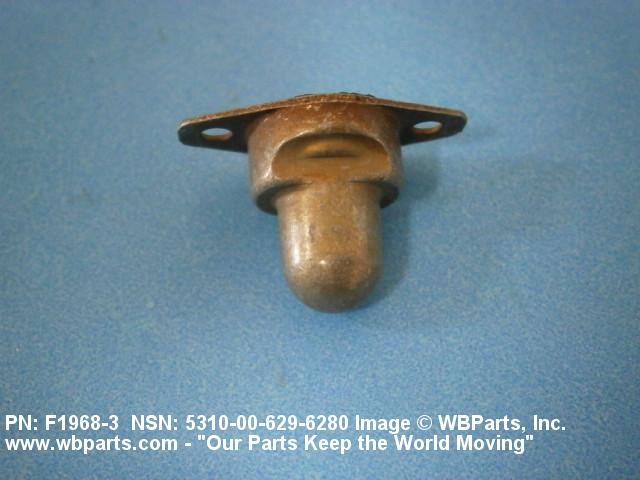

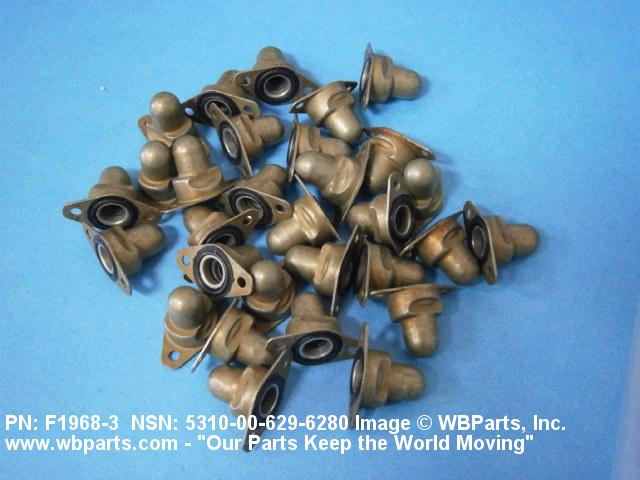

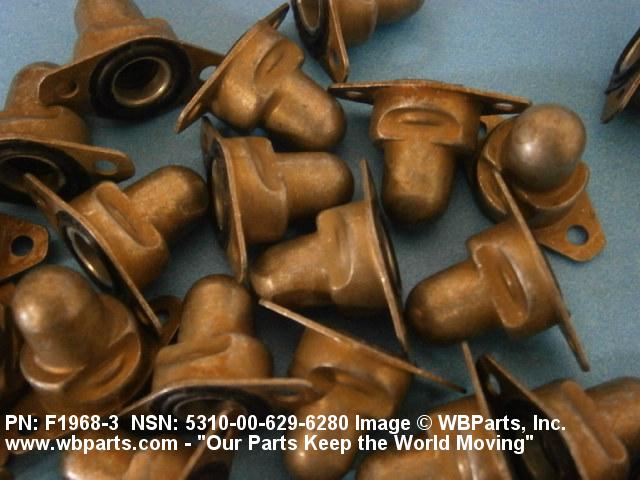

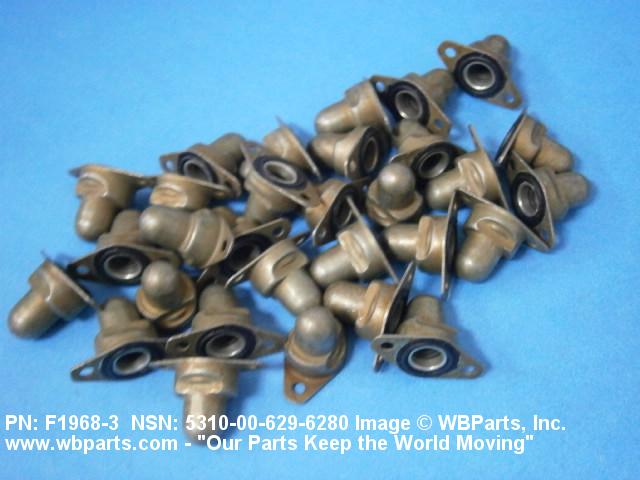

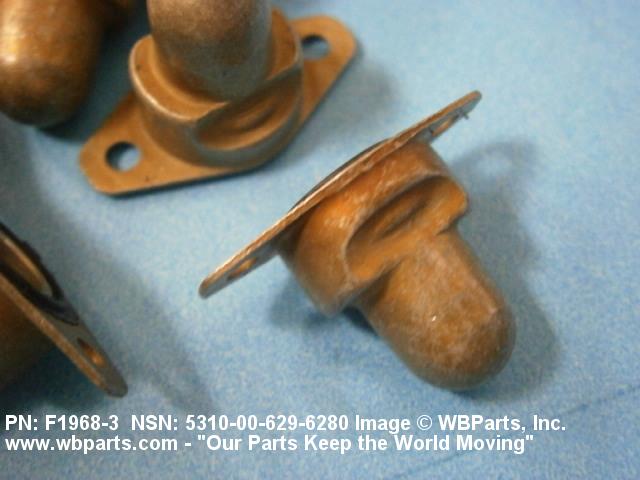

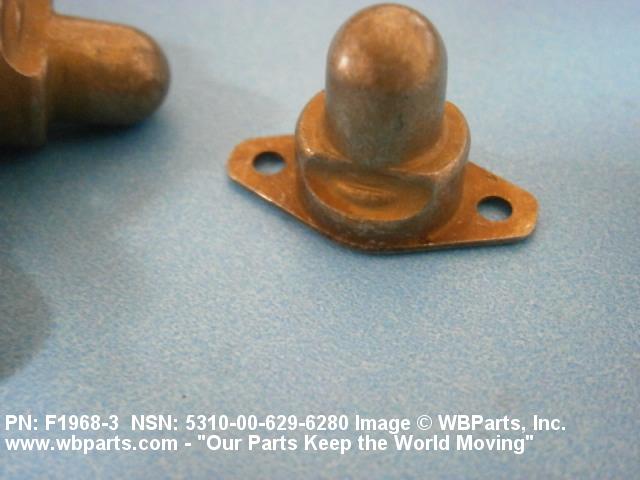

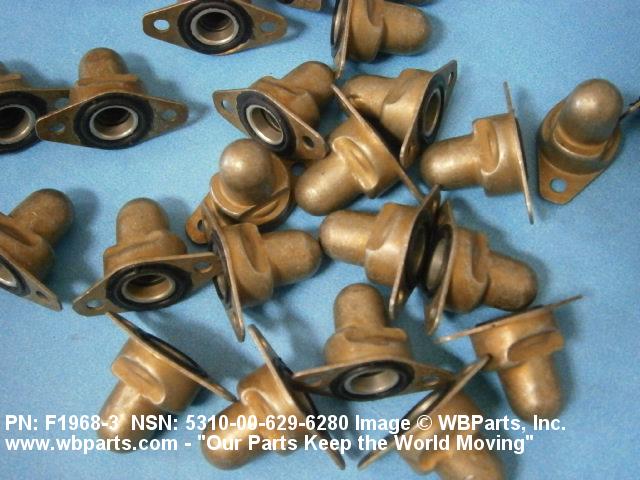

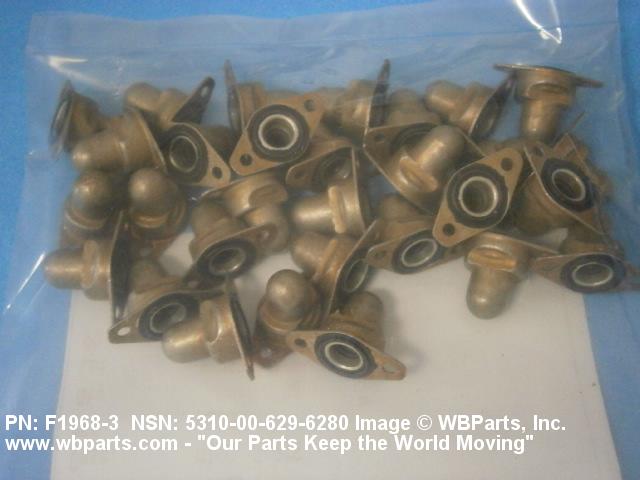

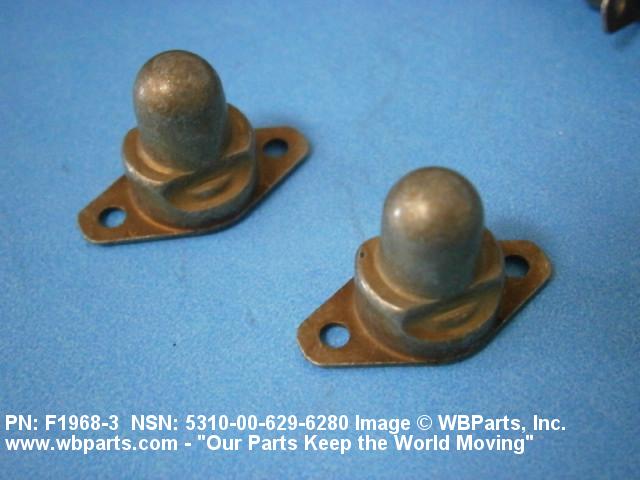

Drawings & Photos | NSN 5310-00-629-6280
Demand History | NSN 5310-00-629-6280
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| F19683 | 2022-11-311 | 100 | China |
| F19683 | 2014-01-29 | 2064 | JP |
| F1968-3 | 2012-11-310 | 28 | |
| F19683 | 2012-03-65 | 30 | United States |
| F19683 | 2012-03-65 | 30 | United States |
| F19683 | 2012-01-18 | 50 | Italy |
| 5310-00-629-6280 | 2011-06-180 | 14 | France |
| F19683 | 2006-10-276 | 400 | US |
Cross Reference | NSN 5310-00-629-6280
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 40-272-643 | K0802 | MEGGITT (UK) LTD DBA MEGGITT SENSING SYSTEMS |
| 65050/1818 | K1384 | RACAL RADAR DEFENCE SYSTEMS LTD |
| 65050/1818 | U4338 | THALES UK LIMITED DBA THALES UK LTDDEFENCE MISSION SYSTEMS |
| BACN10EN3E | 81205 | THE BOEING COMPANY DBA BOEING |
| F1968-3 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| F1968-3 | 75237 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| F1968-3 | F6033 | TECNOTEC SARL |
| F1968-3 | F7652 | B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS |
| F1968-3 | R1120 | SATAIR A/S |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-629-6280
Related Products | NSN 5310-00-629-6280
Technical Data | NSN 5310-00-629-6280
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A116 PLATE |
| NUT LENGTH | 0.968 INCHES NOMINAL |
| NUT HEIGHT | 0.625 INCHES NOMINAL |
| PLATE THICKNESS | 0.020 INCHES NOMINAL |
| PLATE WIDTH | 0.528 INCHES NOMINAL |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F38 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.098 INCHES NOMINAL |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.344 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.688 INCHES NOMINAL |
| TEMP RATING | 225.0 DEG FAHRENHEIT NOMINAL |
| FEATURES PROVIDED | FLOATING NUT |
| SPECIFICATION/STANDARD DATA | 81205-BACN10EN MANUFACTURERS STANDARD |
| MANUFACTURERS CODE | 15653 |
| DESIGN CONTROL REFERENCE | F1968-3 |
Restrictions/Controls & Freight Information | NSN 5310-00-629-6280
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-629-6280
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
