NSN 5310-00-616-6445 NAS5093, NAS509-3, FFN836

Product Details | HEXAGON PLAIN NUT

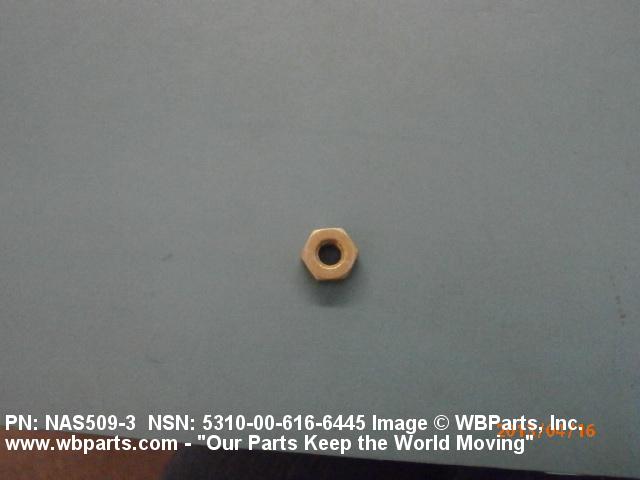

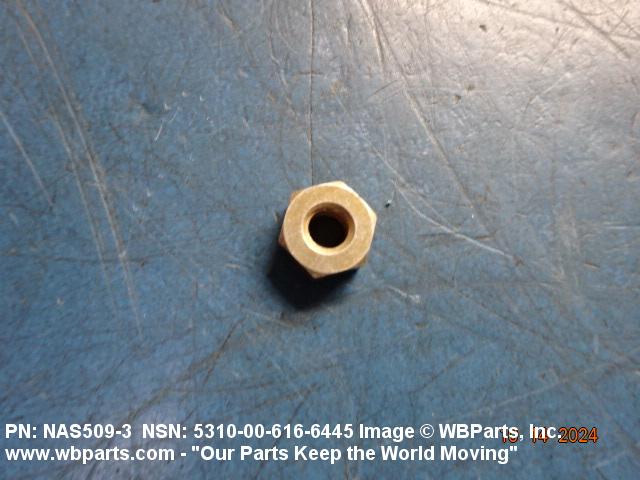

5310-00-616-6445 A nut, flat on top and bottom having 6 flat sides. For items which have internal tapered or straight (parallel) pipe threads, specific electrical conduit size designation, and which when installed, provide a method of tightening to lock the connection, see LOCKNUT, ELECTRICAL CONDUIT. See also LOCKNUT, TUBE FITTING. For items having a thickness (or height) exceeding two times the width across the flats, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. (When height or thickness and/or width across the flats is designated as a tolerance dimension, the maximum dimension will be used to determine compliance.

Part Alternates: NAS5093, NAS509-3, FFN836, FF-N-836, 10121556 , 5310-00-616-6445, 00-616-6445, 5310006166445, 006166445

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	15 FEB 1975	00-616-6445	01857 ( NUT, PLAIN, HEXAGON )

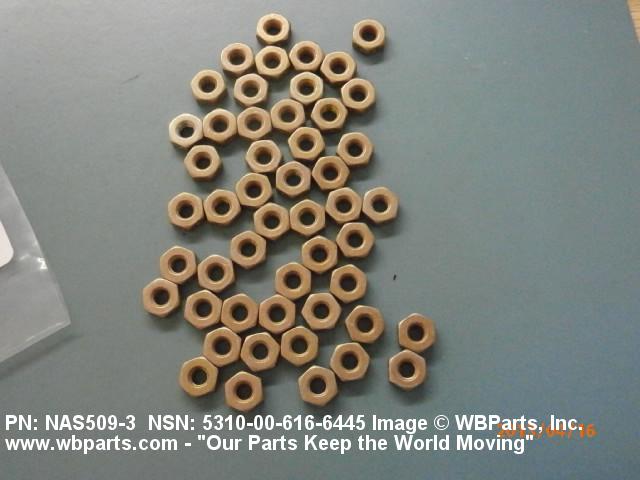

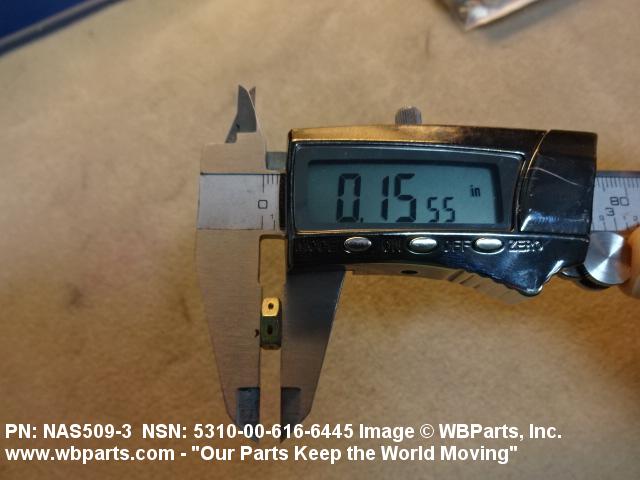

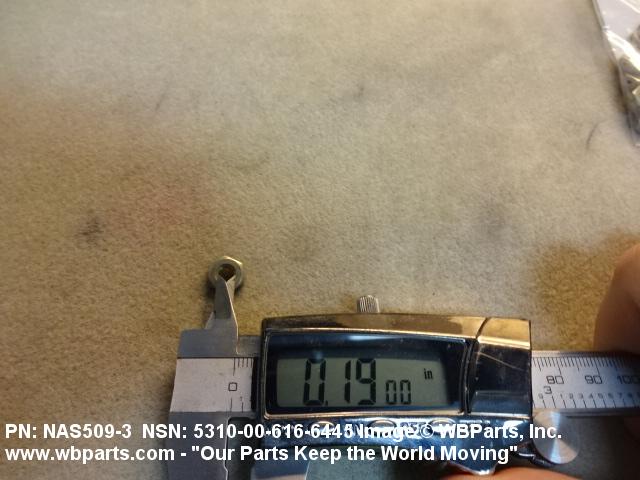

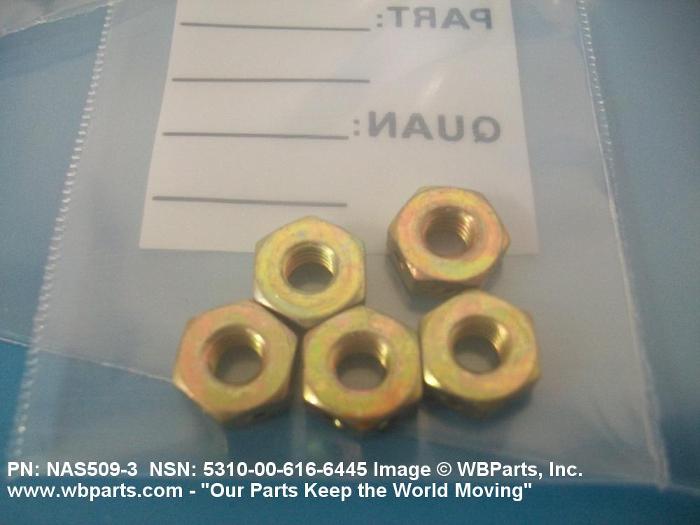

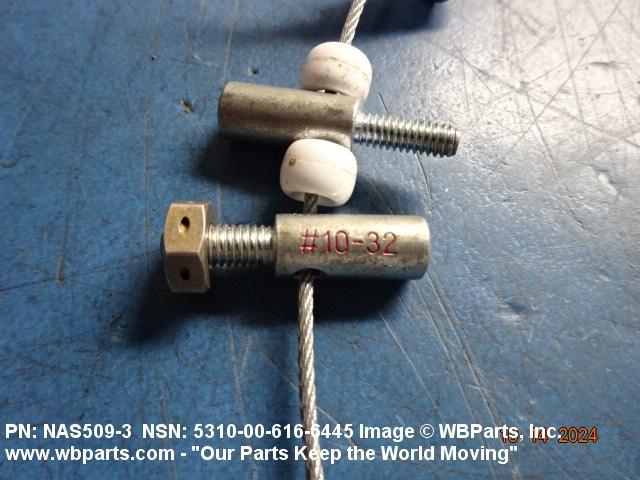

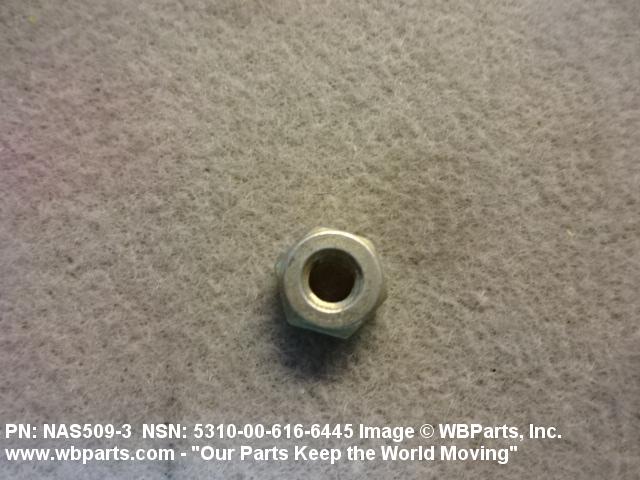

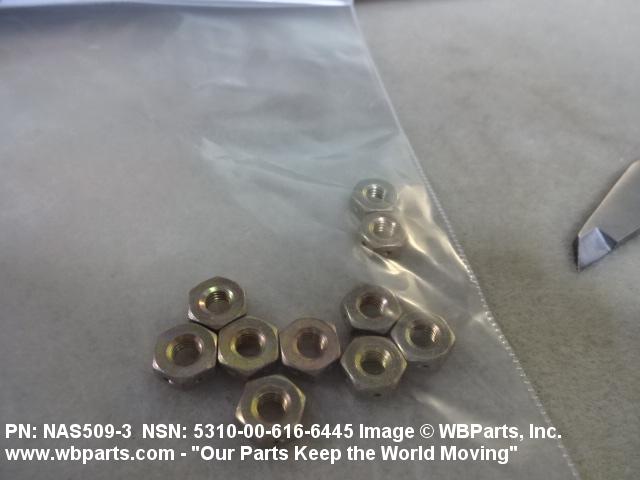

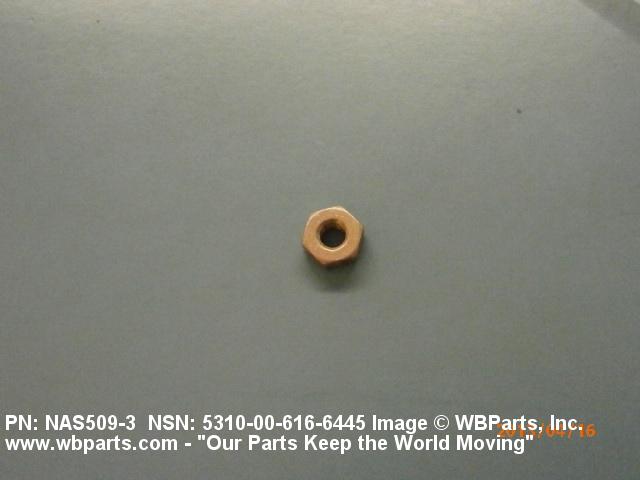

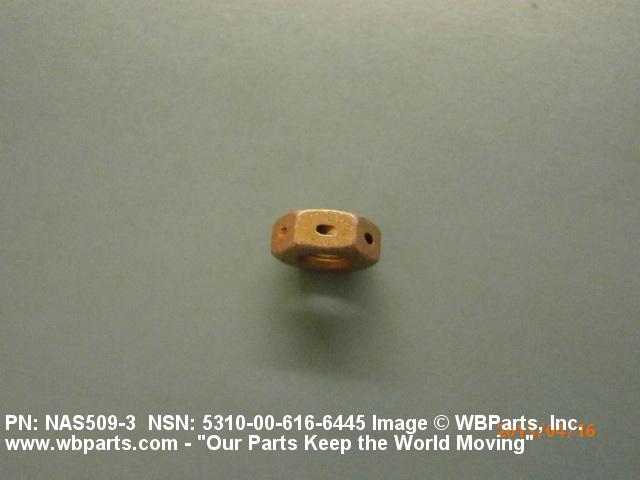

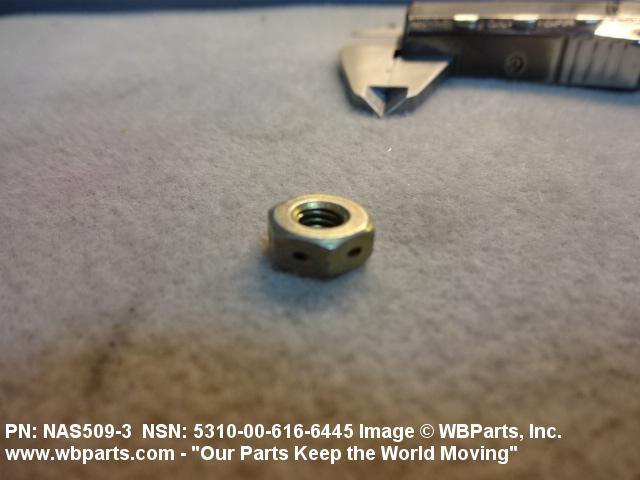

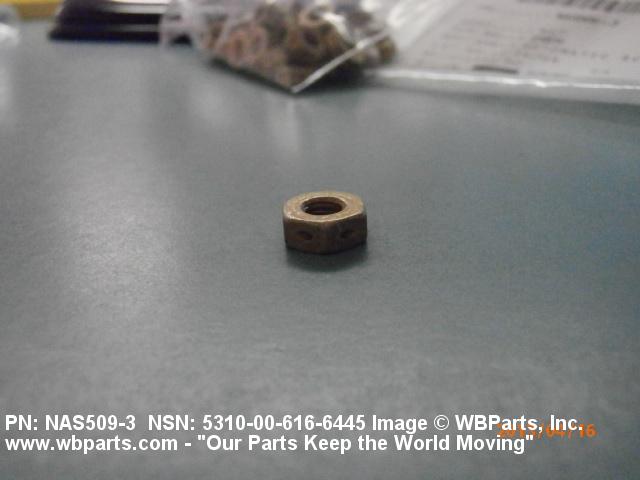

Drawings & Photos | NSN 5310-00-616-6445

Part Number	Request Date	QTY	Origin
FFN836	2024-10-291	190	US
5310-00-616-6445	2024-09-256	185	United States
NAS5093	2024-05-128	65	us
NAS5093	2024-05-128	185	us
FFN836	2023-09-258	100	TR
NAS5093	2023-04-107	200	South Africa
FFN836	2021-11-307	200	United States
FFN836	2021-08-228	100	United States
5310-00-616-6445	2021-04-109	9	Greece
FFN836	2019-02-44	288	US
NAS5093	2018-03-79	200	South Korea
FFN836	2018-02-32	2	US
FFN836	2017-05-123	25	United States
FF-N-836	2016-05-145	48	Spain
NAS5093	2013-09-259	2	United States
NAS5093	2013-04-101	50	United States
NAS5093	2013-02-32	30	United States
FFN836	2012-12-341	1	US
NAS509-3	2012-05-146	193	US
NAS509-3	2012-05-144	193	US
5310-00-616-6445	2011-08-229	6	United States
NAS5093	2011-05-140	400	United States
FFN836	2010-11-322	100	United Kingdom
FFN836	2010-08-218	1	US
FFN836	2010-08-218	1	US
FFN836	2010-08-218	1	US
FFN836	2010-08-218	1	US
FFN836	2010-03-90	4	us
FFN836	2010-03-81	50	United States
FFN836	2010-02-46	50	United States
FFN836	2009-07-183	1000	US
FFN836	2009-05-141	580	US
FFN836	2008-07-195	20	US
FFN836	2008-06-171	200	US
FFN836	2008-02-39	1	US
FFN836	2007-10-298	100	US
NAS5093	2007-03-82	100	United States
NAS5093	2007-03-75	100	United States
5310-00-616-6445	2007-03-60	10	us

Cross Reference | NSN 5310-00-616-6445

Part Number	Cage Code	Manufacturer
FF-N-836	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
NAS509-3	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-616-6445

Compare

Related Products | NSN 5310-00-616-6445

5310-00-616-6461, 5310-00-616-6462, 5310-00-616-6485, 5310-00-616-6487, 5310-00-616-6491

Technical Data | NSN 5310-00-616-6445

Characteristic	Specifications
THREAD SERIES	UNJF
NOMINAL THREAD SIZE	0.190 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL COMP 4130 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-S-6758,COND F4 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	34.0 ROCKWELL C MINIMUM AND 38.0 ROCKWELL C MAXIMUM
NUT STYLE	A12 HEXAGON

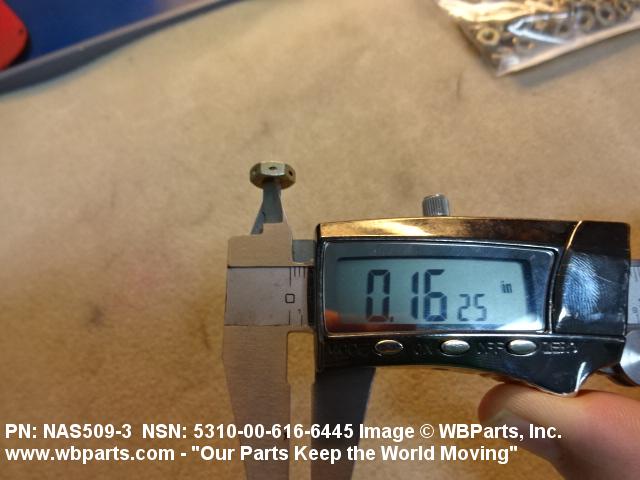

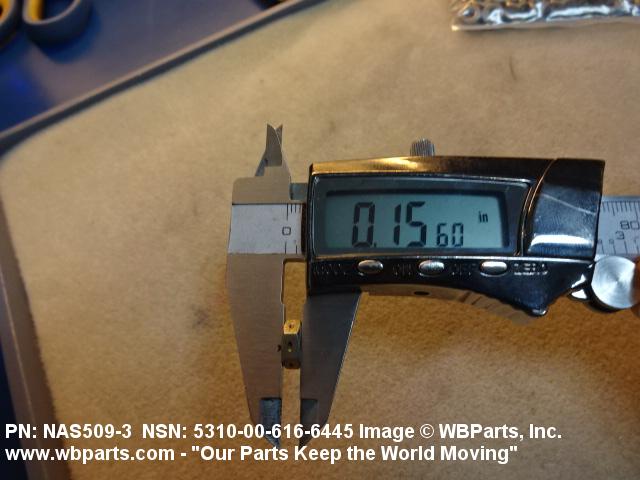

NUT HEIGHT	0.156 INCHES NOMINAL

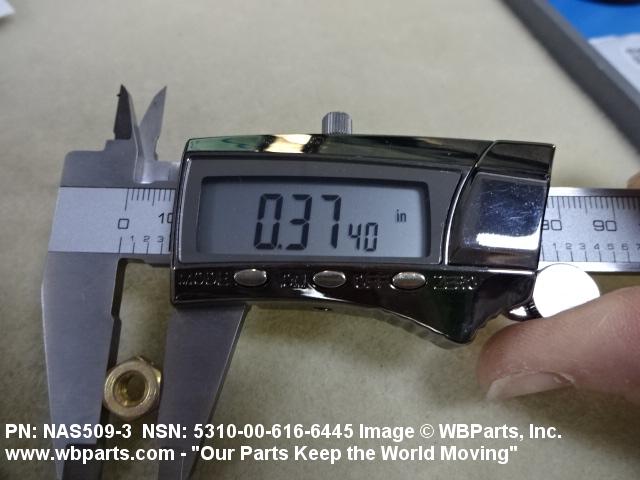

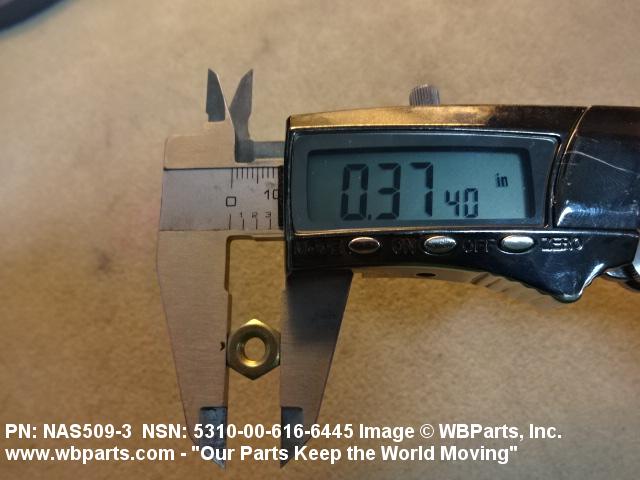

WIDTH ACROSS FLATS	0.365 INCHES MINIMUM AND 0.377 INCHES MAXIMUM
HOLE CONFIGURATION STYLE	H2 CONFIGURATION B

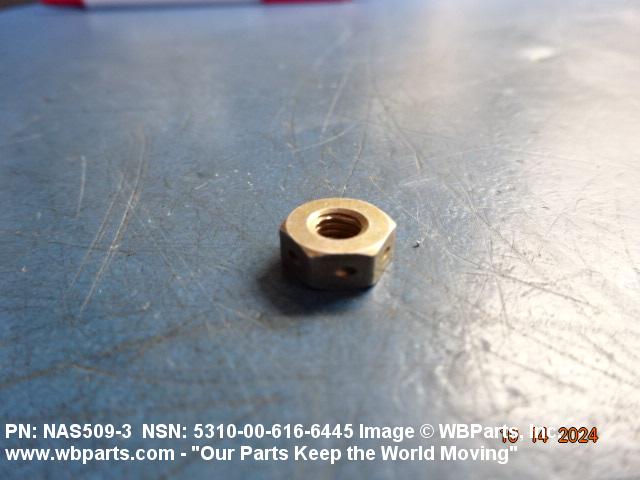

HOLE TYPE AND QUANTITY	3 DRILLED
DRILLED HOLE DIAMETER	0.034 INCHES MINIMUM AND 0.039 INCHES MAXIMUM
BEARING SURFACE TYPE	CHAMFERED
COUNTERSINK ANGLE	110.0 DEGREES NOMINAL NUT
TEMP RATING	NOT RATED
SPECIFICATION/STANDARD DATA	80205-NAS509 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD
NONDEFINITIVE SPEC/STD DATA	2 TYPE
III BEARING SURFACE FINISH	125.0 MICROINCHES
MANUFACTURERS CODE	81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	FF-N-836

Restrictions/Controls & Freight Information | NSN 5310-00-616-6445

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-616-6445

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
