NSN 5310-00-612-6062 U1900140, U190-0140, 00-612-6062
Product Details | SPRING TENSION WASHER
5310-00-612-6062 A bent spring metal washer with a centrally located hole. It is designed to exert pressure axially when assembled in place.
Part Alternates: U1900140, U190-0140, 5310-00-612-6062, 00-612-6062, 5310006126062, 006126062
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 FEB 1975 | 00-612-6062 | 15938 ( WASHER, SPRING TENSION ) |

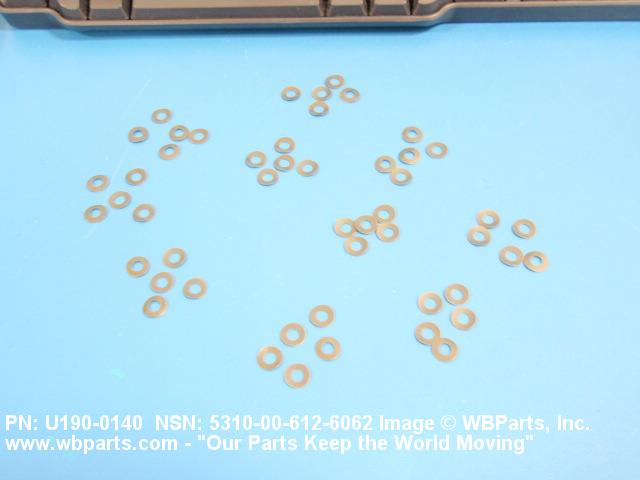

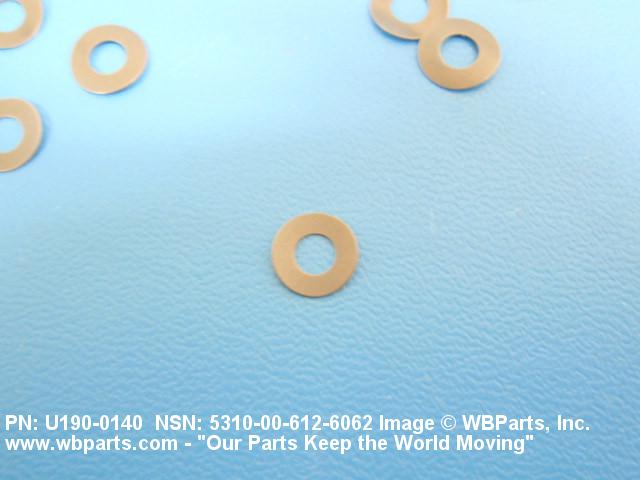

Drawings & Photos | NSN 5310-00-612-6062
Demand History | NSN 5310-00-612-6062
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-612-6062 | 2018-01-11 | 2 | United States |
| U1900140 | 2009-03-63 | 7 | United States |
Cross Reference | NSN 5310-00-612-6062
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| U190-0140 | 70472 | BARNES GROUP INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-612-6062
Related Products | NSN 5310-00-612-6062
Technical Data | NSN 5310-00-612-6062
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| HOLE DIAMETER | 0.200 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.423 INCHES NOMINAL |
| OVERALL HEIGHT | 0.043 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.014 INCHES NOMINAL |
| MANUFACTURERS CODE | 70472 |
| DESIGN CONTROL REFERENCE | U190-0140 |
Restrictions/Controls & Freight Information | NSN 5310-00-612-6062
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
