NSN 5310-00-543-5933 MS3533373, MS35333-73, N416P19
Product Details | LOCK WASHER
5310-00-543-5933 A washer which is usually round with a centrally located hole. Its edges and two bearing surfaces are so designed that applied pressure brings into play the spring tension and/or frictional locking principle which materially resists any tendency toward turning. It may be made of one or two pieces
Part Alternates: MS3533373, MS35333-73, N416P19, A1QA10H, F42, 946147-513, 9591900001, 959-190-0001, 802005-010, 85374200, 853742-00, 10405, 105222, 12Z3010181, 12Z3010-181, 171000, 1710-00, 1810-100 ITEM 15, 1810100ITEM15, 301552, 36690187, 3669-0187, 40532000516, 41110073, 411100-73, 5310-00-543-5933, 00-543-5933, 5306005435933, 5310005435933, 005435933, 802005010, 946147513
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-543-5933 | 14218 ( WASHER, LOCK ) |

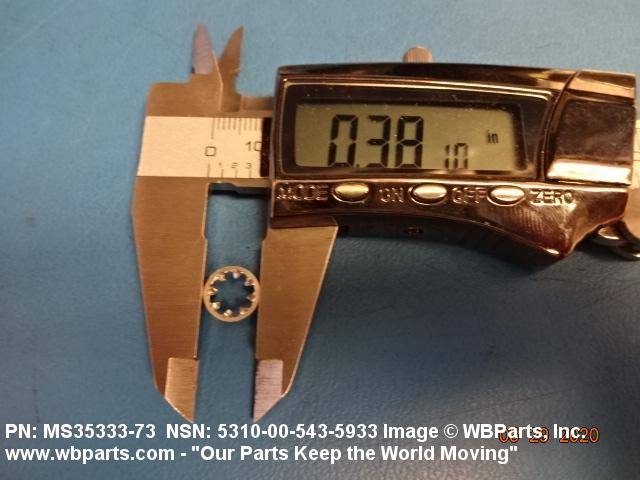

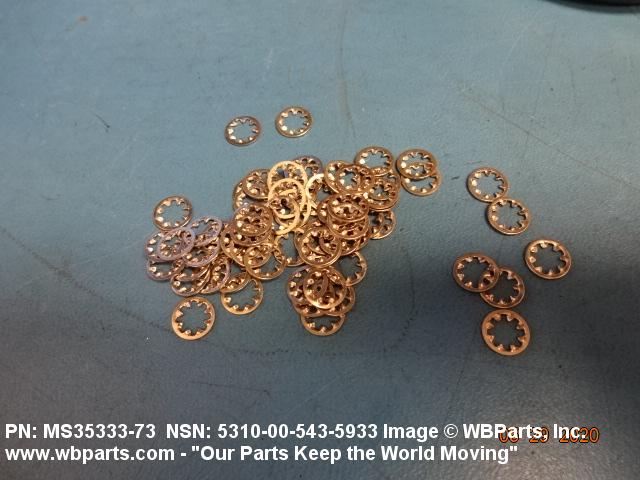

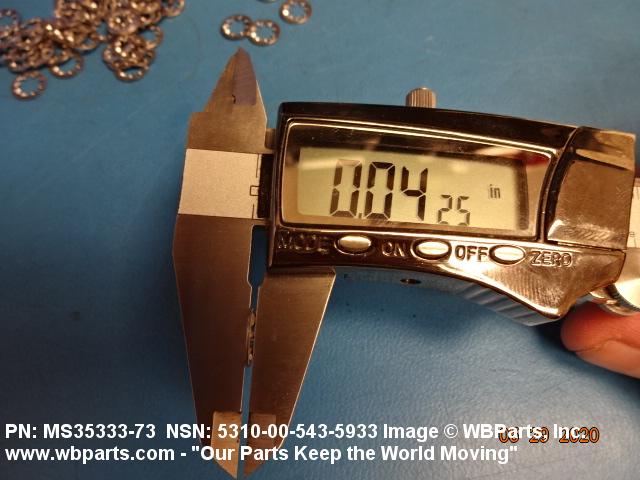

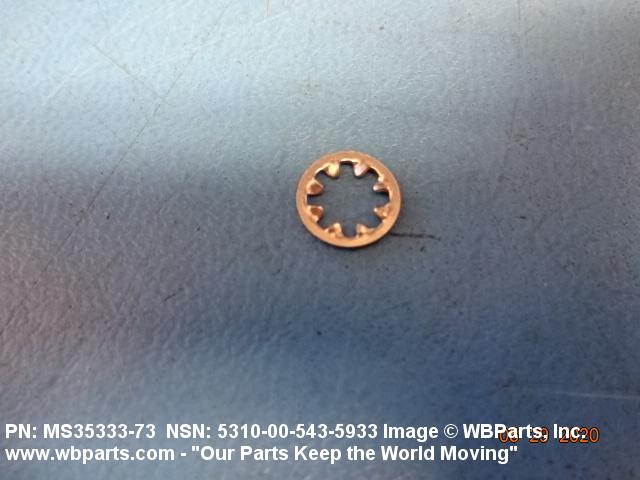

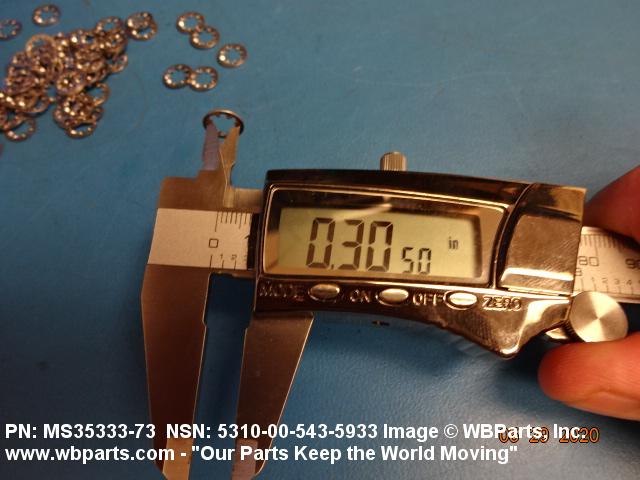

Drawings & Photos | NSN 5310-00-543-5933
Demand History | NSN 5310-00-543-5933
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-543-5933 | 2025-02-36 | 10 | BR |
| 5310-00-543-5933 | 2022-11-320 | 939 | DIBBS |
| 5310-00-543-5933 | 2022-10-297 | 152 | DIBBS |
| MS3533373 | 2019-10-303 | 133 | United States |
| 5310-00-543-5933 | 2019-02-45 | 1085 | DIBBS |
| 5310-00-543-5933 | 2019-02-37 | 1085 | DIBBS |
| 5310-00-543-5933 | 2019-01-16 | 1085 | DIBBS |
| 5310-00-543-5933 | 2019-01-08 | 1085 | DIBBS |
| 5310-00-543-5933 | 2018-11-313 | 1287 | DIBBS |
| 5310-00-543-5933 | 2018-11-305 | 1287 | DIBBS |
| 5310-00-543-5933 | 2018-09-254 | 1595 | DIBBS |
| MS3533373 | 2018-09-248 | 8 | United States |
| MS35333-73 | 2017-07-206 | 4 | India |
| MS3533373 | 2016-11-312 | 3 | United States |
| 5310-00-543-5933 | 2015-05-127 | 5 | United States |
| MS3533373 | 2014-08-239 | 20 | US |
| MS3533373 | 2014-07-212 | 1907 | US |
| MS3533373 | 2012-07-213 | 55 | US |
| MS3533373 | 2012-02-44 | 65 | US |
| 5310-00-543-5933 | 2010-08-243 | 2272 | DIBBS |
| 5310-00-543-5933 | 2010-03-67 | 2900 | DIBBS |
| MS3533373 | 2008-09-262 | 144 | Spain |
| MS3533373 | 2008-09-247 | 230 | United States |
| 5310-00-543-5933 | 2008-05-148 | 1902 | DIBBS |
| MS3533373 | 2007-11-320 | 8 | us |
Cross Reference | NSN 5310-00-543-5933
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10405 | 82423 | KLEINSCHMIDT INC |
| 105222 | 28009 | SYPRIS ELECTRONICS, LLC DIV SYPRIS ELECTRONICS, LLC - |
| 12Z3010-181 | 94135 | NAVAL ORDNANCE STANDARDS |
| 1710-00 | 78189 | ITW SHAKEPROOF AUTOMOTIVE PRODUCTS |
| 1810-100 ITEM 15 | 0SXY8 | HYDRACON COMPANY INC |
| 301552 | 80256 | OUTBOARD MARINE CORP |
| 3669-0187 | 19397 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC. |
| 40532000516 | S0522 | TADIRAN LTD |
| 411100-73 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| 5306005435933 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 5310005435933 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 802005-010 | 53938 | EVANS & SUTHERLAND COMPUTER CORPORATION |
| 853742-00 | 32345 | DEFENSE REDUCTION AGENCY |
| 946147-513 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| 946147-513 | 13973 | LITTON SYSTEMS INC. DIV NAVIGATION SYSTEMS DIVISION |
| 959-190-0001 | 13913 | WESTERN RESERVE ELECTRONICS INC |
| A1QA10H | 70318 | ALLMETAL SCREW PRODUCTS CORP DBA ALL METAL SCREW PRODUCTS |
| F42 | 00365 | TLD ACE CORPORATION |
| MS35333-73 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS35333-73 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| N416P19 | 24446 | GENERAL ELECTRIC CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-543-5933
Technical Data | NSN 5310-00-543-5933
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 410 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35,TY 2 OR TY 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 40.0 ROCKWELL C MINIMUM AND 50.0 ROCKWELL C MAXIMUM |
| STYLE DESIGNATOR | 101 FLAT INTERNAL TEETH |
| HOLE DIAMETER | 0.195 INCHES MINIMUM AND 0.204 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 0.365 INCHES MINIMUM AND 0.381 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.020 INCHES MINIMUM AND 0.025 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5310-00-543-5933
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
