NSN 5310-00-531-0113 NUT17, 145440, 1801064
Product Details | HEXAGON SELF-LOCKING NUT
5310-00-531-0113 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.
Part Alternates: NUT17, 145440, 1801064, 1801-064, 21FC624, 52HS019624, 52HS019-624, 5310-00-531-0113, 00-531-0113, 5310005310113, 005310113
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-531-0113 | 05277 ( NUT, SELF-LOCKING, HEXAGON ) |

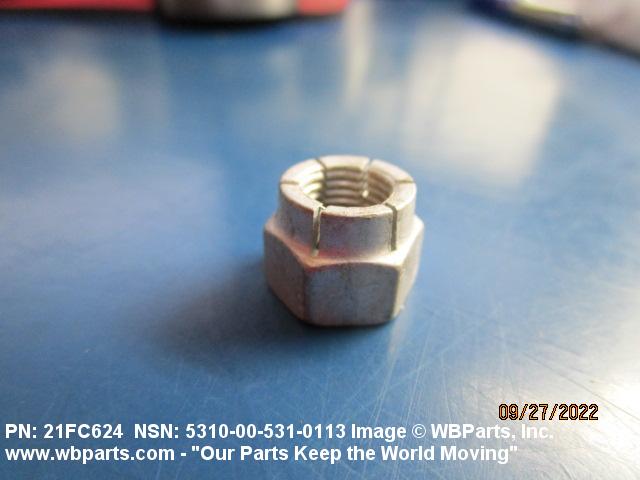

Drawings & Photos | NSN 5310-00-531-0113
Demand History | NSN 5310-00-531-0113
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-531-0113 | 2024-08-243 | 320 | United States |
| 21FC624 | 2024-01-03 | 4863 | DIBBS |
| 52HS019-624 | 2024-01-03 | 4863 | DIBBS |
| 21FC624 | 2023-09-247 | 11619 | DIBBS |
| 52HS019-624 | 2023-09-247 | 11619 | DIBBS |
| 21FC624 | 2023-07-204 | 1544 | DIBBS |
| 52HS019-624 | 2023-07-204 | 1544 | DIBBS |
| 5310-00-531-0113 | 2023-05-151 | 300 | Taiwan |
| 5310-00-531-0113 | 2023-02-38 | 112 | Taiwan |
| 5310-00-531-0113 | 2022-09-257 | 20 | United States |
| 21FC624 | 2022-08-228 | 2000 | United States |
| 21FC624 | 2022-08-228 | 4000 | United States |
| 21FC624 | 2022-08-228 | 6000 | United States |
| 21FC624 | 2020-06-170 | 1000 | United States |
| 21FC624 | 2020-06-170 | 2000 | United States |
| 21FC624 | 2020-04-114 | 2000 | United States |
| 21FC624 | 2020-01-27 | 1000 | United States |
| 21FC624 | 2019-07-212 | 22439 | DIBBS |
| 52HS019-624 | 2019-07-212 | 22439 | DIBBS |
| 5310-00-531-0113 | 2019-01-25 | 1 | DIBBS-RFPs |
| 5310-00-531-0113 | 2018-10-276 | 15808 | DIBBS |
| 5310-00-531-0113 | 2017-04-99 | 14424 | DIBBS |
| 5310-00-531-0113 | 2015-10-281 | 29996 | DIBBS |
| 21FC624 | 2015-07-183 | 2000 | United States |
| 5310-00-531-0113 | 2012-04-114 | 8 | MANUAL |
| 5310-00-531-0113 | 2010-12-342 | 100 | United States |
| 5310-00-531-0113 | 2010-05-140 | 28046 | DIBBS |
| 5310-00-531-0113 | 2009-08-239 | 18305 | DIBBS |
| 5310-00-531-0113 | 2009-05-140 | 12 | US |
| 5310-00-531-0113 | 2009-02-37 | 12493 | DIBBS |
| 5310-00-531-0113 | 2008-11-311 | 8168 | DIBBS |
| 5310-00-531-0113 | 2008-10-284 | 5602 | DIBBS |
| 5310-00-531-0113 | 2008-08-226 | 9187 | DIBBS |
Cross Reference | NSN 5310-00-531-0113
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 145440 | 06848 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 145440 | 55284 | HONEYWELL INTERNATIONAL INC DBA HONEYWELL |
| 1801-064 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| 1801-064 | 72962 | HARVARD INDUSTRIES INC |
| 21FC624 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| 52HS019-624 | 27687 | GREER STOP NUT INC. |
| NUT17 | 60532 | TRANE U.S. INC. DBA TRANE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-531-0113
Related Products | NSN 5310-00-531-0113
Technical Data | NSN 5310-00-531-0113
| Characteristic | Specifications |
|---|---|

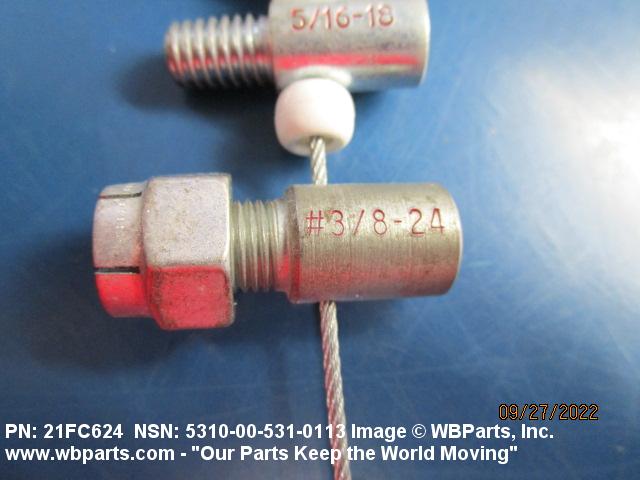

| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 1137 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5024 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A12 HEXAGON |

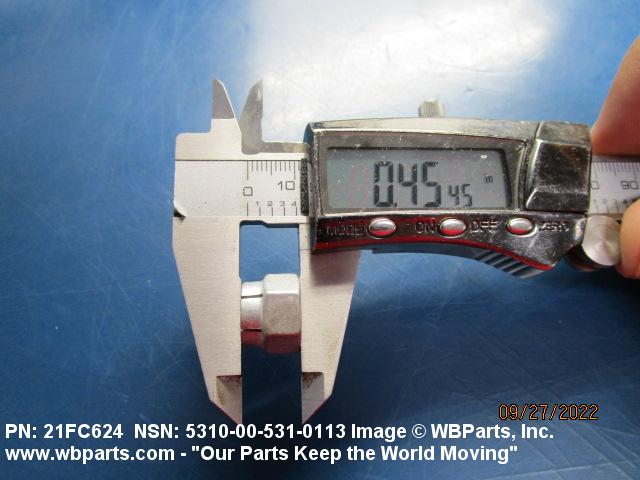

| NUT HEIGHT | 0.454 INCHES MINIMUM AND 0.469 INCHES MAXIMUM |

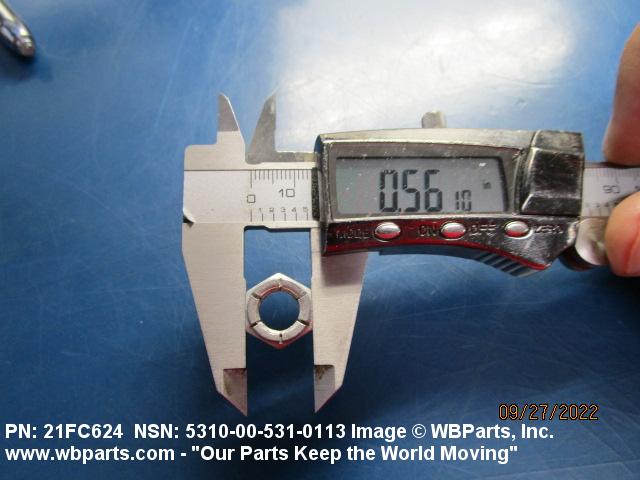

| WIDTH ACROSS FLATS | 0.553 INCHES MINIMUM AND 0.564 INCHES MAXIMUM |
| BEARING SURFACE TYPE | CHAMFERED |

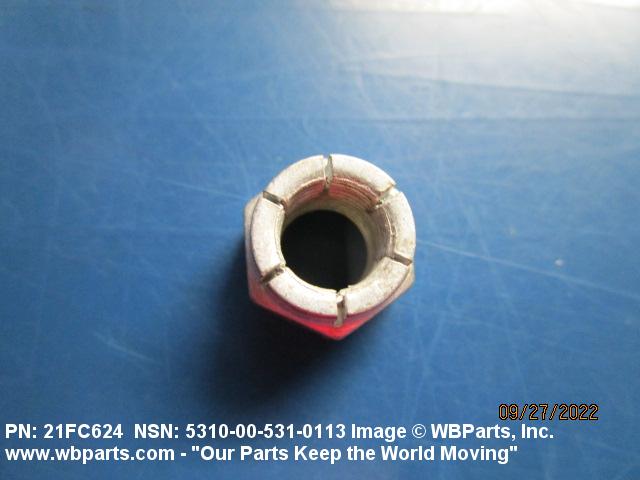

| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| TEMP RATING | 550.0 DEG FAHRENHEIT NOMINAL |
| III BEARING SURFACE FINISH | 125.0 MICROINCHES |
| III END ITEM IDENTIFICATION | W/S: HELICOPTER, CHINOOK, CH-47; AIRCRAFT, PHANTOM F-4; AVIATION ENGINE TEST SYSTEMS (AETS); AIRCRAFT, MH-47E SPERCIAL OPERATIONS AIRCRAFT; AH-64-D LONGBOW; AIRCRAFT, (AC-130H, MC-130H, EC-130E, HC-130); HELICOPTER, APACHE AH-64; HELICOPTER, RH-53; ENGINE, AIRCRAFT T-56 |
Restrictions/Controls & Freight Information | NSN 5310-00-531-0113
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-531-0113
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
