NSN 5310-00-527-4509 NAS5136, NAS513-6, 00-527-4509
Product Details | KEY WASHER

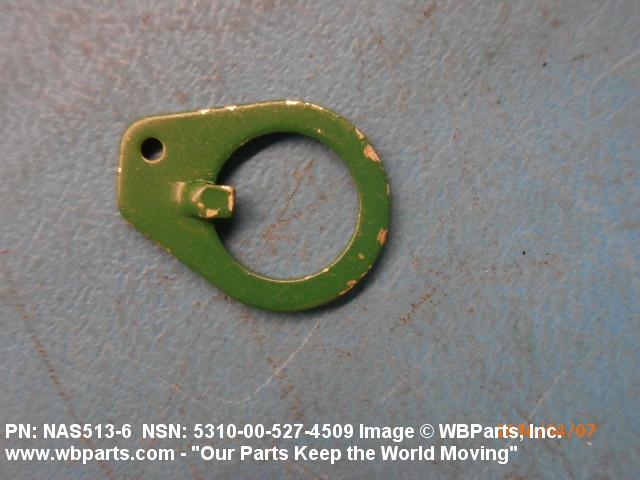

5310-00-527-4509 A washer of nonresilient material usually having two parallel bearing surfaces. The outside and/or inside edges have one or more protuberances. The ends and/or edges may be prebent at any angle or the protuberances may be prebent at any angle to the bearing surfaces. The keys or lugs may be fitted into keyways in adjacent material or they may be bent over after application to hold or lock one or more items in place. Excludes thrust type washer.
Part Alternates: NAS5136, NAS513-6, 5310-00-527-4509, 00-527-4509, 5310005274509, 005274509
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-527-4509 | 01869 ( WASHER, KEY ) |

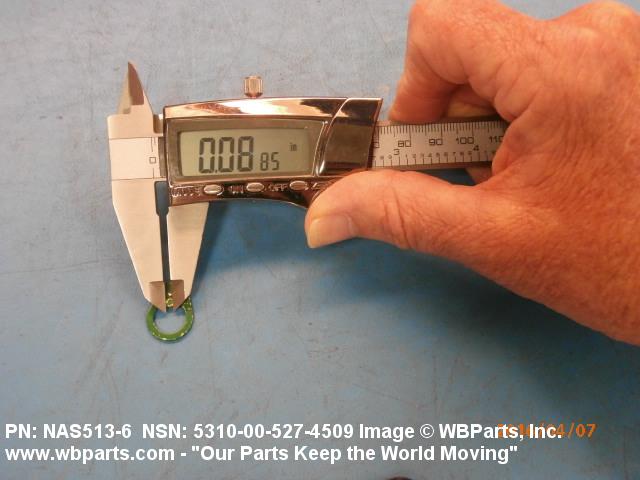

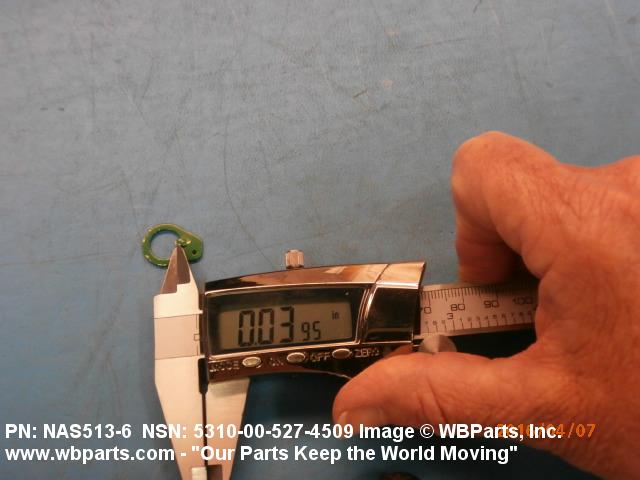

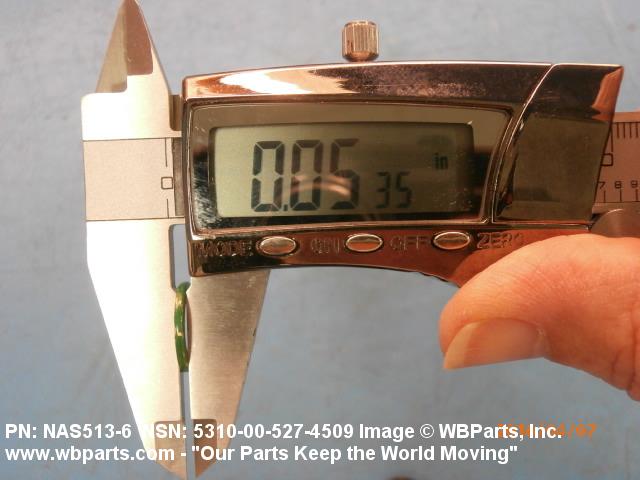

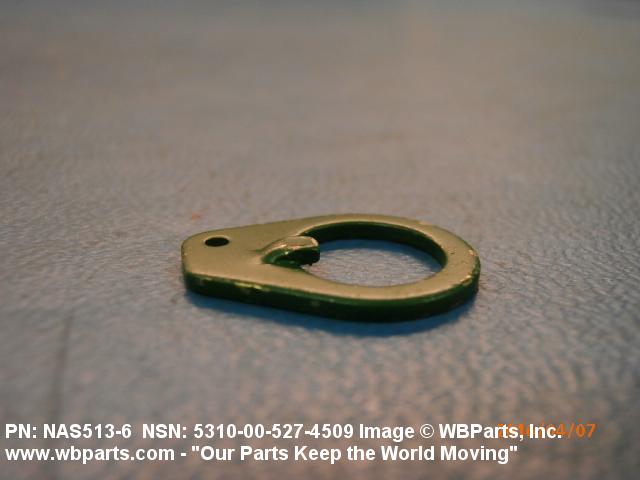

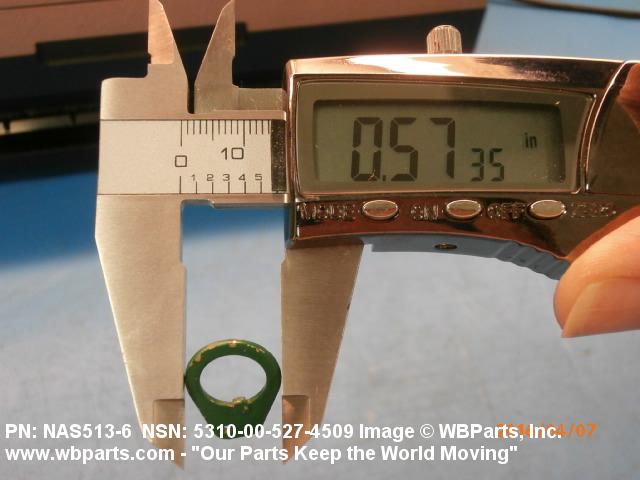

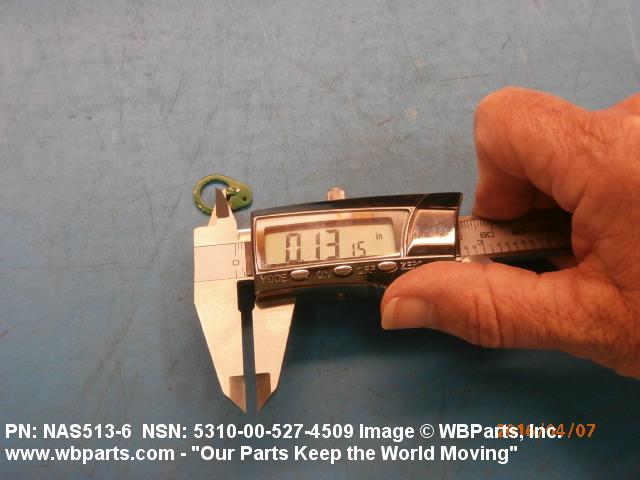

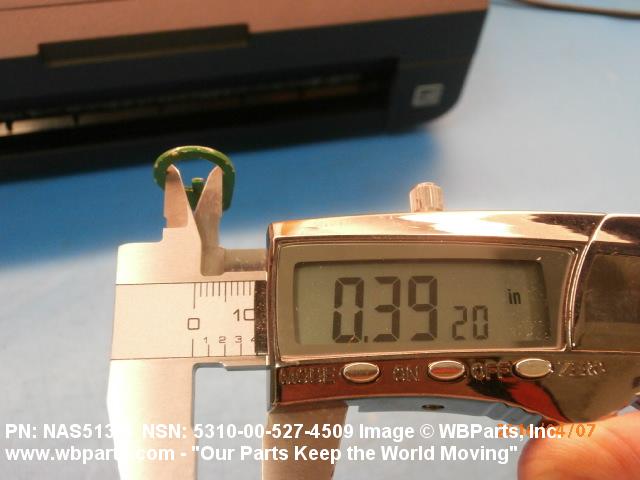

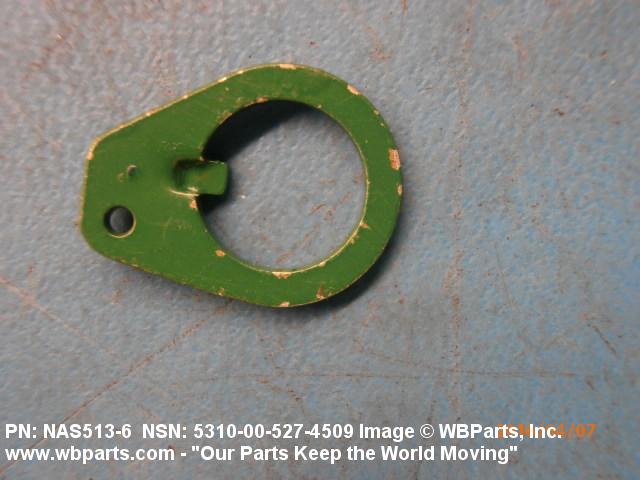

Drawings & Photos | NSN 5310-00-527-4509
Demand History | NSN 5310-00-527-4509
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS5136 | 2022-08-224 | 150 | US |
| NAS5136 | 2021-12-349 | 20 | United States |
| 5310-00-527-4509 | 2021-09-266 | 2208 | DIBBS |
| NAS5136 | 2018-10-290 | 1 | United States |
| 5310-00-527-4509 | 2017-10-303 | 8900 | DIBBS |
| 5310-00-527-4509 | 2017-10-285 | 5523 | DIBBS |
| NAS5136 | 2016-04-102 | 8 | United States |
| NAS5136 | 2016-04-102 | 16 | United States |
| NAS5136 | 2016-04-102 | 30 | United States |
| NAS5136 | 2016-04-102 | 63 | United States |
| NAS5136 | 2016-04-102 | 120 | United States |
| NAS5136 | 2016-04-102 | 166 | United States |
| NAS5136 | 2016-04-95 | 5 | United States |
| NAS5136 | 2016-03-82 | 5 | United States |
| 5310-00-527-4509 | 2015-08-217 | 5967 | DIBBS |
| NAS5136 | 2015-07-182 | 10 | United States |
| NAS513-6 | 2015-05-147 | 8 | Romania |
| NAS5136 | 2015-03-84 | 120 | US |
| 5310-00-527-4509 | 2014-08-215 | 7530 | DIBBS |
| NAS5136 | 2014-03-63 | 100 | US |
| NAS5136 | 2014-02-59 | 100 | US |
| NAS5136 | 2013-12-351 | 820 | United States |
| 5310-00-527-4509 | 2013-08-227 | 9 | US |
| 5310-00-527-4509 | 2013-08-227 | 9 | US |
| NAS5136 | 2012-06-159 | 10 | US |
| NAS5136 | 2009-02-35 | 20 | United States |
| NAS5136 | 2009-01-13 | 20 | US |
| NAS5136 | 2007-11-310 | 15 | US |
| NAS5136 | 2006-02-41 | 8641 | US |
Cross Reference | NSN 5310-00-527-4509
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS513-6 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-527-4509
Related Products | NSN 5310-00-527-4509
Technical Data | NSN 5310-00-527-4509
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1095 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-7947,COND A MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 40.0 ROCKWELL C MINIMUM AND 45.0 ROCKWELL C MAXIMUM |
| STYLE DESIGNATOR | 178 INTERNAL PREBENT KEY |
| HOLE DIAMETER | 0.388 INCHES MINIMUM AND 0.404 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 0.560 INCHES MINIMUM AND 0.580 INCHES MAXIMUM |
| INTERNAL PREBENT KEY LENGTH | 0.031 INCHES MINIMUM AND 0.041 INCHES MAXIMUM |
| INTERNAL PREBENT KEY WIDTH | 0.077 INCHES MINIMUM AND 0.087 INCHES MAXIMUM |
| DISTANCE FROM CENTERLINE TO TOP OF INTERNAL KEY | 0.129 INCHES NOMINAL |

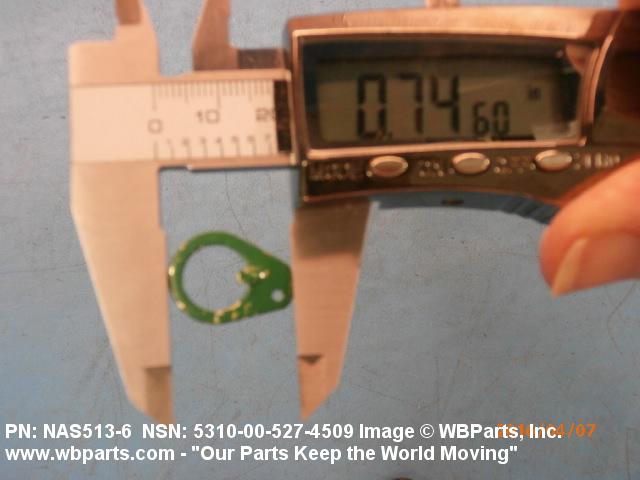

| OVERALL DISTANCE INCLUDING KEYS | 0.738 INCHES NOMINAL |

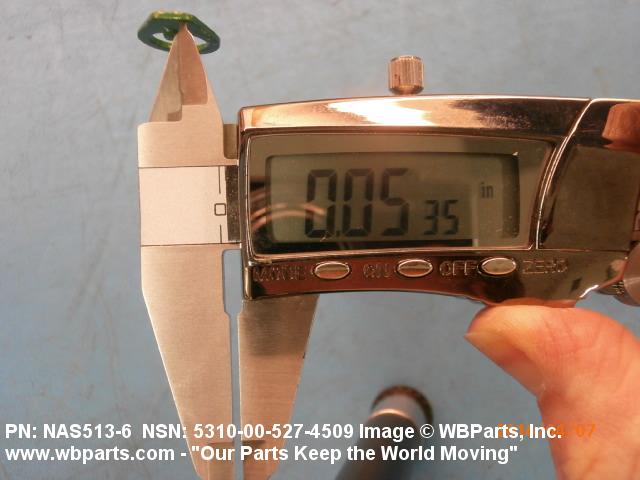

| MATERIAL THICKNESS | 0.050 INCHES NOMINAL |

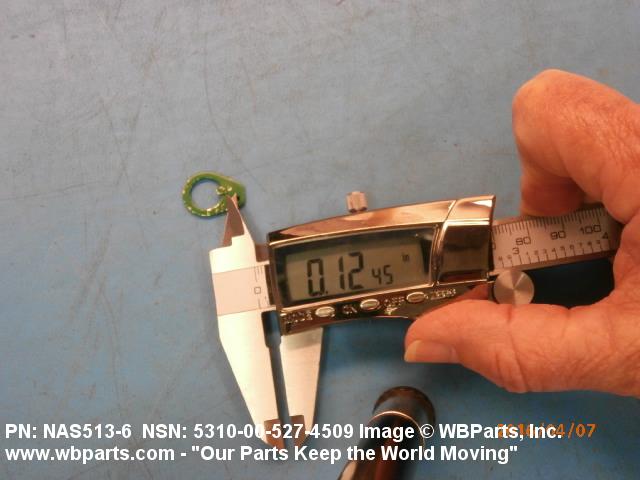

| DISTANCE FROM KEY CENTER TO WIRE HOLE CENTER | 0.125 INCHES NOMINAL |
| WIRE HOLE DIAMETER | 0.062 INCHES NOMINAL |
| SPECIFICATION/STANDARD DATA | 80205-NAS513 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5310-00-527-4509
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-527-4509
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | B | Rotary Wing Aircraft |
| Weapons Systems/End Item or Homogeneous Group | BJ | AH-64 Airframe |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
