Product Details | HEXAGON PLAIN NUT

5310-00-500-2436 A nut, flat on top and bottom having 6 flat sides. For items which have internal tapered or straight (parallel) pipe threads, specific electrical conduit size designation, and which when installed, provide a method of tightening to lock the connection, see LOCKNUT, ELECTRICAL CONDUIT. See also LOCKNUT, TUBE FITTING. For items having a thickness (or height) exceeding two times the width across the flats, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. (When height or thickness and/or width across the flats is designated as a tolerance dimension, the maximum dimension will be used to determine compliance.

Part Alternates: NAS50912C, NAS509-12C, LS1117012C, LS11170-12C, 10121431 , 5310-00-500-2436, 00-500-2436, 5310005002436, 005002436

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG) NSN Assign. NIIN
53 06 JUL 1974 00-500-2436

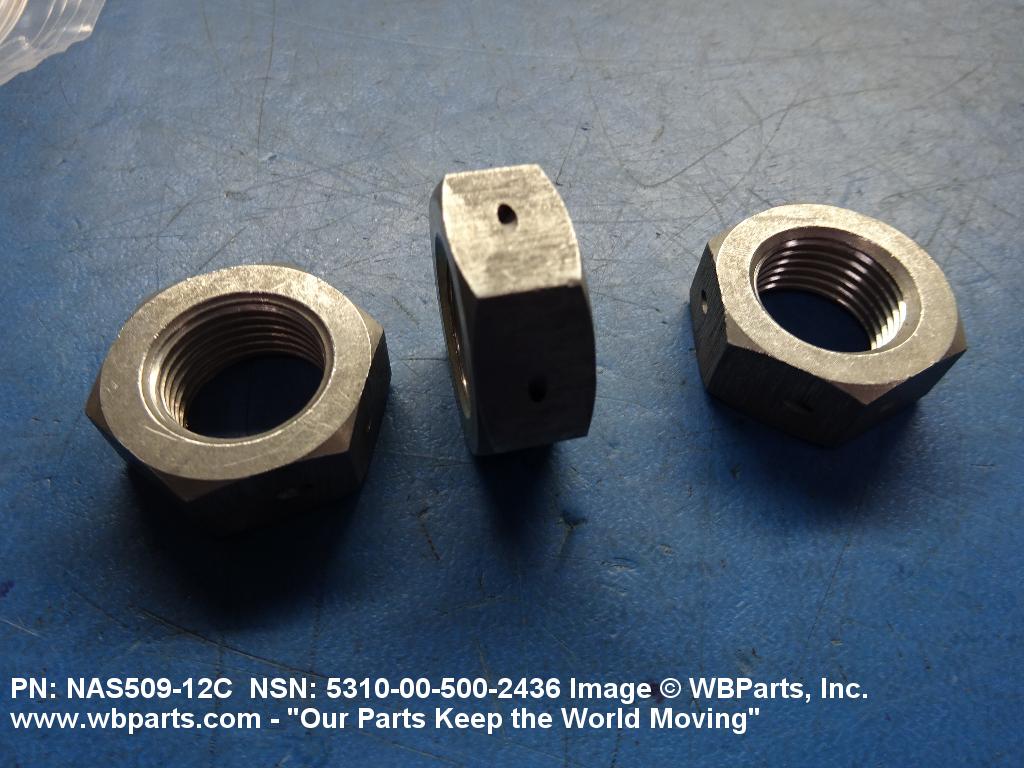

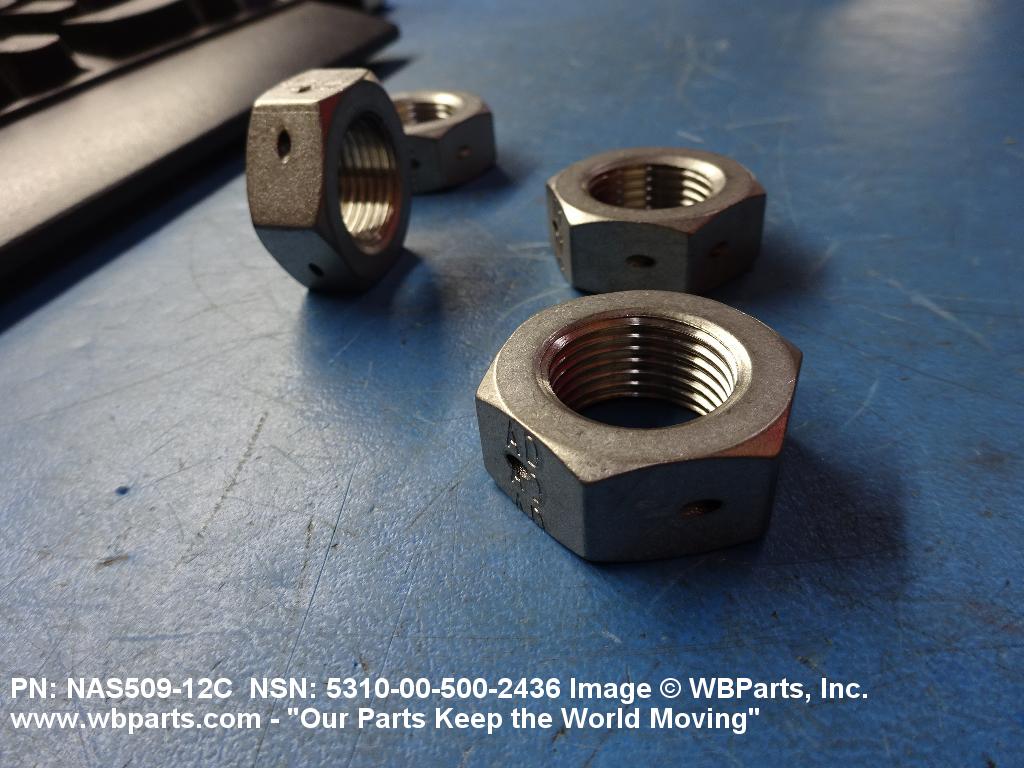

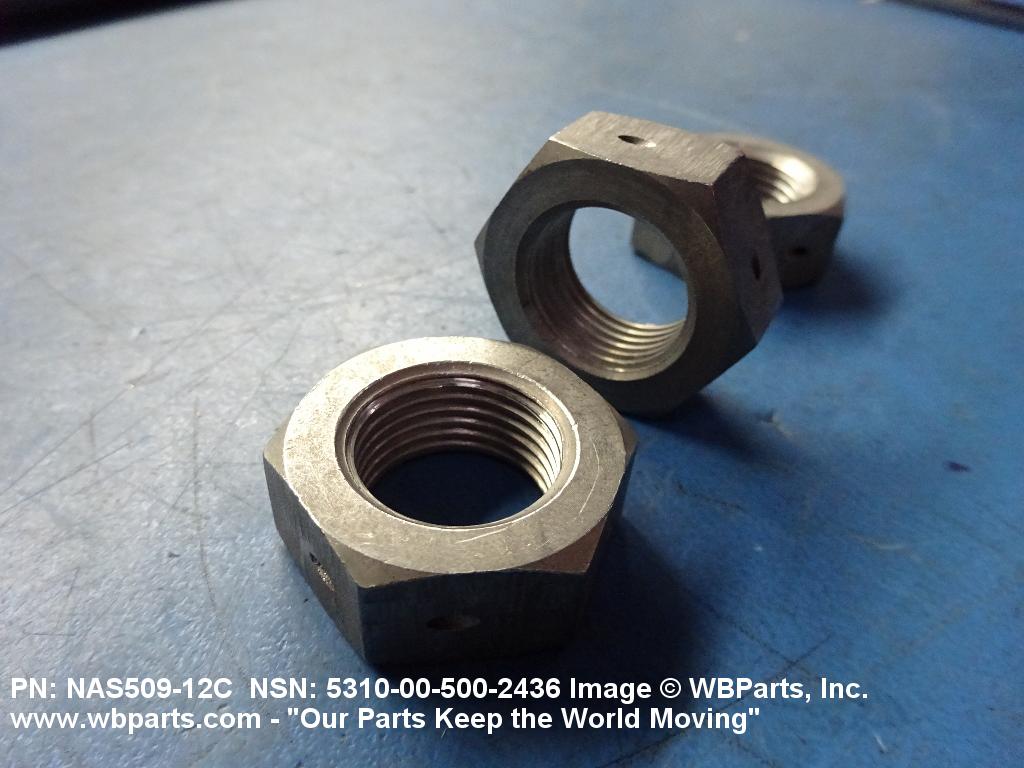

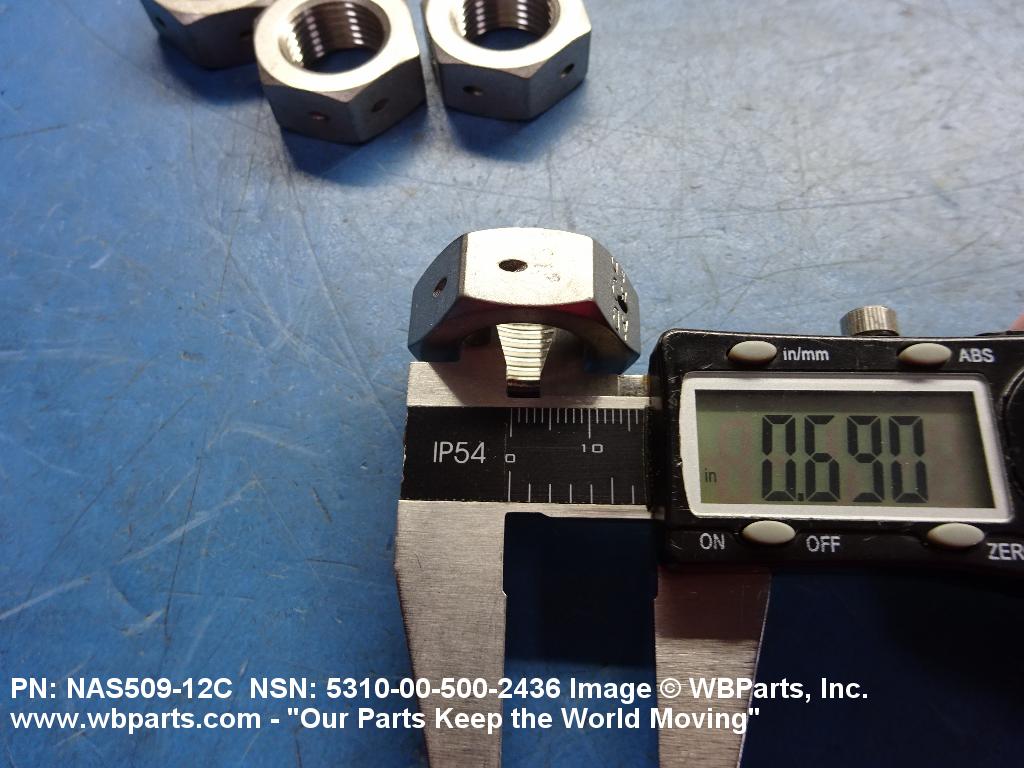

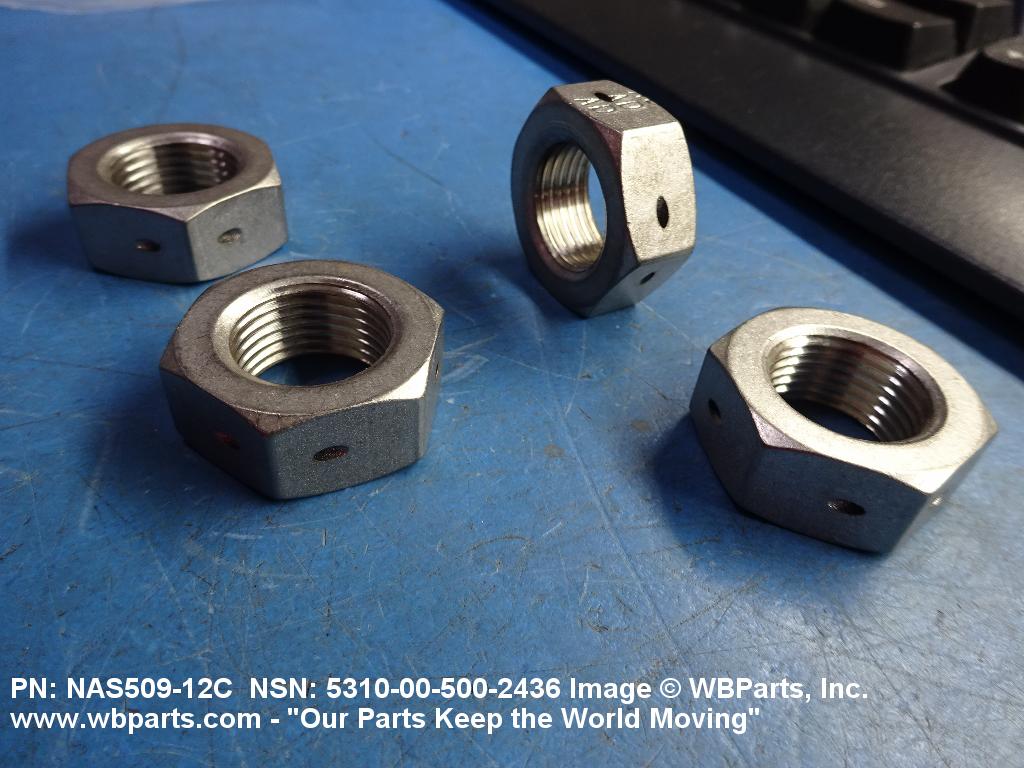

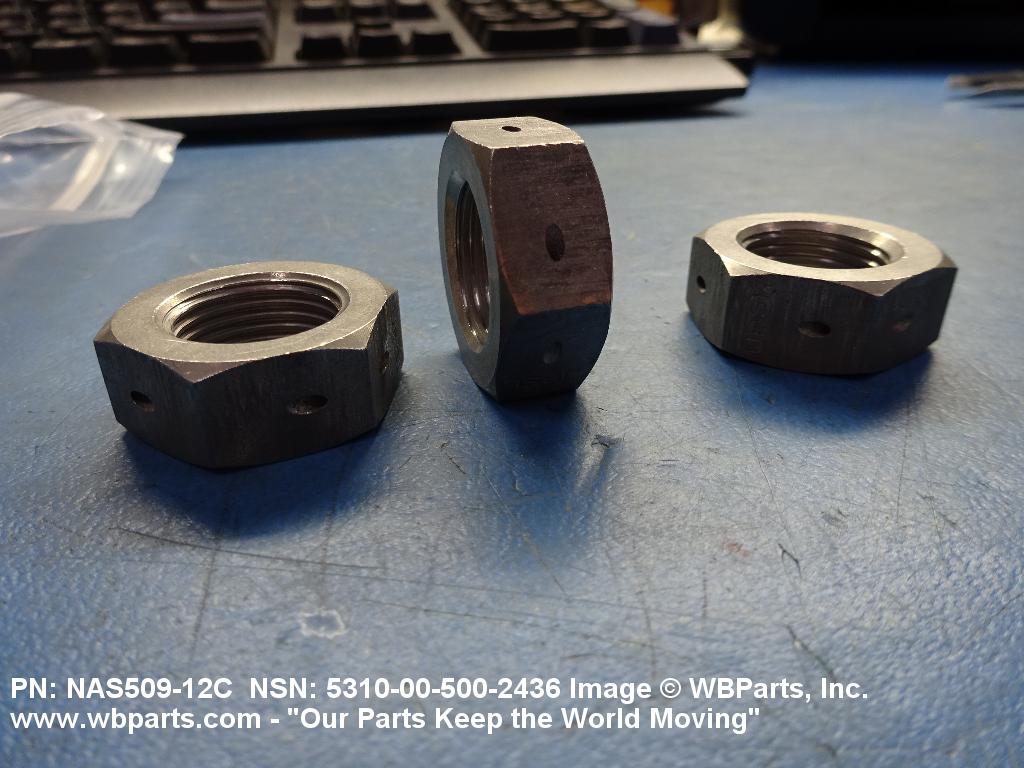

Drawings & Photos | NSN 5310-00-500-2436


Demand History | NSN 5310-00-500-2436

Part Number Request Date QTY Origin
5310-00-500-2436 2023-12-337 54 DIBBS
NAS50912C 2022-06-173 4 United States
NAS50912C 2022-04-116 8 United States
NAS50912C 2020-11-316 4 United States
5310-00-500-2436 2015-07-196 6 US
NAS50912C 2015-07-196 36 US
NAS50912C 2012-10-284 10 US
NAS50912C 2010-01-13 10 US
NAS50912C 2009-09-272 18 US
NAS50912C 2009-09-272 18 Saudi Arabia

Cross Reference | NSN 5310-00-500-2436

Part Number Cage Code Manufacturer
LS11170-12C 98897 LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS
NAS509-12C 80205 NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-500-2436

Technical Data | NSN 5310-00-500-2436

Characteristic Specifications
THREAD SERIES UNJF
NOMINAL THREAD SIZE 0.750 INCHES
THREAD QUANTITY PER INCH 16
THREAD CLASS 3B
THREAD DIRECTION RIGHT-HAND
MATERIAL IRON ALLOY 660 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION AMS 5735 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT SILVER OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION QQ-S-635 FED SPEC SINGLE TREATMENT RESPONSE OR AMS 2410 ASSN STD SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING NOT RATED
NUT STYLE A12 HEXAGON

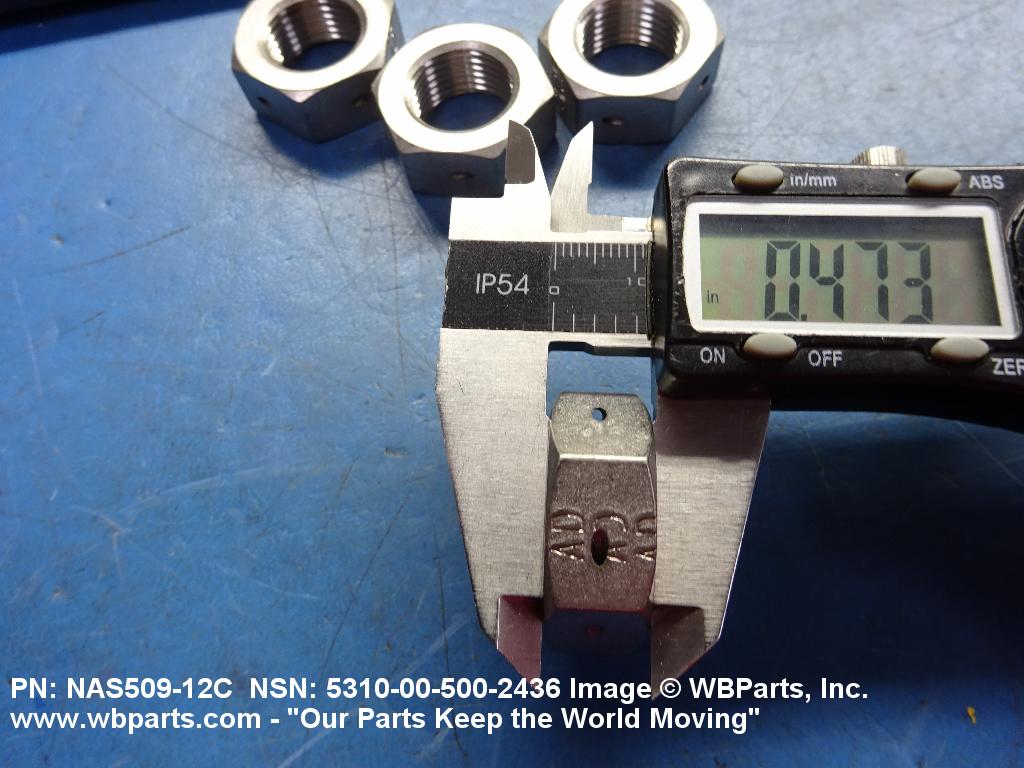

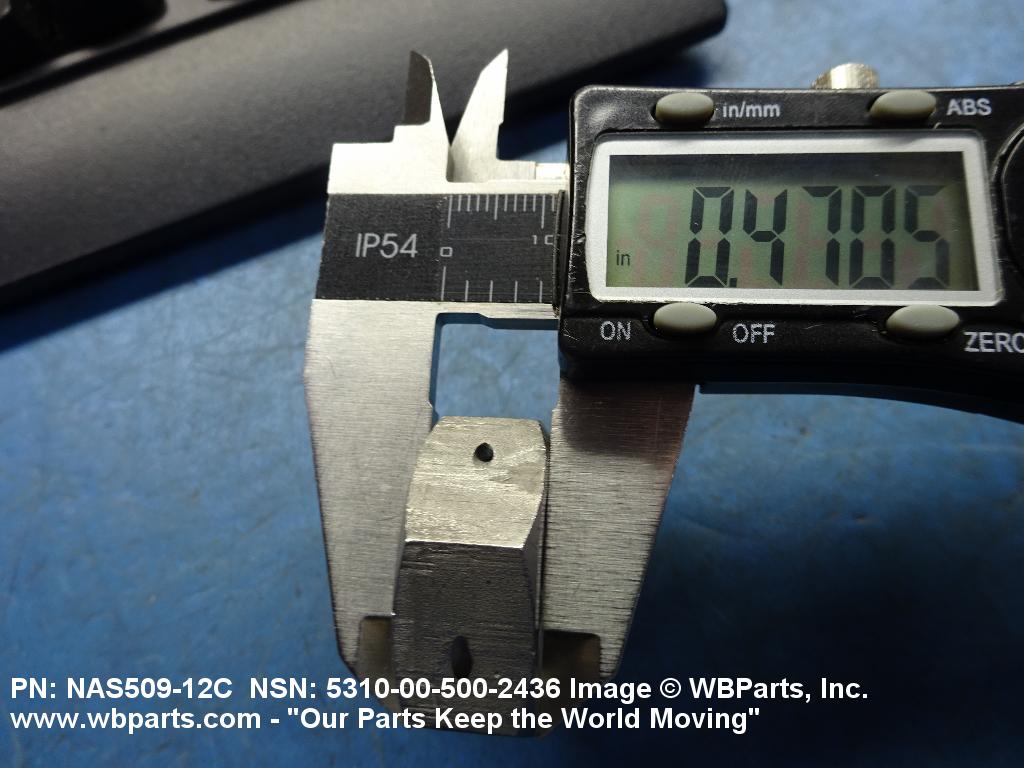

NUT HEIGHT 0.469 INCHES NOMINAL

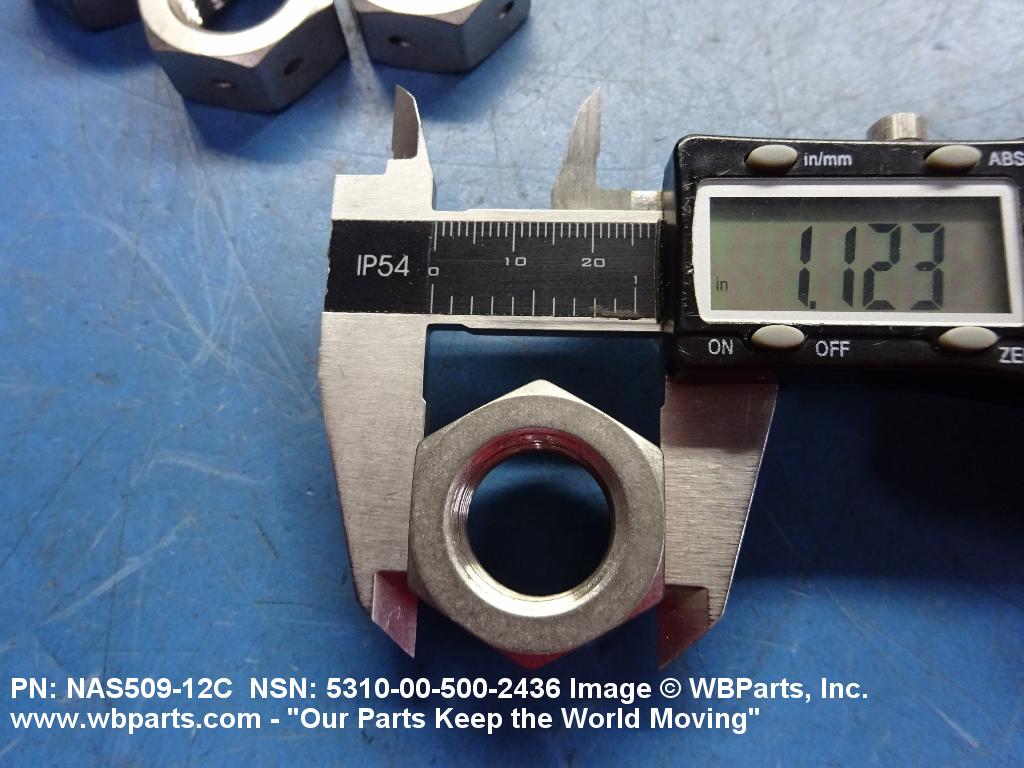

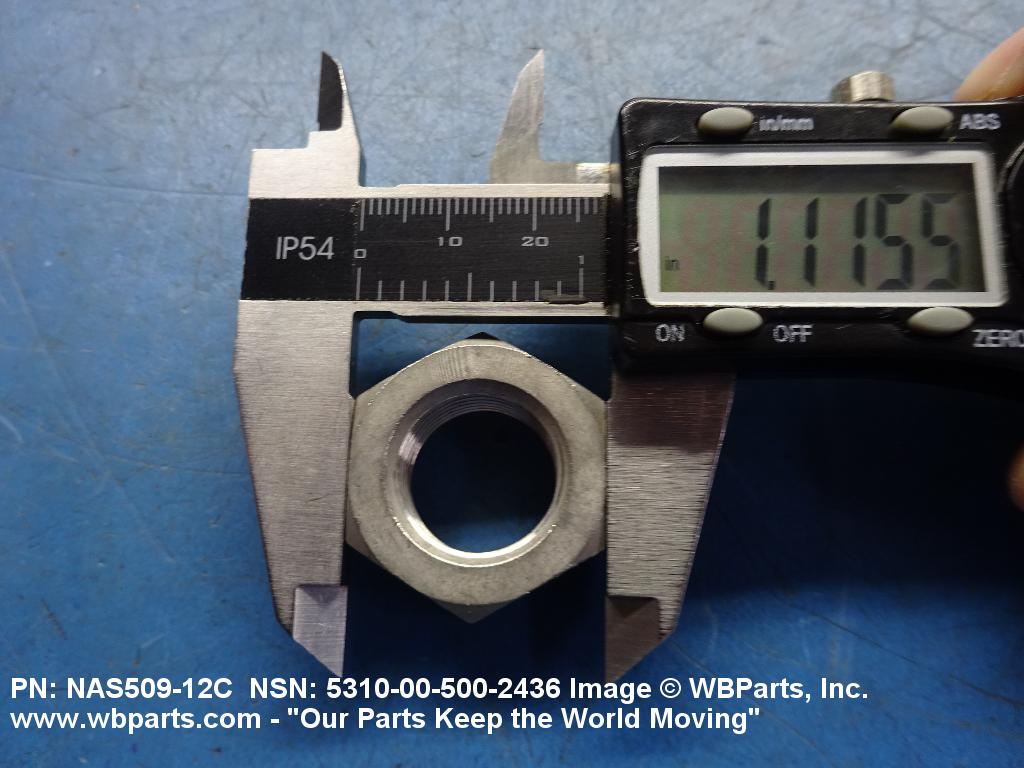

WIDTH ACROSS FLATS 1.109 INCHES MINIMUM AND 1.127 INCHES MAXIMUM
HOLE CONFIGURATION STYLE H2 CONFIGURATION B
HOLE TYPE AND QUANTITY 3 DRILLED

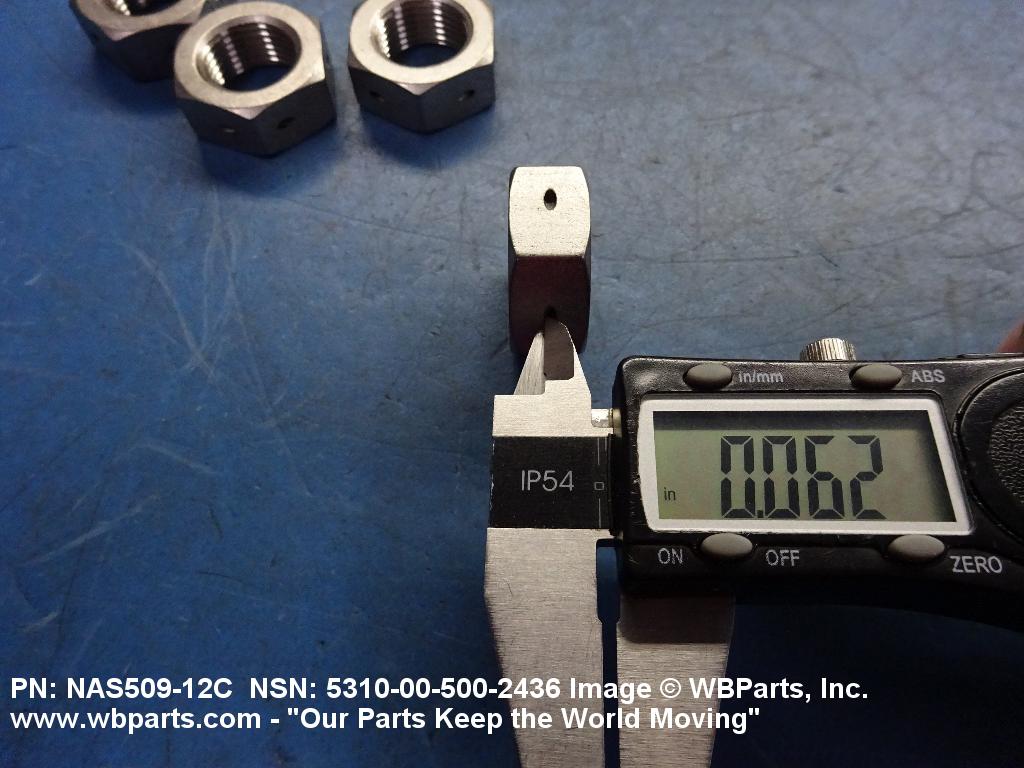

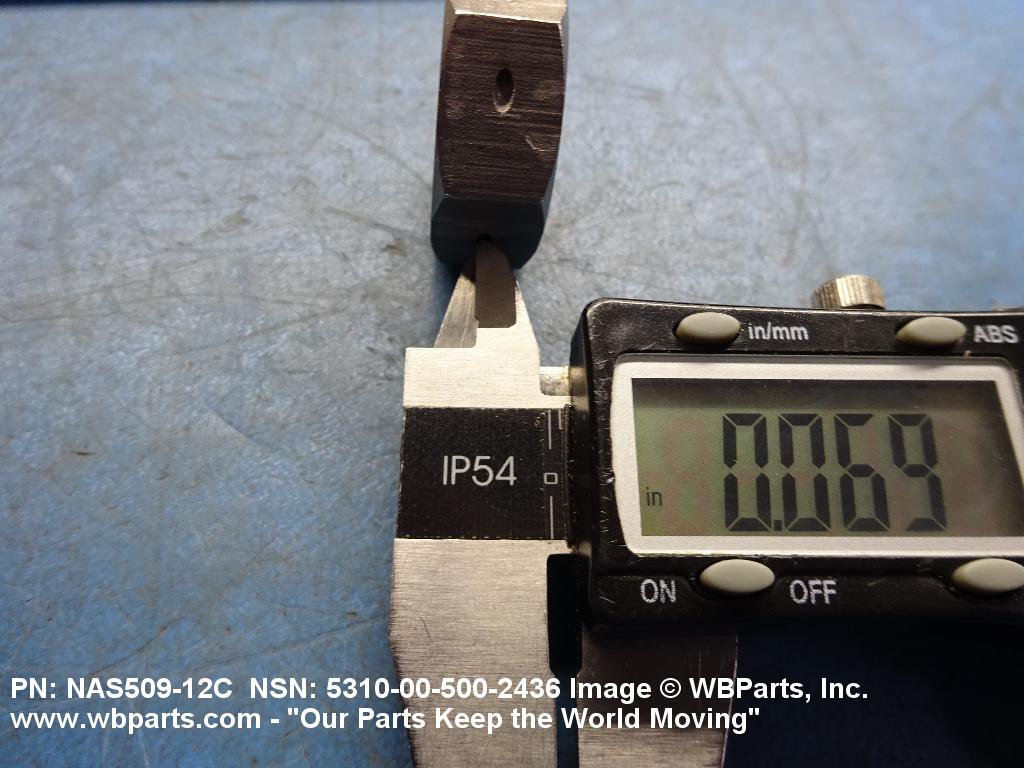

DRILLED HOLE DIAMETER 0.069 INCHES MINIMUM AND 0.074 INCHES MAXIMUM
BEARING SURFACE TYPE CHAMFERED
COUNTERSINK ANGLE 110.0 DEGREES NOMINAL NUT
TEMP RATING NOT RATED
SPECIFICATION/STANDARD DATA 80205-509 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD
