NSN 5310-00-489-3528 NAS1169DD8, 10121423 , 00-489-3528
Product Details | FINISHING WASHER
5310-00-489-3528 A washer or cone or disk shape with a centrally located hole, designed to accommodate a flat or oval head screw and provide additional bearing area on the material being fastened. It may or may not have a flush flange feature.
Part Alternates: NAS1169DD8, 10121423 , 5310-00-489-3528, 00-489-3528, 5310004893528, 004893528
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 MAY 1970 | 00-489-3528 | 15932 ( WASHER, FINISHING ) |

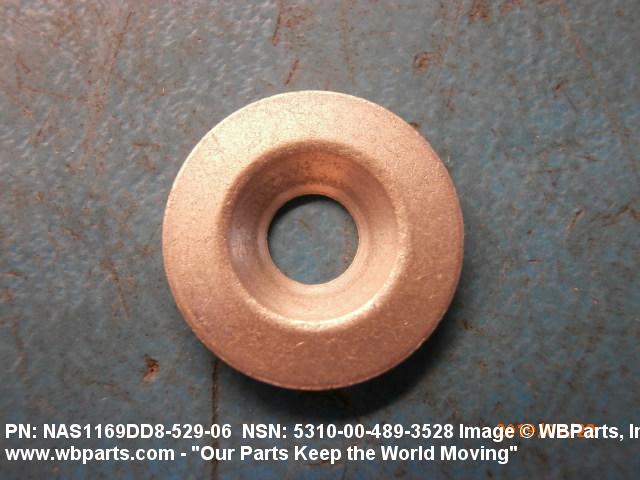

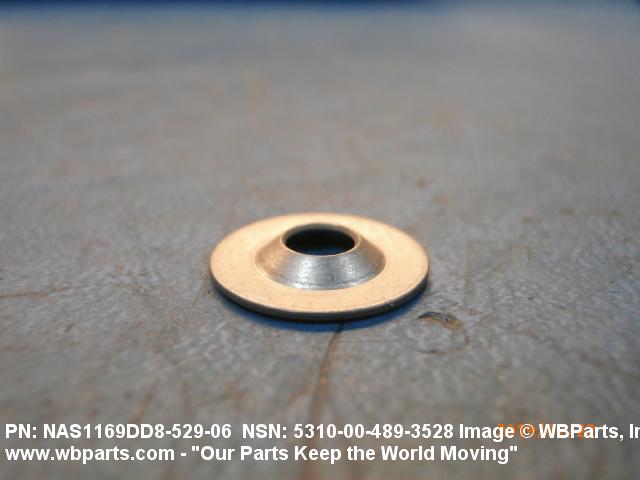

Drawings & Photos | NSN 5310-00-489-3528
Demand History | NSN 5310-00-489-3528
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1169DD8 | 2024-03-82 | 6 | AE |
| NAS1169DD8 | 2023-05-125 | 200 | United Arab Emirates |
| NAS1169DD8 | 2019-11-311 | 44 | United States |
| NAS1169DD8 | 2019-11-311 | 500 | United States |
| NAS1169DD8 | 2019-07-198 | 500 | United States |
| NAS1169DD8 | 2017-03-87 | 100 | United States |
| 5310-00-489-3528 | 2014-08-229 | 2778 | DIBBS |
| NAS1169DD8 | 2014-06-161 | 30 | RU |
| 5310-00-489-3528 | 2013-02-46 | 1179 | DIBBS |
| 5310-00-489-3528 | 2012-11-326 | 556 | DIBBS |
| 5310-00-489-3528 | 2011-02-39 | 500 | United States |
| 5310-00-489-3528 | 2011-02-38 | 500 | United States |
| 5310-00-489-3528 | 2008-07-207 | 50 | United States |
| 5310-00-489-3528 | 2008-07-206 | 50 | United States |
Cross Reference | NSN 5310-00-489-3528
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1169DD8 | 04348 | LAWRENCE ENGINEERING AND SUPPLY INC |
| NAS1169DD8 | 25150 | DUPLICATE PARTS CO |
| NAS1169DD8 | 30889 | ERIKS SOUTHWEST INC DBA MONTCLAIR ENTERPRISES |
| NAS1169DD8 | 60360 | AIRCRAFT MISSILE PARTS MFG CORP DBA AMPM |
| NAS1169DD8 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NAS1169DD8 | 86928 | SEASTROM MANUFACTURING CO., INC. DBA SEASTROM MANUFACTURING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-489-3528
Related Products | NSN 5310-00-489-3528
Technical Data | NSN 5310-00-489-3528
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/5,T3 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-A-250/5,T4 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 27 FINISHING |

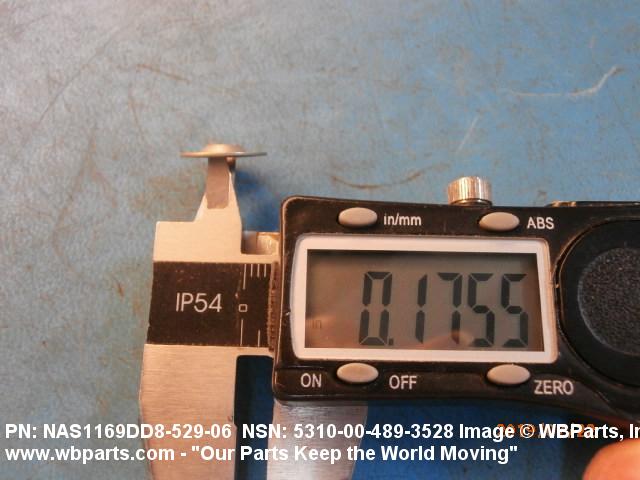

| HOLE DIAMETER | 0.166 INCHES MINIMUM AND 0.196 INCHES MAXIMUM |

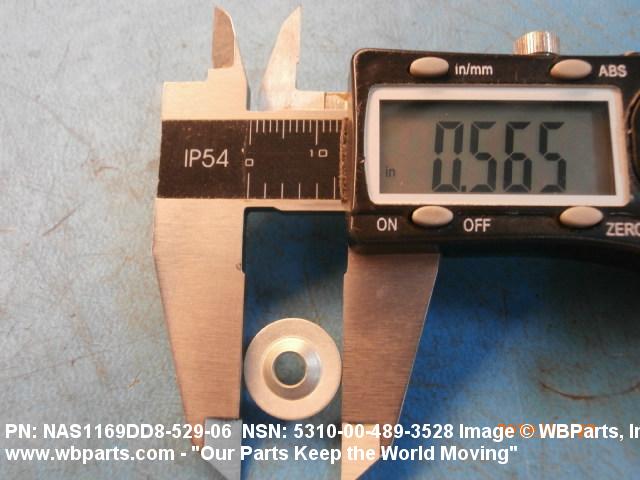

| OUTSIDE DIAMETER | 0.557 INCHES MINIMUM AND 0.582 INCHES MAXIMUM |

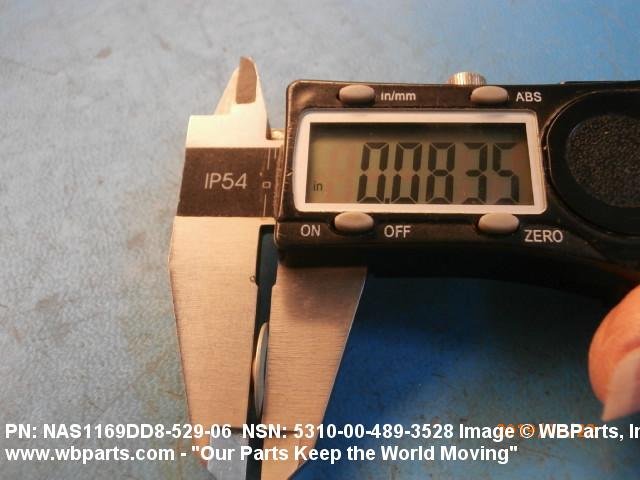

| OVERALL HEIGHT | 0.094 INCHES NOMINAL |

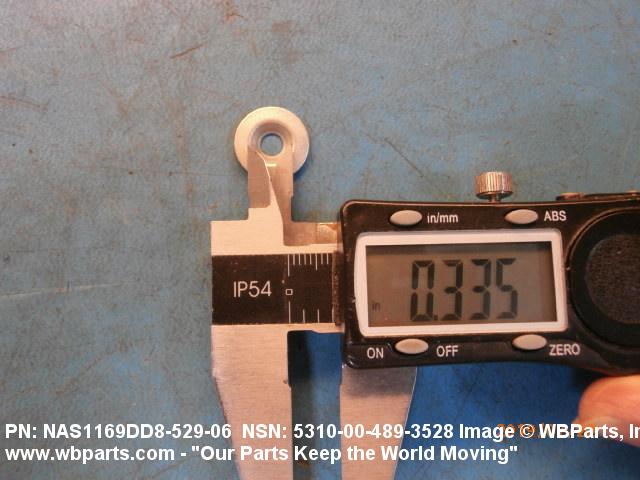

| RECESS DIAMETER | 0.332 INCHES MINIMUM AND 0.342 INCHES MAXIMUM |

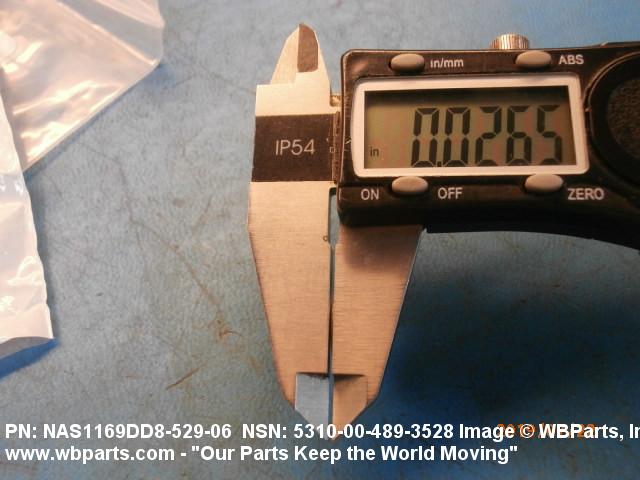

| MATERIAL THICKNESS | 0.025 INCHES NOMINAL |
| RECESS ANGLE | 99.0 DEGREES MINIMUM AND 103.0 DEGREES MAXIMUM |
| SPECIFICATION/STANDARD DATA | 80205-NAS1169 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5310-00-489-3528
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 575 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-489-3528
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
