NSN 5310-00-474-3114 25805, 00-474-3114, 004743114
Product Details | KEY WASHER
5310-00-474-3114 A washer of nonresilient material usually having two parallel bearing surfaces. The outside and/or inside edges have one or more protuberances. The ends and/or edges may be prebent at any angle or the protuberances may be prebent at any angle to the bearing surfaces. The keys or lugs may be fitted into keyways in adjacent material or they may be bent over after application to hold or lock one or more items in place. Excludes thrust type washer.
Part Alternates: 25805, 5310-00-474-3114, 00-474-3114, 5310004743114, 004743114
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-474-3114 | 01869 ( WASHER, KEY ) |

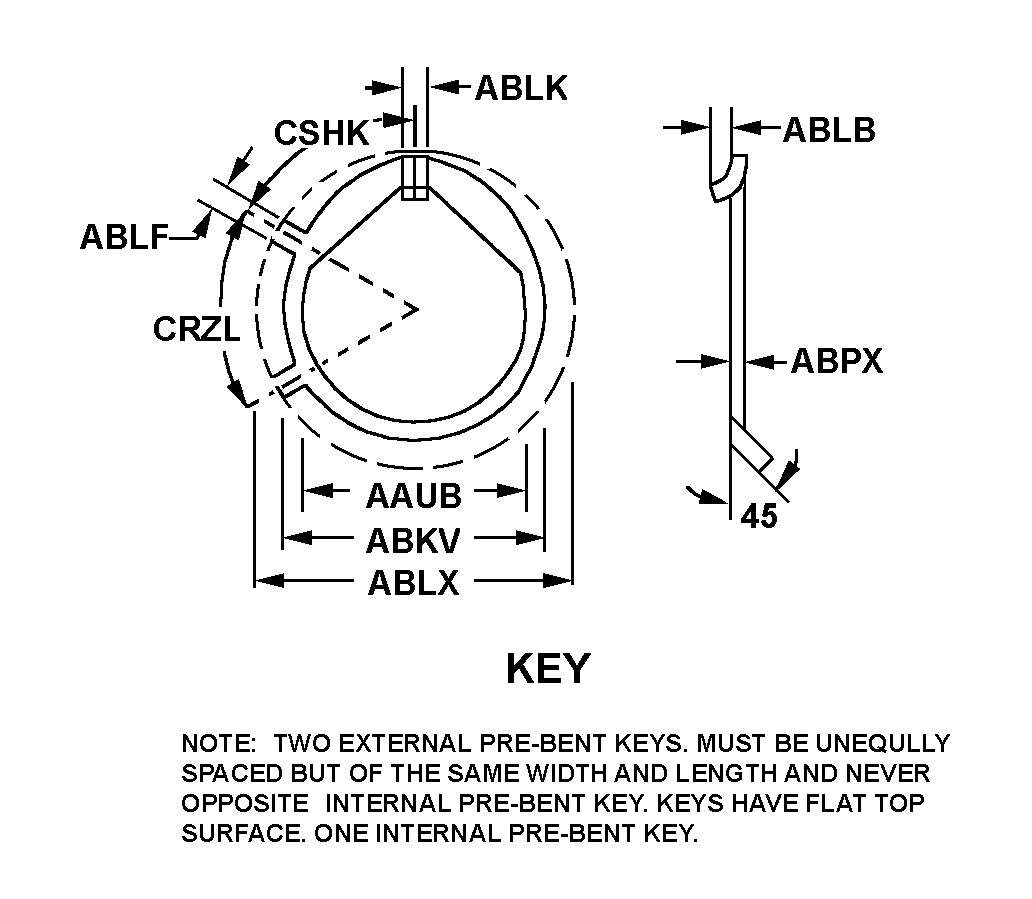

Drawings & Photos | NSN 5310-00-474-3114
Demand History | NSN 5310-00-474-3114
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-474-3114 | 2012-08-240 | 1 | Colombia |
Cross Reference | NSN 5310-00-474-3114
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 25805 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-474-3114
Technical Data | NSN 5310-00-474-3114
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | 157 KEY |
| HOLE DIAMETER | 1.203 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.437 INCHES NOMINAL |
| INTERNAL PREBENT KEY LENGTH | 0.078 INCHES NOMINAL |
| EXTERNAL PREBENT KEY WIDTH | 0.156 INCHES NOMINAL |
| INTERNAL PREBENT KEY WIDTH | 0.109 INCHES NOMINAL |
| OVERALL DISTANCE INCLUDING KEYS | 1.750 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.047 INCHES NOMINAL |
| ANGLE BETWEEN FIRST AND SECOND KEY | 60.0 DEGREES NOMINAL |
| ANGLE BETWEEN SECOND AND THIRD KEY | 67.0 DEGREES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5310-00-474-3114
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-474-3114
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
