NSN 5310-00-473-5397 75040, 750-40, 00-473-5397
Product Details | SPRING TENSION WASHER
5310-00-473-5397 A bent spring metal washer with a centrally located hole. It is designed to exert pressure axially when assembled in place.
Part Alternates: 75040, 750-40, 5310-00-473-5397, 00-473-5397, 5310004735397, 004735397
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-473-5397 | 15938 ( WASHER, SPRING TENSION ) |

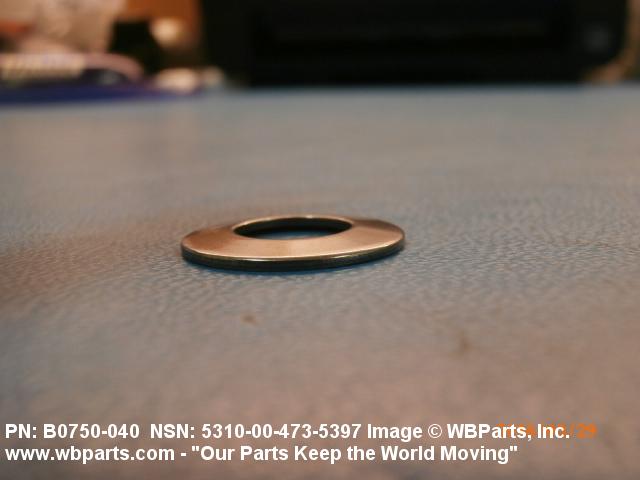

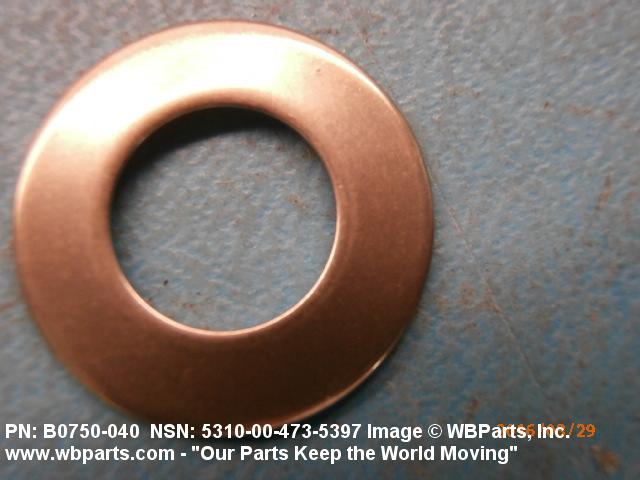

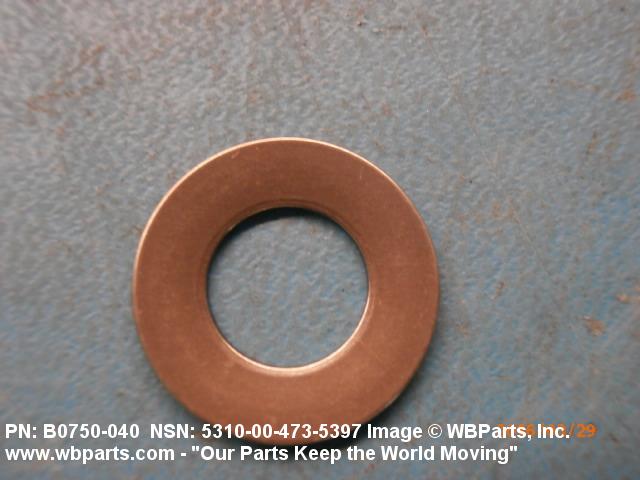

Drawings & Photos | NSN 5310-00-473-5397
Demand History | NSN 5310-00-473-5397
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-473-5397 | 2016-03-78 | 200 | Canada |
Cross Reference | NSN 5310-00-473-5397
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 750-40 | 92830 | BARNES GROUP INC. DBA ASSOCIATED SPRING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-473-5397
Related Products | NSN 5310-00-473-5397
Technical Data | NSN 5310-00-473-5397
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | 17 SPRING TENSION |

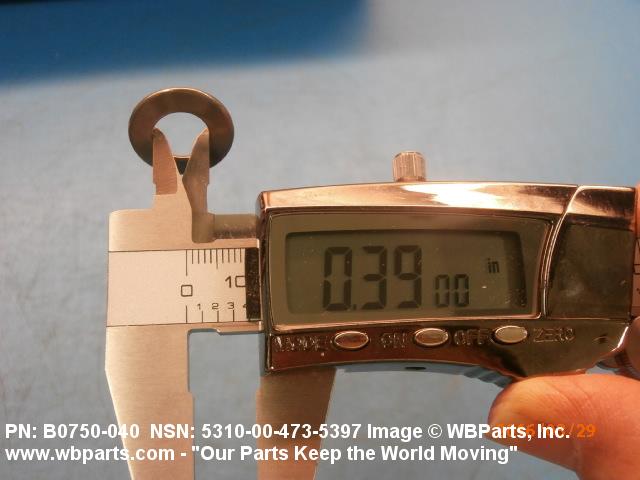

| HOLE DIAMETER | 0.380 INCHES NOMINAL |

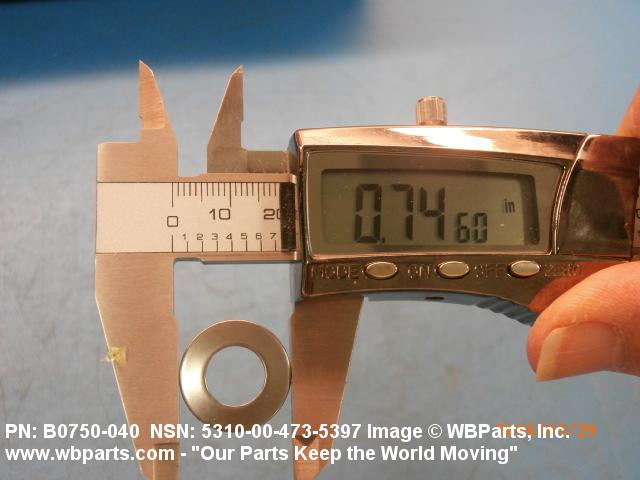

| OUTSIDE DIAMETER | 0.750 INCHES NOMINAL |

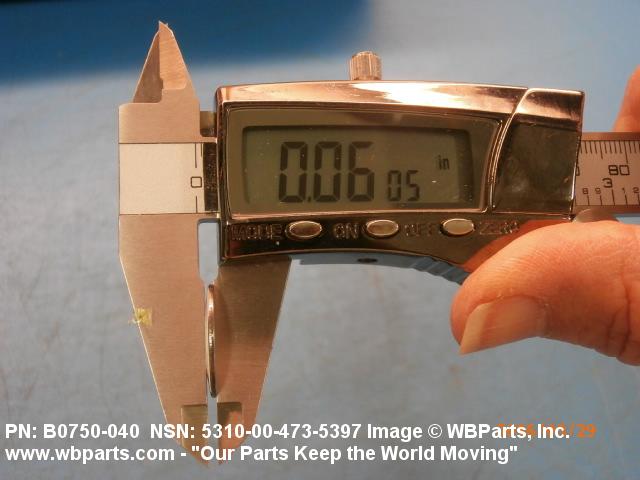

| OVERALL HEIGHT | 0.059 INCHES NOMINAL |

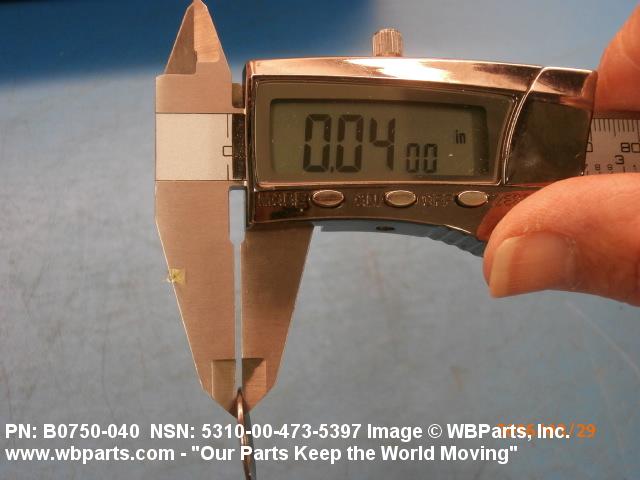

| MATERIAL THICKNESS | 0.040 INCHES NOMINAL |
| MANUFACTURERS CODE | 92830 |
| DESIGN CONTROL REFERENCE | 750-40 |
Restrictions/Controls & Freight Information | NSN 5310-00-473-5397
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | U | 50 |
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
