NSN 5310-00-442-6911 NAS164010, NAS1640-10, FFW84
Product Details | LOCK WASHER
5310-00-442-6911 A washer which is usually round with a centrally located hole. Its edges and two bearing surfaces are so designed that applied pressure brings into play the spring tension and/or frictional locking principle which materially resists any tendency toward turning. It may be made of one or two pieces
Part Alternates: NAS164010, NAS1640-10, FFW84, 5310-00-442-6911, 00-442-6911, 5310004426911, 004426911
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 APR 1969 | 00-442-6911 | 14218 ( WASHER, LOCK ) |

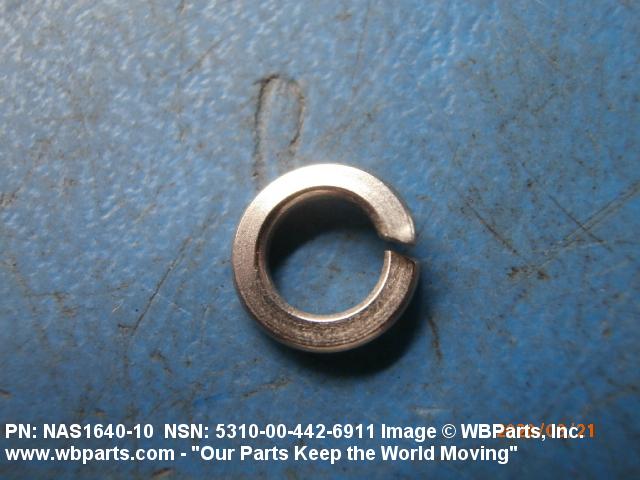

Drawings & Photos | NSN 5310-00-442-6911
Demand History | NSN 5310-00-442-6911
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-442-6911 | 2021-03-64 | 94 | United States |
| 5310-00-442-6911 | 2020-08-223 | 100 | United States |
| 5310-00-442-6911 | 2020-07-198 | 16 | US |
| 5310-00-442-6911 | 2020-04-113 | 166 | US |
| NAS164010 | 2012-05-142 | 50 | us |
| 5310-00-442-6911 | 2012-05-135 | 150 | United States |
| NAS164010 | 2011-03-89 | 60 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-442-6911
Technical Data | NSN 5310-00-442-6911
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | -FED STD 66 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 35.0 ROCKWELL C MINIMUM AND 45.0 ROCKWELL C MAXIMUM |
| STYLE DESIGNATOR | 108 SPLIT HELICAL-RIGHT HAND |
| HOLE DIAMETER | 0.194 INCHES MINIMUM AND 0.205 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 0.337 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.047 INCHES MINIMUM AND 0.053 INCHES MAXIMUM |
| NONDEFINITIVE SPEC/STD DATA | C CLASS |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FFW84 |
Restrictions/Controls & Freight Information | NSN 5310-00-442-6911
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | U | 50 |
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
