NSN 5310-00-420-7607 NAS1169 -8L, NAS11698L, NAS1169-8L
Product Details | FINISHING WASHER

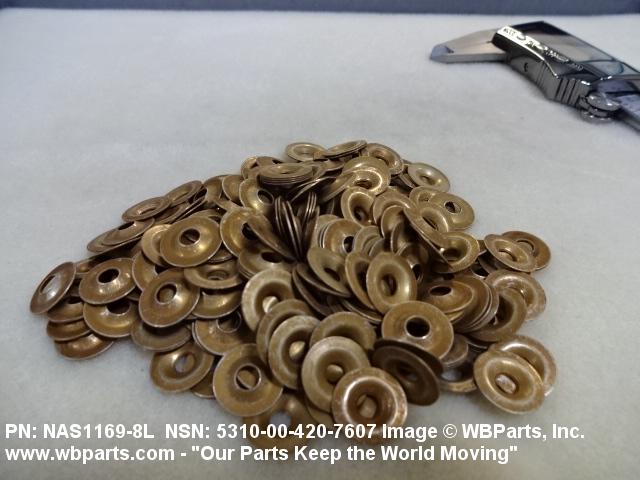

5310-00-420-7607 A washer or cone or disk shape with a centrally located hole, designed to accommodate a flat or oval head screw and provide additional bearing area on the material being fastened. It may or may not have a flush flange feature.
Part Alternates: NAS1169 -8L, NAS11698L, NAS1169-8L, 5310-00-420-7607, 00-420-7607, 5310004207607, 004207607
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 14 MAR 1969 | 00-420-7607 | 15932 ( WASHER, FINISHING ) |
Drawings & Photos | NSN 5310-00-420-7607
Demand History | NSN 5310-00-420-7607
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-420-7607 | 2024-09-270 | 50 | United States |
| 5310-00-420-7607 | 2021-09-252 | 31642 | DIBBS |
| NAS1169-8L | 2020-10-295 | 200 | US |
| NAS11698L | 2017-11-311 | 300 | United States |
| 5310-00-420-7607 | 2017-05-124 | 50370 | DIBBS |
| 5310-00-420-7607 | 2017-03-61 | 12897 | DIBBS |
| 5310-00-420-7607 | 2017-02-53 | 12897 | DIBBS |
| NAS1169-8L | 2014-06-157 | 50 | United States |
| 5310-00-420-7607 | 2010-04-104 | 17300 | DIBBS |
Cross Reference | NSN 5310-00-420-7607
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1169 -8L | 86928 | SEASTROM MANUFACTURING CO., INC. DBA SEASTROM MANUFACTURING |
| NAS1169-8L | 04348 | LAWRENCE ENGINEERING AND SUPPLY INC |
| NAS1169-8L | 25150 | DUPLICATE PARTS CO |
| NAS1169-8L | 30889 | ERIKS SOUTHWEST INC DBA MONTCLAIR ENTERPRISES |
| NAS1169-8L | 60360 | AIRCRAFT MISSILE PARTS MFG CORP DBA AMPM |
| NAS1169-8L | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-420-7607
Related Products | NSN 5310-00-420-7607
Technical Data | NSN 5310-00-420-7607
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1095 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-7947,COND A MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 42.0 ROCKWELL C MINIMUM AND 47.0 ROCKWELL C MAXIMUM |
| STYLE DESIGNATOR | 27 FINISHING |

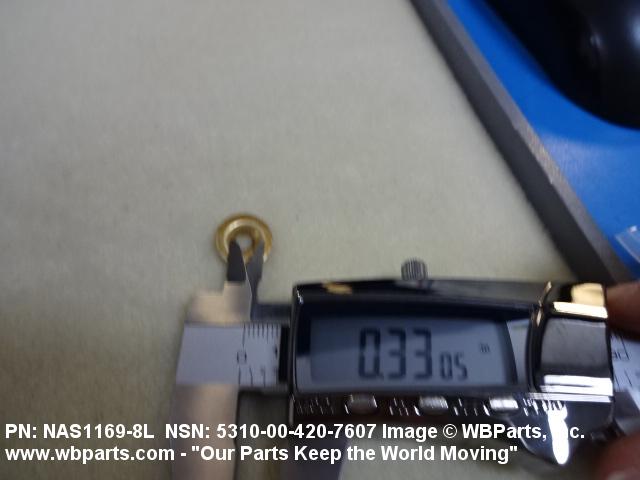

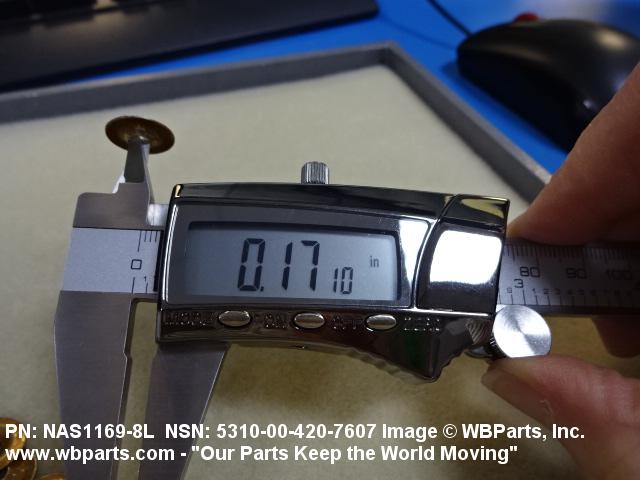

| HOLE DIAMETER | 0.166 INCHES MINIMUM AND 0.196 INCHES MAXIMUM |

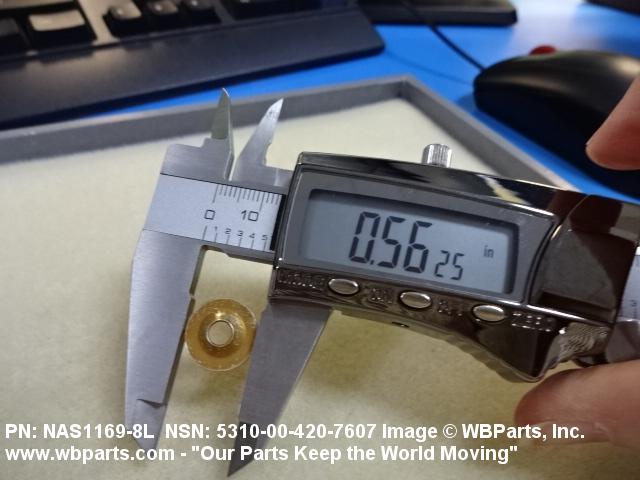

| OUTSIDE DIAMETER | 0.557 INCHES MINIMUM AND 0.582 INCHES MAXIMUM |

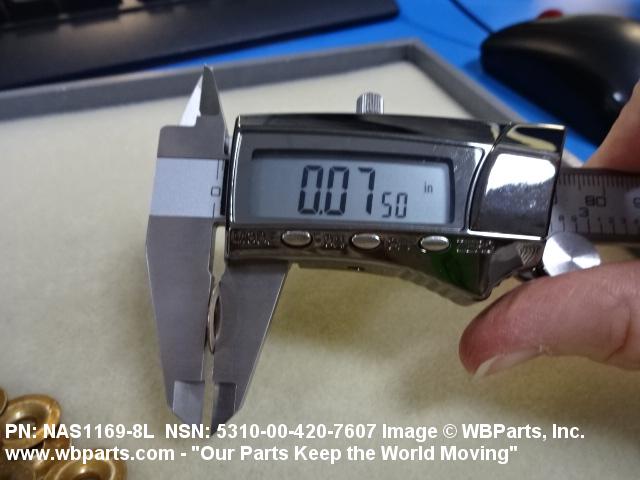

| OVERALL HEIGHT | 0.087 INCHES NOMINAL |
| RECESS DIAMETER | 0.332 INCHES MINIMUM AND 0.342 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.016 INCHES NOMINAL |
| RECESS ANGLE | 99.0 DEGREES MINIMUM AND 103.3 DEGREES MAXIMUM |
| SPECIFICATION/STANDARD DATA | 80205-NAS1169 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| III END ITEM IDENTIFICATION | W/S: AIRCRAFT, THUNDERBOLT II, A-10; AIRCRAFT, (AC-13H, MC-130H, EC-130E, HC-130); AIRCRAFT, ORION P-3; AIRCRAFT, VIKING S-3B; HELICOPTER, LAMPS MARK III, SH-60B; HELICOPTER, KIOWA OH-58 A&C; HELICOPTER, SEAHAWK H-60; AIRCRAFT, GALAXY C-5; AIRCRAFT, HERCULES C-130; AIRCRAFT, HERCULES C-130F |
