NSN 5310-00-345-2459 MS21087L3, MT13C1032M, M12740E02
Product Details | PLATE SELF-LOCKING NUT

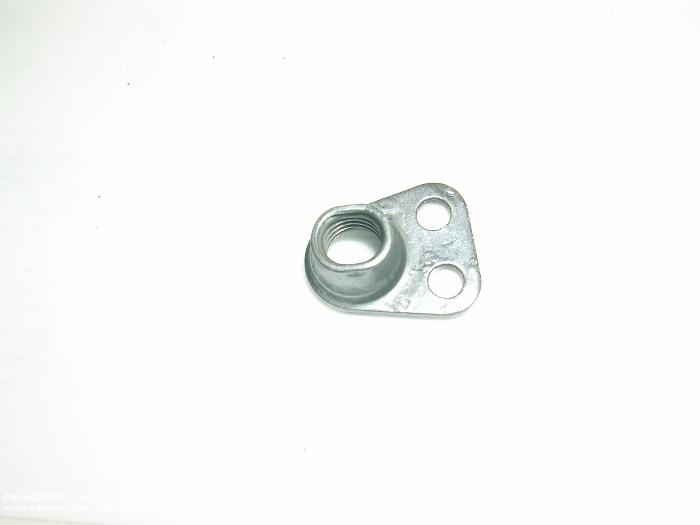

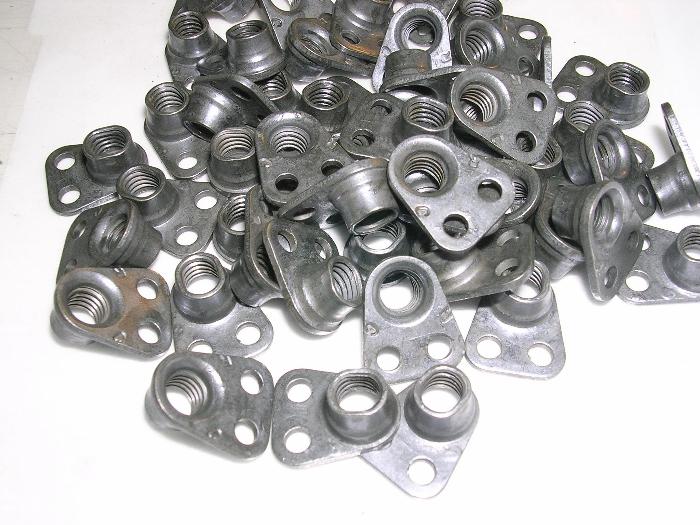

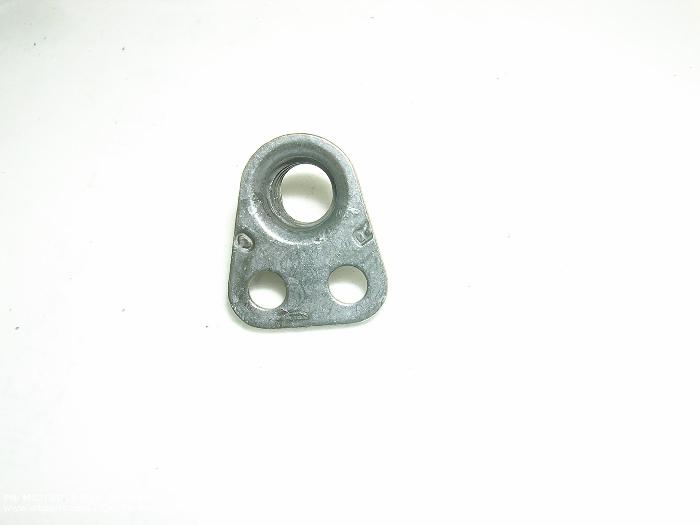

5310-00-345-2459 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: MS21087L3, MT13C1032M, M12740E02, MA 12740E-02, MA12740E02, R300C3M, 5310-00-345-2459, 00-345-2459, 5310003452459, 003452459
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 JAN 1974 | 00-345-2459 | 05280 ( NUT, SELF-LOCKING, PLATE ) |
Drawings & Photos | NSN 5310-00-345-2459
Demand History | NSN 5310-00-345-2459
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS21087L3 | 2024-09-254 | 700 | Japan |
| MS21087L3 | 2010-11-305 | 200 | US |
| 5310-00-345-2459 | 2008-11-311 | 1 | Colombia |
| 5310-00-345-2459 | 2008-09-268 | 5000 | DE |
| MS21087L3 | 2007-11-312 | 50 | United States |
Cross Reference | NSN 5310-00-345-2459
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M12740E02 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| MA 12740E-02 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| MA 12740E-02 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| MS21087L3 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS21087L3 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MT13C1032M | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
| MT13C1032M | 71087 | REPUBLIC FASTENER MFG. CORP. Use CAGE Code 52828 for Cataloging. |
| R300C3M | 52828 | REPUBLIC FASTENER MFG. CORP. |
