NSN 5310-00-341-2387 07009836, 07-009836, 8020015
Product Details | SADDLE WASHER
5310-00-341-2387 A washer with one surface shaped to fit a similarly curved surface, the other surface of the washer being either parallel with the shaped surface or in the form of raised boss having either a flat bearing surface or a recess designed for holding a nut. Excludes WASHER (1), CONCAVE and WASHER (1), CONVEX.
Part Alternates: 07009836, 07-009836, 8020015, 9836, 5310-00-341-2387, 00-341-2387, 5310003412387, 003412387
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-341-2387 | 15898 ( WASHER, SADDLE ) |

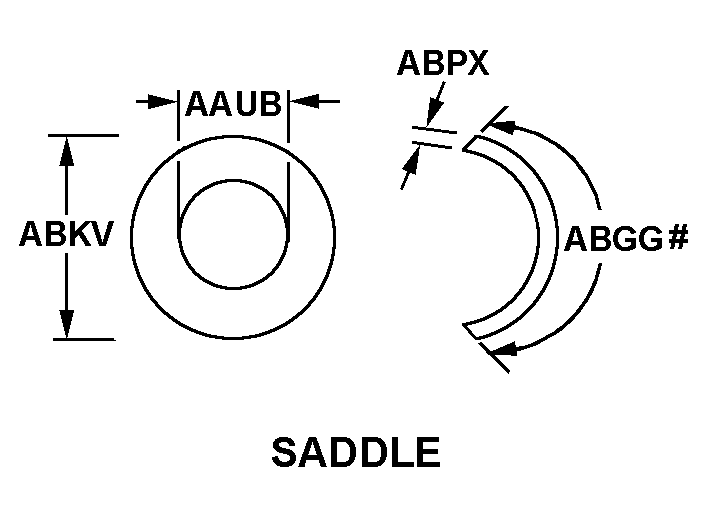

Drawings & Photos | NSN 5310-00-341-2387
Demand History | NSN 5310-00-341-2387
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-341-2387 | 2024-06-157 | 17 | DIBBS |
| 5310-00-341-2387 | 2023-03-81 | 26 | DIBBS |
| 9836 | 2013-12-336 | 25 | PK |
| 5310-00-341-2387 | 2009-01-06 | 8 | DIBBS |
| 5310-00-341-2387 | 2008-11-329 | 38 | DIBBS |
| 5310-00-341-2387 | 2008-11-316 | 18 | DIBBS |
| 5310-00-341-2387 | 2008-08-224 | 13 | DIBBS |
| 5310-00-341-2387 | 2008-06-175 | 7 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-341-2387
Related Products | NSN 5310-00-341-2387
Technical Data | NSN 5310-00-341-2387
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-698 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PHOSPHATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | DOD-P-16232, TYPE Z, CLASS 1 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 30 SADDLE |
| HOLE DIAMETER | 0.641 INCHES NOMINAL |
| OUTSIDE DIAMETER | 2.938 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.1793 INCHES NOMINAL |
| NONDEFINITIVE SPEC/STD DATA | 3T05 TEMPER |
Restrictions/Controls & Freight Information | NSN 5310-00-341-2387
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
