Product Details | KEY WASHER

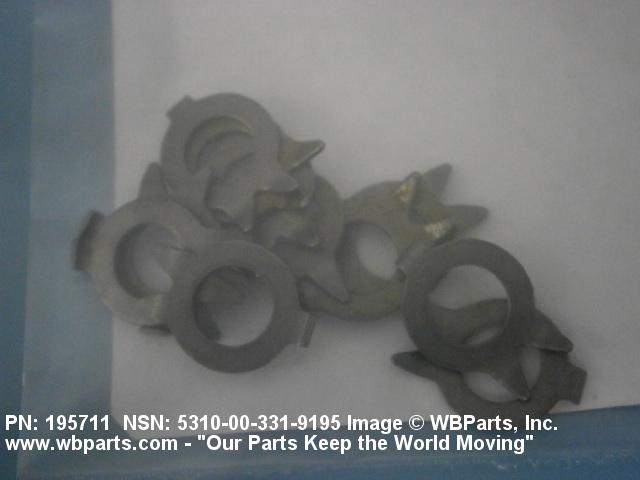

5310-00-331-9195 A washer of nonresilient material usually having two parallel bearing surfaces. The outside and/or inside edges have one or more protuberances. The ends and/or edges may be prebent at any angle or the protuberances may be prebent at any angle to the bearing surfaces. The keys or lugs may be fitted into keyways in adjacent material or they may be bent over after application to hold or lock one or more items in place. Excludes thrust type washer.
Part Alternates: 195711, 5310-00-331-9195, 00-331-9195, 5310003319195, 003319195
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-331-9195 | 01869 ( WASHER, KEY ) |
Drawings & Photos | NSN 5310-00-331-9195
Demand History | NSN 5310-00-331-9195
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 195711 | 2018-02-37 | 200 | US |
| 5310-00-331-9195 | 2011-10-294 | 50 | United States |
| 5310-00-331-9195 | 2011-08-221 | 50 | United States |
Cross Reference | NSN 5310-00-331-9195
