NSN 5310-00-297-4085 NAS5137, NAS513-7, 105333
Product Details | KEY WASHER

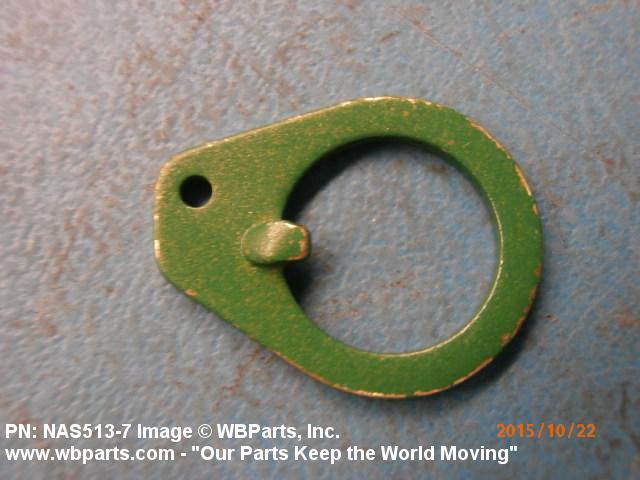

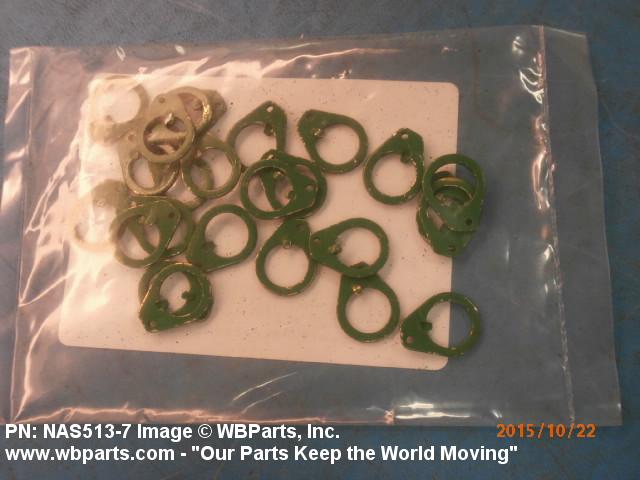

5310-00-297-4085 A washer of nonresilient material usually having two parallel bearing surfaces. The outside and/or inside edges have one or more protuberances. The ends and/or edges may be prebent at any angle or the protuberances may be prebent at any angle to the bearing surfaces. The keys or lugs may be fitted into keyways in adjacent material or they may be bent over after application to hold or lock one or more items in place. Excludes thrust type washer.
Part Alternates: NAS5137, NAS513-7, 105333 , 5310-00-297-4085, 00-297-4085, 5310002974085, 002974085
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-297-4085 | 01869 ( WASHER, KEY ) |

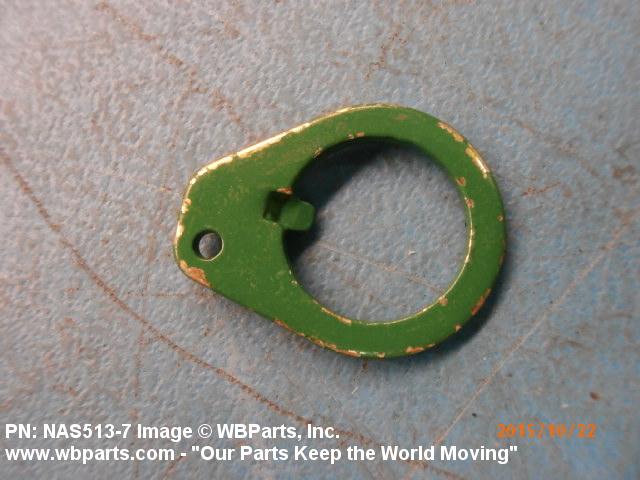

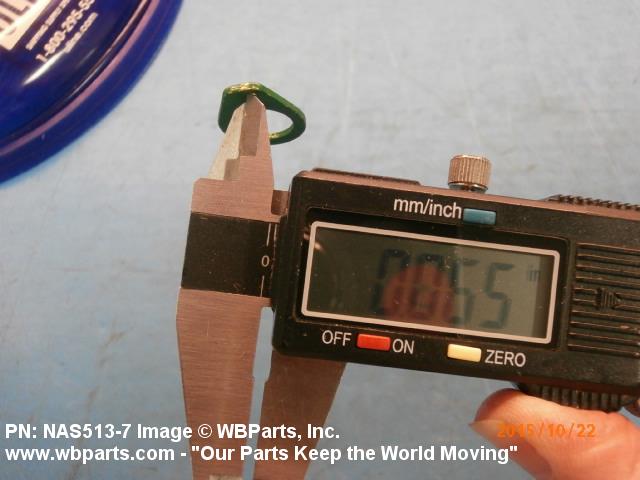

Drawings & Photos | NSN 5310-00-297-4085
Demand History | NSN 5310-00-297-4085
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-297-4085 | 2020-11-324 | 12 | us |
| 5310-00-297-4085 | 2016-03-86 | 13 | PK |
| NAS5137 | 2015-08-231 | 4 | United States |
| 5310-00-297-4085 | 2013-03-86 | 1357 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-297-4085
Technical Data | NSN 5310-00-297-4085
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1095 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-7947,COND A MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 40.0 ROCKWELL C MINIMUM AND 45.0 ROCKWELL C MAXIMUM |
| STYLE DESIGNATOR | 178 INTERNAL PREBENT KEY |

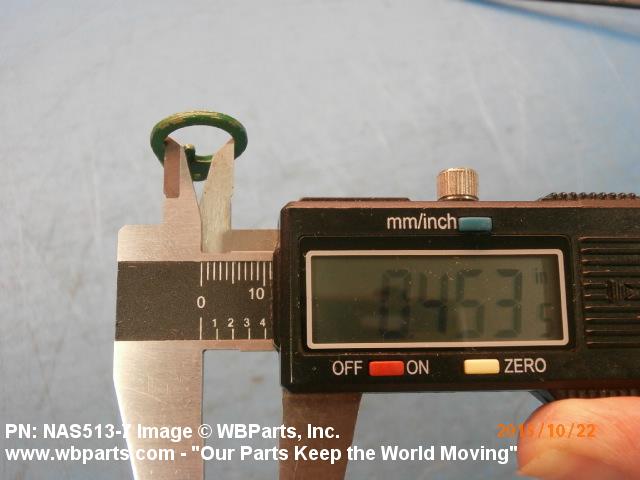

| HOLE DIAMETER | 0.451 INCHES MINIMUM AND 0.467 INCHES MAXIMUM |

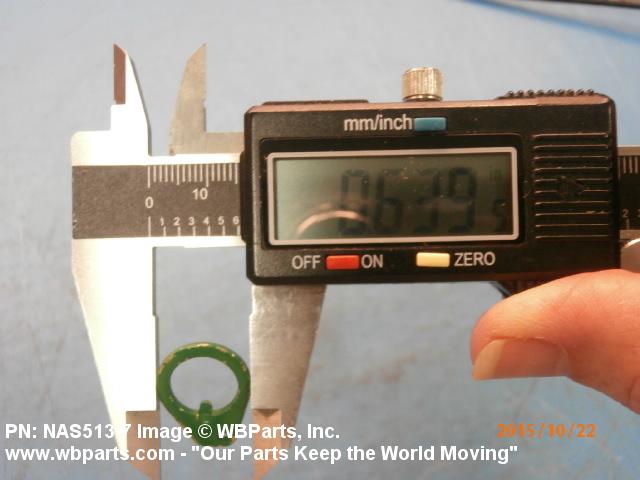

| OUTSIDE DIAMETER | 0.630 INCHES MINIMUM AND 0.632 INCHES MAXIMUM |

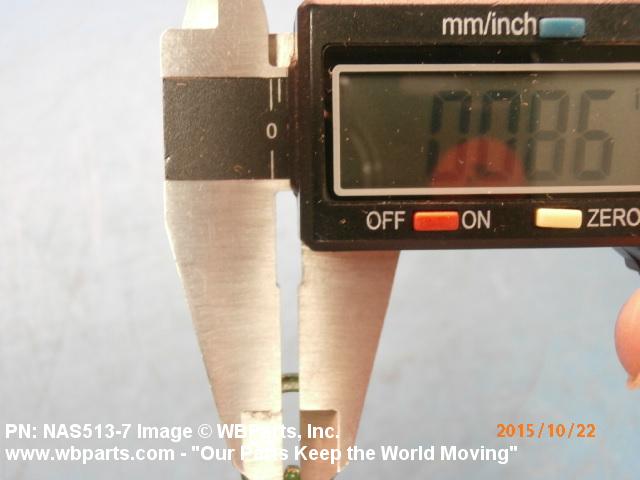

| INTERNAL PREBENT KEY WIDTH | 0.077 INCHES MINIMUM AND 0.087 INCHES MAXIMUM |

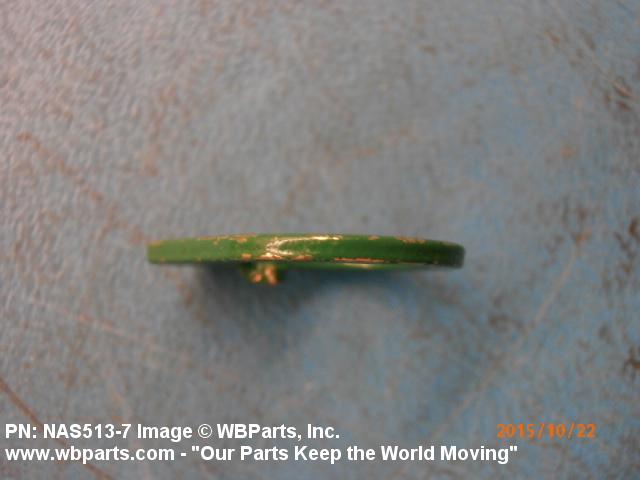

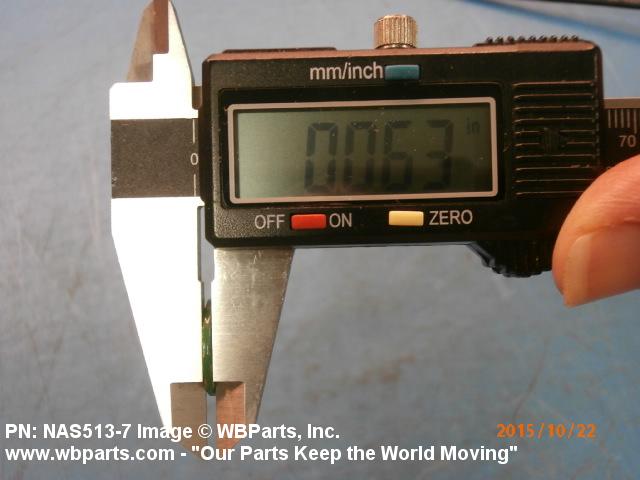

| MATERIAL THICKNESS | 0.063 INCHES NOMINAL |

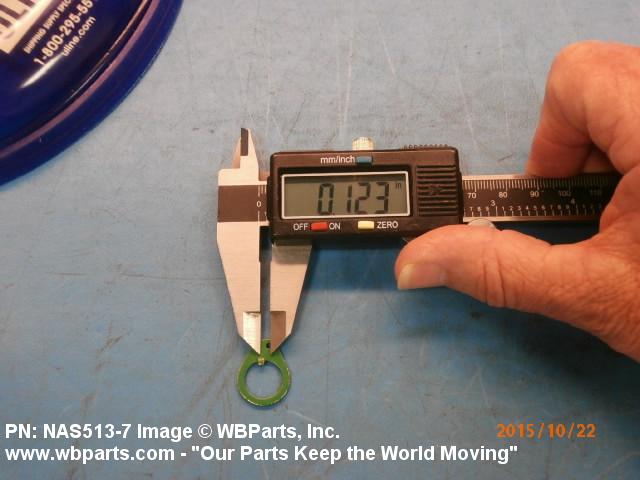

| DISTANCE FROM KEY CENTER TO WIRE HOLE CENTER | 0.122 INCHES MINIMUM AND 0.128 INCHES MAXIMUM |
| WIRE HOLE DIAMETER | 0.062 INCHES NOMINAL |
| SPECIFICATION/STANDARD DATA | 80205-NAS513 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| III MINIMUM TENSILE STRENGTH | 180000 POUNDS PER SQUARE INCH |
Restrictions/Controls & Freight Information | NSN 5310-00-297-4085
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
