NSN 5310-00-297-3879 A1037012, A1037-012, SK53205183
Product Details | PUSH ON NUT
5310-00-297-3879 An item formed from sheet spring material into varying flat, concave, curved, or nutlike design. It has an aperture with an elliptical-shaped hole or suitable lugs or prongs designed to retain threaded or unthreaded stud like projecting memebers. When pushed on, it grips by imbedding into the material of the projecting memebers, and does not mate with a thread helix. See also RING, RETAINING.
Part Alternates: A1037012, A1037-012, SK53205183, SK5320-5183, 5310-00-297-3879, 00-297-3879, 5310002973879, 002973879
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-297-3879 | 05281 ( PUSH ON NUT ) |

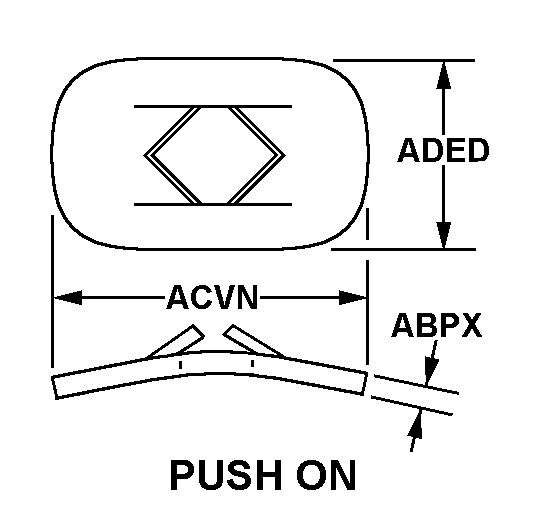

Drawings & Photos | NSN 5310-00-297-3879
Demand History | NSN 5310-00-297-3879
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-297-3879 | 2023-01-10 | 11 | DIBBS |
| 5310-00-297-3879 | 2021-08-220 | 14 | DIBBS |
| 5310-00-297-3879 | 2020-10-281 | 11 | DIBBS |
| 5310-00-297-3879 | 2020-08-231 | 2 | DIBBS |
| 5310-00-297-3879 | 2020-07-211 | 2 | DIBBS |
| 5310-00-297-3879 | 2020-07-191 | 6 | DIBBS |
| 5310-00-297-3879 | 2019-12-359 | 6 | DIBBS |
| 5310-00-297-3879 | 2019-04-93 | 5 | DIBBS |
| 5310-00-297-3879 | 2017-06-171 | 6 | DIBBS |
| 5310-00-297-3879 | 2017-03-66 | 2 | DIBBS |
| 5310-00-297-3879 | 2017-03-61 | 1 | DIBBS |
| 5310-00-297-3879 | 2014-10-289 | 1 | DIBBS |
| 5310-00-297-3879 | 2014-10-279 | 1 | DIBBS |
| 5310-00-297-3879 | 2014-09-261 | 1 | DIBBS |
| 5310-00-297-3879 | 2014-06-175 | 2 | DIBBS |
| 5310-00-297-3879 | 2014-06-154 | 2 | DIBBS |
| 5310-00-297-3879 | 2013-10-276 | 2 | DIBBS |
| 5310-00-297-3879 | 2013-08-219 | 2 | DIBBS |
| 5310-00-297-3879 | 2013-06-171 | 2 | DIBBS |
| 5310-00-297-3879 | 2013-06-160 | 1 | DIBBS |
| 5310-00-297-3879 | 2012-05-133 | 2 | DIBBS |
| 5310-00-297-3879 | 2012-04-119 | 1 | DIBBS |
| 5310-00-297-3879 | 2011-06-181 | 2 | DIBBS |
| 5310-00-297-3879 | 2011-06-152 | 1000 | US |
| 5310-00-297-3879 | 2011-06-152 | 100 | US |
| 5310-00-297-3879 | 2010-07-212 | 2 | DIBBS |
| 5310-00-297-3879 | 2009-12-345 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-297-3879
Related Products | NSN 5310-00-297-3879
Technical Data | NSN 5310-00-297-3879
| Characteristic | Specifications |
|---|---|
| MATING MEMBER DIAMETER ACCOMMODATED | 0.124 INCHES MINIMUM AND 0.126 INCHES MAXIMUM |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| NUT STYLE | A211 PUSH ON |
| MATERIAL THICKNESS | 0.012 INCHES NOMINAL |
| NUT LENGTH | 0.375 INCHES NOMINAL |
| NUT WIDTH | 0.343 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5310-00-297-3879
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-297-3879
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
