NSN 5310-00-274-9364 MS20365720C, MS20365-720C, MS210457

Product Details | HEXAGON SELF-LOCKING NUT

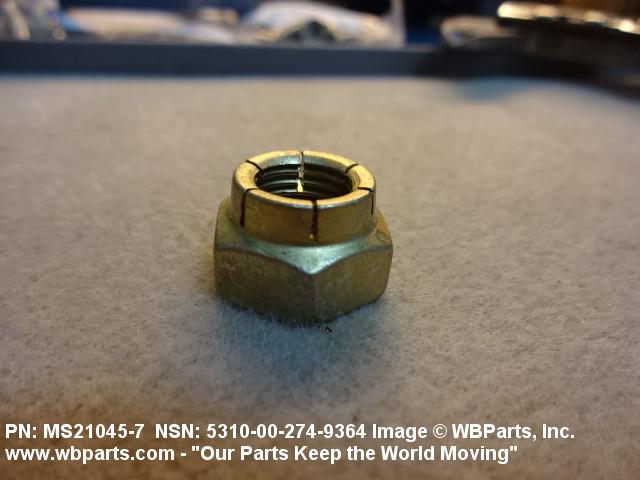

5310-00-274-9364 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.

Part Alternates: MS20365720C, MS20365-720C, MS210457, MS21045-7, YE3183, F1801070U, F1801-070U, LFLH1801070U, LFLH1801-070U, 27FH720UN, 27FH-720UN, 27GH720, 2GH813, 404 891, 404891, 406685, 5310-00-274-9364, 00-274-9364, 5310002749364 , 002749364

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-274-9364	05277 ( NUT, SELF-LOCKING, HEXAGON )

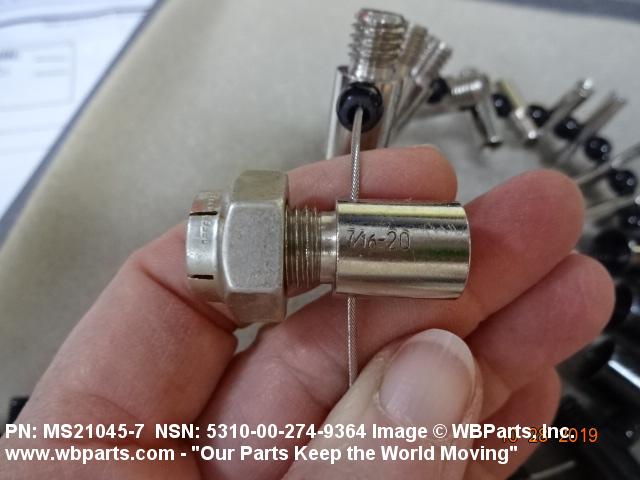

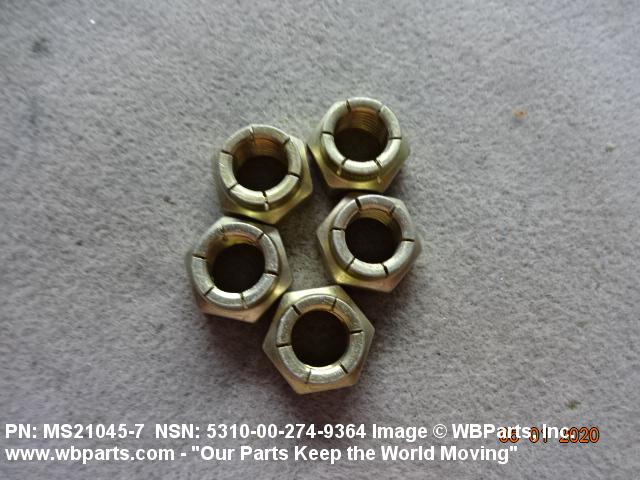

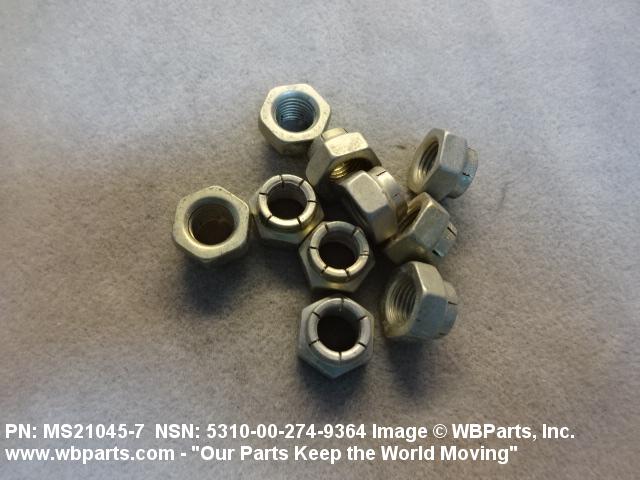

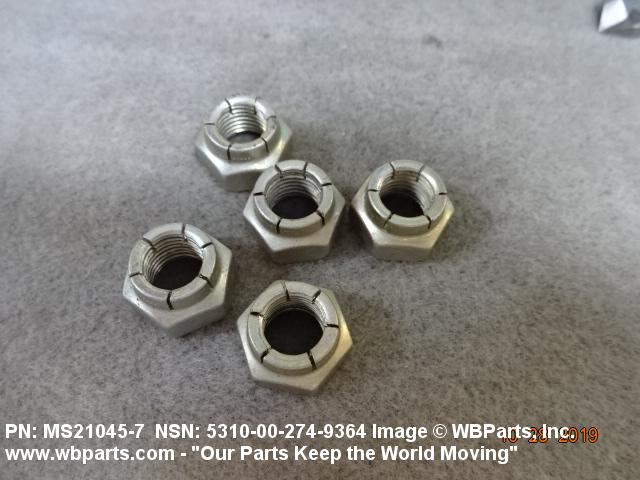

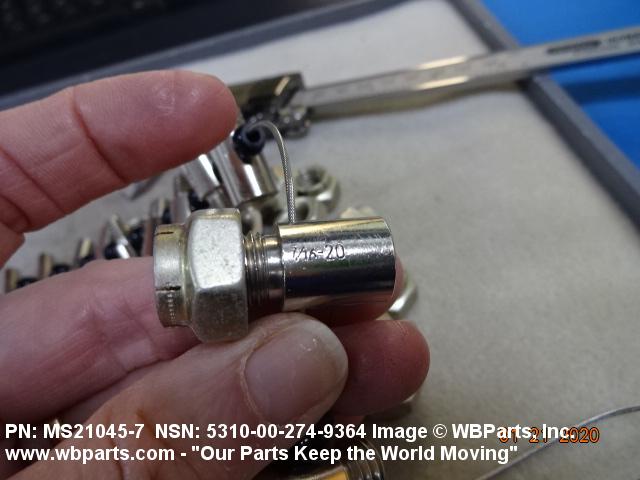

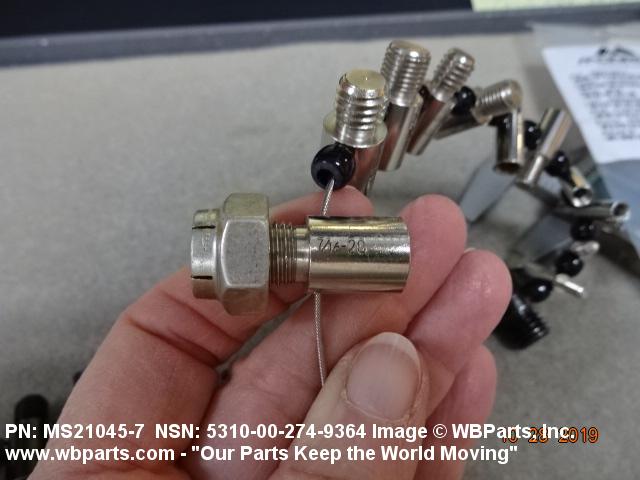

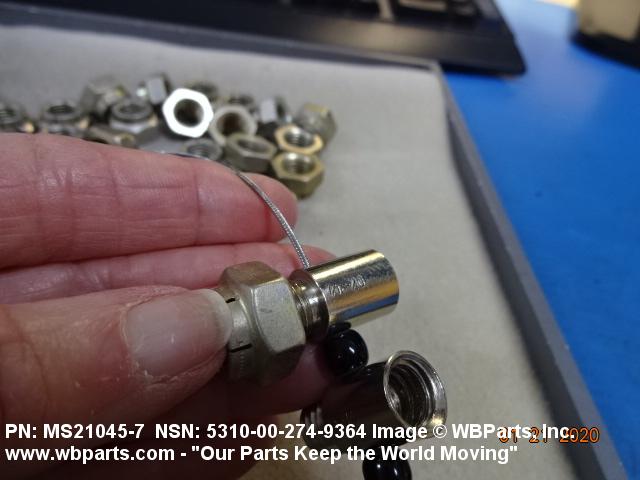

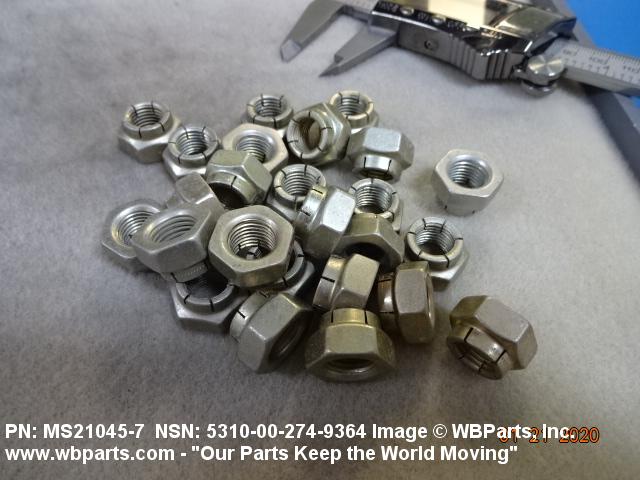

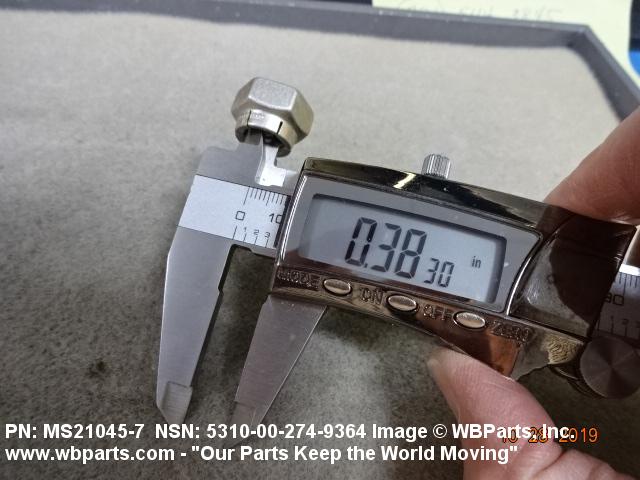

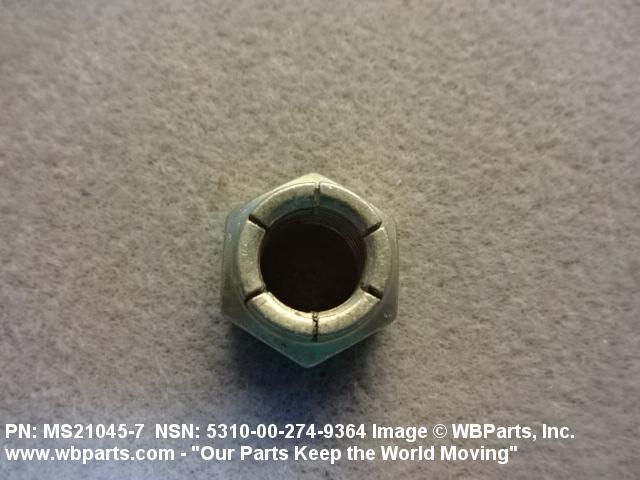

Drawings & Photos | NSN 5310-00-274-9364

Part Number	Request Date	QTY	Origin
5310-00-274-9364	2025-06-156	5	US
MS20365720C	2024-07-194	50	United States
5310-00-274-9364	2023-02-39	35	US
MS20365720C	2022-09-250	6	US
5310-00-274-9364	2021-03-90	173	DIBBS
5310-00-274-9364	2019-03-86	550	DIBBS
5310-00-274-9364	2019-01-06	550	DIBBS
5310-00-274-9364	2018-09-268	221	DIBBS
MS210457	2018-02-37	10	China
MS20365720C	2017-06-173	1000	US
5310-00-274-9364	2017-01-25	4	Malaysia
5310-00-274-9364	2017-01-25	4	Malaysia
5310-00-274-9364	2016-10-305	273	DIBBS
MS20365720C	2016-09-258	1	US
MS20365-720C	2015-03-76	16	TH
MS20365720C	2015-02-41	1600	US
MS21045-7	2014-11-308	5000	United States
5310-00-274-9364	2012-09-249	2215	DIBBS
5310-00-274-9364	2012-05-146	1480	DIBBS
5310-00-274-9364	2012-05-137	1126	DIBBS
MS20365720C	2011-01-28	1	US
MS20365720C	2010-10-304	4	US
5310-00-274-9364	2009-12-363	30	Malaysia
MS20365720C	2009-09-267	10	Colombia
5310-00-274-9364	2009-02-49	100	United States
5310-00-274-9364	2008-10-296	240	Malaysia
5310-00-274-9364	2008-09-264	22	DIBBS
5310-00-274-9364	2008-08-214	100	United States
5310-00-274-9364	2007-04-100	2000	Turkey

Cross Reference | NSN 5310-00-274-9364

Part Number	Cage Code	Manufacturer
27FH-720UN	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
27GH720	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
2GH813	45152	OSHKOSH CORPORATION
404 891	77294	PIPER AIRCRAFT INC.
406685	77294	PIPER AIRCRAFT INC.
5310002749364	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
F1801-070U	019L2	MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
F1801-070U	72962	HARVARD INDUSTRIES INC
LFLH1801-070U	019L2	MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
LFLH1801-070U	72962	HARVARD INDUSTRIES INC
MS21045-7	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21045-7	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
YE3183	75497	LAMSON AND SESSIONS CO THE

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-274-9364

Compare

Related Products | NSN 5310-00-274-9364

5310-00-274-9365, 5310-00-274-9367, 5310-00-274-9368, 5310-00-274-9369, 5310-00-274-9376

Technical Data | NSN 5310-00-274-9364

Characteristic	Specifications
THREAD SERIES	UNJF
NOMINAL THREAD SIZE	0.438 INCHES
THREAD QUANTITY PER INCH	20
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	NOT RATED
NUT STYLE	A12 HEXAGON

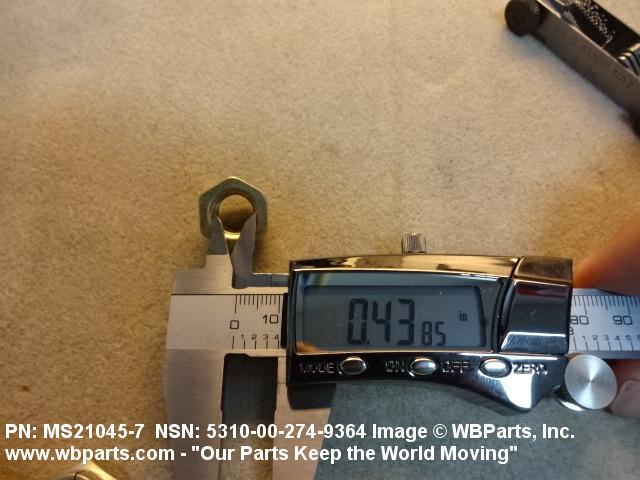

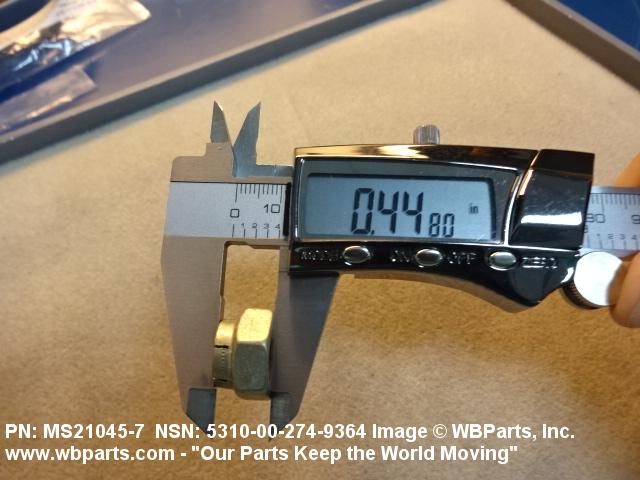

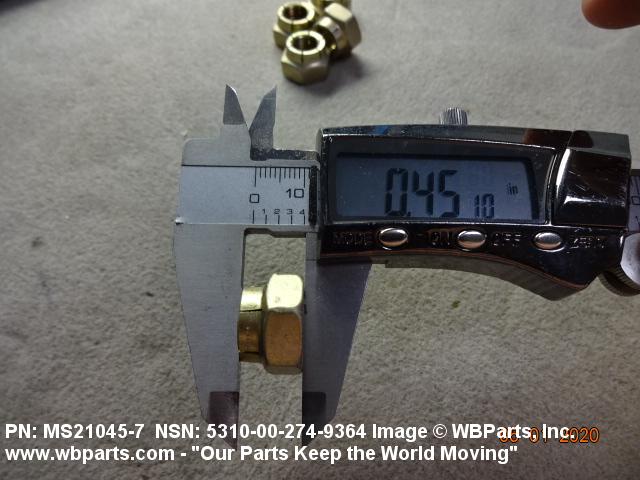

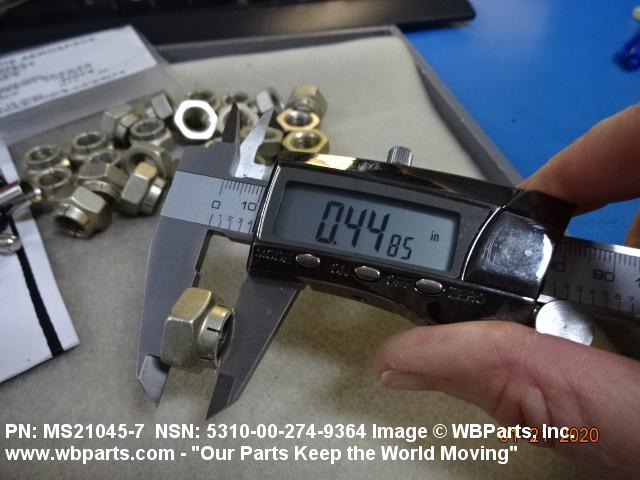

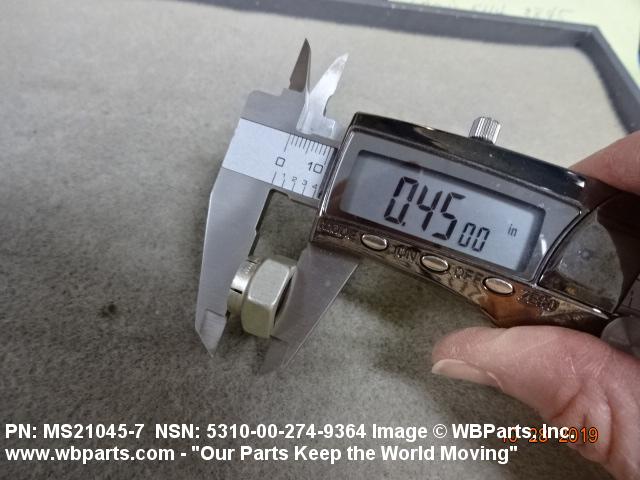

NUT HEIGHT	0.435 INCHES MINIMUM AND 0.469 INCHES MAXIMUM

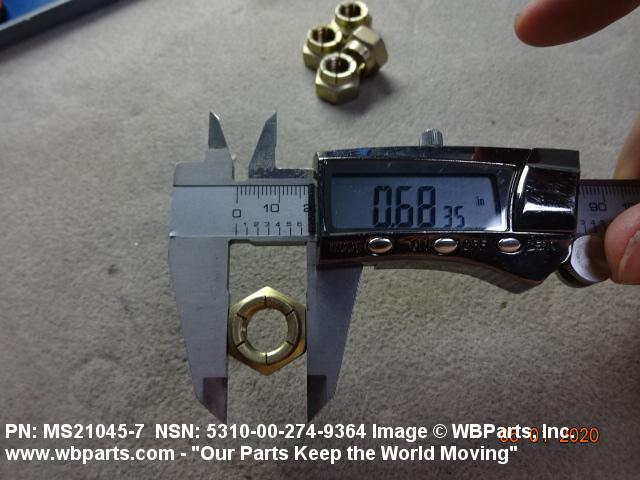

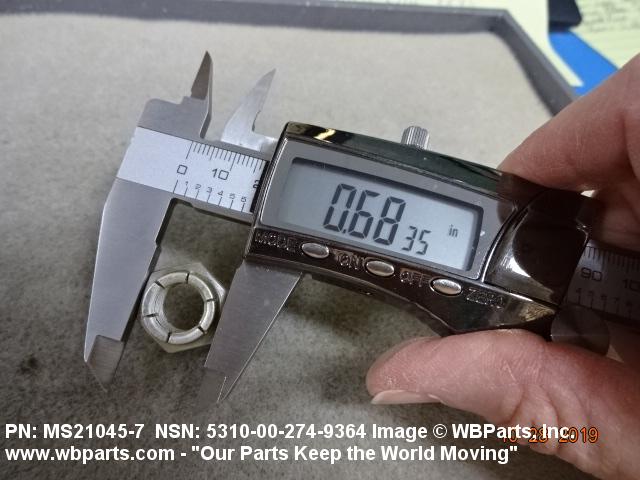

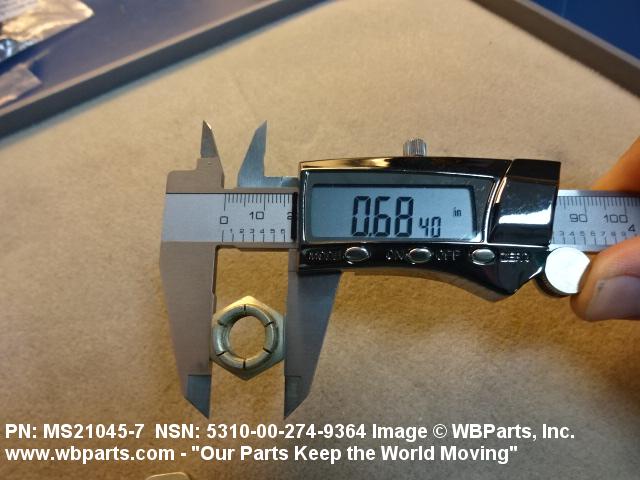

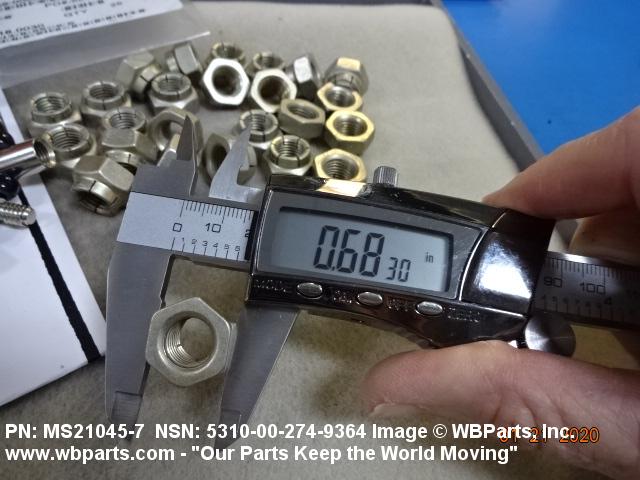

WIDTH ACROSS FLATS	0.679 INCHES MINIMUM AND 0.690 INCHES MAXIMUM
BEARING SURFACE TYPE	CHAMFERED OR WASHER FACED
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
COUNTERSINK ANGLE	88.0 DEGREES NOMINAL NUT
LUBRICATION	SOLUBLE LUBRICANT
TEMP RATING	450.0 DEG FAHRENHEIT NOMINAL
III BEARING SURFACE FINISH	125.0 MICROINCHES
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS21045-7

Restrictions/Controls & Freight Information | NSN 5310-00-274-9364

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-274-9364

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	K	Reserved
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
