NSN 5310-00-271-3179 M20115, 5327190, 20115
Product Details | KEY WASHER
5310-00-271-3179 A washer of nonresilient material usually having two parallel bearing surfaces. The outside and/or inside edges have one or more protuberances. The ends and/or edges may be prebent at any angle or the protuberances may be prebent at any angle to the bearing surfaces. The keys or lugs may be fitted into keyways in adjacent material or they may be bent over after application to hold or lock one or more items in place. Excludes thrust type washer.
Part Alternates: M20115, 5327190, 20115, 465, 5310-00-271-3179, 00-271-3179, 5310002713179, 002713179
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-271-3179 | 01869 ( WASHER, KEY ) |

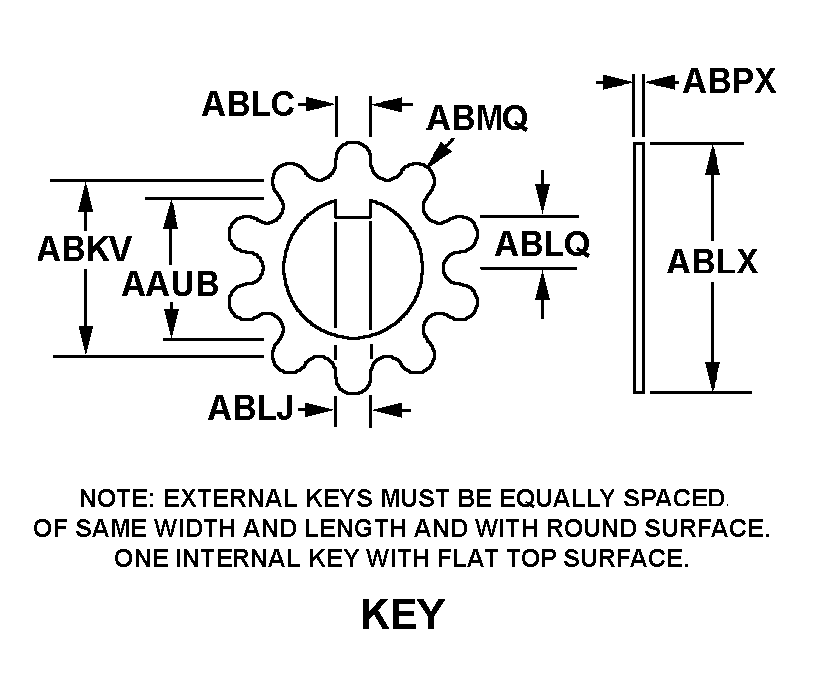

Drawings & Photos | NSN 5310-00-271-3179
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-271-3179
Technical Data | NSN 5310-00-271-3179
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | 160 KEY |
| EXTERNAL KEY QUANTITY | 13 |
| HOLE DIAMETER | 1.250 INCHES MINIMUM AND 1.281 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 1.922 INCHES MINIMUM AND 1.953 INCHES MAXIMUM |
| EXTERNAL STRAIGHT KEY WIDTH | 0.297 INCHES MINIMUM AND 0.328 INCHES MAXIMUM |
| INTERNAL STRAIGHT KEY WIDTH | 0.234 INCHES MINIMUM AND 0.266 INCHES MAXIMUM |
| DISTANCE FROM CENTERLINE TO TOP OF INTERNAL KEY | 0.383 INCHES NOMINAL |
| OVERALL DISTANCE INCLUDING KEYS | 2.422 INCHES MINIMUM AND 2.450 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.047 INCHES MINIMUM AND 0.078 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5310-00-271-3179
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | U | 50 |
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
