Product Details | EYE NUT

5310-00-258-7374 A combination eye and nut, formed in one piece, and when fitted to an externally threaded object, the eye is used as an attaching medium.

Part Alternates: 12585, 5310-00-258-7374, 00-258-7374, 5310002587374, 002587374

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG) NSN Assign. NIIN
53 24 JUN 1973 00-258-7374

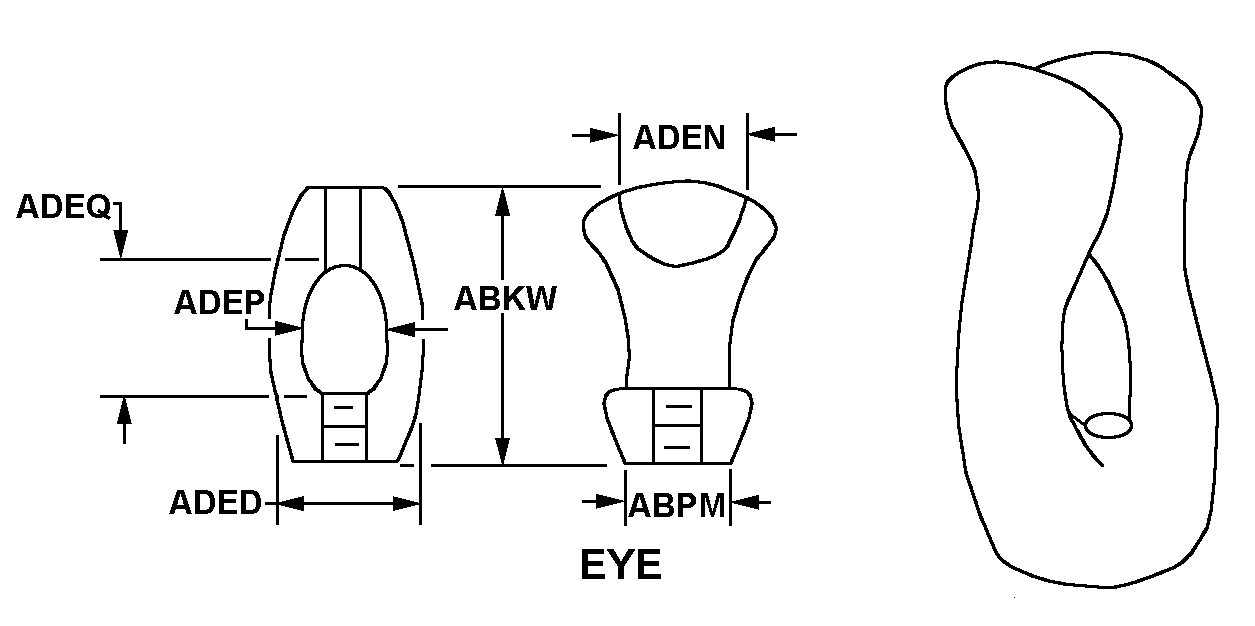

Drawings & Photos | NSN 5310-00-258-7374


Cross Reference | NSN 5310-00-258-7374

Part Number Cage Code Manufacturer
12585 01937 CHANCE A B CO SUB OF EMERSON ELECTRIC CO

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-258-7374

Technical Data | NSN 5310-00-258-7374

Characteristic Specifications
THREAD CLASS ANY ACCEPTABLE
THREAD PITCH DIAMETERS ANY ACCEPTABLE
THREAD DIRECTION RIGHT-HAND
MATERIAL STEEL OVERALL
SURFACE TREATMENT ZINC OVERALL
HARDNESS RATING NOT RATED
NUT STYLE A326 EYE
OVERALL HEIGHT 3.875 INCHES NOMINAL
BODY DIAMETER 1.750 INCHES NOMINAL
NUT WIDTH 2.438 INCHES NOMINAL
EYE BODY THICKNESS 1.500 INCHES NOMINAL
HOLE WIDTH 1.188 INCHES NOMINAL
HOLE HEIGHT 1.562 INCHES NOMINAL
FABRICATION METHOD FORGED
TEMP RATING NOT RATED

Restrictions/Controls & Freight Information | NSN 5310-00-258-7374

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 093460 BOLTS/NUTS NOI BBC/ZINC
Less than car load rating
Less than truck load rating Q 70.0
Water commodity Code 573 unknown
Originating Activity Code 90 Tennessee Valley Authority
Chattanooga, TN 37402-2801
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5310-00-258-7374

Category Code Description
Cognizance Codes9ZNavy-owned stocks of defense industrial material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesYTERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
