NSN 5310-00-253-8276 MS958108, MS9581-08, 00-253-8276
Product Details | KEY WASHER

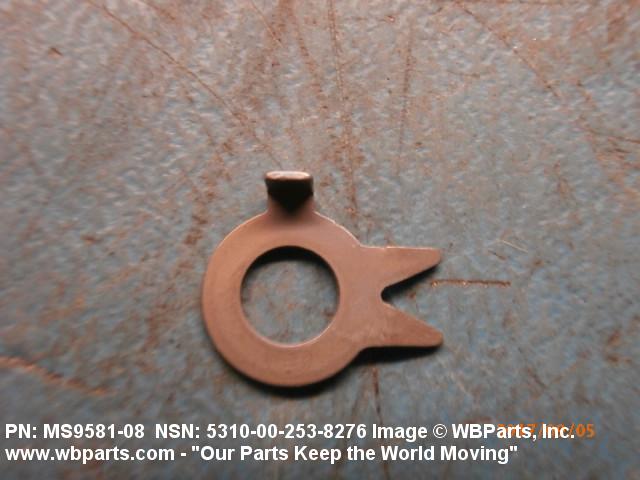

5310-00-253-8276 A washer of nonresilient material usually having two parallel bearing surfaces. The outside and/or inside edges have one or more protuberances. The ends and/or edges may be prebent at any angle or the protuberances may be prebent at any angle to the bearing surfaces. The keys or lugs may be fitted into keyways in adjacent material or they may be bent over after application to hold or lock one or more items in place. Excludes thrust type washer.
Part Alternates: MS958108, MS9581-08, 5310-00-253-8276, 00-253-8276, 5310002538276, 002538276
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 JUL 1969 | 00-253-8276 | 01869 ( WASHER, KEY ) |

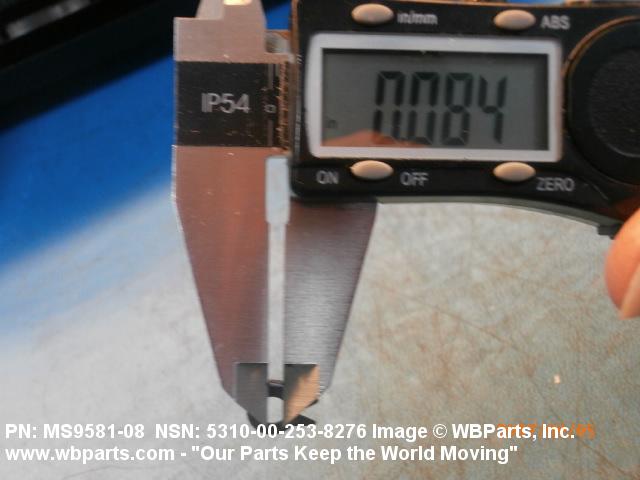

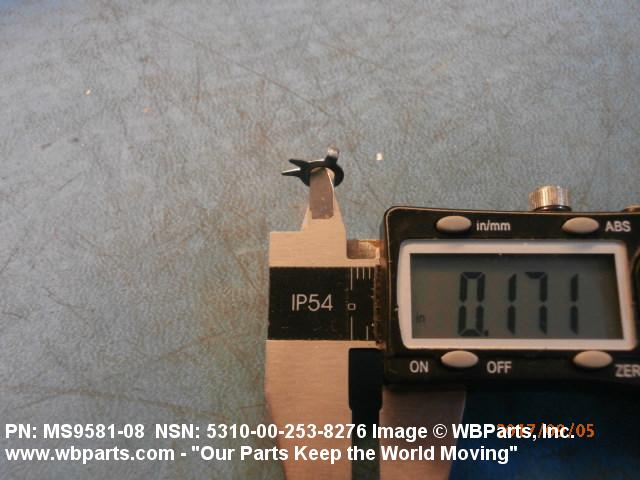

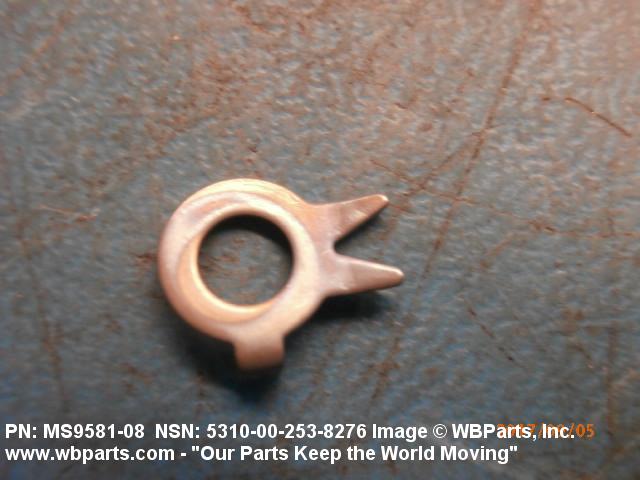

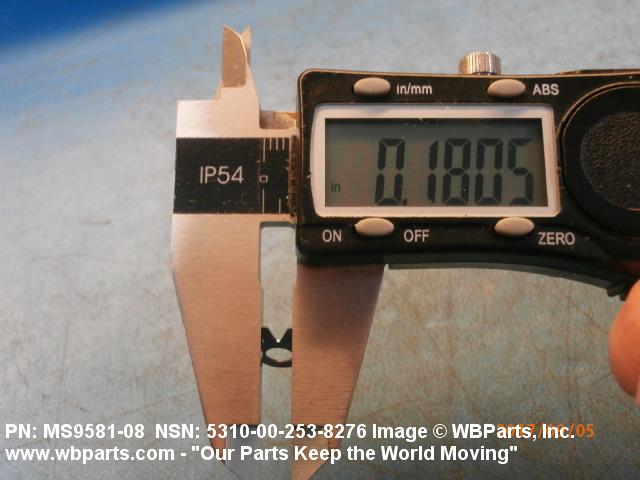

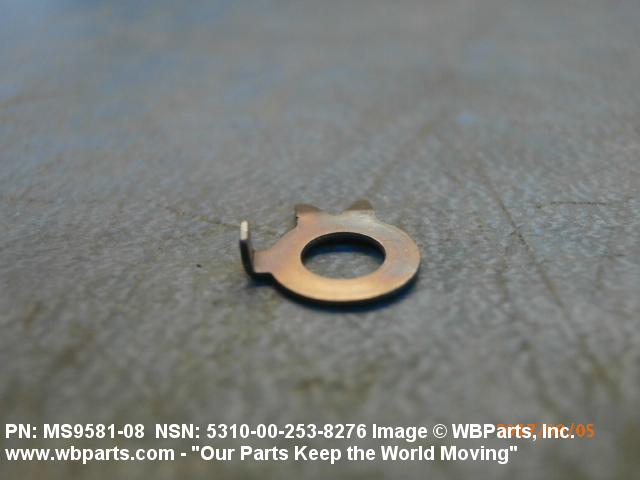

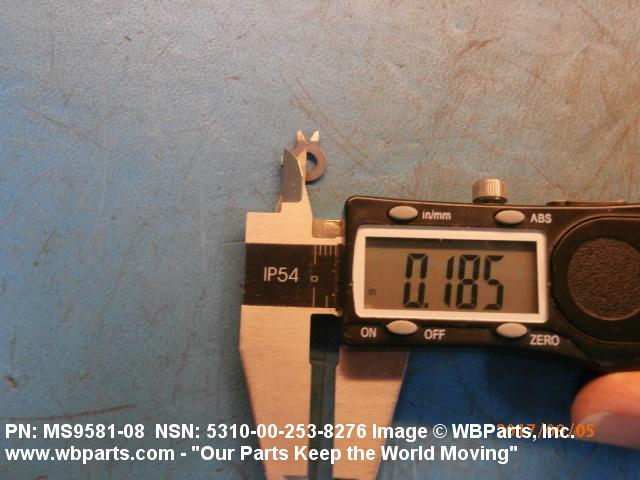

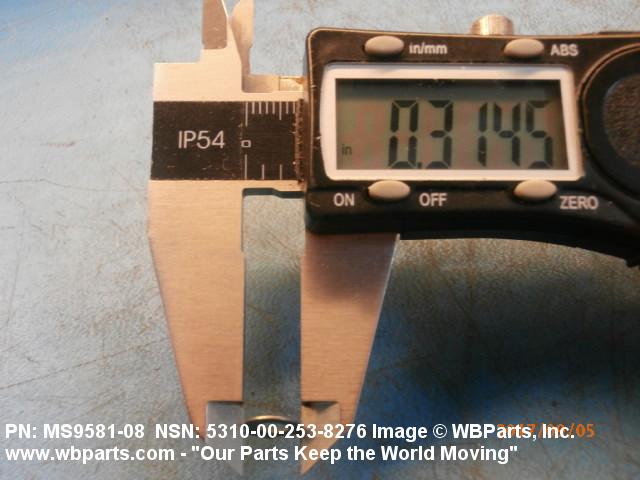

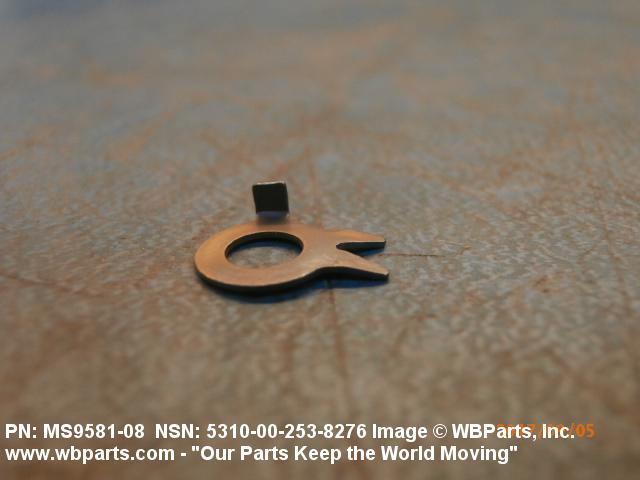

Drawings & Photos | NSN 5310-00-253-8276
Demand History | NSN 5310-00-253-8276
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS958108 | 2017-08-234 | 32 | South Korea |
| 5310-00-253-8276 | 2015-04-118 | 72 | DIBBS |
| MS958108 | 2008-03-66 | 100 | US |
Cross Reference | NSN 5310-00-253-8276
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS9581-08 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-253-8276
Technical Data | NSN 5310-00-253-8276
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5510 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | 175 90 DEGREE LOCKING KEY |
| HOLE DIAMETER | 0.170 INCHES MINIMUM AND 0.175 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 0.310 INCHES MINIMUM AND 0.320 INCHES MAXIMUM |
| EXTERNAL PREBENT KEY LENGTH | 0.080 INCHES MINIMUM AND 0.090 INCHES MAXIMUM |
| EXTERNAL TAPERED KEY WIDTH | 0.175 INCHES MINIMUM AND 0.185 INCHES MAXIMUM |
| EXTERNAL PREBENT KEY WIDTH | 0.080 INCHES MINIMUM AND 0.085 INCHES MAXIMUM |
| DISTANCE FROM CENTERLINE TO INSIDE OF PREBENT KEY | 0.181 INCHES MINIMUM AND 0.191 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.170 INCHES MINIMUM AND 0.175 INCHES MAXIMUM |
| ANGLE BETWEEN EXTERNAL KEYS | 48.0 DEGREES MINIMUM AND 52.0 DEGREES MAXIMUM |
| EXTERNAL PREBENT KEY ANGLE | 15.0 DEGREES NOMINAL |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS9581-08 |
Restrictions/Controls & Freight Information | NSN 5310-00-253-8276
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
