NSN 5310-00-245-8825 MS162284C, MS16228-4C, MS162884C
Product Details | HEXAGON SELF-LOCKING NUT

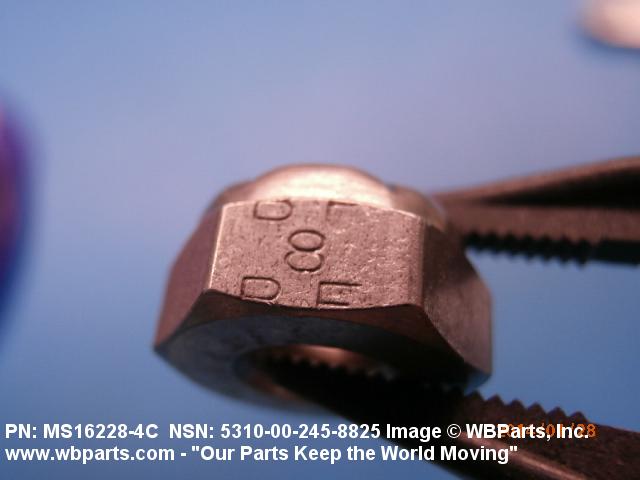

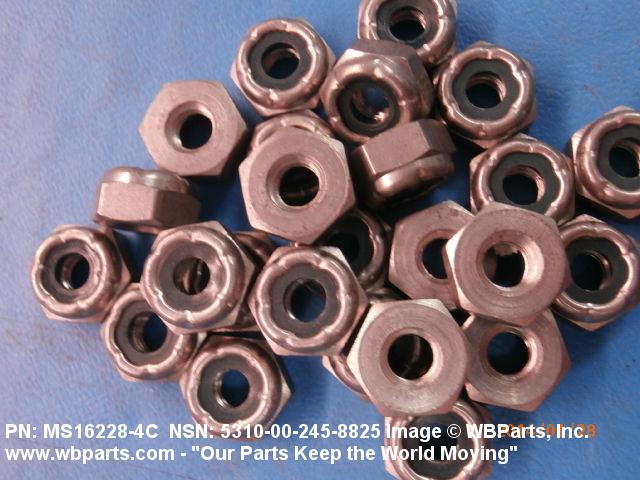

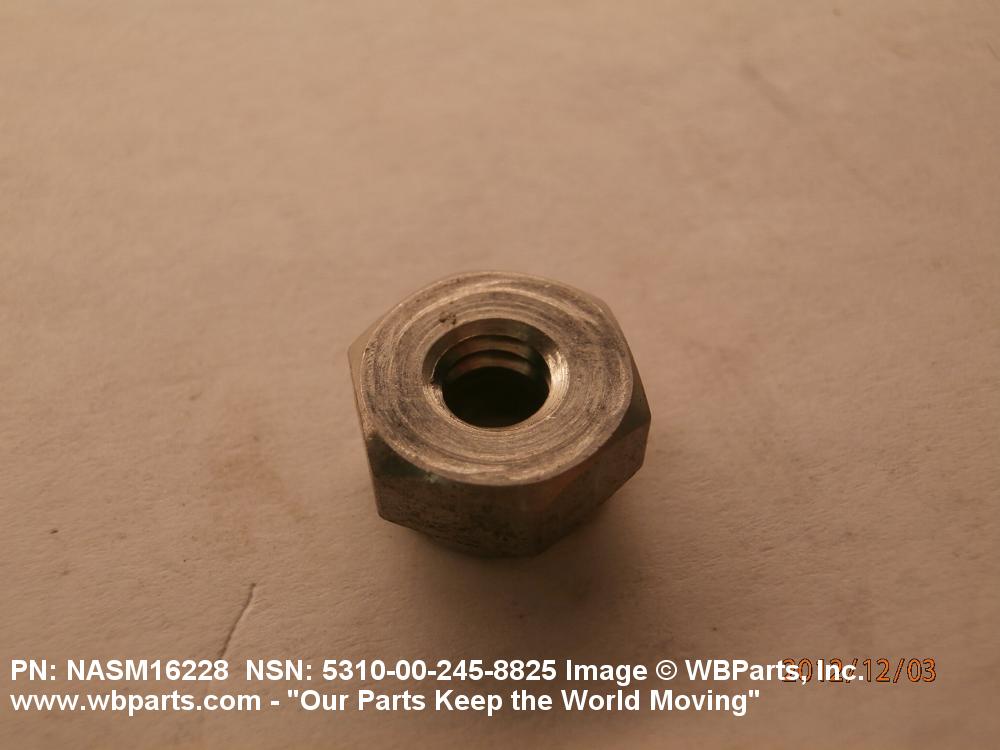

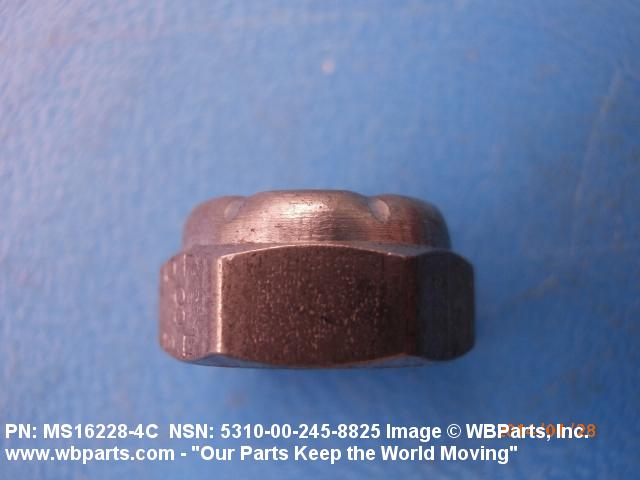

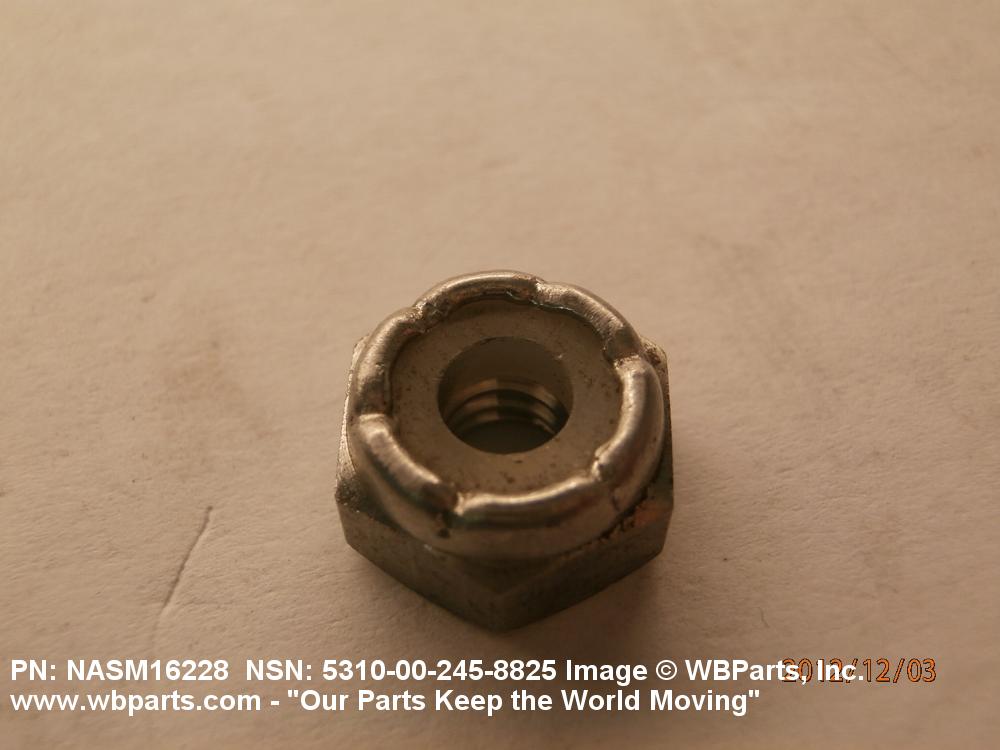

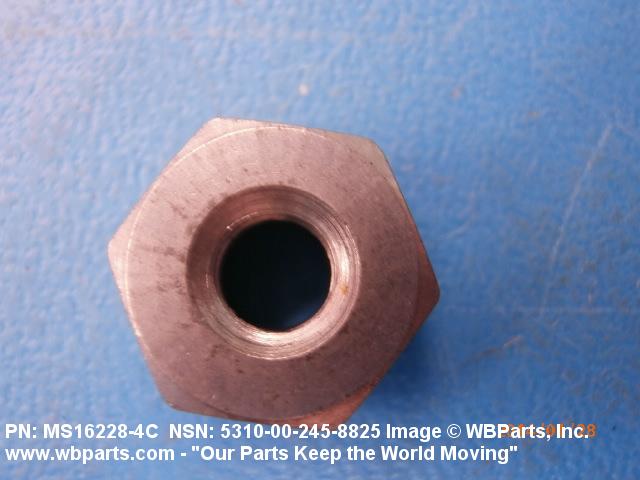

5310-00-245-8825 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.
Part Alternates: MS162284C, MS16228-4C, MS162884C, MS16288-4C, NASM16228, VAL18034, VAL1803-4, 14526505141, 145-2650514-1, 2650514001, 2650514-001, 9336, 9448412, 94484-12, 5310-00-245-8825, 00-245-8825, 5310002458825 , 002458825
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 JUL 1969 | 00-245-8825 | 05277 ( NUT, SELF-LOCKING, HEXAGON ) |
Drawings & Photos | NSN 5310-00-245-8825
Demand History | NSN 5310-00-245-8825
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS162284C | 2024-07-185 | 112 | United States |
| 5310-00-245-8825 | 2024-05-131 | 40 | United States |
| NASM16228 | 2020-09-267 | 13 | United States |
| 5310-00-245-8825 | 2020-06-182 | 108 | MANUAL |
| MS162284C | 2016-11-316 | 50 | United States |
| 5310-00-245-8825 | 2016-06-179 | 15 | United States |
| MS162284C | 2016-04-96 | 6 | US |
| MS162284C | 2016-04-96 | 52 | US |
| MS162284C | 2014-04-119 | 25 | US |
| MS162284C | 2014-01-20 | 56 | United States |
| NASM16228 | 2012-11-331 | 6 | United States |
| 5310-00-245-8825 | 2012-11-314 | 16 | US |
| NASM16228 | 2011-06-180 | 50 | us |
| MS162284C | 2011-04-116 | 500 | US |
| MS162284C | 2011-02-49 | 30 | US |
| MS162284C | 2010-12-356 | 1 | Italy |
| MS162284C | 2010-07-193 | 30 | US |
| MS162284C | 2010-06-168 | 50 | US |
| 5310-00-245-8825 | 2010-03-74 | 250 | US |
| MS162284C | 2008-11-319 | 50 | US |
| MS162284C | 2008-05-151 | 250 | US |
| MS162284C | 2007-12-346 | 100 | US |
Cross Reference | NSN 5310-00-245-8825
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 145-2650514-1 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 2650514-001 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 9336 | 70082 | CHANTILLY DEVELOPMENT CORPORATION DBA ACME SPECIALTY MFG CO |
| 94484-12 | 21174 | LAKE ERIE MACHINE CO |
| MS16228-4C | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS16228-4C | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS16228-4C | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS16288-4C | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| NASM16228 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| VAL1803-4 | 06710 | VALLEY-TODECO, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-245-8825
Related Products | NSN 5310-00-245-8825
Technical Data | NSN 5310-00-245-8825
| Characteristic | Specifications |
|---|---|

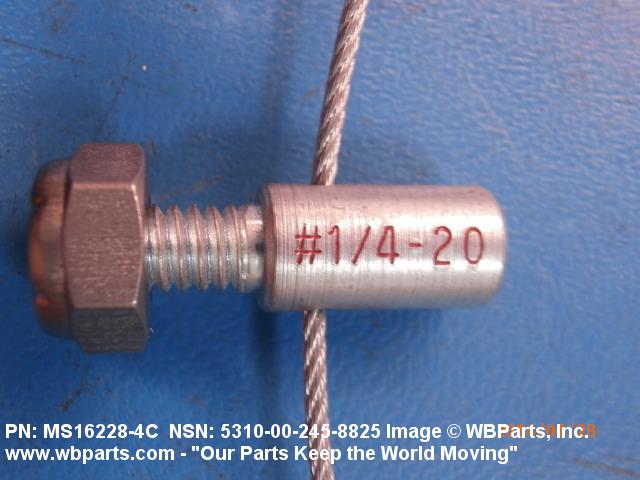

| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | PLASTIC POLYHEXAMETHYLENE AMIDE LOCKING INSERT STEEL OVERALL EXCEPT INSERT |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-M-20693,COMP A,TY 1 MIL SPEC SINGLE MATERIAL RESPONSE LOCKING INSERT 66 FED STD ALL MATERIAL RESPONSES OVERALL EXCEPT INSERT |
| SURFACE TREATMENT | PASSIVATE NUT |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE NUT |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A12 HEXAGON |

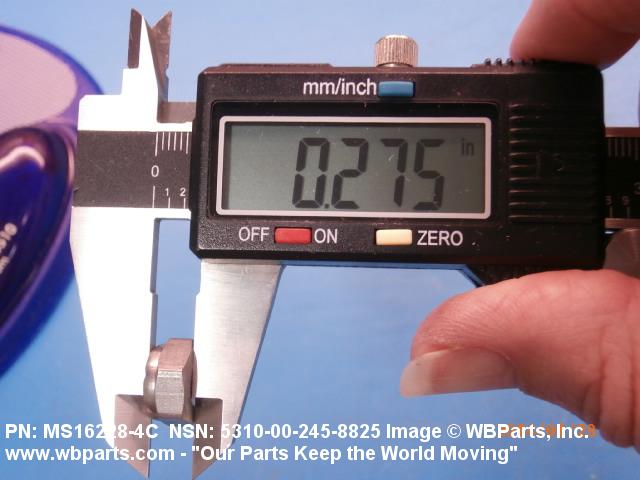

| NUT HEIGHT | 0.266 INCHES MINIMUM AND 0.296 INCHES MAXIMUM |

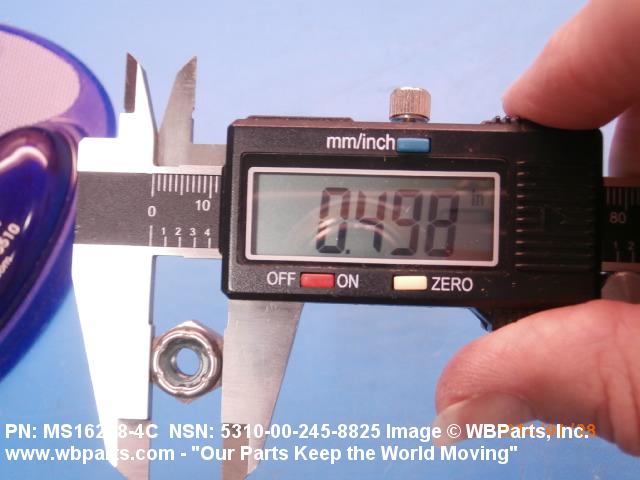

| WIDTH ACROSS FLATS | 0.492 INCHES MINIMUM AND 0.502 INCHES MAXIMUM |
| BEARING SURFACE TYPE | CHAMFERED |

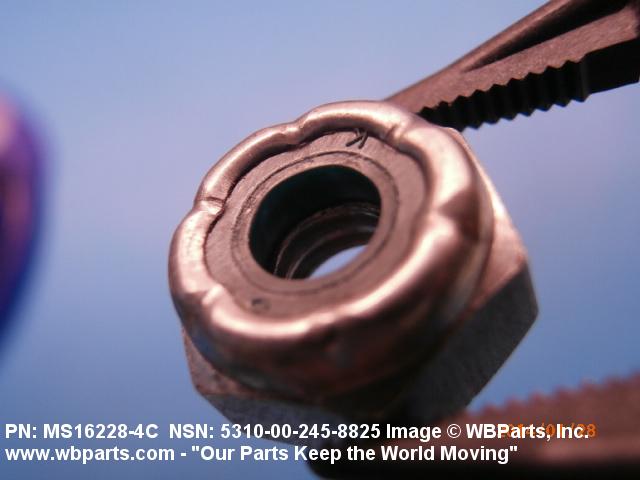

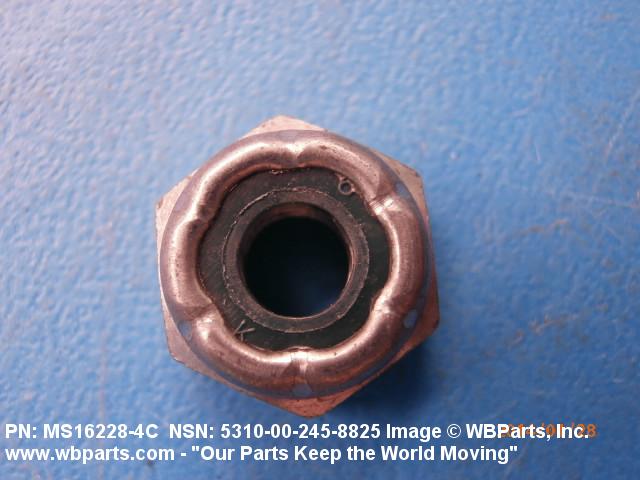

| LOCKING FEATURE | PREVAILING TORQUE WITH NONMETALLIC INSERT |
| COUNTERSINK ANGLE | 88.0 DEGREES NOMINAL NUT |
| TEMP RATING | 250.0 DEG FAHRENHEIT NOMINAL |
Restrictions/Controls & Freight Information | NSN 5310-00-245-8825
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
