NSN 5310-00-225-6408 MS5192253, MS-51922-53 , MS51922-53

Product Details | HEXAGON SELF-LOCKING NUT

5310-00-225-6408 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.

Part Alternates: MS5192253, MS-51922-53 , MS51922-53 , M45913/1-10FG5C , M45913110FG5C, MIL-DTL-45913/1 , MILDTL459131, 10333 , 24855FX, 45232 , 5302612, 5302-612 , 5HB120, 87122896, 8712289-6 , 5310-00-225-6408, 00-225-6408, 5310002256408 , 002256408

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-225-6408	05277 ( NUT, SELF-LOCKING, HEXAGON )

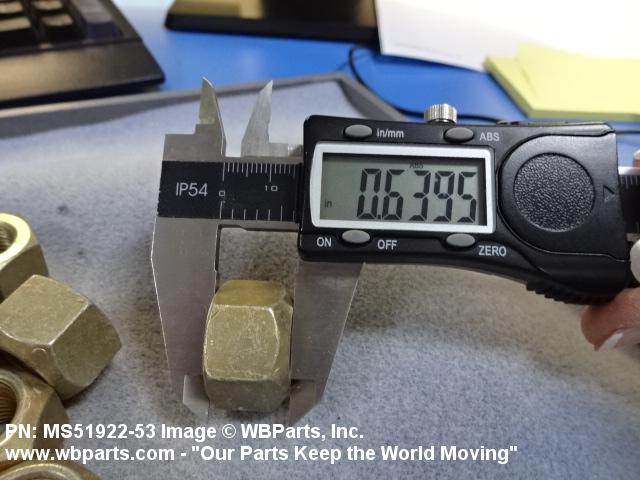

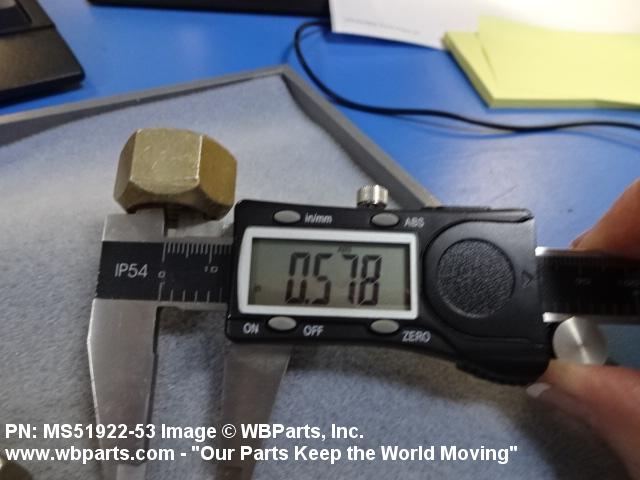

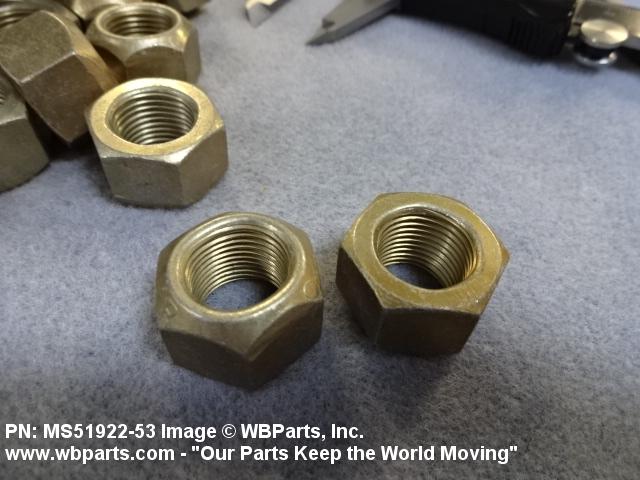

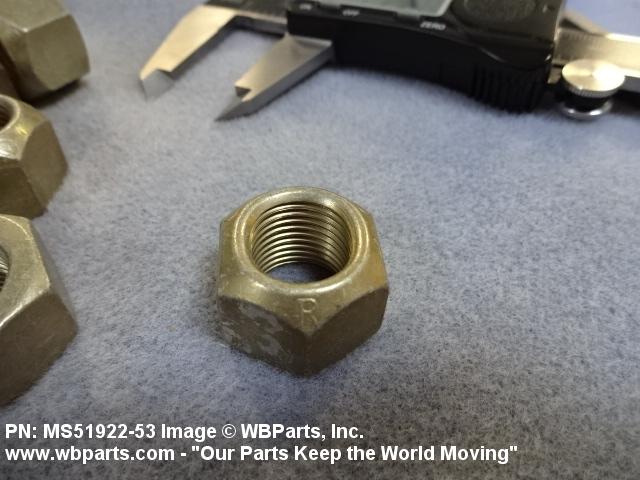

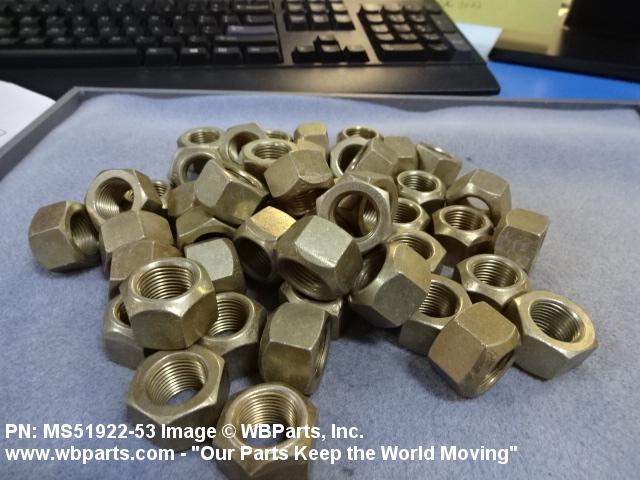

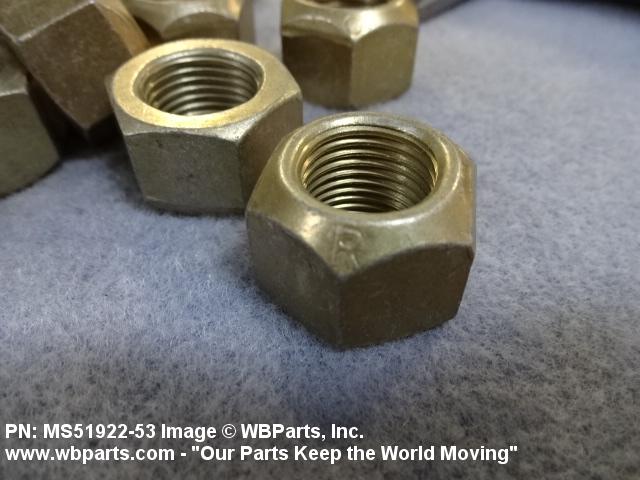

Drawings & Photos | NSN 5310-00-225-6408

Part Number	Request Date	QTY	Origin
5310-00-225-6408	2024-09-273	8912	DIBBS
5310-00-225-6408	2024-08-214	100	United States
5310-00-225-6408	2024-07-201	1	US
5310-00-225-6408	2024-02-33	304	DIBBS
5310-00-225-6408	2024-02-32	8704	DIBBS
5310-00-225-6408	2024-01-25	304	DIBBS
5310-00-225-6408	2024-01-24	8704	DIBBS
5310-00-225-6408	2024-01-16	4541	DIBBS
5310-00-225-6408	2024-01-08	4541	DIBBS
5310-00-225-6408	2023-02-55	44	MANUAL
5310-00-225-6408	2018-11-330	21560	DIBBS
5310-00-225-6408	2018-06-177	21560	DIBBS
5310-00-225-6408	2018-06-169	21560	DIBBS
5310-00-225-6408	2017-11-321	21560	DIBBS
5310-00-225-6408	2017-11-312	21560	DIBBS
MS5192253	2017-05-129	4	United States
MS5192253	2017-05-128	4	United States
5310-00-225-6408	2016-05-126	12	United States
5310-00-225-6408	2016-04-104	874	DIBBS
5310-00-225-6408	2016-04-96	874	DIBBS
5310-00-225-6408	2016-03-74	2500	DIBBS
5310-00-225-6408	2016-03-66	2500	DIBBS
5310-00-225-6408	2016-02-49	200	DIBBS
5310-00-225-6408	2016-02-47	5786	DIBBS
5310-00-225-6408	2016-02-41	200	DIBBS
5310-00-225-6408	2016-01-13	3373	DIBBS
5310-00-225-6408	2016-01-05	3373	DIBBS
5310-00-225-6408	2015-11-306	98	DIBBS
5310-00-225-6408	2015-10-293	98	DIBBS
5310-00-225-6408	2015-09-271	96	DIBBS
5310-00-225-6408	2013-10-276	4	MANUAL
002256408	2013-10-275	2	US
002256408	2013-10-275	2	US
002256408	2013-10-275	1	US
002256408	2013-10-275	5	US
002256408	2013-10-275	12	US
002256408	2013-10-275	12	US
002256408	2013-10-275	12	US
002256408	2013-10-275	12	US
002256408	2013-10-275	12	US
002256408	2013-10-275	12	US
002256408	2013-10-275	12	US
002256408	2013-10-275	12	US
002256408	2013-10-275	12	US
002256408	2013-10-275	12	US
002256408	2013-10-275	12	US
002256408	2013-10-275	12	US
002256408	2013-10-275	12	US
MS5192253	2013-01-16	8	US
87122896	2012-10-277	320	AU
MS5192253	2011-10-277	10000	US
5310-00-225-6408	2011-08-229	20800	US
5310-00-225-6408	2011-08-215	7	US
MS5192253	2011-08-214	20	United States
5310-00-225-6408	2008-09-253	57000	DIBBS
MILDTL459131	2008-09-249	4000	US

Cross Reference | NSN 5310-00-225-6408

Part Number	Cage Code	Manufacturer
10333	019L2	MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
10333	72962	HARVARD INDUSTRIES INC
24855FX	45152	OSHKOSH CORPORATION
45232	76445	TENNECO INC
5302-612	61796	CEMEN TECH, INC.
5HB120	45152	OSHKOSH CORPORATION
8712289-6	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
M45913/1-10FG5C	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-DTL-45913/1	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS51922-53	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-225-6408

Compare

Related Products | NSN 5310-00-225-6408

5310-00-225-6409, 5310-00-225-6660, 5310-00-225-6671, 5310-00-225-6692, 5310-00-225-6860

Technical Data | NSN 5310-00-225-6408

Characteristic	Specifications
THREAD SERIES	UNF
NOMINAL THREAD SIZE	0.625 INCHES
THREAD QUANTITY PER INCH	18
THREAD CLASS	2B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	PLASTIC POLYAMIDE LOCKING INSERT STEEL NUT
MATERIAL DOCUMENT AND CLASSIFICATION	SAE J995, GR 5 ASSN STD SINGLE MATERIAL RESPONSE NUT
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL EXCEPT INSERT
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416, TY 2, CL 2 OR 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL EXCEPT INSERT
HARDNESS RATING	NOT RATED
NUT STYLE	A12 HEXAGON

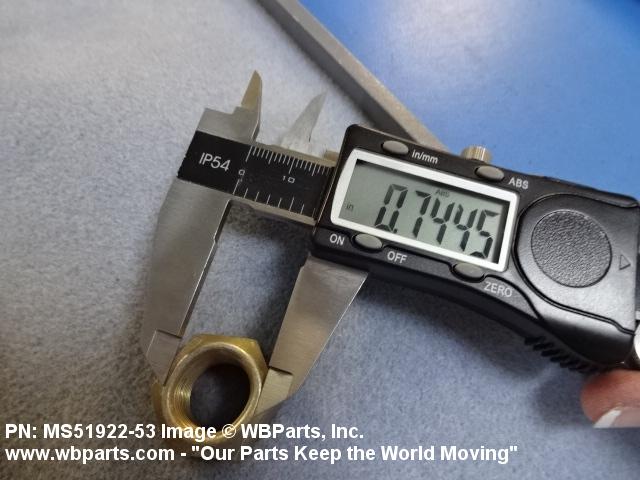

NUT HEIGHT	0.735 INCHES MINIMUM AND 0.765 INCHES MAXIMUM

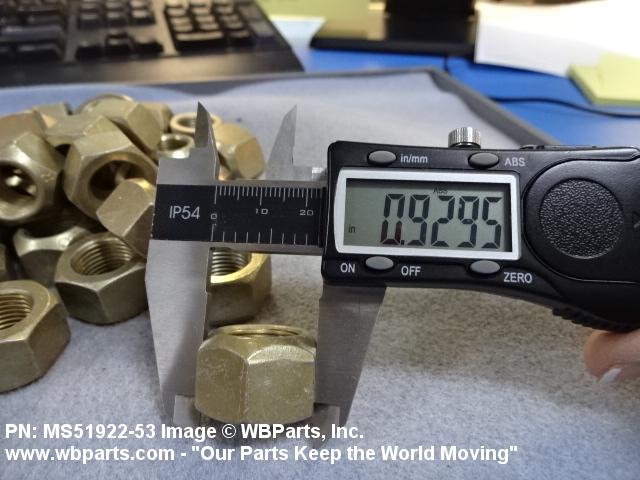

WIDTH ACROSS FLATS	0.922 INCHES MINIMUM AND 0.940 INCHES MAXIMUM
BEARING SURFACE TYPE	CHAMFERED OR WASHER FACED
LOCKING FEATURE	PREVAILING TORQUE WITH NONMETALLIC INSERT
LUBRICATION	DRY FILM LUBRICANT
TEMP RATING	250.0 DEG FAHRENHEIT NOMINAL
III BEARING SURFACE FINISH	125.0 MICROINCHES
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-DTL-45913/1
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M45913/1-10FG5C

Restrictions/Controls & Freight Information | NSN 5310-00-225-6408

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-225-6408

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	M EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	M EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	K	Reserved
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	M EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	M EA : Each
