NSN 5310-00-224-0471 NAS12919, NAS1291-9, 00-224-0471
Product Details | HEXAGON EXTENDED WASHER SELF-LOCKING NUT

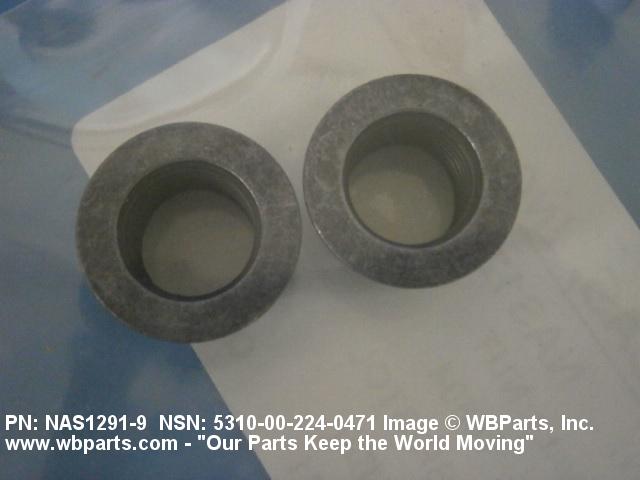

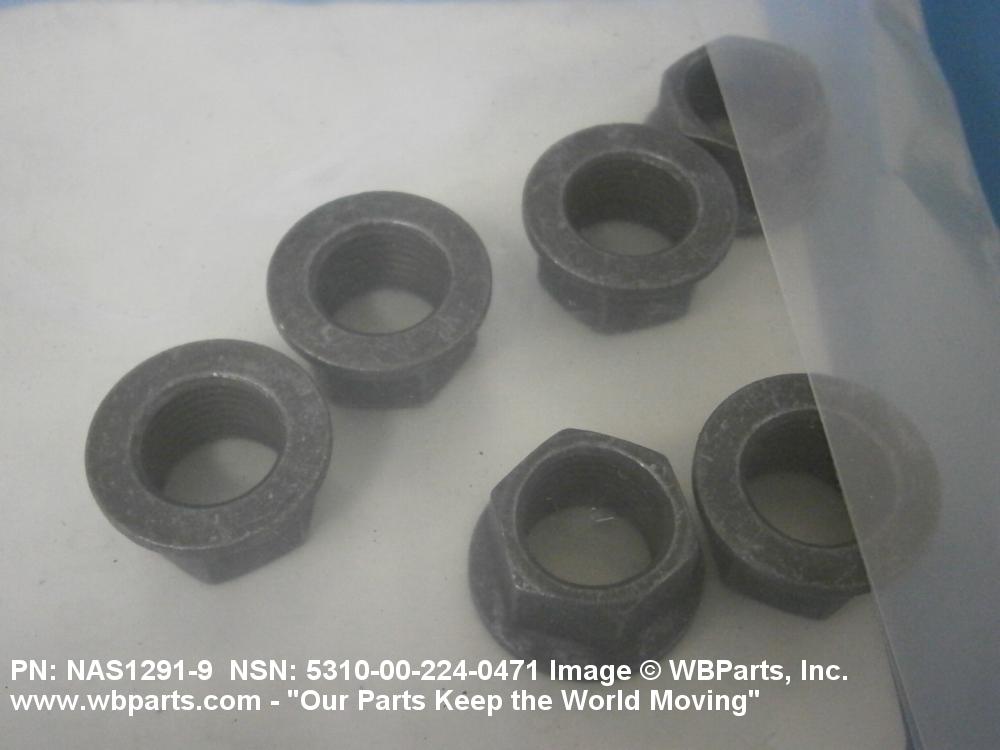

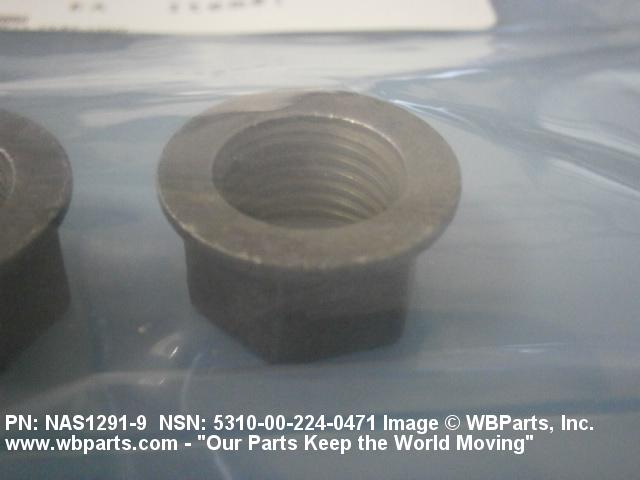

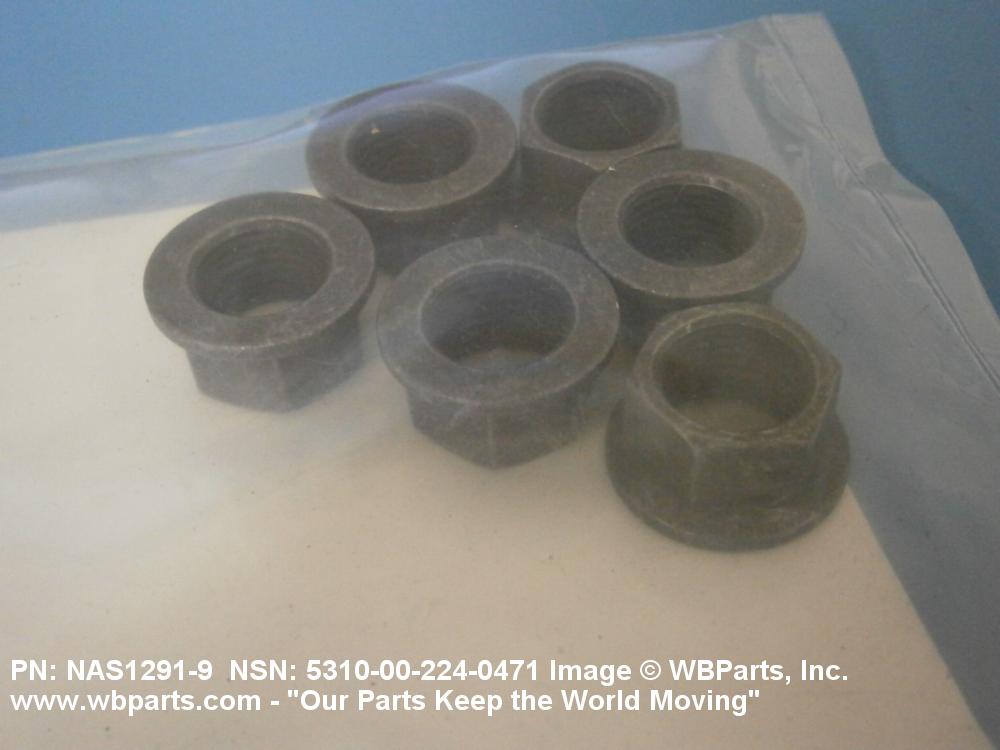

5310-00-224-0471 A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: NAS12919, NAS1291-9, 5310-00-224-0471, 00-224-0471, 5310002240471, 002240471
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 MAR 1970 | 00-224-0471 | 29730 ( NUT, SELF-LOCKING, EXTENDED WASHER, HEXAGON ) |
Drawings & Photos | NSN 5310-00-224-0471
Demand History | NSN 5310-00-224-0471
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-224-0471 | 2019-11-318 | 1841 | DIBBS |
| 5310-00-224-0471 | 2018-04-114 | 1297 | DIBBS |
| 5310-00-224-0471 | 2016-04-101 | 1080 | DIBBS |
| 5310-00-224-0471 | 2012-11-317 | 6 | UK |
| 5310-00-224-0471 | 2012-09-257 | 1000 | US |
| 5310-00-224-0471 | 2012-09-255 | 2689 | DIBBS |
| NAS12919 | 2012-07-200 | 4 | US |
| NAS12919 | 2012-07-199 | 4 | US |
| 5310-00-224-0471 | 2012-04-96 | 1509 | DIBBS |
| 5310-00-224-0471 | 2011-11-314 | 8 | United Kingdom |
| NAS12919 | 2011-10-304 | 6 | United States |
| NAS12919 | 2011-01-21 | 12 | Netherlands |
Cross Reference | NSN 5310-00-224-0471
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1291-9 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-224-0471
Related Products | NSN 5310-00-224-0471
Technical Data | NSN 5310-00-224-0471
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.562 INCHES |
| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A294 HEXAGON |
| WASHER OUTSIDE DIAMETER | 0.912 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.420 INCHES MINIMUM AND 0.480 INCHES MAXIMUM |
| WASHER THICKNESS | 0.045 INCHES MINIMUM |
| WIDTH ACROSS FLATS | 0.680 INCHES MINIMUM AND 0.692 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| COUNTERSINK ANGLE | 120.0 DEGREES NOMINAL NUT |
| LUBRICATION | DRY FILM LUBRICANT |
| TEMP RATING | 450.0 DEG FAHRENHEIT NOMINAL |
| SPECIFICATION/STANDARD DATA | 80205-NAS1291 GOVERNMENT STANDARD |
