NSN 5310-00-208-7589 AN3164, AN316-4, AN3164R

Product Details | HEXAGON PLAIN NUT

5310-00-208-7589 A nut, flat on top and bottom having 6 flat sides. For items which have internal tapered or straight (parallel) pipe threads, specific electrical conduit size designation, and which when installed, provide a method of tightening to lock the connection, see LOCKNUT, ELECTRICAL CONDUIT. See also LOCKNUT, TUBE FITTING. For items having a thickness (or height) exceeding two times the width across the flats, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. (When height or thickness and/or width across the flats is designated as a tolerance dimension, the maximum dimension will be used to determine compliance.

Part Alternates: AN3164, AN316-4, AN3164R, AN316-4R, S80794R, S8079-4R, Z00N5328303305, Z00-N5328303305, FFN836, FF-N-836, 09403000, 094-03000, 114-0020-01, 23AN3164R, 23AN316-4R, 404 322, 404 332, 404322, 404332, 80275200, 802752-00, 8192710, 5310-00-208-7589, 00-208-7589, 5310002087589, 002087589, 114002001

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-208-7589	01857 ( NUT, PLAIN, HEXAGON )

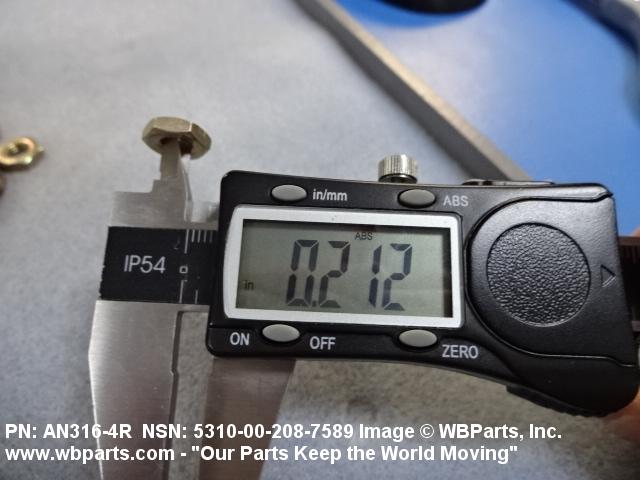

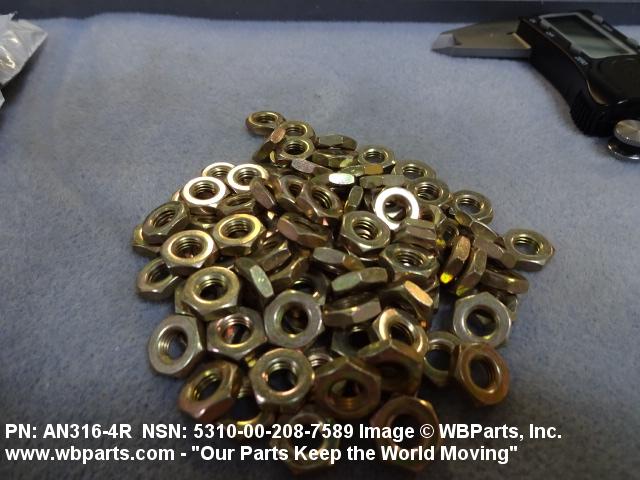

Drawings & Photos | NSN 5310-00-208-7589

Part Number	Request Date	QTY	Origin
FFN836	2025-03-84	32	Japan
AN3164R	2025-01-27	2	United States
AN3164R	2024-12-346	15	US
FFN836	2024-10-291	190	US
5310-00-208-7589	2024-09-263	3	US
FFN836	2023-09-258	100	TR
AN3164R	2023-07-192	2728	United States
FFN836	2021-11-307	200	United States
FFN836	2021-08-228	100	United States
5310-00-208-7589	2020-10-289	1	DIBBS-RFPs
AN316-4R	2020-02-57	4	US
AN3164R	2019-08-219	10	Poland
AN3164R	2019-06-168	2	United States
AN3164R	2019-06-168	4	United States
AN3164R	2019-06-168	12	United States
AN3164R	2019-06-168	20	United States
AN3164R	2019-06-168	40	United States
AN3164R	2019-06-168	80	United States
AN3164R	2019-03-72	50000	GU
AN3164R	2019-03-72	100000	GU
AN3164R	2019-03-72	250000	GU
FFN836	2019-02-44	288	US
FFN836	2018-02-32	2	US
AN3164R	2017-05-137	300000	US
FFN836	2017-05-123	25	United States
5310-00-208-7589	2016-09-250	353	DIBBS
FF-N-836	2016-05-145	48	Spain
AN316-4R	2016-04-118	50	UY
AN3164R	2015-10-288	2	US
AN3164R	2014-08-216	1	JO
AN3164R	2013-11-305	6	United States
FFN836	2012-12-341	1	US
AN316-4R	2012-11-310	50
AN3164R	2012-08-215	1	United States
AN3164R	2012-05-137	83	Italy
AN316-4R	2012-04-115	10	IN
AN3164R	2011-12-355	4	US
AN3164R	2011-09-255	100	PK
AN3164R	2011-07-199	10	United States
AN3164R	2011-06-179	2	US
AN3164R	2011-03-81	5	US
FFN836	2010-11-322	100	United Kingdom
FFN836	2010-08-218	1	US
FFN836	2010-08-218	1	US
FFN836	2010-08-218	1	US
FFN836	2010-08-218	1	US
AN3164R	2010-07-196	2	United States
FFN836	2010-03-90	4	us
FFN836	2010-03-81	50	United States
FFN836	2010-02-46	50	United States
5310-00-208-7589	2010-01-07	680	DIBBS
5310-00-208-7589	2009-09-259	1766	DIBBS
5310-00-208-7589	2009-07-184	350	United States
FFN836	2009-07-183	1000	US
FFN836	2009-05-141	580	US
5310-00-208-7589	2009-05-139	10	United States
AN3164R	2009-04-93	50	Italy
AN3164R	2009-03-84	50	US
AN3164R	2009-03-84	75	US
AN3164R	2009-03-84	50	US
AN3164R	2009-03-84	75	US
AN3164R	2009-02-57	1	Malaysia
AN3164R	2008-10-279	15	US
FFN836	2008-07-195	20	US
FFN836	2008-06-171	200	US
5310-00-208-7589	2008-04-94	1766	DIBBS
FFN836	2008-02-39	1	US
FFN836	2007-10-298	100	US
AN3164	2007-05-123	100	India

Cross Reference | NSN 5310-00-208-7589

Part Number	Cage Code	Manufacturer
094-03000	33269	PARKER-HANNIFIN CORPORATION DBA PARKER HANNIFIN CORPORATION
114-0020-01	94756	BOEING COMPANY, THE DBA BOEING
23AN316-4R	80045	L-3 COMMUNICATIONS CINCINNATI ELECTRONICS CORPORATION
404 322	77294	PIPER AIRCRAFT INC.
404 332	77294	PIPER AIRCRAFT INC.
802752-00	32345	DEFENSE REDUCTION AGENCY
8192710	18876	U S ARMY AVIATION AND MISSILE COMMAND
AN316-4	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN316-4R	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
AN316-4R	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
FF-N-836	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
S8079-4R	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
Z00-N5328303305	F0086	SOCATA

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-208-7589

Compare

Related Products | NSN 5310-00-208-7589

5310-00-208-7592, 5310-00-208-7625, 5310-00-208-7639, 5310-00-208-7662, 5310-00-208-7765

Technical Data | NSN 5310-00-208-7589

Characteristic	Specifications
THREAD SERIES	UNF
NOMINAL THREAD SIZE	0.250 INCHES
THREAD QUANTITY PER INCH	28
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	80.0 ROCKWELL B MINIMUM AND 32.0 ROCKWELL C MAXIMUM
NUT STYLE	A12 HEXAGON

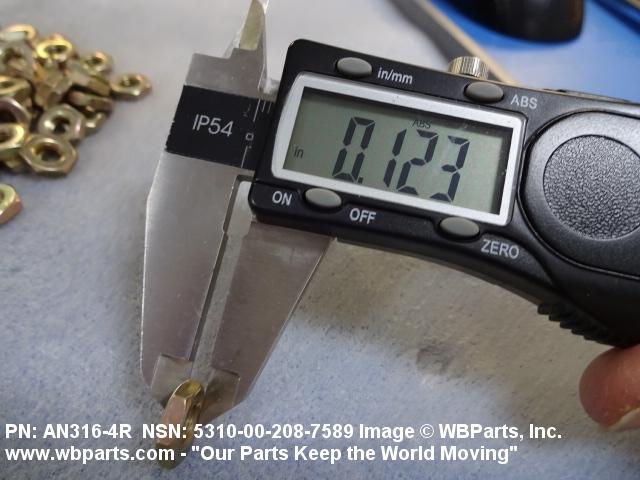

NUT HEIGHT	0.125 INCHES NOMINAL

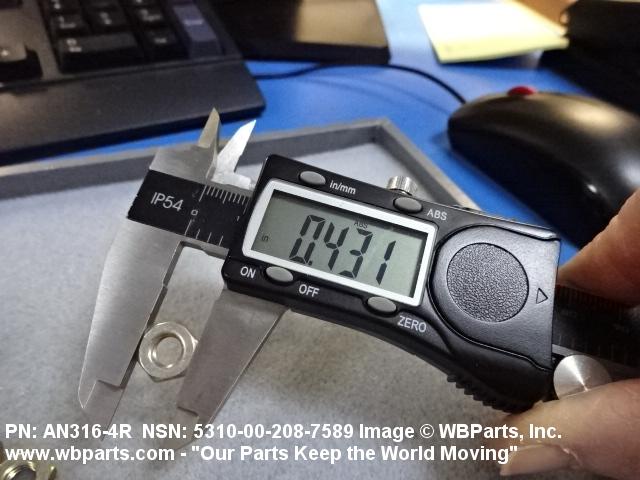

WIDTH ACROSS FLATS	0.428 INCHES MINIMUM AND 0.440 INCHES MAXIMUM
BEARING SURFACE TYPE	CHAMFERED
COUNTERSINK ANGLE	110.0 DEGREES NOMINAL NUT
TEMP RATING	NOT RATED
NONDEFINITIVE SPEC/STD DATA	2 TYPE AND A GRADE
MANUFACTURERS CODE	81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	FF-N-836

Restrictions/Controls & Freight Information | NSN 5310-00-208-7589

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	061700	ELEC APPLIANCES/INSTRUMENTS NOI
Less than car load rating	M	85
Less than truck load rating	W	Rating Variable
Water commodity Code	658	unknown
Originating Activity Code	CU
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-208-7589

Air Force

Category	Code	Description
Budget Code	K	8357X3080:Cryptologic and Other USAF Security Service Equipment
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Materiel Management Aggregation Code	ZG	SJ:COMMUNICATIONS - ELECTRONICS SECURE 466L ELECTRO-MAGNETIC INTELLIGENCE SYSTEM
Source of Supply	FPD	Air Force Cryptologic Support Center (ESC) San Antonio, TX 78243-5000
Agency	DF	Department of the Air Force
Service Organization	L	Lead Service - 22 (Repairable)
Reparability	T	AF Recoverable Assembly Management System (AFRAMS)
Acquisition Advice Codes	V	TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
