NSN 5310-00-208-5187 AN121527, 00-208-5187, 002085187
Product Details | HEXAGON PLAIN NUT
5310-00-208-5187 A nut, flat on top and bottom having 6 flat sides. For items which have internal tapered or straight (parallel) pipe threads, specific electrical conduit size designation, and which when installed, provide a method of tightening to lock the connection, see LOCKNUT, ELECTRICAL CONDUIT. See also LOCKNUT, TUBE FITTING. For items having a thickness (or height) exceeding two times the width across the flats, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. (When height or thickness and/or width across the flats is designated as a tolerance dimension, the maximum dimension will be used to determine compliance.
Part Alternates: AN121527, 5310-00-208-5187, 00-208-5187, 5310002085187, 002085187
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-208-5187 | 01857 ( NUT, PLAIN, HEXAGON ) |

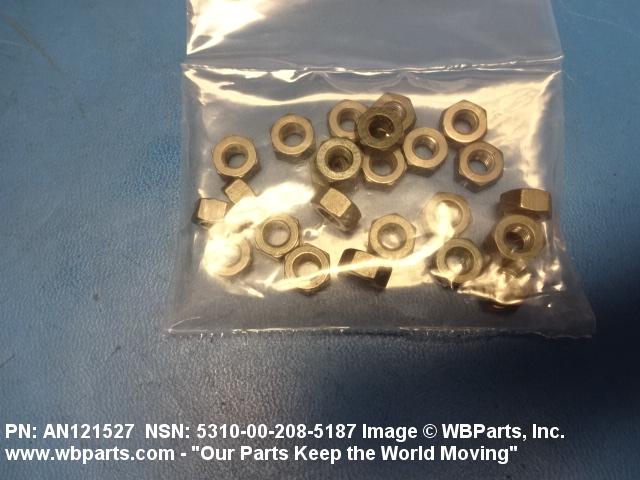

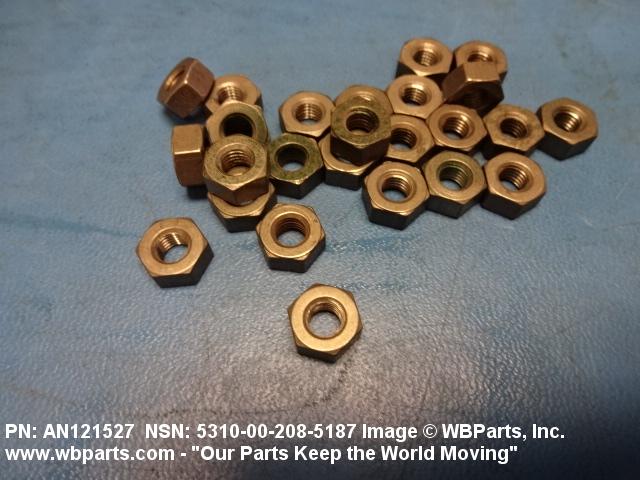

Drawings & Photos | NSN 5310-00-208-5187
Demand History | NSN 5310-00-208-5187
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN121527 | 2017-03-79 | 2 | India |
| 5310-00-208-5187 | 2017-03-72 | 2 | India |
| 5310-00-208-5187 | 2016-12-337 | 2 | IN |
| 5310-00-208-5187 | 2016-11-329 | 2 | India |
Cross Reference | NSN 5310-00-208-5187
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN121527 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-208-5187
Technical Data | NSN 5310-00-208-5187
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 431 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5628 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A12 HEXAGON |

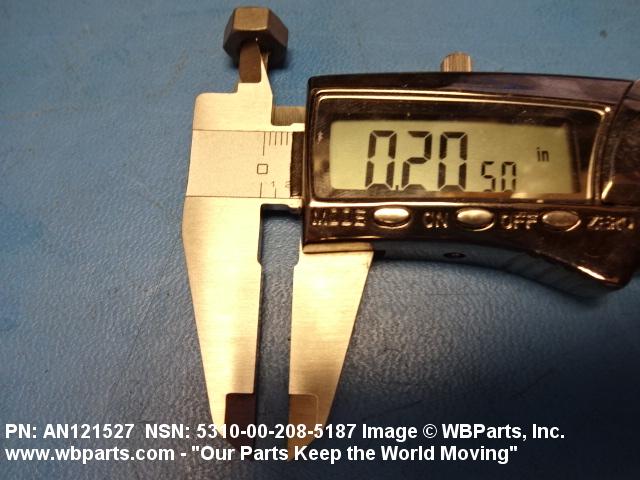

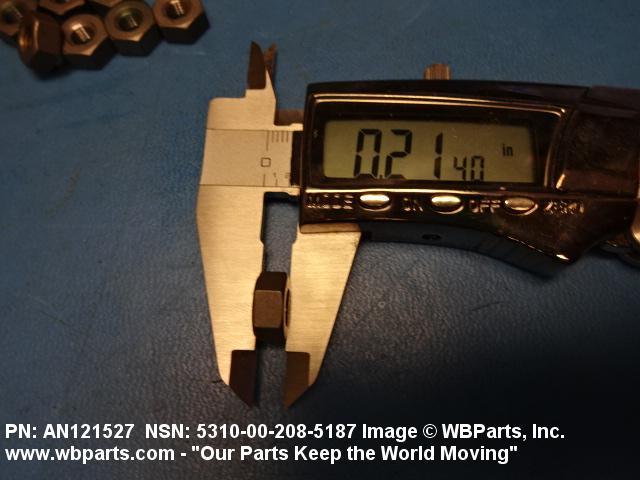

| NUT HEIGHT | 0.219 INCHES NOMINAL |

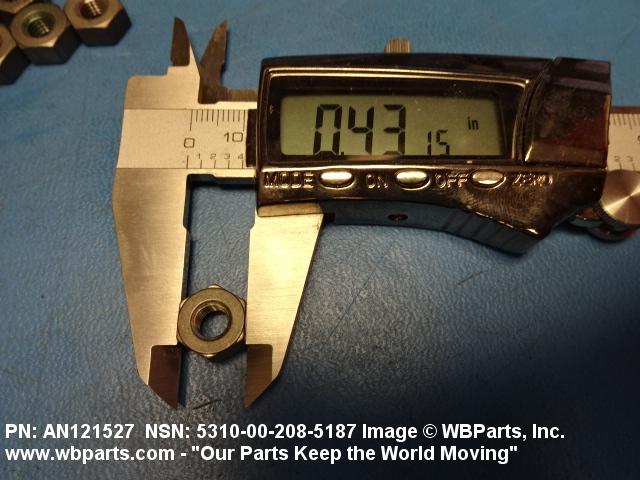

| WIDTH ACROSS FLATS | 0.430 INCHES MINIMUM AND 0.439 INCHES MAXIMUM |
| BEARING SURFACE TYPE | WASHER FACED |
| TEMP RATING | NOT RATED |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN121527 |
Restrictions/Controls & Freight Information | NSN 5310-00-208-5187
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | U | 50 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
