NSN 5310-00-184-9431 0215856, 02-15856, 00-184-9431
Product Details | KEY WASHER
5310-00-184-9431 A washer of nonresilient material usually having two parallel bearing surfaces. The outside and/or inside edges have one or more protuberances. The ends and/or edges may be prebent at any angle or the protuberances may be prebent at any angle to the bearing surfaces. The keys or lugs may be fitted into keyways in adjacent material or they may be bent over after application to hold or lock one or more items in place. Excludes thrust type washer.
Part Alternates: 0215856, 02-15856, 5310-00-184-9431, 00-184-9431, 5310001849431, 001849431
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 02 MAR 1973 | 00-184-9431 | 01869 ( WASHER, KEY ) |

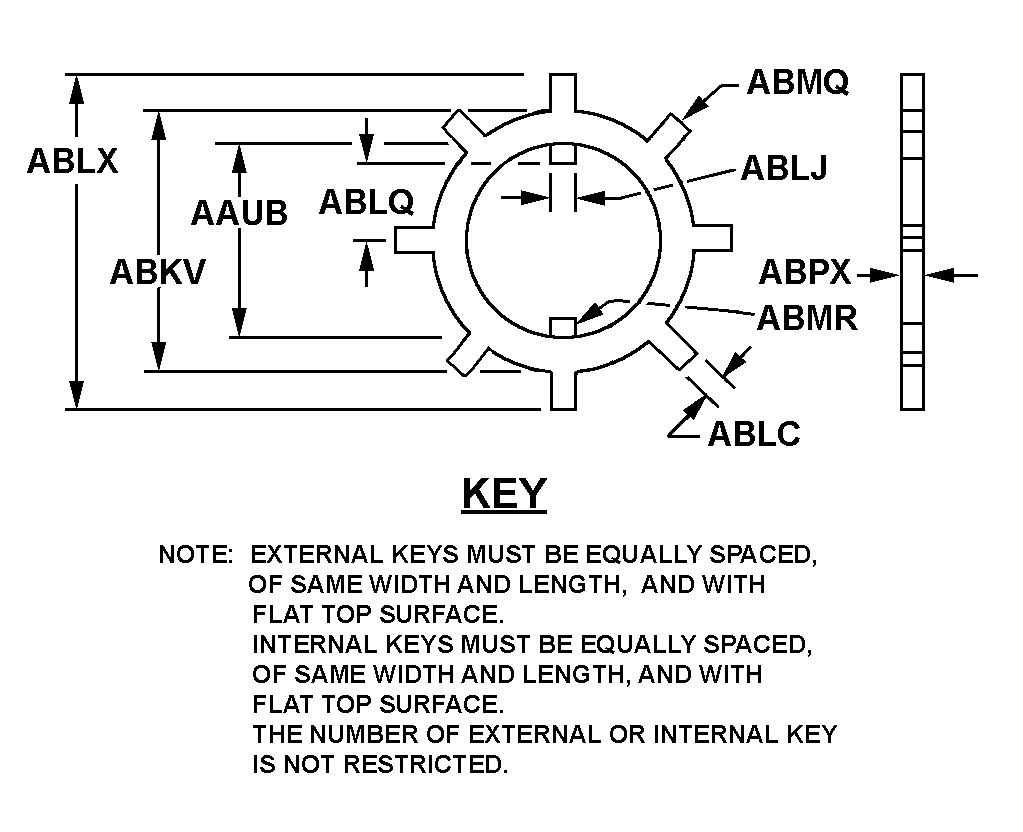

Drawings & Photos | NSN 5310-00-184-9431
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-184-9431
Technical Data | NSN 5310-00-184-9431
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 410 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763,COND A FED SPEC 1ST MATERIAL RESPONSE OR QQ-S-766,COND A FED SPEC 2ND MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | 35.0 ROCKWELL C MINIMUM AND 45.0 ROCKWELL C MAXIMUM |
| STYLE DESIGNATOR | 142 KEY |
| EXTERNAL KEY QUANTITY | 2 |
| INTERNAL KEY QUANTITY | 2 |
| HOLE DIAMETER | 1.068 INCHES MINIMUM AND 1.072 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 1.290 INCHES MINIMUM AND 1.295 INCHES MAXIMUM |
| EXTERNAL STRAIGHT KEY WIDTH | 0.150 INCHES MINIMUM AND 0.160 INCHES MAXIMUM |
| INTERNAL STRAIGHT KEY WIDTH | 0.150 INCHES MINIMUM AND 0.160 INCHES MAXIMUM |
| DISTANCE FROM CENTERLINE TO TOP OF INTERNAL KEY | 0.453 INCHES MINIMUM AND 0.455 INCHES MAXIMUM |
| OVERALL DISTANCE INCLUDING KEYS | 1.445 INCHES MINIMUM AND 1.455 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.146 INCHES MINIMUM AND 0.150 INCHES MAXIMUM |
| TEST DATA DOCUMENT | 81349-MIL-I-6868 SPECIFICATION |
| MANUFACTURERS CODE | 77200 |
| DESIGN CONTROL REFERENCE | 02-15856 |
Restrictions/Controls & Freight Information | NSN 5310-00-184-9431
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-184-9431
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
