NSN 5310-00-177-1089 BACN10TR14, 00-177-1089, 001771089
Product Details | DOUBLE HEXAGON EXTENDED WASHER SELF-LOCKING NUT

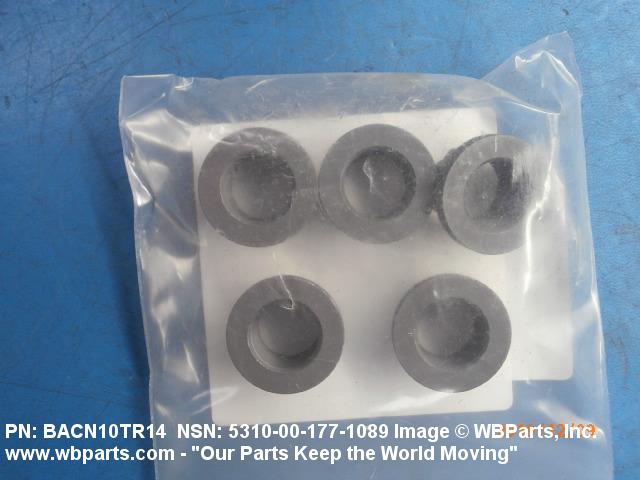

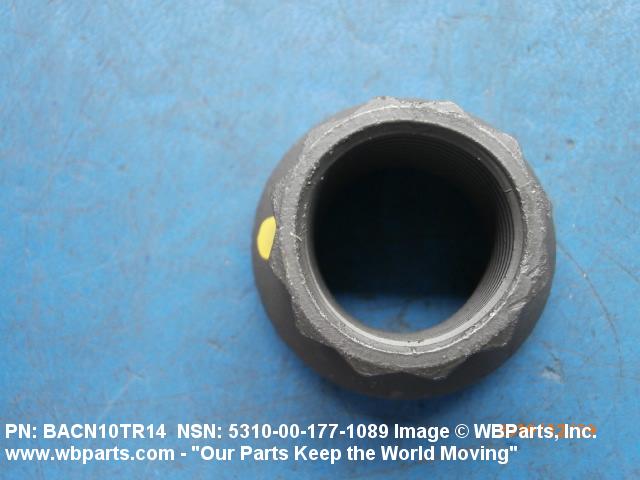

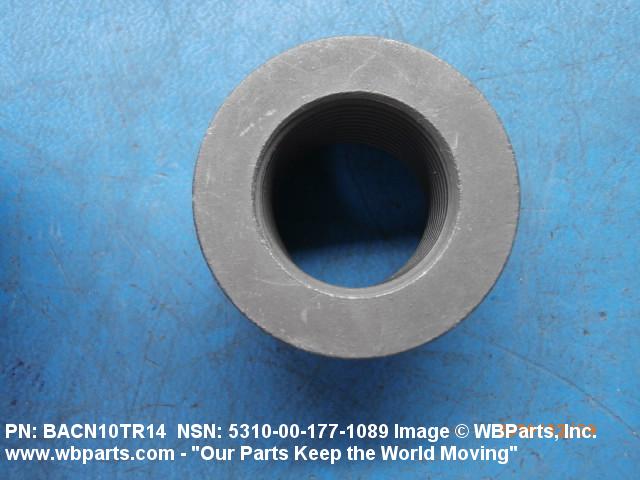

5310-00-177-1089 A nut having 12 drive points, 24 sides, and an integral washer which extends beyond the points or periphery. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: BACN10TR14, 5310-00-177-1089, 00-177-1089, 5310001771089, 001771089
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 NOV 1969 | 00-177-1089 | 29729 ( NUT, SELF-LOCKING, EXTENDED WASHER, DOUBLE HEXAGON ) |

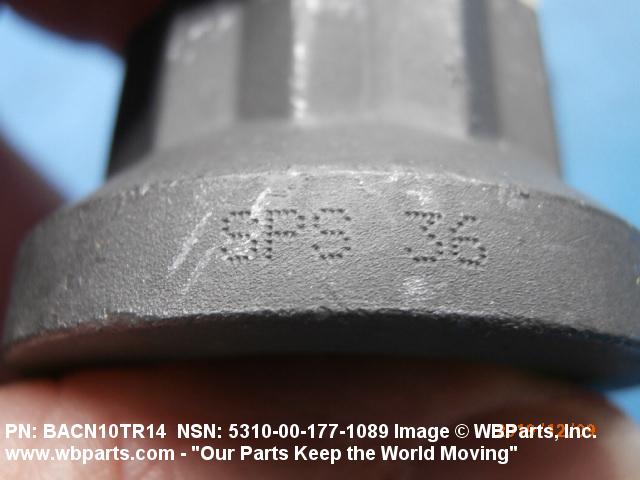

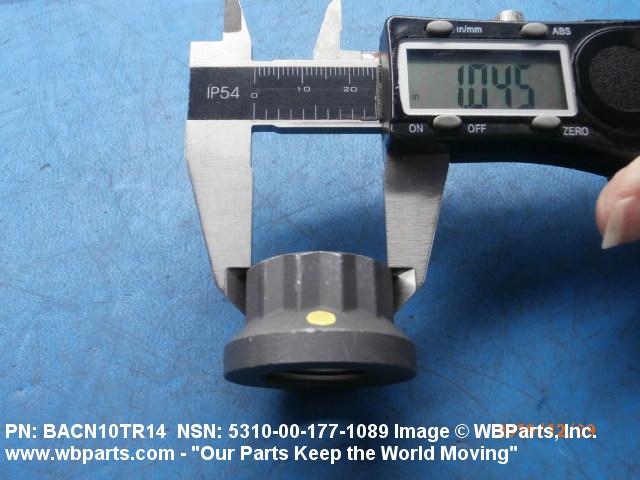

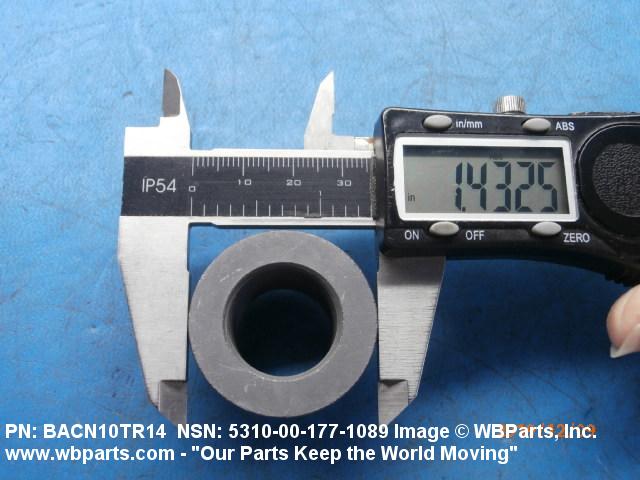

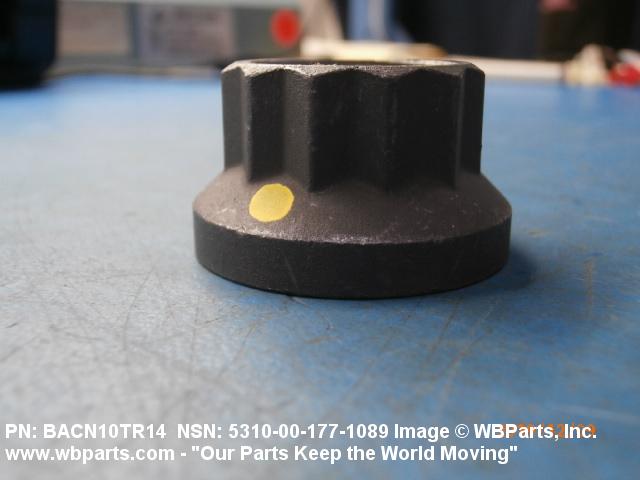

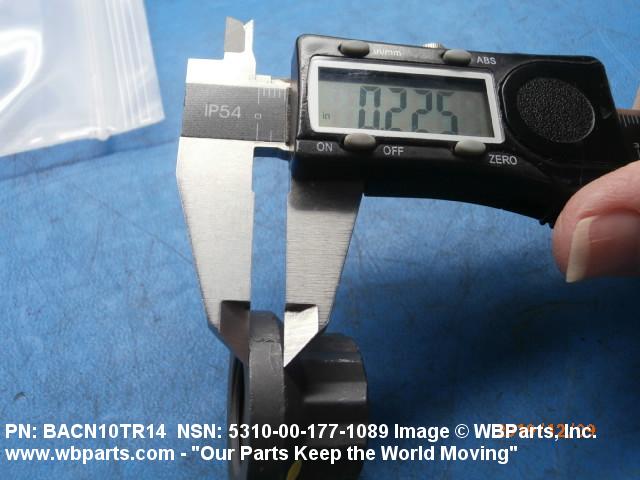

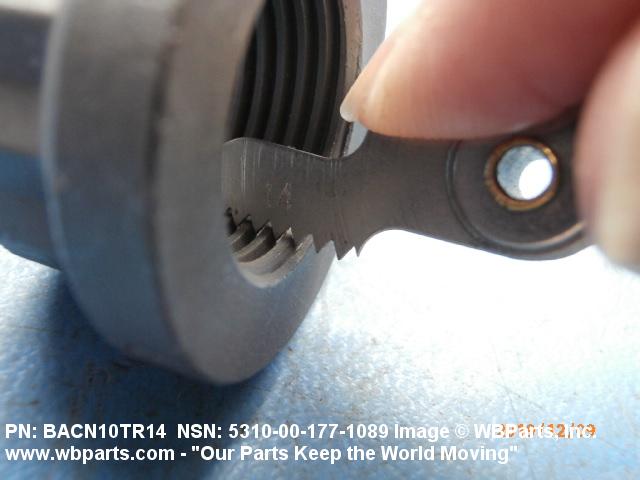

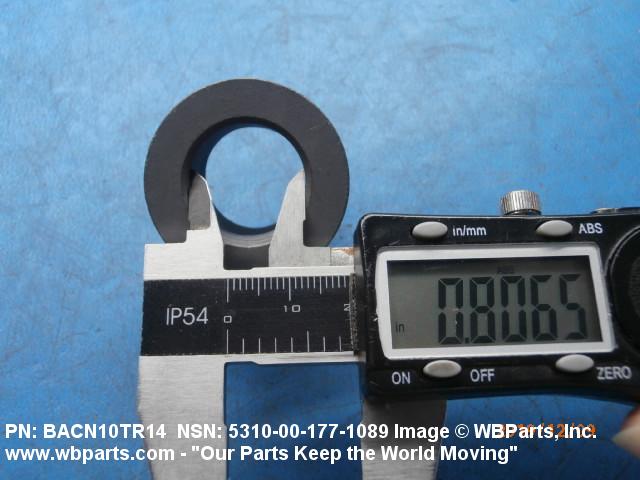

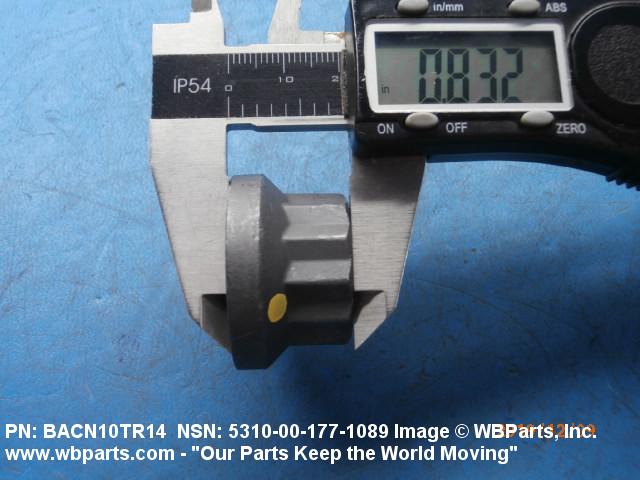

Drawings & Photos | NSN 5310-00-177-1089
Demand History | NSN 5310-00-177-1089
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-177-1089 | 2024-04-107 | 34 | United States |
| 5310-00-177-1089 | 2024-01-29 | 12 | United States |
| 5310-00-177-1089 | 2020-06-167 | 4 | US |
| BACN10TR14 | 2020-02-44 | 358 | DIBBS |
| 5310-00-177-1089 | 2019-10-295 | 4 | United States |
| 5310-00-177-1089 | 2019-10-295 | 5 | United States |
| BACN10TR14 | 2019-06-170 | 358 | DIBBS |
| BACN10TR14 | 2019-04-107 | 453 | DIBBS |
| BACN10TR14 | 2019-02-44 | 176 | DIBBS |
| 5310-00-177-1089 | 2009-04-117 | 5 | DIBBS |
| 5310-00-177-1089 | 2008-05-133 | 1126 | DIBBS |
| 5310-00-177-1089 | 2008-04-106 | 309 | US |
| 5310-00-177-1089 | 2008-04-105 | 983 | DIBBS |
| 5310-00-177-1089 | 2008-02-51 | 813 | DIBBS |
| BACN10TR14 | 2006-08-219 | 105 | United Kingdom |
| BACN10TR14 | 2006-07-212 | 105 | United Kingdom |
