NSN 5310-00-176-8109 A6336, A63-36, A63455
Product Details | HEXAGON SLOTTED PLAIN NUT

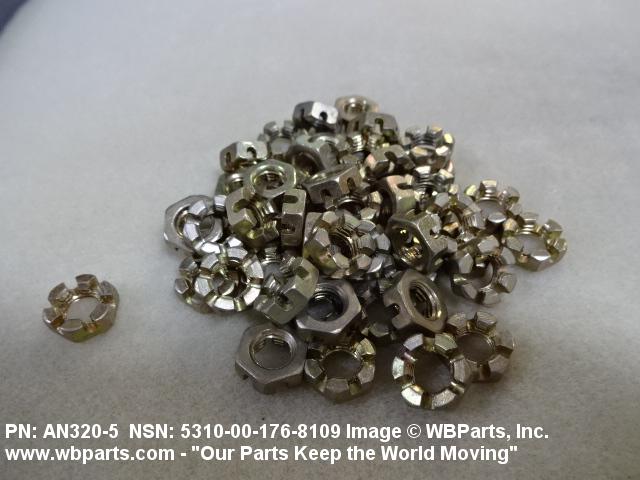

5310-00-176-8109 A nut having a flat bearing surface and 6 flat sides with slots in its upper portion. It is designed to provide positive locking when used with a solid or split (cotter) pin. Excludes NUT (1), PLAIN, CASTELLATED, HEXAGON.
Part Alternates: A6336, A63-36, A63455, A63-45-5, AN3205, AN320-5, F3721, F52SC320524, F52SC320-524, F52SCM320820, F52SCM320-820, 1756, 175-6, 175S6, 21533, 2210304, 404 394, 404394, 43018, 430-18, 4377, 437-7, 510876, 6628433P10, 6628469P10, 6628576P10, 7602360, 938.08.22.105, 9380822105, 5310-00-176-8109, 00-176-8109, 5310001768109, 001768109
Hardware and Abrasives | Nuts and Washers
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | 01 JAN 1963 | 00-176-8109 | 01859 ( NUT, PLAIN, SLOTTED, HEXAGON ) |
Demand History | NSN 5310-00-176-8109
Part Number | Request Date | QTY | Origin |
---|---|---|---|
5310-00-176-8109 | 2025-02-55 | 30 | US |
AN3205 | 2023-04-115 | 1 | us |
AN3205 | 2023-02-39 | 20 | Taiwan |
5310-00-176-8109 | 2021-07-209 | 2 | US |
5310-00-176-8109 | 2019-06-153 | 8402 | DIBBS |
5310-00-176-8109 | 2019-01-13 | 10003 | DIBBS |
5310-00-176-8109 | 2018-12-337 | 5129 | United States |
5310-00-176-8109 | 2018-12-336 | 70744 | DIBBS |
5310-00-176-8109 | 2018-10-278 | 20 | us |
AN3205 | 2017-10-297 | 50 | United Arab Emirates |
AN3205 | 2016-05-143 | 1 | Australia |
AN3205 | 2016-02-41 | 3 | US |
AN3205 | 2015-01-21 | 10 | Canada |
5310-00-176-8109 | 2014-11-310 | 7516 | DIBBS |
AN320-5 | 2014-11-308 | 5000 | United States |
AN3205 | 2014-10-295 | 4 | TH |
AN3205 | 2014-09-254 | 10 | Bahrain |
AN3205 | 2014-08-223 | 12 | US |
AN3205 | 2014-03-64 | 25 | US |
AN3205 | 2013-11-318 | 2550 | United States |
AN3205 | 2013-05-130 | 9 | US |
AN3205 | 2013-01-15 | 2 | ZA |
AN320-5 | 2012-11-310 | 50 | |
AN3205 | 2012-07-213 | 2000 | Italy |
5310-00-176-8109 | 2012-07-194 | 10 | United States |
AN320-5 | 2012-06-178 | 10 | PK |
1756 | 2012-05-152 | 5 | South Korea |
1756 | 2012-03-88 | 5 | United States |
5310-00-176-8109 | 2011-10-292 | 50 | US |
AN3205 | 2010-09-256 | 30 | Taiwan |
5310-00-176-8109 | 2010-07-202 | 1 | United States |
5310-00-176-8109 | 2010-05-140 | 8944 | DIBBS |
5310-00-176-8109 | 2009-02-55 | 1 | Philippines |
5310-00-176-8109 | 2008-05-127 | 150 | Taiwan |
5310-00-176-8109 | 2008-04-98 | 1 | Romania |
AN3205 | 2006-05-127 | 50 | US |
Cross Reference | NSN 5310-00-176-8109
Part Number | Cage Code | Manufacturer |
---|---|---|
175-6 | 13002 | GOODRICH CORPORATION DBA GOODRICH LANDING GEAR DIVISION |
175S6 | 06840 | BENDIX CORP THE |
175S6 | 13002 | GOODRICH CORPORATION DBA GOODRICH LANDING GEAR DIVISION |
175S6 | 17576 | GOODRICH CORP DBA GOODRICH CORP |
175S6 | 55284 | HONEYWELL INTERNATIONAL INC DBA HONEYWELL |
21533 | 19315 | HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS FORMER BENDIX NAVIGATION AND |
21533 | 99551 | GOODRICH CORPORATION DIV POWER TRANSMISSION SYSTEMS |
2210304 | 001JK | EMBRAER S/A |
2210304 | S4956 | EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA |
404 394 | 77294 | PIPER AIRCRAFT INC. |
430-18 | 99167 | HAMILTON SUNDSTRAND CORPORATION |
437-7 | 45934 | ONTIC ENGINEERING AND MANUFACTURING, INC. |
437-7 | 56705 | DONALLCO INC |
510876 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
6628433P10 | 24446 | GENERAL ELECTRIC CO |
6628469P10 | 24446 | GENERAL ELECTRIC CO |
6628576P10 | 24446 | GENERAL ELECTRIC CO |
7602360 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
938.08.22.105 | S4080 | PILATUS AIRCRAFT LTD |
A63-36 | 25472 | BFGOODRICH CO THE |
A63-45-5 | 25472 | BFGOODRICH CO THE |
AN320-5 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
AN320-5 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
F3721 | 0CSK6 | WINCO, INC. |
F3721 | 77260 | PIERCE CO INC THE SUB OF AVIS INDUSTRIAL CORP |
F52SC320-524 | 27687 | GREER STOP NUT INC. |
F52SCM320-820 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
F52SCM320-820 | 72962 | HARVARD INDUSTRIES INC |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-176-8109
Related Products | NSN 5310-00-176-8109
Technical Data | NSN 5310-00-176-8109
Characteristic | Specifications |
---|---|

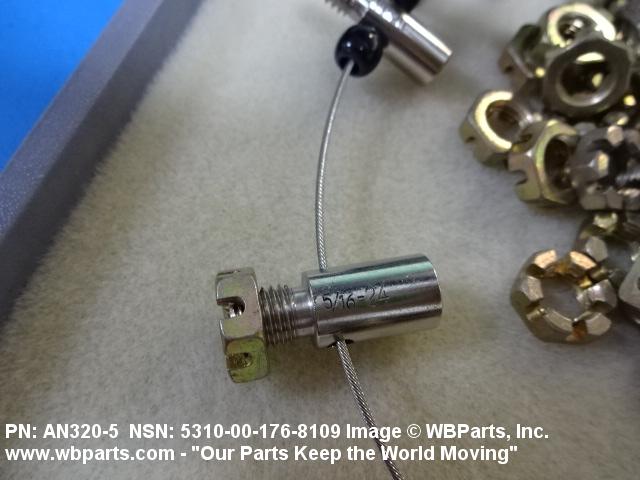

THREAD SERIES | UNF |

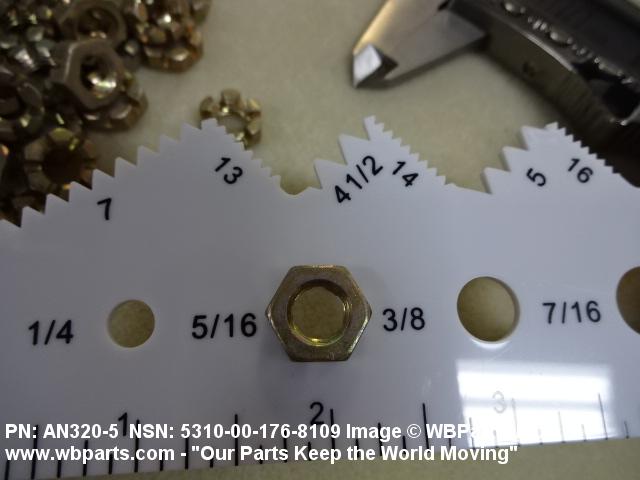

NOMINAL THREAD SIZE | 0.312 INCHES |
THREAD QUANTITY PER INCH | 24 |
THREAD CLASS | 3B |
THREAD DIRECTION | RIGHT-HAND |
MATERIAL | STEEL OVERALL |
SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
HARDNESS RATING | NOT RATED |
NUT STYLE | A17 SLOTTED, HEXAGON |

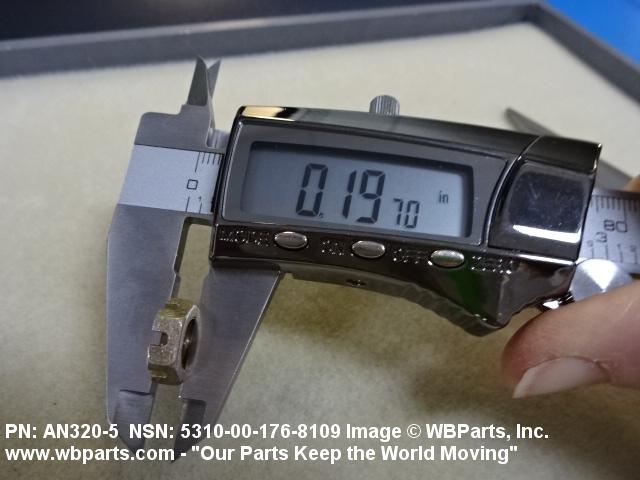

NUT HEIGHT | 0.172 INCHES MINIMUM AND 0.203 INCHES MAXIMUM |

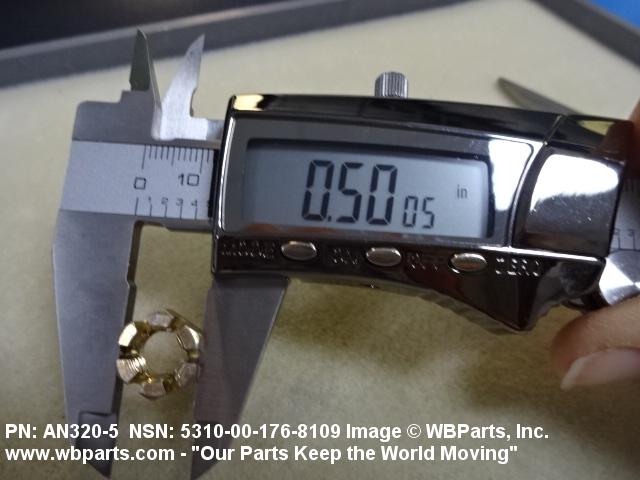

WIDTH ACROSS FLATS | 0.490 INCHES MINIMUM AND 0.502 INCHES MAXIMUM |
BEARING SURFACE TYPE | CHAMFERED OR WASHER FACED |
TEMP RATING | NOT RATED |
III BEARING SURFACE FINISH | 125.0 MICROINCHES |
III END ITEM IDENTIFICATION | W/S:AIRCRAFT (AC-130H, MC-130H, EC-130E, HC-130); ENGINE, AIRCRAFT, F100-PW-200(F-16A/B/C/D); AIRCRAFT, T-2; ENGINE, AIRCRAFT TF33-PW-102 (C-135E, EC-135H/K/P); ENGINE, AIRCRAFT, TF-33-P-7 (C-141A/B); ENGINE, AIRCRAFT TF33-P-3/5/9 (C/EC-135, B-52H); AIRCRAFT, C-2A (REPROCURED); HELICOPTER, MH-53E; JOINT STARS TARGET RADAR SYSTEM; ENGINE, AIRCRAFT, T56-A-7/15 (C-130B/E/H/N/P) |
Restrictions/Controls & Freight Information | NSN 5310-00-176-8109
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | U | Precious metal type is unknown |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
Less than car load rating | ||
Less than truck load rating | W | Rating Variable |
Water commodity Code | 573 | unknown |
Originating Activity Code | XX | |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-176-8109
Category | Code | Description |
---|---|---|
Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
Specific Group/Generic Code | B | Rotary Wing Aircraft |
Weapons Systems/End Item or Homogeneous Group | BK | CH-47 |
Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DA | Department of the Army |
Service Organization | A | U.S. Army |
Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
Category | Code | Description |
---|---|---|
Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
Price Validation | V | The current standard price has been validated.
|
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DF | Department of the Air Force |
Service Organization | F | U.S. Air Force |
Reparability | N | Stock Fund (except Munitions) |
Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
Category | Code | Description |
---|---|---|
Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DM | U.S. Marine Corps |
Service Organization | M | U.S. Marine Corps |
Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
Category | Code | Description |
---|---|---|
Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
