NSN 5310-00-167-1726 AN960D616, AN960-D616, HR071P
Product Details | FLAT WASHER
5310-00-167-1726 A washer having a centrally located hole with a solid or laminated cross-section and two flat parallel bearing surfaces. The hole must be 75 percent or less than the largest dimension and the bearing surface finish is greater than 32 microinch (0.8 micrometer). The thickness cannot exceed 25 percent of the largest outside dimension. When the largest outside dimension is less than 1/4 inch or 6mm, the thickness must be 0.006 inches (0.15mm) or greater and for items 1/4 inch (6mm) or larger, the thickness must be 0.016 inches (0.4mm) or greater. The maximum tolerance is applied to dimensions and used as a determining factor. Items with separable lamination use SHIM. For items fabricated from ceramic or electrically rated materials by specification or industry standards use INSULATOR (1), WASHER. Excludes DISK, VALVE, graphite impregnated and lubricated items.
Part Alternates: AN960D616, AN960-D616, HR071P, HR07-1P , FFW92, D616, 07010AL25063, 07010AL25-063, 1246826D10064, 124682-6D10-064, 2411580, 7010AL25064, 7010AL25-064, 8812907, 907379, 5310-00-167-1726, 00-167-1726, 5310001671726, 001671726
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-167-1726 | 13393 ( WASHER, FLAT ) |

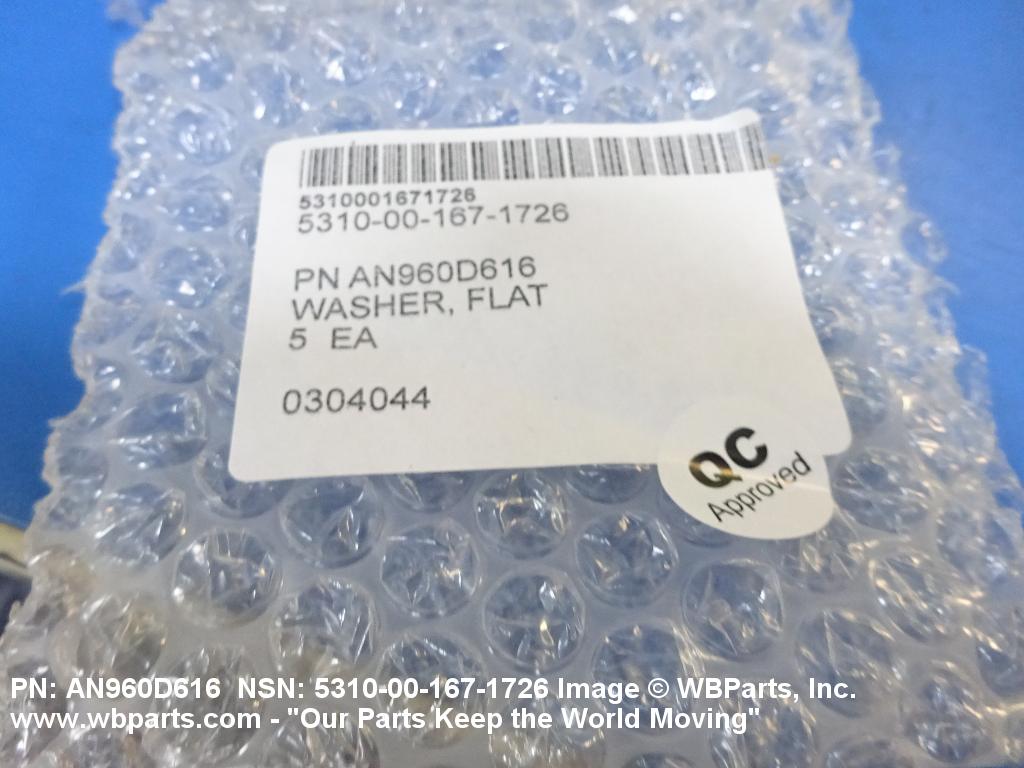

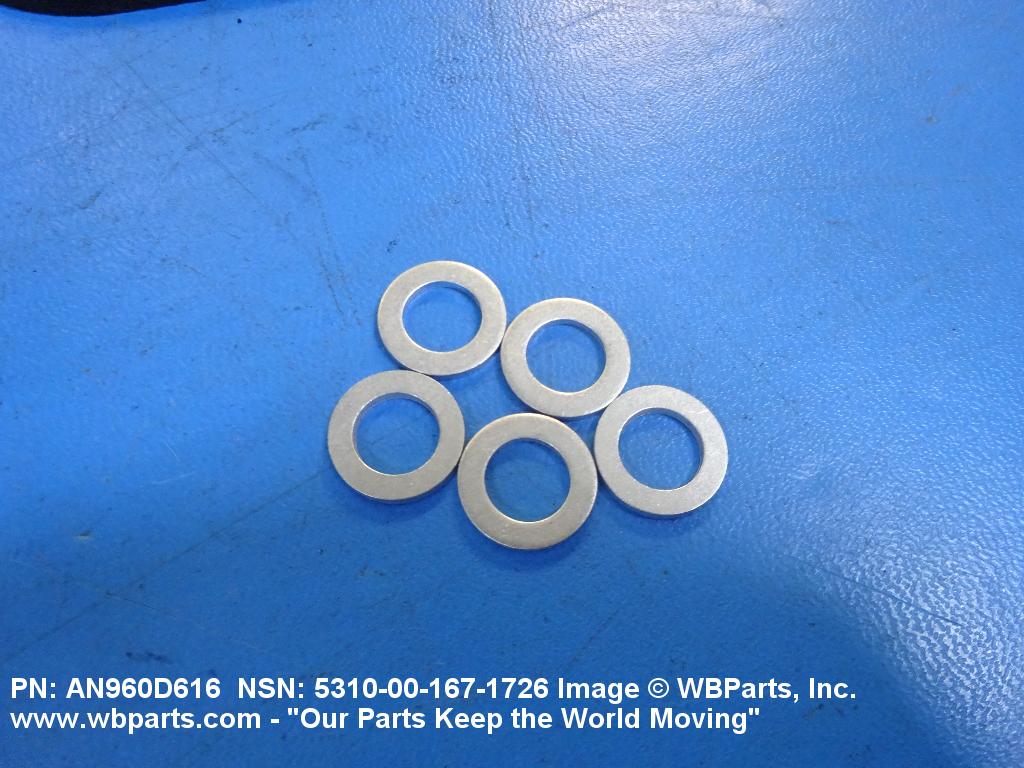

Drawings & Photos | NSN 5310-00-167-1726
Demand History | NSN 5310-00-167-1726
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-167-1726 | 2023-07-207 | 20 | US |
| 5310-00-167-1726 | 2022-04-109 | 5 | United States |
| 5310-00-167-1726 | 2022-04-94 | 5 | United States |
| AN960D616 | 2021-03-74 | 2 | United States |
| FFW92 | 2018-07-207 | 2 | United States |
| 5310-00-167-1726 | 2016-08-235 | 100 | United States |
| FFW92 | 2016-08-217 | 21 | US |
| AN960D616 | 2016-02-41 | 12 | US |
| AN960D616 | 2012-11-310 | 50 | |
| FFW92 | 2011-10-304 | 495 | United States |
| AN960D616 | 2011-07-200 | 16 | United States |
| 5310-00-167-1726 | 2010-05-144 | 200 | us |
| 5310-00-167-1726 | 2008-05-137 | 18853 | DIBBS |
| 5310-00-167-1726 | 2008-04-93 | 72 | US |
| 5310-00-167-1726 | 2008-03-83 | 8 | us |
Cross Reference | NSN 5310-00-167-1726
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 07010AL25-063 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| 124682-6D10-064 | 18355 | BOEING COMPANY, THE DBA BOEING |
| 124682-6D10-064 | 88277 | BOEING COMPANY, THE DBA BOEING |
| 2411580 | 001JK | EMBRAER S/A |
| 2411580 | S4956 | EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA |
| 7010AL25-064 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| 8812907 | 19203 | PICATINNY ARSENAL |
| 907379 | 06848 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 907379 | 55284 | HONEYWELL INTERNATIONAL INC DBA HONEYWELL |
| AN960-D616 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| AN960D616 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| D616 | 46467 | ACF COMPONENTS & FASTENERS INC. |
| FFW92 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-167-1726
Technical Data | NSN 5310-00-167-1726
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/5 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |

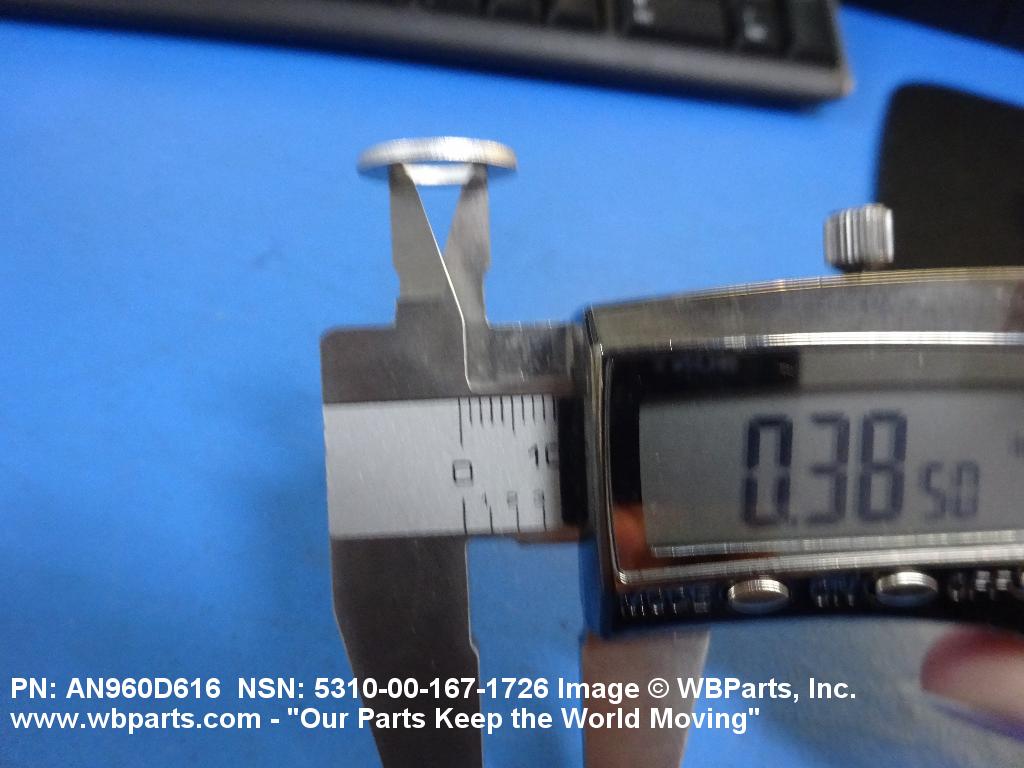

| HOLE DIAMETER | 0.390 INCHES NOMINAL |
| PERIPHERAL SHAPE STYLE | 1 ROUND |

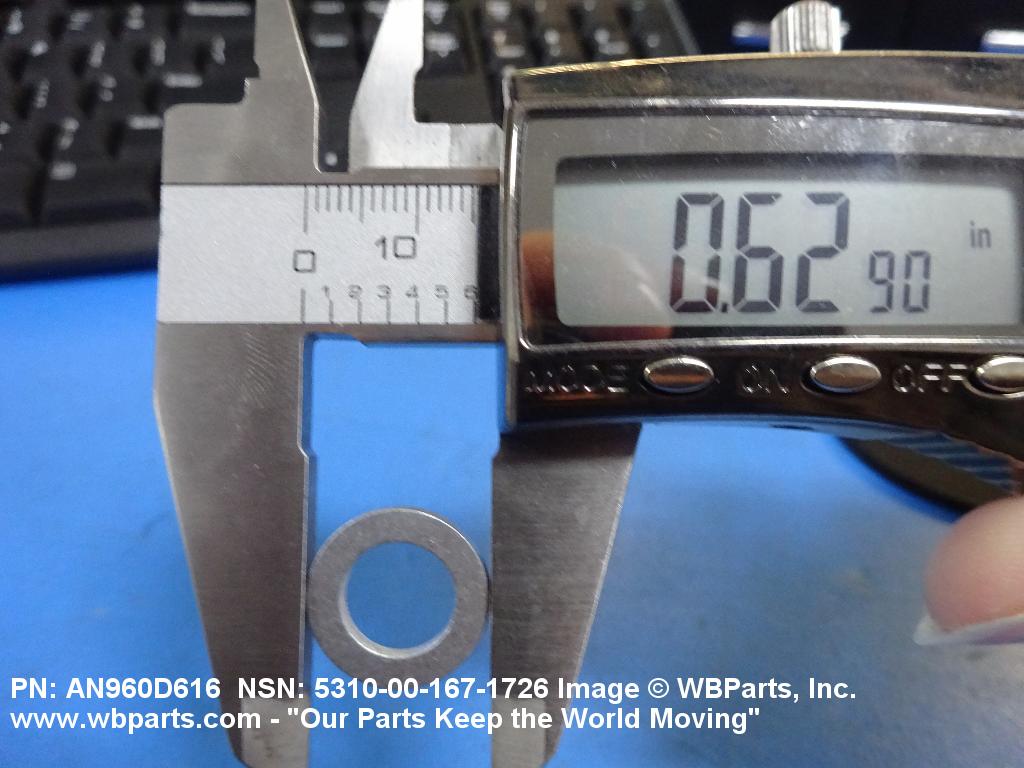

| OVERALL DIAMETER | 0.625 INCHES NOMINAL |
| CENTER HOLE SHAPE STYLE | 1 ROUND |
| CROSS-SECTIONAL SHAPE STYLE | 1 RECTANGULAR |

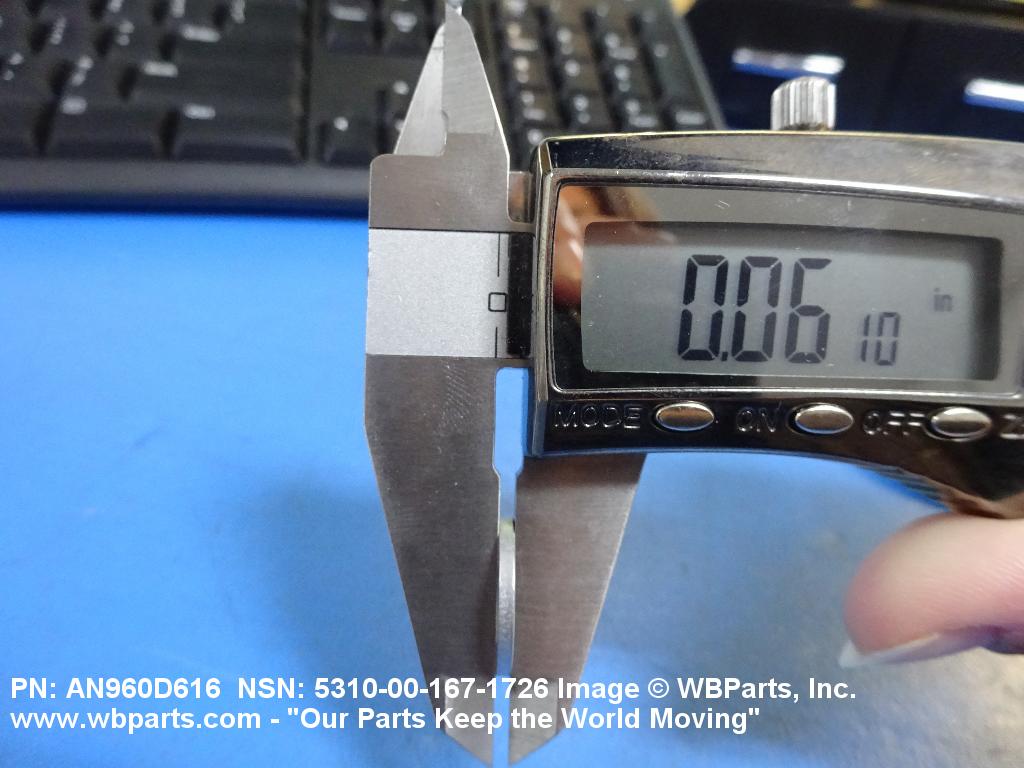

| THICKNESS | 0.063 INCHES NOMINAL |
| NONDEFINITIVE SPEC/STD DATA | A TYPE AND 2 GRADE AND D CLASS |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN960D616 |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FFW92 |
Restrictions/Controls & Freight Information | NSN 5310-00-167-1726
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
