NSN 5310-00-167-1350 A128Q, AN31510R, AN315-10R
Product Details | HEXAGON PLAIN NUT
5310-00-167-1350 A nut, flat on top and bottom having 6 flat sides. For items which have internal tapered or straight (parallel) pipe threads, specific electrical conduit size designation, and which when installed, provide a method of tightening to lock the connection, see LOCKNUT, ELECTRICAL CONDUIT. See also LOCKNUT, TUBE FITTING. For items having a thickness (or height) exceeding two times the width across the flats, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. (When height or thickness and/or width across the flats is designated as a tolerance dimension, the maximum dimension will be used to determine compliance.
Part Alternates: A128Q, AN31510R, AN315-10R, FFN836, FF-N-836, PDG610110, PDG6101-10, 8527582, 956C4734, 956C473-4, 5310-00-167-1350, 00-167-1350, 5310001671350, 001671350
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-167-1350 | 01857 ( NUT, PLAIN, HEXAGON ) |

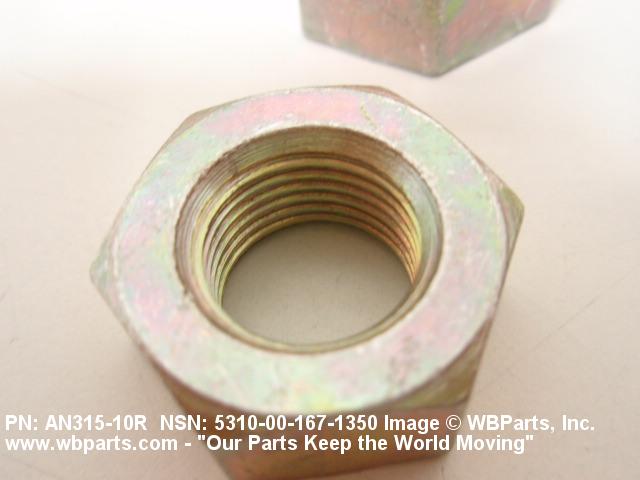

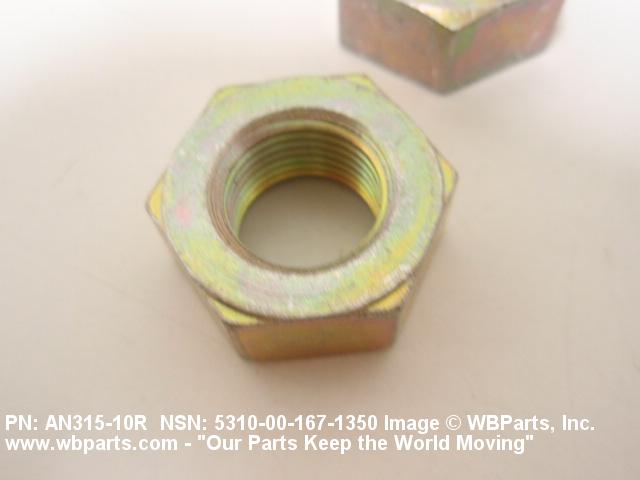

Drawings & Photos | NSN 5310-00-167-1350
Demand History | NSN 5310-00-167-1350
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| FFN836 | 2024-10-291 | 190 | US |
| AN31510R | 2024-07-183 | 178 | South Africa |
| AN31510R | 2024-02-53 | 160 | South Africa |
| FFN836 | 2023-09-258 | 100 | TR |
| AN31510R | 2023-06-166 | 96 | South Africa |
| AN31510R | 2023-01-19 | 33 | South Africa |
| AN31510R | 2022-02-33 | 60 | South Africa |
| FFN836 | 2021-11-307 | 200 | United States |
| FFN836 | 2021-08-228 | 100 | United States |
| 5310-00-167-1350 | 2020-04-105 | 20 | US |
| FFN836 | 2019-02-44 | 288 | US |
| FFN836 | 2018-02-32 | 2 | US |
| FFN836 | 2017-05-123 | 25 | United States |
| FF-N-836 | 2016-05-145 | 48 | Spain |
| 5310-00-167-1350 | 2016-03-63 | 91 | DIBBS |
| 5310-00-167-1350 | 2016-02-35 | 86 | DIBBS |
| 5310-00-167-1350 | 2015-12-337 | 86 | DIBBS |
| 5310-00-167-1350 | 2015-11-326 | 86 | DIBBS |
| FFN836 | 2012-12-341 | 1 | US |
| FFN836 | 2010-11-322 | 100 | United Kingdom |
| FFN836 | 2010-08-218 | 1 | US |
| FFN836 | 2010-08-218 | 1 | US |
| FFN836 | 2010-08-218 | 1 | US |
| FFN836 | 2010-08-218 | 1 | US |
| AN31510R | 2010-06-165 | 50 | Argentina |
| FFN836 | 2010-03-90 | 4 | us |
| FFN836 | 2010-03-81 | 50 | United States |
| FFN836 | 2010-02-46 | 50 | United States |
| 5310-00-167-1350 | 2009-12-338 | 2 | US |
| FFN836 | 2009-07-183 | 1000 | US |
| FFN836 | 2009-05-141 | 580 | US |
| FFN836 | 2008-07-195 | 20 | US |
| FFN836 | 2008-06-171 | 200 | US |
| AN31510R | 2008-03-66 | 10 | us |
| FFN836 | 2008-02-39 | 1 | US |
| FFN836 | 2007-10-298 | 100 | US |
Cross Reference | NSN 5310-00-167-1350
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8527582 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 956C473-4 | 83843 | SUNDSTRAND CORP ELECTRIC POWER SYSTEMS DIV |
| 956C473-4 | 99167 | HAMILTON SUNDSTRAND CORPORATION |
| A128Q | K7766 | BRITISH STANDARDS INSTITUTION |
| AN315-10R | 79318 | MEGGITT (NORTH HOLLYWOOD), INC. |
| AN315-10R | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| AN315-10R | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN315-10R | U7709 | MCNAUGHTON DYNAMICS LTD |
| FF-N-836 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| NASM315-10R | 81205 | THE BOEING COMPANY DBA BOEING |
| PDG6101-10 | 18631 | PRODUCT DEVELOPMENT GROUP INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-167-1350
Technical Data | NSN 5310-00-167-1350
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.625 INCHES |
| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A12 HEXAGON |
| NUT HEIGHT | 0.469 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.986 INCHES MINIMUM AND 1.002 INCHES MAXIMUM |
| BEARING SURFACE TYPE | CHAMFERED |
| TEMP RATING | NOT RATED |
| NONDEFINITIVE SPEC/STD DATA | 2 TYPE |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FF-N-836 |
Restrictions/Controls & Freight Information | NSN 5310-00-167-1350
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
