NSN 5310-00-167-0844 A176522, A17652-2, AN9601616L
Product Details | FLAT WASHER
5310-00-167-0844 A washer having a centrally located hole with a solid or laminated cross-section and two flat parallel bearing surfaces. The hole must be 75 percent or less than the largest dimension and the bearing surface finish is greater than 32 microinch (0.8 micrometer). The thickness cannot exceed 25 percent of the largest outside dimension. When the largest outside dimension is less than 1/4 inch or 6mm, the thickness must be 0.006 inches (0.15mm) or greater and for items 1/4 inch (6mm) or larger, the thickness must be 0.016 inches (0.4mm) or greater. The maximum tolerance is applied to dimensions and used as a determining factor. Items with separable lamination use SHIM. For items fabricated from ceramic or electrically rated materials by specification or industry standards use INSULATOR (1), WASHER. Excludes DISK, VALVE, graphite impregnated and lubricated items.
Part Alternates: A176522, A17652-2, AN9601616L, AN960-1616L, AN960C1616L, AN960-C1616L, NAS1149F1632P, 701-4711389 PIECE 49, 7014711389PIECE49, 89032100, 890321-00, 5310-00-167-0844, 00-167-0844, 5310001670844, 001670844
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-167-0844 | 13393 ( WASHER, FLAT ) |

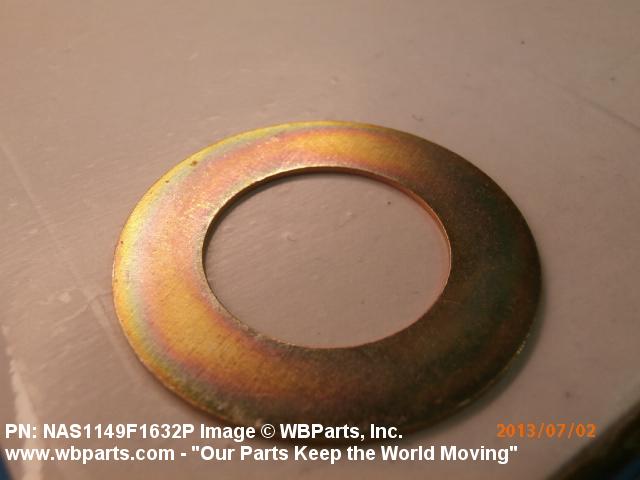

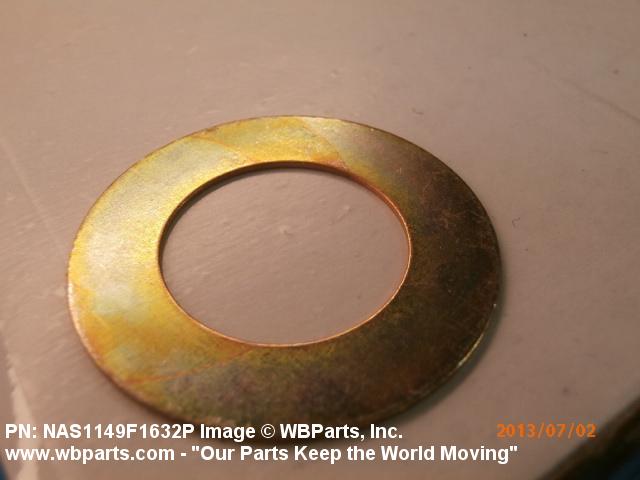

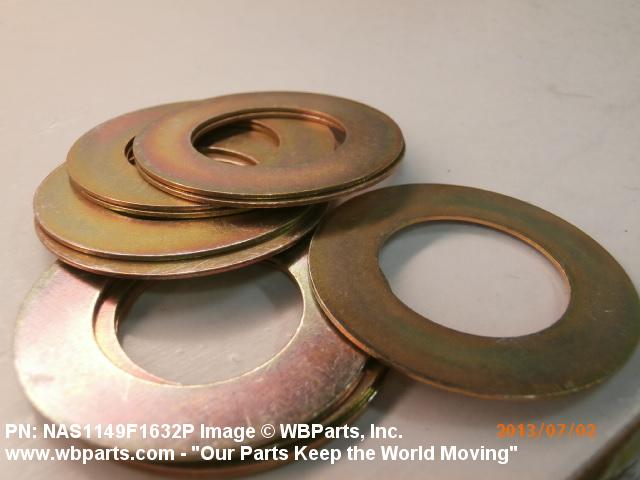

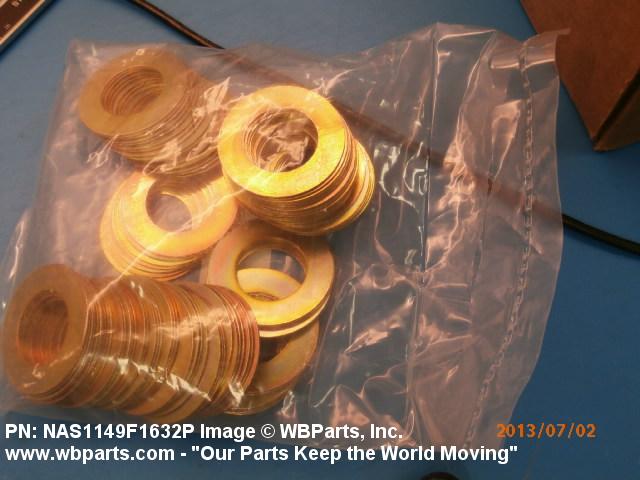

Drawings & Photos | NSN 5310-00-167-0844
Demand History | NSN 5310-00-167-0844
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-167-0844 | 2025-06-168 | 451 | DIBBS |
| 5310-00-167-0844 | 2025-06-160 | 451 | DIBBS |
| 5310-00-167-0844 | 2025-05-148 | 422 | DIBBS |
| 5310-00-167-0844 | 2025-05-133 | 422 | DIBBS |
| 5310-00-167-0844 | 2024-12-346 | 292 | DIBBS |
| AN960-C1616L | 2020-10-295 | 30 | US |
| 5310-00-167-0844 | 2019-03-86 | 275 | DIBBS |
| AN9601616L | 2019-02-44 | 1 | United States |
| NAS1149F1632P | 2017-05-138 | 4 | United States |
| AN960C1616L | 2013-05-123 | 20 | United States |
| NAS1149F1632P | 2013-05-123 | 100 | United States |
| AN960C1616L | 2012-11-310 | 50 | |
| AN960C1616L | 2012-04-93 | 20 | US |
| AN9601616L | 2011-03-63 | 10 | US |
| AN960C1616L | 2010-11-327 | 4 | United States |
| AN9601616L | 2010-05-132 | 8 | United States |
| AN960C1616L | 2009-10-302 | 25 | Italy |
| AN960C1616L | 2007-06-158 | 50 | United States |
Cross Reference | NSN 5310-00-167-0844
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5310001670844 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 701-4711389 PIECE 49 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 890321-00 | 32345 | DEFENSE REDUCTION AGENCY |
| A17652-2 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| AN960-1616L | 6R888 | J. T. D. STAMPING CO., INC. |
| AN960-1616L | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN960-C1616L | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| NAS1149F1632P | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-167-0844
Technical Data | NSN 5310-00-167-0844
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-7952 MIL SPEC SINGLE MATERIAL RESPONSE OR QQ-S-698 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |

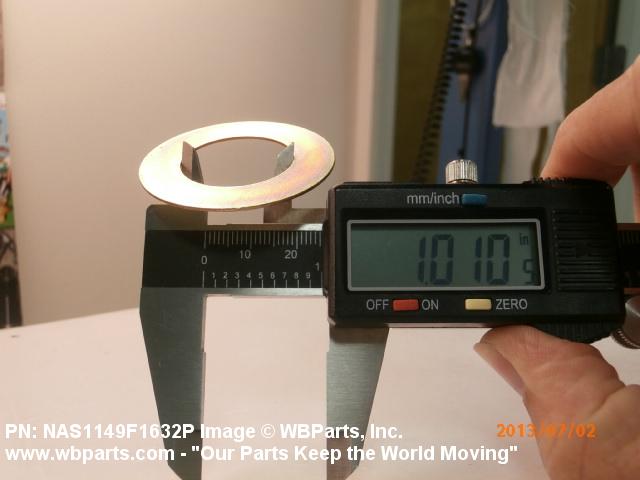

| HOLE DIAMETER | 1.005 INCHES MINIMUM AND 1.025 INCHES MAXIMUM |
| PERIPHERAL SHAPE STYLE | 1 ROUND |

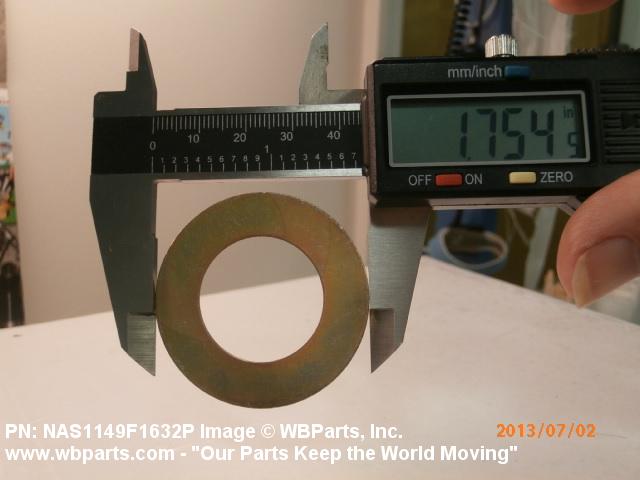

| OVERALL DIAMETER | 1.745 INCHES MINIMUM AND 1.770 INCHES MAXIMUM |
| CENTER HOLE SHAPE STYLE | 1 ROUND |
| CROSS-SECTIONAL SHAPE STYLE | 1 RECTANGULAR |

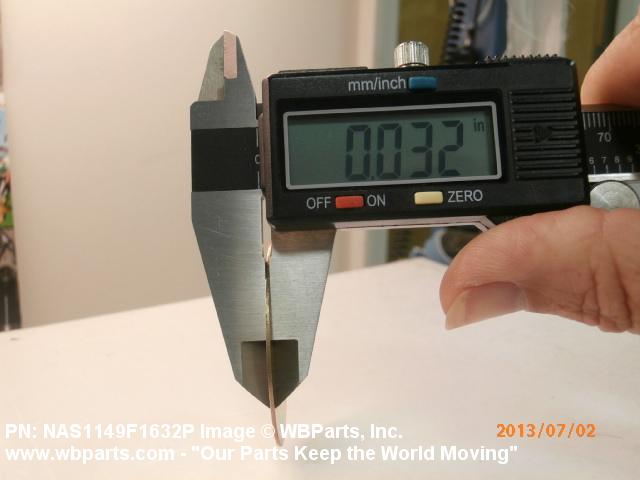

| THICKNESS | 0.022 INCHES MINIMUM AND 0.042 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5310-00-167-0844
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-167-0844
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
